1600HP Sling Shot Skidding Triple Drilling Rig for Sale


Name    :    1600HP Sling Shot Skidding Triple Drilling Rig for Sale
ID    :    WR644
Year manufactured   :    2009
Price   :    Inquire for pricing
Specifications   :    1600HP Sling Shot, Skidding, Triple Drilling Rig for Sale
2009 Built Land Rig for sale
Used 2009 Built Parallelogram Style Drilling Rig
Drilling Rig - Mast 143ft - For Sale
Sling Shot, Skidding, Triple Drilling Rig - 2009 Built - For Sale
Parallelogram Style Drilling Rig for Sale
Used 1600HP Sling Shot, Skidding, Triple Drilling Rig



General Description
Year Built/Rebuilt : 2009
Estimated Drilling Depth : 18,000 ft
Estimated Rig Move Loads : 55
Estimated Camp Move Loads : 22
Rated HP : 1600

Mast

Height : 143.00 ft
Static Hook Load Capacity: 705,480 lbs
Mast Racking Capacity : 18,000 ft

Substructure

Style : Parallelogram
Height : 31.00 ft
Clear Height : 26.60 ft
Casing Capacity : 750,000 lbs
Maximum Setback Load (lbs.) : 500,000

Drawworks
Make : IDM Equipment
Model : AC-1600
Power Rating : 1,600hp
Input Power : 1 ea. General Electric GEB 28 A1
Auxiliary Brake : Disc
Drilling Line size : 1 3/8"

Top Drive / Power Swivel
Make : Canrig Drilling Technology
Model : 1250AC-681
Capacity : 500 Ton
Torque-Continuous : 51,400 ft-lb @ 120RPM

No Swivel

Rotary Table

Make : American Block RK-275
Table Opening : 27 1/2"
Maximum Load Rating : 500 Ton

Power Generation
Engines : 4 ea. Caterpillar 3512B
Generators : 4 ea. Caterpillar SR4
SCR / VFD / DC/DC : VFD Rig

Enhancements

Forklift : Caterpillar 930H
Iron Roughneck : Weatherford Oil Tools TorkWrench 10-100 IR

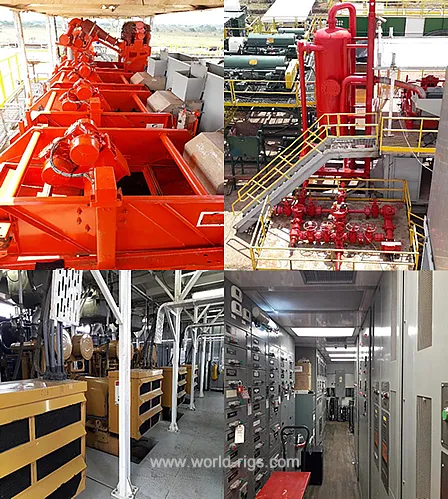

Mud System

Mud Pumps : 3 ea Weatherford MP-16 1,600hp @ 120 spm
Reserve Mud Volume : 840 bbls
Pressure Rating : 5,000 psi
Active Mud Volume : 1,260 bbls
Shale Shakers : 4 ea. MI Swaco Mongoose

Desander : MI Swaco 10" x 2 Cones
Desilter : MI Swaco 4" x 16 Cones
Mud Cleaner : N/A
Centrifuge : N/A

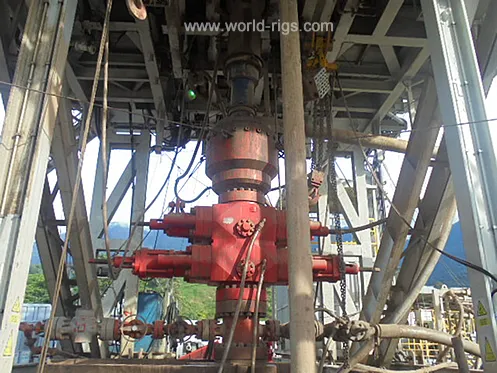

Well Control

Annular : 13 5/8" 5,000 psi, T3 Energy Services, GK

Single Ram Preventer :
13 5/8 10,000 psi, T3 Energy Services
13 5/8 5,000 psi, Cameron

Double Ram Preventer : 13 5/8 10,000 psi, T3 Energy Services, T3-U 6012
Choke Manifold : 3 1/16" 10,000 psi
BOP Closing Unit : Sara Services MC220-11BT3

WorldRigs has 1600HP Sling Shot Skidding Triple Drilling Rig for Sale
