Description
Flex Joint 18-3/4" 2 KSI 10K Flange. SN 544

Description
Annular 18-3/4" 10K Type D -
Assembled 11-2013


Description :

Airdriven, Electric, Hydraulic and Manual hoists and trolleys, capacity 0,5 – 100 T.
Standard and lowhead room.

Description :

Triangle plates for towing or load distribution, capacity up to 700 ton

Description :

Turnbuckles used to shorten or expand wirerope or chain assemblies

Description :

Four-wheel drive Under Rollers are designed for ease of handling and
maneuvering reels up to 350Te capacity. suitable for reels up to
11.2m diameter and variable width.

Under Rollers are supplied with diesel or electric hydraulic power
packs and can be manually or digitally controlled.

Also self-loading versions available complete with cradles to avoid the
need for a crane to load/unload reel.

Crane loaded under roller description :
Consist of four powered rollers in carriage which rest on two sets
of bed beams. Bed beams are lifted into position with forklift and
spacer tubes are bolted between beds. Reel is lifted onto rollers
with crane.

Loading is possible both directions, Powered wheels comes with
hydraulic and mechanical brakes for both directions.

Data for 350 Ton capacity crane loaded under roller :
Drive force at rim per powered roller 2.6 – 3.4 Ton
Max rim speed with 110 l/min HPU 15 – 20 m/min
Max reel weight 350 Ton
Flange width Up to 240 mm
Hydraulic pressure 210 bar
Weight each carriage 3500 kg (two off)

Description :
Principal Particulars :
Maker : NOV/Am-Clyde
Model : ATL-60
Build : 2012
Class : DNV incl. man riding
Crane Voltage : 690V, Crane equipped with 6,6KV transformers

Crane Capacities :
Capacity Main : 1200t@14-31m, 600t@50m, 250t@70m
Capacity Aux : 500t@20.3-60m,120t@100m
Capacity Whip : 50t@22.9-113.4m
Man-riding Capacity : 5 ton all radii
Boom Length (from center line of boom foot pin) :
Length to main fall upper block sheaves : 85.5m
Length to auxiliary fall upper block sheaves : 107.0m
Length to whip fall jib tip sheaves : 115.0m
Operating Radius :
Main fall : 18.0-91.0m
Auxiliary fall : 20.0-105.0m
whip fall : 22.55-113.41m

Whinches :
Main hoist winch : 66.8MT single linepull at 64m/min,4x186KW
Aux hoist winch : 68.7MT single linepull at 62m/min,4x186KW
Whip hoist winch : 27.5MT single linepull at 158m/min,4x186KW
Boom hoist winch : 2.3MT single linepull at 26-61m/min,3x186KW
Swing drives : 6x149KW, Swing speed 0,3RPM
Tugger winches,4xload control : 25MT single line at 16m/min,75KW each

Location : Netherlands

Specifications
Cameron HC Connector 18-3/4" 15K.
c/w CX18 Gasket profile, Assy No. 615626-23.
Type c/c HC.
Serial No. 113039114-01.
S/O 3033601.
Mfg Date : 10/2014.

Adjustable Spreader Beams @ 20º top sling
1 x 12.5M, capacity up to 24T
1 x 14M, capacity 57 T
1 x 11M, capacity up to 100T
2 x 24M, capacity 198T
2 x 14.5M, capacity 250T
2 x 24M, capacity 319 T
2 x 22M, capacity 400T

General
YOM : 2013
Model OSB 240 (M).

Specifications
Dimensions : 2.7 x 1.6 x 2.8
Weight : 4030 Kg
Rated Load 280Kg.

Description
Flange x Hub, in cert to Feb 2019. Serial Number SPH 3222

Measurements
Dimensions : 1.7 x 1.7 x 1.8

Description

Riser Adapter PN NO-DB-AD-0791

Measurements

Dimensions 1.5 x 1.5 x 2 H
Weight 3Te

Description

GE Oil and Gas Diverter Assembly.
KFDS 500 Psi MWP.
49 1/2" Rotary Table.
Assy No 06363801-1H803.
SN 0000416873-1.
YOM March 2015

Measurements

Dimensions 3.0 x 1.5 x 1.8

Weight 12 Te

Description
4 x WOM 10K Failsafe Valves

Measurements
Weight : 1.4 x 1.15 x 0.4
Price & terms : Please enquire using the email form below.

Description
AnnularType DL 18-3/4" 10K, flanged CX18 Gasket
Assy No. 2163588-41

New Unused
Manufacture Date 04-2014
Certified until 2019

Description :

This cable push / pull system provide supplementary force when laying
heavy cables.
Usable in serial combination with one-man operation or as stand alone unit.
Optimum and gentle transmission of power to the cable.
Suitable for narrow trenches.
Cable winch not neccessary.
Transport chains are equipped with wear resistant plastic studs.

Electric driven
Drive power : 1,5 kW
Pushing force : Approx 700 kg
Pushing speed : 0 – 10 m/min
Cable diameter : 30 – 150 mm
Weight each : 185 kg
L 1700mm x W 550mm x H 9830mm

Description
All flanged and in ticket to 2018

Measurements
Dimensions :
1) 1.4 x 1.55 x 2.15H, 2-3) 1.4 x 1.4 x 1.9H, 4-12)1.4 x 1.9 x .8 H

Weight :
1)17, 2&3)12 each, 4-12)4 each


Description
4 x BOP Fail Safe Valves

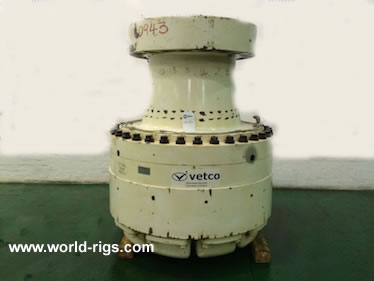

Description

Unused Collect Connector Assy 18-3/4" 10K.
Model 70 PN 648695-01.
NBA 625 AX Clamp Hub BTM NBA 625
Lined BX-164 STTD Top, With Manual Overrides
Secondary Open Port w/SS Tubing
W/ TBG Hanger Orientation Slot

Measurements :
YOM : 2013
Dimensions : 1.8 x .8 x 2.0
Weight : 10 Te

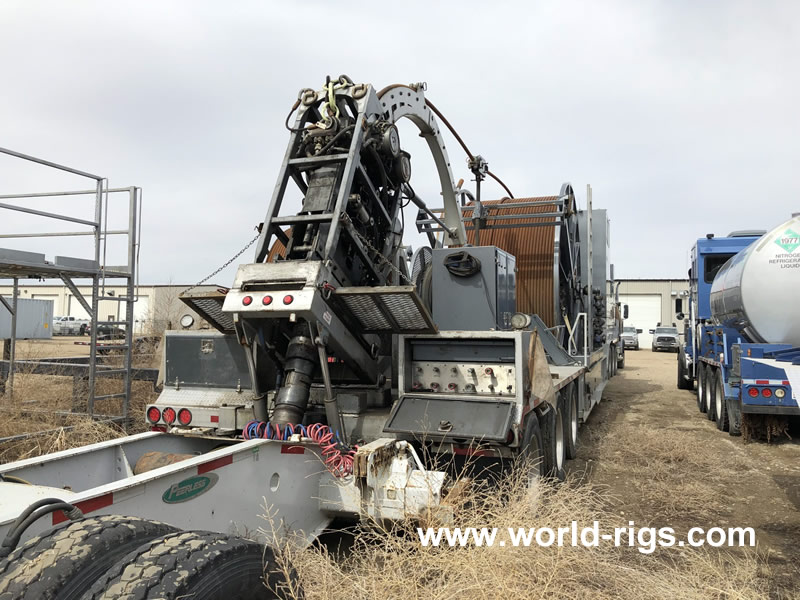

General
- 2011 Kenworth Triaxle or equivalent
- Cummins ISX-15, diesel engine 354 kW (600bhp) @ 1,800rpm
- OMSI power transfer case
- J1939 protocol c/w junction box/connection so engine can be
controlled from the CTU cabin
- Fuller transmission 18 speed

Control Cabin
- Cabin Dimension : Length : 5'0" / Width : 7'9" / Height : 7'6"
- Aluminium tubing construction
- Windows :
Window #1 Tank side - (tinted double slide)
Window #2 Pump side - (tinted single slide)
Window #3 Pump side - (tinted fixed glass)
Window #4 Door DS - (tinted single glass)
Window #5 Wall - DS - (tinted fixed glass)
Window #6 Wall - PS - (tinted fixed glass)
Window #7 Wall - PS - (tinted fixed glass)

- Aluminum storable stairs will be used to access cabin on both sides
of unit. Aluminum stair tread material will be used for stepping surface.
- Cabin to be mounted on rubber mounts to help aid in shock absorption
- Cabin wall, floor and roof all to be insulated
- Cabin access door will have apull lever handle for easy operation
- Cabin door will have a push plunger installed on the inside of the door
- A rubber floor will be installed in the control cabin over a 3/4" sub floor

Control Cabin Interior
- A jump seat covered in black vinyl
- A work area will be provided to the left side of the oeprator's panel
- 2 - 12VDC fluorescent dual bulb lights for interior lighting
- 2 - 12VDC electric fans will be mounted under the overhead console
- An air conditioner/heater will be provided

Main Operators Control Panels will contain the following :
- LN2 pressure gauge
- Boost pump control
- Boost pump hydraulic pressure
- Triplex hydraulic pressure gauge
- Triplex control
- Triplex RPM display
- Exhaust temperature in display
- Exhaust temperature out display

- Load increase/decrease switch
- Flow display
- H20 discharge temperature
- Coolant temperature display - before vaporizer
- Coolant temperature display - after vaporizer
- Colant pressure gauge
- GN2 pressure gauge

- GN2 temprature display
- Pump saturation gauge
- Emergency engine kill - stop switch
- Engine throttle control
- Engine RPM display (Tachometer)
- Stop engine warning light
- Check engine warning light

- Engine oil pressure gauge
- Engine water temperature gauge
- Engine air pressure gauge
- Egine volts gauge
- Warning horn
- Instrument power switch - on/off
- Accessory power switch - on/off
- Work lights switch - on/off

- Heat generator/hydraulic pump rpm display with overspeed warning light
- Tank vent display
- Recirculate high pressure switch - open/close
- Recirculate high pressure display
- Recirculate low pressure switch - open/close
- Pressure building coil switch - open/close
- Pressure building coil display - open/close
- Tempering valve switch - open/close

Triplex Cryogenic Pump
- ACD GUPD-3 Cryogenic triplex pump
- Cold ends - 1.625"
- Individual and identical fluid ends
- Externally lubriated power end
- Teflon stuffing box seals
- 1.5" stroke
- Maximum rate 121 l/min or 32 U.S gal/min @ 900rpm
- Maximum working pressure 68.9 MPa or 10,000psi

Hydraulic System
- Power from the engine in transmitted to the triplex pump throgh a closed loop
hydraulic system
- A hydraulic motor drives the triplex pump through a flex coupling
- The triplex pump is fully pressure lubricated
- The operator controls the output speed of the triplex at the control console
- The hydraulic system will be designed with all necessary relief valves, check
valves, pressure
gauges and controls
- The N2 lube system will include pump, lube oil reservoir, pressure gauge,
filter and relief valve circuit
- A steel hydraulic tank complete with filler, pressurized breather, sight glass,
drain cleanout cover and internal baffles
- There will be both high pressure and return filters
- The glycol circuit will utilize a heat exchanger
- Auxiliary circuits supply the necessary power to operate the centrifugal boost
pump and glycol circulating pump
- A hydraulically driven centrifugal boost pump delivers liquid nitrogen to the
triplex pump or returns the liquid to the tank
- The boost pump shaft is sealed using a mechanical seal
- A 100 mesh strainer will be installed on the suction side of the centrifugal boost pump
- Maximum discharge rate for the boost pump is 568 l/min or 150 US gal/min
- A liquid nitrogen strainer will be installed between the centrifugal pump and the triplex
pump with the pressure gauges located on the upstream and downstream side

Vaporizer
- Rated to 83 cbm/min (3,000 scfm) at 68,950 kPa (10,000psi)
- Heat is transferred from the engine exhaust system into a vaporizer
- Acentrifugal pump forces coolant through the vaporizer back to the reservoir
- Exhaust heat exchanger is by passed during road travel
- The vaporizer system utilizes heat from the diesel engine coolant, exhaust gases
and hydraulic power system

Nitrogen Tank
Tank :
- Gross capacty of 3,000 US gallons nominal capacity
- Net capacity of 2,850 U.S gallons
- Maximum 38 psig (262 kPa) working pressure
- Service temperature - 320°F (-196°C)

- Tank will be designed to meet ASME division 8, section III code for pressure vessels
- A man way is supplied on the top of the tank to allow entry
- Tank can be loaded from either the top or bottom
- Tank will constructed with a SA240 type 304 stainless steel inner vessel and a A-607 carbon
steel outer vessel. Liquid nitrogen in the tank will be transported at -196°C (-320°F)

- Tank will be combination insulated to limit boil off rate to 0.8% per day of rated capacity
- Tank will have a safety valve (45psi) for road transport as well as a maximum pressure
relief valve (65psi)
- Rated working pressure - 344kPa (50psig) inner vessel
- Tank will have vacuum, combiation insulation, with fiberglass at ends
- Minimum vacuum pressure of <10 microns cold
- Tank will use will have a pressure building coil with control valve
- Tank will have a tank level gauge and a tank pressure gauge located at the front of the tank
for easy operator monitoring
- Normal transport pressure is atmospheric

Description

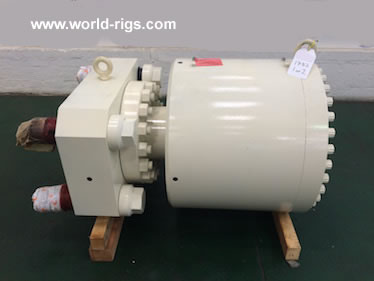

2 x Shaffer Bonnet Assemblies 10K 18-3/4"

Measurements
Dimensions : 1.9 x 1.6 x 2.0

Weight : 2.5Te ea

Location : UK

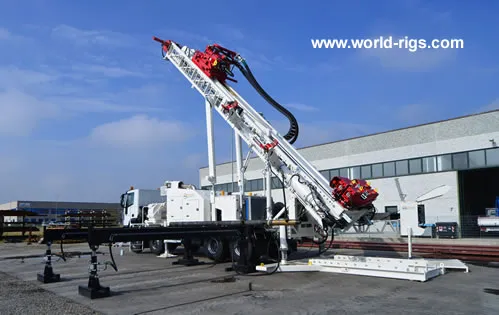

Specifications
Pull up : 88῾302 lb
Pull down : 44῾150 lb
Stroke : 28 ¼’
Drilling torque : 20῾650 ft-lb 0÷180 rpm
Coring torque : 3῾320 ft-lb @ max 800 rpm

Speed up/down : 2,3 ft/s
Service jib crane : 22῾075 lb
Mud pump : 7 1/2” X 7” duplex double acting
Centrifugal pump : 792 gal 42÷72 psi
Foam pump : 60 GPM 1210 psi

Double vice : 20 ½”
Make up and break out :59῾000 ft-lb
Stroke : 27 ½”

Diesel engine : 440 kW @ 1800 rpm
Drill pipe feeder : 3 ½”÷8”
Drilling : Direct circulation - coring
Dimensions : 8,20’x 42,65’x 13,94’ (h)
Weight : 101῾412 lb

Description
D40 Hydraulic Driling Rig
Truck mounted on Astra 8 x 4
Pull up 40 metric tons

- Truck Astra HD8 Model 84.44 (heavy duty) 8x4, Euro 5
- Mast Lattice Type for D.P. and D.C. 6mt long
Maximum static hook load : 40 metric ton (44 short ton)
Maximum pull down : 20 metric ton (22 short ton)
Top drive stroke : 8,6 m.

- Slant device that permit to drill from 0-45 degree with Hydraulic Stops 5 degree by 5
degree
- Automatic drill pipe and drill collar handling system Suitable to catch drill pipes and drill
collars diameters 2 â…œ” -8” with control valve for force regulation.
- Semi automatic Pipe Rack
- Pull up and down system composed by hydraulic block distributor with valves,
hydraulically controlled to action the main cylinder.

- Hydraulic power Tong
at double body, suitable to screw and unscrew DP, DC and CSG.suitable to catch D.P.
from 2 â…œ” to CSG max 20”, full opening passage 20.1/2”.( 520 mm).
Maximum make : up 6200 kgm
Maximum brake : out 8000 kgm

- Top drive
Standard Drilling
• Maximum torque 2.800 daNm at 50 RPM (20.282 ft/lb)
• Maximum torque 778 daNm at 180 RPM (5.633 ft/lb)
• RPM from 0 to 180

Coring Drilling
• Maximum torque 448 daNm at 362 RPM (3239 ft/lb)
• Maximum torque 202 daNm at 800 RPM (1460 ft/lb)
• RPM from 0 to 800
• Stroke 8,6 m ( 52,5 ft)
• Pull up 40 metric tons ( 44 short ton )
• Pull down 20 metric tons ( 22 short ton )
• Maximum speed up 1 m/sec
• Maximum speed down 1 m/sec

- Service jib crane
With telescopic arm extension minimum 1.5 mt
Maximum load capacity 10 tons
Running speed up and down 0,5 m/s
Rope ø 13 mm

- Crown block :
Complete of 2 sheaves for wire rope ø 13 mm mounted on bearings
- Travelling block :
For 10 Tons capacity and one sheave with dead line on travelling block
- N°4 Stabilizers
- Hydraulic power unit :
mounted on rig deck composed of :
Nr.1 Diesel engine industrial type, Deutz TCD 16.0 V08 Tier IV or TCD 2015 V08 4V
Tier III

- Sound proof hood (max 80 DB )
- Manifold for mud-air discharge max 80 Bar
- Hydraulic system :
composed of pumps and hydraulic motors, pipes and hoses, blocks, distributors,
valves, hydraulic cylinders and fitting.

- 7.1/2” X 7” Duplex double acting mud pump
Performance : @120 stroke/min
Max discharge : 2376 l/min with 37 BAR liner 7.1/2”
Max pressure : 70 BAR with 1252 l/min liners 5.1/2”
Power input : 217 Hp
Complete of Hydraulic motor joint for connection hydraulic motor to pump and flex
hoses

- Centrifugal Pump : 3000 litres , 3-5 Bar with hydraulic motor
- Foam pump : Triplex CAT mod. 6671 (or equivalent), driven by hydraulic motor,
- wireline winch :
Hydraulically operated ,
Max drum capability 2.000 Mt cable (9000 feet)
Suitable for wire ø ¼” max.
Max Speed 4mt/sec Max pull 1400 daNm

- Control panel, mounted on drill floor on rear position left side near to centre well,
- Electric system EEx-d
- Diesel Electric Generator Unit
- Tool box complete of standard tools for maintenance and positioned on main frame

Description

New and unused FSI Shakers and Lift Skid.
Driver Type: 2 x Vibratory Electric Motors.
Feed Weir Height: 965mm. Assembled on a Combined Lift Skid.
Complete with Possum Belly Feed Box, Feed Line and
Ventilation Hoods for each Shaker.

Specifics
Make : FSI
Quantity : 3

Measurements
YOM : 2011

Dimensions : 5.7m(l) 3.48m(w) x 2.24m(h)
Weight : 12.515Te
Condition : New and Unused
Documents : Y

Location : UK

Description :

1 Pair of Cameron 28" Super Shear Bonnets. 18 3/4" 15M 'TL' Externally
Ported W/625 Inlay In Open/Close Ports, Connecting Rod Seal Area And
Bonnet Seal Groove Area.

YOM : 2013
Dimensions : 2000 x 3.2 x 1.5
Weight : 8 Te
Condition : New

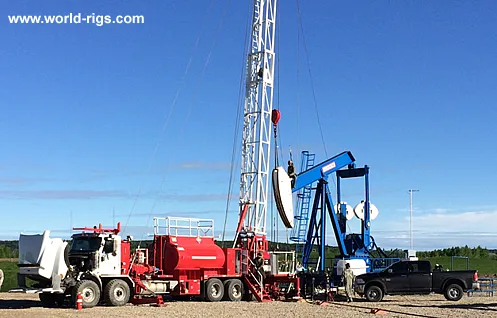

Specification
Truck : International
Rated single line pull winch : 25,000lb
Rated mast capacity (vertical) : 65,000lb
Rated mast capacity (slant) : N/A
Length  (O/all) : 45'-10" 1/2" (13.983m)
Width (O/all) : 8'-6" (2.591m)
Wheel base : 304.5" (7.734m)
Height : 14'-3" (4.343)

Truck Specifications
Tandem steer tridem drive : Paystar 5900i

Engine :
International Maxxforce
Model A475
Displacement 12.4 litre

Transmission :
"Eaton Road Ranger"
18 speed manual
RTLOF-16918B

Mast Specifications
Load rating (Vertical) : 65,000lb
Load rating (Slant) : N/A
Mast height (from ground) : 76'-3" (23.241m)
Mast height (to underside of crown : 73'-2" (22.301m)
Crown (two sheave) : 2 x 24" diameter

Traveling Block Specifications
Model : C-TECH_FBB25T
Capacity : 25 ton
Grooving : 7/8" diameter

Drawworks
Model : CH-230
Motor : Rexroth
Capacity : 25,000#
Grooving 7/8"
Max. drum speed (at max. volume) : 250 rpm

Hydraulic Specifications
Usable tank capacity : 175 gal (800 litres)

Triple Vane Specifications :
Section 1 :
1100psi max wp
50gpm max flow

Section 2 :
2500psi max wp
31gpm max flow

Section 3 :
1500psi max wp
10gpm max flow

Pressure compension pump :
3000psi max wp
300gpm max flow

Gear pump :
2000psi max wp
27.97gpm max flow

Service Winch
Model : Braden Gearmatic
Capacity : 5,000# (bare drum) at max pressure
Wire rope dia. : 3/8" diameter
Speed : 183FPM (full drum at max pressure)

Tank Specifciations (Jasper)
Max. tank capacity : 8,120 litres
Material : Aluminum
Code : T406
Product : Oil / water / produced water
Design Pressure : 3.03psi mwap
Length (seam-seam) : 112"
Width (O/all) : 96"
Height : 73.5"

Pump Specifications
Model : TEEF 3 x 5
Horse Power (continuous) : 125hp
Horse Power (intermittent) : 165hp
Plunger : 3" Hardco
Max. pressure : 6220psi @ 50rpm
Max. flow rate : 138pm @ 300rpm

It has approximately 2500 working hours

Description :

Type :
1465 (Electrical) Special Designed Hose Reel: Heavy Duty Steel
Construction (M2-ENG 0627)

Description special designed hose reel:
Heavy-duty Steel Construction with 250μm offshore epoxy
coating, suitable to handle 220m 3” ϐloating hose assemblies.
Piping, Swivel, Bolts & Nuts are made of Stainless Steel316.

Retraction:
With Electric (400V, 50Hz) motor direct to shaft driven
Planetary gear box with Marine break. Included control box
with Wireless frequency-controlled speed control panel.

Estimated dimensions footprint mm:
W: 3800, D: 1700, H: 2200. Weight 4100 Kgs

Description hose:
220m assembly ϐloating Rig supply hard wall hose for marine fuel.
Included Marine Break-Away coupling and DDC Hose Unit 3” in
Stainless Steel316

Condition: Brand New in original packing and never used

Location : Abu Dhabi, UAE

Description :

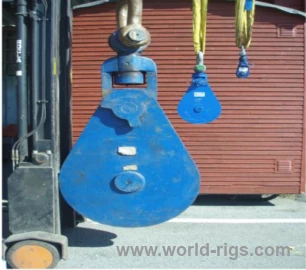

Snatch blocks,
Fixed blocks,
Hook blocks with capacity up to 200 ton

Description
4 x BOP Fail Safe Valves

Description

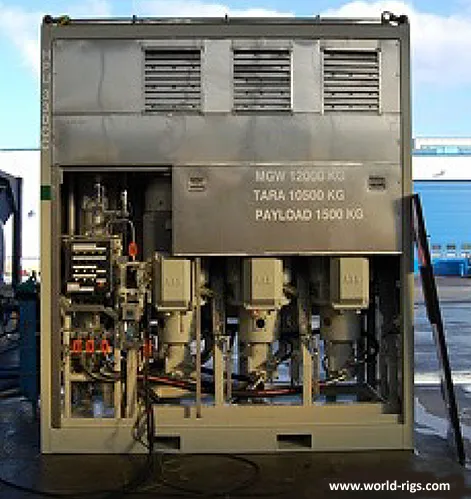

Reservoir & Control Panel Constructed from 316L Stainless Steel
2250 Litre Capacity
Reservoir complete with internal separation baffles
Complete with 3 x motor/pump sets

Rexroth A11V190 pumps 190cc
Motors 110KW
Each pump has a maximum delivery of 277 1/min
Ambient Op Range -20 to +40 degrees C. POA

Description :

Aanestad Hydraulic Jack Capacity: 250 Tons on the Piston Rod Side.
Stroke: 900mm.
Skidding Beam Dimensions: 700mm(w) c 60mm Upperand 75mm Lower Flange.
Skidding Beam Slots: 152x51mm (610mm and 255mm between slots).
Hydraulic Jacks are supplied with Grippers.

Specifics
Make : Aanestad
Model No : 5980
Quantity 1

Measurements
YOM : 2011
Weight : 11.2T
Condition : New and Unused
Documents : Y

Location : UK

Description :

Hooks with capacity 1 – 400 Ton for cranes, winches, hoists, ROV operations, etc.

Specification :

Classification :
STS/Lloyds Register/ABS
Hull Diameter (inc Skirt) : 16.0m
Overall Height : 11.0m
Buoy Weight : 301 mT
Subsea Hose Connections : 20”
Floating Hose Connections 24” down to 16”
Fluid Swivel single path suitable for flow from 2x24” inlets
Suitable for Mooring Chain - 6 legs each up to 97mm diameter R3 grade

Design can be provided for Client specific location
Supply of anchors, chains and hoses would be new order by agreement

Table of Contents :
Introduction :
Project Overview : 1
Scope Of Document : 1
Definitions And Abbreviations : 1
Certification : 3
Units : 3

Codes, Standards and Reference Documents : 4
Codes And Standards :4
Client References : 6
SPM Contractor References : 7

General Description of the SPM System : 8
Buoy Description : 8
PLEM Description : 8
Components : 8
SPM Parameters : 11

Environmental Conditions : 12
Water Depth and Location : 12
Wave, Wind and Current : 12
Minimum Design Temperatures : 12
Seawater Properties : 12

Corrosion Systems : 13
Coating System : 13
Cathodic Protection System : 13
SPM System Corrosion Protection System : 13

SPM Buoy : 14
Buoy Body (Hull) : 14
Skirt and Fenders : 15
Slewing Bearing : 16
Hawser and Buoy Interface : 16
Deck : 16
Turret and Chain Table : 17
Chain Stoppers : 17
Locking Device : 18
Marine Berthing Aids : 18
Davit : 19
Buoy Mechanical Handling Points : 19

Deckhouse : 20
Doors and Louvres : 20
Deckhouse Roof : 20

Buoy Piping : 21
Fluid Flow and Product Swivel : 21
Fluid System Flushing : 22
Valve Control Panel : 22

Navigation Aids : 24
Overview : 24
Power Supply : 24
Distribution and Control Panel : 24
Marine Signal Lantern : 25
Radar Reflector : 25
Fog Horn and Alarm Strobe : 25

Telemetry System : 26

Hydraulic and Umbilical System : 27
HPU : 27
Subsea Umbilical : 27

Additional Buoy Components : 29
Life Buoys : 29
Fire Protection and Extinguishers : 29
Ancillary Equipment : 29
Design Life of Consumables : 30

Safety Features : 31

Mooring System : 32
Mooring Chains : 32
Anchors : 32
Soil Data : 32
Seismic Data : 33

Hose Systems : 34
Floating Hoses : 35
Submarine Hoses : 36

Hawser System : 38

PLEM : 39
General Description : 39
Piping and Valves : 39
Pipeline Interface : 40
PLEM Handling : 40
PLEM Mechanical Handling Points : 40

Description
Make : Le Tourneau
Model : LDW1000K
YOM : 2011

Measurements
Dimensions : 6.6m x(l) x 3.9m(w)x 2.6m(h)
Weight  : 33.4 Tonnes

Description :

Bullets Technical Data

2) Bullet Size : ID 8m x 61m TL/TL ; Quantity : 4 bullets
3) Shell / Hemi head thickness & material = 38mm (Shell) & 25mm (Head) SA 537 cl 2
4) Design Pressure (Internal / External) = 19 / FV barg
5) Design Temperature (Max / Min) = 50 / -40 deg C
6) PWHT : Yes
7) Capacity = 3,300 m3 per bullet
8) Weight
Empty Weight = 612 MT
Operating Weight = 2,308 MT
Full of Water Weight = 3,950 MT

Drawworks
Foremost hydraulic drawworks, 95,000 lb capacity, 400' drum capacity

Drawworks Power
Detroit series 60 floor engine

Hydraulic Power Unit
w/ (5) main hydraulic pumps, hydraulic reservoir, thermal exchanger, plumbing , filters.

Mast
Foremost 85' mast, 140,000 lb maximum hook load w/ (4) lines, 1" drill line, (2) 4 stage
mast raising cylinders, chains, stand pipe, hydraulic piping, utility winch, access ladder,
lighting, fall arrest

Substructure
Foremost trailer mounted raised substructure; sliding trolley ВОР handler
w/ (2) hydraulic cylinders, manual cellar controls, standpipe valve, steam manifold,
explosion proof lighting, mounted on 2005 peerless Т/А 16 wheel trailer, tires 11 r22.5,
steel buds, spring suspension, w/ rear outriggers, front leveling jacks, hydraulic & electrical
lines"

Rotary Table
16" rotary table, w/ 1,600 lb torque, 140,000 lb maximum load

Top Drive
Fluid design solutions model FDS240T 70 ton hydraulic top drive w/ integrated swivel,
integral traveling block & backup leg

Injector
Steward Stevenson model M1100SK injector, 110,000 lb lifting capacity, 60,000 lb snub
capacity

Hydraulic System & Components
Raising cylinders, winches , bop handler, doghouse raising system, hoses, filters, valves
- (1) set web wilson type aax manual 2 7/8"- 9 5/8" rotary tongs
- (1) drill pipe elevator
- set handling tools - drill pipe, drill collar slips, safety clamp, drill pipe elevators
- townsend type 85 sph annular preventer, 9" Ñ… 3,500 psi
- (2) townsend model Т88 ram preventer, 9" х 3,000 psi
- control tech working spool, 9" Ñ… 3,000 psi, w/ 2" outlets
- control tech crossover spool, 7" Ñ… 3,000 psi

Mud pump
Mastco pump shack, model JBI JF800 triplex mud pump, detroit series 60 14.7 liter
700 Нр diesel engine, tool shop

Mud System
358 bbl mud tank, (4) compartments - 17 bbl trip tank, 88 bbl suction tank,
125 bbl settling tank, 125 bbl shaker tank, mix pump, mixing guns, manifold
- swaco mongoose-pt elliptical-motion shale shakers
- (4) mud guns, (9) flow gates & skimmers
- poorboy 28" in-tank degasser w/ 150' of 8" vent line
- chemical mix barrel w/ 5 hp electric motor
- (2) mission model 40202529 6х5х11 pumps, w/ 50 Нр electric motor, 4" manifold, w/ (7)
4" butterfly valves, hopper, storage compartment, exhaust fan, mud weight station,
pason equipment

Drill Pipe
(196) joints 3 1/2" range 3 grade Е drill pipe, w/ 3 1/2" if connections
- (23) joints 4" range 3 grade Е drill pipe, w/ 3 1/2" if connections
- (10) joints 4 3/4" drill collars, w/ 3 1/2" if connections
- (10) joints 6 1/4" drill collars, w/ 4 1/2" xh connections
- (20) joints 3 1/2" heví-weight drill pipe, w/ 4 1/2" xh connections

Combination Building
12' Ñ… 54' mounted on 4 member skid, electrical switchgear, transformer,
accumulator plumbing, (15) lockers, (2) benches, w/ 9,000 liter fuel tank, (4) product tanks

Generator 1
Stamford model 6063-МК35 350 kw generator, w/ detroit series 60 475 hр diesel
engine, w/ electric start, lockout box

Generator 2
Stamford model IЕС34-1 142 kw generator, w/ john deere 190 hр diesel engine,
w/ electric start, lockout box
- MCC panel, transformer, starters

Accumulator
Control tech model class 3 accumulator, 80 gallon accumulator, 5 station control,
3,000 psi w/ 178 gallon reservoir, PLC remote, Cat model triplex pump

Air Compressor
National compressed air model nca-16-34GSD air compressor, w/ sullair 2
stage air compressor, 200 hp electric motor, 2005 avis welding & fab 600

Instrumentation
Psi receiver, Selectronix model ST-8 instrumentation diesel day tank, liner rack, utility
bench, tooling, storage cabinets, explosion proof lighting weight indicator, rotary torque
gauge, pump pressure gauges, tong line gauges

Safety Equipment
(3) Scott air packs w/ (2) spare bottles, fire extinguishers, welding shields, safety glasses, first
aid kits, stretcher, eye wash stations, safety signs, lanyards general rig tooling, consumables,
rig supplies, spare parts

Doghouse
9' Ñ… 14', drillers control console, instrumentation, storage cabinets / bench, stabbing valve,
ruffneck heater, А/С, shelving

Tool House
314 bbl water tank, access stairs, safety rails, lubster, cat model 310 triplex wash pump, utility
bench, fastener bins, ruffneck heater, storage compartments, tooling

Crew house 2005 shelter rig manager's wellsite: 11.5' x 45', crew washroom, storage area, desk,
couches , fridge, stove, washer, dryer, washroom, sleep area

Hydraulic Catwalk w/ operator enclosure, integral hydraulic power unit, (4) swing out arms,
(4) leveling jacks, hydraulic pump w/ 50 hp electric motor, (3) hydraulic pipe tubs w/ controls,
manifold 2048-F

Choke & Kill Line Valve, 2" x 3,000 psi w/ Hi-Kalibre HCR, manual gate valves, check valves

Choke Manifold, 3" gut line x 5,000 psi, w/ (2) 2" wing lines, (8) 2" gate valves, (2) 3" gate valves,
cortec 2" chokes x 5,000 psi

Flare Tank skid mtd w/ 7' x 8' x 7' tank, w/ (2) 2", (1) 6" knockouts, 3" flare
line, 6" degasser line, safety rails, stairs

Boiler
2005 williams & davis 777 volcano 100 hp boiler
- (4) 2m x 5m rig mats
