2017 Celtic Pride Trailer Mounted Coil Tubing Unit for Sale


Name    :    2017 Celtic Pride Trailer Mounted Coil Tubing Unit for Sale
ID    :    WR713
Year manufactured   :    2017
Price   :    Inquire for pricing
Specifications   :    2017 Celtic Pride Trailer Mounted Coil Tubing Unit for Sale
Celtic Pride Coil Tubing Unit for Sale
100K Injector Coil Tubing Unit for Sale



Control Cab
85.25" long x 120" wide x &2.125" high
Fully insulated and sound-proofed
Windows on all sides
Cabin lined with white coated aluminum
Rear window slanted inward with wiper and guard over window
Four LED work lights built into front peak of cab
Two LED lights pointing towards reel
Red Dot Air conditioner built into roof
Two x I 500 watt electric base board heaters
Wrap-around control panel with engraved stainless steel faces
Shelves and drawer uni1 on left side of" panel
Bench seal with storage under seat on the front side of cab
One main 110 volt electric junction
Control cab lifts 56" via a scissor lilt
Two section aluminum pull out stairs

Upper Left Panel

Electronic quad BOP controls
Electronic depth counter and speed

Lower Left Panel
Electronic over hydraulic reel bleed off control
Electronic over hydraulic reel Nitrogen valve control
Electronic over hydraulic lnjecto1· stripper and chain lube control
Electronic ovet hydraulic level wind up/down control
Electronic over hydraulic level wind forward/reverse control
Electronic level wind speed control

Upper centre panel
Main power
Auxiliary power
Windscreen wipers
Air horn
Medco Data Acquisition Display
Electronic 6" I 0,000psi pressure gauge
Elcc1ronic 6" 100,000ll> weight indicator gauge
In hole pressure gauge
Out hole pressure gauge

Lower centre panel
Injector joystick control
Injector in hole pressure relief
Injector out hole pressure re.I ief
Reel out hole pressure relief
Annular pressure relief
Electronic throttle
Injector motor speed
Injector brake- Auto/on
Emergency kill
Reel brake

Upper right panel
Reel charge pressure
Auxiliary hydraulics
Chain tension pressure
Injector charge pressure
Reel pressure
Stripper pressure
Skate pressure
Injector accumulator pressure

Lower right panel

Stripper pressure relief valve
TR stripper open/lock/close valve
Chain tension relief valve
TR chain tension open/lock/close valve
Skate pressure relief
TR skate pressure open/lock/close valve

Remote BOP panel
Five electric over hydraulic Barksdale BOP controls
Annular bag
Blind rams
Slip rams
Pipe rams
Shear rams

Controls at Rear of Unit
Reel brake
Emergency kill
Injector control joystick
Reel control joystick
Auxiliary hydraulics pressure gauge
Injector charge pressure gauge
Reel charge pressure
Reel pressure gauge

Nine section valve bank
Front rigln jack-up/down
Fronl left jack-up/down
Rear right jack-up/down
Rear lefijack-up/down
Injector hose reel-out/in
BOP hose reel-out/in
Injector base-forward/back
Winch-out/in
Arch tilt-fonvard/back

Six section valve bank

Auxiliary hydraulic I -open/close
Auxiliary hydraulic 2-open/close
Stripper/chain lube
level wind up/down
level wind forward/reverse
Cab-lower/raise

Power Pack

JOHN DEERE 375 HP engine
funk pump drive spl iuer
160 gallon diesel tank
12 volt controls
Positive air shut off
Enclosed with own cooling system

Hydraulic Pumps and Drives
Three LINDE pumps direct mounted to power pack
HPV 135 controls the injector
HPV I 05 controls the reel
HPV 55 auxiliary hydraulics
160 gallon hydraulic oil rank
Three high pressure oil tilters
One hydraulic return oil filter
Hydraulic fail safe oil Cooler

Data Acquisition System (Medco Engineering)
Data acquisition software
Fatigue analysis soflware
Weight indicators
Pressure indicators
Depth counter
Speed indicators

Reel Model CP7496160

Capacities:
9660 meters 1-1/2" tubing
7000 meters 1-3/4"  tubing
5338 meters 2" tubing
Reel core 96"
Two air pot style reel brakes
LINDE motor drive attached lo a BRA VINIE right angle drive gear box
Chain driven worm gear level wind
Reel safety guard built into base
Four pinned mount system
Flange on flange reel lo rotatingjoint
Straight hinging rotating joint working pressure 10,000 psi
Replaceable 12" frac iron section
Rotating joint 180 C temperature rating
1.5" pitch 120 sprockets with Diamond chain
Two hydraulic multi plate quick connects
Manual counter mounted on level wind head

Integral Iron
Working iron 2" x 1-1/2" bore-1502 unions working pressure 15,000 psi
2" x 2 plug valve inside of reel for ball drop
Flange on flange reel 10 rotating joint
Rotating joint working pressure 10,000 psi
Port on iron for electronic pressure transducer

Bleed Offs
Nitrogen bleed off
Main Accumulator bleed off
Injector accumulator bleed off
AII bleed offs are located on the control cab frame

Model CPI 100 Injector Specifications
Pull Force - 100,000lbs at 5000PSI (46,360 kg at 5000 PSI)
Snub Force - 40,000
Motors - Variable displacement, axial piston hydraulic motors
Brakes - Multi disk, hydraulic release
Height - 99"
Base length - 54"
Base width - 24"
Motor/Gearbox width - 48"
Weight - 68741bs.(without arch)
Chain Type - 140-4 Oilfield Diamond chain
Speed - 46 meters/minute ac 50,000lbs pull
Tubing Sizes - 1-1/4" through 2-7/8" (31.75mm through 73mm)
3'' x 3" Injector frame rated for 80K
46 ½ Long ball bearing style skate
38" length of skate conwct area per side
Three rows wide, 3/4" t0ol steel ball bearings, ISO contact points per side
120-4 Diamond chain and one piece machined steel dies
Two cylinder bars with four 4.625'' bore skate cylinders per side
ln1ernal hydraulic porting between each skate cylinder
At 3000psi skate pressure, max compression force of 20 I ,592lbs
Max. force per ball bearing 6721bs@ 3000 psi squeeze pressure
Max. force per steel die 4581 lbs @3000 psi squee"£e pressure
Eighteen 100th sprockets with sealed bearings
Hydraulic independent main chain tension
Electronic Stellar IOOK load cell
5.0625" side door stripper rated for I OK
Side door Stripper can be quickly removed from base via 2 pins
96" radius arch with steel arch rollers
Arch is adjustable forward and backwards
Arch had a hydraulic folding section with a holding valve on the cylinder
Injector chains have a removable aluminum guard
Injector frame has four D ring tie downs to stabilize the Injector on the well
Multi bank quick connect making ii impossible to connect hydraulic hoses wrong
Injector base rilts hydraulically forward to tran•sporc the Injector under height
A Pull master PL 5 winch helps keep the Injector stable on the well and assists in the storage of the Injector.

Injector Rose Reel
18 x #6 ORB ports
2 x #16 ORB po11s
8 x 20 gauge wire electric slip ring
7000 psi pressure rating
Capacity of I 00' umbilical hose
Self-winding and unwinding
60 pitch chain and sprockets

BOP Hose Reel
2 x #6 ORB Blinds
2 x #6 ORB Pipes
2 x #6 ORB Slips
2 x #6 ORB Shears
2 x #6 ORH Annular
7000 psi pressure rating
Fire proof BOP hose
Capacity of 100' umbilical hose
Self-winding and unwinding
60 pitch chain and sprockets

Main Accumulator System
2 x 15 gallon bottles (2 x 56.78 liter boules)
3000 psi pressure
One Oanfoss electronically actuated control consul
Five manual Barksdale valves with electronic pilot controls

Stripper and skate accumulator
1 x 5 gallon accumulator bollle
5000 psi pressure
Zero leak TR controls
Back up for Stripper and Skates in the result of truck shut down.

Chassis
Single drop outside rail semi-trailer with torque lube transition to suspension rails.
Rails of fabricated T-1 steel with a square gooseneck.

Capacity
110,000 lbs (55Ton)

Dimensions
634" (53 ') overall length
120" (10') overall width
194.63" gooseneck length
40.8" lower deck height laden
57" suspension rail centers

Gooseneck
194.63" gooseneck length, 14" king pun setting, 50" mounting height.
Standard 2" SAE Bolt-in king pin.
Narrow pickup throat.
Provision for use with a tandem axle jeep.
Kingpin structure and main rails tapered to enable swing clearance of tandem jeep.

Booster Provision
Provision for a single axle common air booster. Conneclions Iugs and air and electrical lines.

Decking Supports / Misc Mounts
Decking and misc mounts aupplied and installed per customer requirement per approval drawing 132142.C

Suspensions (3)
Hendrickson HT-300 tridem air ride suspension.
60" axle spacing, 30,000 lbs capacity each

Axles (3)
25,000 lb. capacity Ingersoll F22 axles, (10' overall tire width).
Stemco grit guard oil seals, open brake cams, and dust shields.
haldex auto slack adjusters

Brakes
Ingersoll 16-1/2" x 7" Q brakes with type 30/30 spring brakes.
Brakes rated @ 22,500 lbs per axle

ABS Brakes
Meritor 4S / 2M anti-lock brake system (4 sensors and 2 modulators) side control with modulation of both axles.

Hubs (6)
10 hole steel Unimount complete with cast outboard brake drums.

Wheels (12)
8.25 x 22.5 10 hole hub-piloted clean buff finished Alcoa aluminium wheels

Tires (12)

275 / 70R22.5 Michelin XTY-2 18 ply tires.

Landing Gear
Holland Mark V, 2 speed, 62,500 lb. lifting capacity
Standard sand pads
LGS-5A001

Hydraulic Legs
Hydraulic stabilising legs 58,000 lbs each lifting capacity @ 3000 psi
No power pack supplied

Drop Down Legs
Drop Down legs at rear of main rails

Bumper
Oilfield style rear bumper installed complete with tow plate with holes for 1-1/4" clevis

Air system
CMVSS approved, relay emergency 2 line system with park brakes on all axles.
Glad hands and electrical socket in middle of neck.
Dump valve and air scale guage mounted in a sealed box.

Electrical system
CMVSS approved sealed modular electrical system using Truck-Lite Super Seal harness system
and sealed beam LED lights

WorldRigs has 2017 Celtic Pride Trailer Mounted Coil Tubing Unit for Sale

  Images

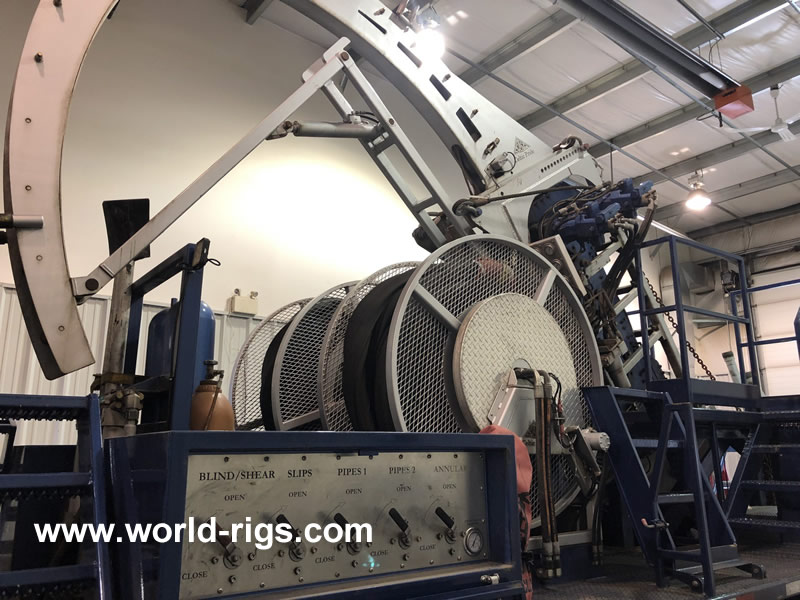

2017 Celtic Pride Trailer Mounted Coil Tubing Unit for Sale

2017 Celtic Pride Trailer Mounted Coil Tubing Unit for Sale

2017 Celtic Pride Trailer Mounted Coil Tubing Unit for Sale


2017 Celtic Pride Trailer Mounted Coil Tubing Unit for Sale
Celtic Pride Coil Tubing Unit for Sale
100K Injector Coil Tubing Unit for Sale



Mail WorldRigs
   Mail WorldRigs regarding any general/sale enquiries or feedback.
   You are enquiring about :   2017 Celtic Pride Trailer Mounted Coil Tubing Unit for Sale, ID 713
Your name :
Your company :
Your email :
Your contact number :
Your message :

 Please enter the security code



...............................................................................
Cannot find the rig you want? Email us on
Do you need a rig on lease? Email us on

2017 Celtic Pride Trailer Mounted Coil Tubing Unit for Sale


Name    :    2017 Celtic Pride Trailer Mounted Coil Tubing Unit for Sale
ID    :    WR713
Year manufactured   :    2017
Price   :    Inquire for pricing
Specifications   :    2017 Celtic Pride Trailer Mounted Coil Tubing Unit for Sale
Celtic Pride Coil Tubing Unit for Sale
100K Injector Coil Tubing Unit for Sale



Control Cab
85.25" long x 120" wide x &2.125" high
Fully insulated and sound-proofed
Windows on all sides
Cabin lined with white coated aluminum
Rear window slanted inward with wiper and guard over window
Four LED work lights built into front peak of cab
Two LED lights pointing towards reel
Red Dot Air conditioner built into roof
Two x I 500 watt electric base board heaters
Wrap-around control panel with engraved stainless steel faces
Shelves and drawer uni1 on left side of" panel
Bench seal with storage under seat on the front side of cab
One main 110 volt electric junction
Control cab lifts 56" via a scissor lilt
Two section aluminum pull out stairs

Upper Left Panel

Electronic quad BOP controls
Electronic depth counter and speed

Lower Left Panel
Electronic over hydraulic reel bleed off control
Electronic over hydraulic reel Nitrogen valve control
Electronic over hydraulic lnjecto1· stripper and chain lube control
Electronic ovet hydraulic level wind up/down control
Electronic over hydraulic level wind forward/reverse control
Electronic level wind speed control

Upper centre panel
Main power
Auxiliary power
Windscreen wipers
Air horn
Medco Data Acquisition Display
Electronic 6" I 0,000psi pressure gauge
Elcc1ronic 6" 100,000ll> weight indicator gauge
In hole pressure gauge
Out hole pressure gauge

Lower centre panel
Injector joystick control
Injector in hole pressure relief
Injector out hole pressure re.I ief
Reel out hole pressure relief
Annular pressure relief
Electronic throttle
Injector motor speed
Injector brake- Auto/on
Emergency kill
Reel brake

Upper right panel
Reel charge pressure
Auxiliary hydraulics
Chain tension pressure
Injector charge pressure
Reel pressure
Stripper pressure
Skate pressure
Injector accumulator pressure

Lower right panel

Stripper pressure relief valve
TR stripper open/lock/close valve
Chain tension relief valve
TR chain tension open/lock/close valve
Skate pressure relief
TR skate pressure open/lock/close valve

Remote BOP panel
Five electric over hydraulic Barksdale BOP controls
Annular bag
Blind rams
Slip rams
Pipe rams
Shear rams

Controls at Rear of Unit
Reel brake
Emergency kill
Injector control joystick
Reel control joystick
Auxiliary hydraulics pressure gauge
Injector charge pressure gauge
Reel charge pressure
Reel pressure gauge

Nine section valve bank
Front rigln jack-up/down
Fronl left jack-up/down
Rear right jack-up/down
Rear lefijack-up/down
Injector hose reel-out/in
BOP hose reel-out/in
Injector base-forward/back
Winch-out/in
Arch tilt-fonvard/back

Six section valve bank

Auxiliary hydraulic I -open/close
Auxiliary hydraulic 2-open/close
Stripper/chain lube
level wind up/down
level wind forward/reverse
Cab-lower/raise

Power Pack

JOHN DEERE 375 HP engine
funk pump drive spl iuer
160 gallon diesel tank
12 volt controls
Positive air shut off
Enclosed with own cooling system

Hydraulic Pumps and Drives
Three LINDE pumps direct mounted to power pack
HPV 135 controls the injector
HPV I 05 controls the reel
HPV 55 auxiliary hydraulics
160 gallon hydraulic oil rank
Three high pressure oil tilters
One hydraulic return oil filter
Hydraulic fail safe oil Cooler

Data Acquisition System (Medco Engineering)
Data acquisition software
Fatigue analysis soflware
Weight indicators
Pressure indicators
Depth counter
Speed indicators

Reel Model CP7496160

Capacities:
9660 meters 1-1/2" tubing
7000 meters 1-3/4"  tubing
5338 meters 2" tubing
Reel core 96"
Two air pot style reel brakes
LINDE motor drive attached lo a BRA VINIE right angle drive gear box
Chain driven worm gear level wind
Reel safety guard built into base
Four pinned mount system
Flange on flange reel lo rotatingjoint
Straight hinging rotating joint working pressure 10,000 psi
Replaceable 12" frac iron section
Rotating joint 180 C temperature rating
1.5" pitch 120 sprockets with Diamond chain
Two hydraulic multi plate quick connects
Manual counter mounted on level wind head

Integral Iron
Working iron 2" x 1-1/2" bore-1502 unions working pressure 15,000 psi
2" x 2 plug valve inside of reel for ball drop
Flange on flange reel 10 rotating joint
Rotating joint working pressure 10,000 psi
Port on iron for electronic pressure transducer

Bleed Offs
Nitrogen bleed off
Main Accumulator bleed off
Injector accumulator bleed off
AII bleed offs are located on the control cab frame

Model CPI 100 Injector Specifications
Pull Force - 100,000lbs at 5000PSI (46,360 kg at 5000 PSI)
Snub Force - 40,000
Motors - Variable displacement, axial piston hydraulic motors
Brakes - Multi disk, hydraulic release
Height - 99"
Base length - 54"
Base width - 24"
Motor/Gearbox width - 48"
Weight - 68741bs.(without arch)
Chain Type - 140-4 Oilfield Diamond chain
Speed - 46 meters/minute ac 50,000lbs pull
Tubing Sizes - 1-1/4" through 2-7/8" (31.75mm through 73mm)
3'' x 3" Injector frame rated for 80K
46 ½ Long ball bearing style skate
38" length of skate conwct area per side
Three rows wide, 3/4" t0ol steel ball bearings, ISO contact points per side
120-4 Diamond chain and one piece machined steel dies
Two cylinder bars with four 4.625'' bore skate cylinders per side
ln1ernal hydraulic porting between each skate cylinder
At 3000psi skate pressure, max compression force of 20 I ,592lbs
Max. force per ball bearing 6721bs@ 3000 psi squeeze pressure
Max. force per steel die 4581 lbs @3000 psi squee"£e pressure
Eighteen 100th sprockets with sealed bearings
Hydraulic independent main chain tension
Electronic Stellar IOOK load cell
5.0625" side door stripper rated for I OK
Side door Stripper can be quickly removed from base via 2 pins
96" radius arch with steel arch rollers
Arch is adjustable forward and backwards
Arch had a hydraulic folding section with a holding valve on the cylinder
Injector chains have a removable aluminum guard
Injector frame has four D ring tie downs to stabilize the Injector on the well
Multi bank quick connect making ii impossible to connect hydraulic hoses wrong
Injector base rilts hydraulically forward to tran•sporc the Injector under height
A Pull master PL 5 winch helps keep the Injector stable on the well and assists in the storage of the Injector.

Injector Rose Reel
18 x #6 ORB ports
2 x #16 ORB po11s
8 x 20 gauge wire electric slip ring
7000 psi pressure rating
Capacity of I 00' umbilical hose
Self-winding and unwinding
60 pitch chain and sprockets

BOP Hose Reel
2 x #6 ORB Blinds
2 x #6 ORB Pipes
2 x #6 ORB Slips
2 x #6 ORB Shears
2 x #6 ORH Annular
7000 psi pressure rating
Fire proof BOP hose
Capacity of 100' umbilical hose
Self-winding and unwinding
60 pitch chain and sprockets

Main Accumulator System
2 x 15 gallon bottles (2 x 56.78 liter boules)
3000 psi pressure
One Oanfoss electronically actuated control consul
Five manual Barksdale valves with electronic pilot controls

Stripper and skate accumulator
1 x 5 gallon accumulator bollle
5000 psi pressure
Zero leak TR controls
Back up for Stripper and Skates in the result of truck shut down.

Chassis
Single drop outside rail semi-trailer with torque lube transition to suspension rails.
Rails of fabricated T-1 steel with a square gooseneck.

Capacity
110,000 lbs (55Ton)

Dimensions
634" (53 ') overall length
120" (10') overall width
194.63" gooseneck length
40.8" lower deck height laden
57" suspension rail centers

Gooseneck
194.63" gooseneck length, 14" king pun setting, 50" mounting height.
Standard 2" SAE Bolt-in king pin.
Narrow pickup throat.
Provision for use with a tandem axle jeep.
Kingpin structure and main rails tapered to enable swing clearance of tandem jeep.

Booster Provision
Provision for a single axle common air booster. Conneclions Iugs and air and electrical lines.

Decking Supports / Misc Mounts
Decking and misc mounts aupplied and installed per customer requirement per approval drawing 132142.C

Suspensions (3)
Hendrickson HT-300 tridem air ride suspension.
60" axle spacing, 30,000 lbs capacity each

Axles (3)
25,000 lb. capacity Ingersoll F22 axles, (10' overall tire width).
Stemco grit guard oil seals, open brake cams, and dust shields.
haldex auto slack adjusters

Brakes
Ingersoll 16-1/2" x 7" Q brakes with type 30/30 spring brakes.
Brakes rated @ 22,500 lbs per axle

ABS Brakes
Meritor 4S / 2M anti-lock brake system (4 sensors and 2 modulators) side control with modulation of both axles.

Hubs (6)
10 hole steel Unimount complete with cast outboard brake drums.

Wheels (12)
8.25 x 22.5 10 hole hub-piloted clean buff finished Alcoa aluminium wheels

Tires (12)

275 / 70R22.5 Michelin XTY-2 18 ply tires.

Landing Gear
Holland Mark V, 2 speed, 62,500 lb. lifting capacity
Standard sand pads
LGS-5A001

Hydraulic Legs
Hydraulic stabilising legs 58,000 lbs each lifting capacity @ 3000 psi
No power pack supplied

Drop Down Legs
Drop Down legs at rear of main rails

Bumper
Oilfield style rear bumper installed complete with tow plate with holes for 1-1/4" clevis

Air system
CMVSS approved, relay emergency 2 line system with park brakes on all axles.
Glad hands and electrical socket in middle of neck.
Dump valve and air scale guage mounted in a sealed box.

Electrical system
CMVSS approved sealed modular electrical system using Truck-Lite Super Seal harness system
and sealed beam LED lights

WorldRigs has 2017 Celtic Pride Trailer Mounted Coil Tubing Unit for Sale for Sale
  Images

2017 Celtic Pride Trailer Mounted Coil Tubing Unit for Sale

2017 Celtic Pride Trailer Mounted Coil Tubing Unit for Sale

2017 Celtic Pride Trailer Mounted Coil Tubing Unit for Sale


2017 Celtic Pride Trailer Mounted Coil Tubing Unit for Sale
Celtic Pride Coil Tubing Unit for Sale
100K Injector Coil Tubing Unit for Sale



If you are interested in the featured equipment,
please contact us on email
 or call +65 97768837.

...............................................................................
Cannot find the rig you want? Email us on

2017 Celtic Pride Trailer Mounted Coil Tubing Unit for Sale


Name    :    2017 Celtic Pride Trailer Mounted Coil Tubing Unit for Sale
ID    :    WR713
Year manufactured   :    2017
Price   :    Inquire for pricing
Specifications   :

2017 Celtic Pride Trailer Mounted Coil Tubing Unit for Sale
Celtic Pride Coil Tubing Unit for Sale
100K Injector Coil Tubing Unit for Sale



Control Cab
85.25" long x 120" wide x &2.125" high
Fully insulated and sound-proofed
Windows on all sides
Cabin lined with white coated aluminum
Rear window slanted inward with wiper and guard over window
Four LED work lights built into front peak of cab
Two LED lights pointing towards reel
Red Dot Air conditioner built into roof
Two x I 500 watt electric base board heaters
Wrap-around control panel with engraved stainless steel faces
Shelves and drawer uni1 on left side of" panel
Bench seal with storage under seat on the front side of cab
One main 110 volt electric junction
Control cab lifts 56" via a scissor lilt
Two section aluminum pull out stairs

Upper Left Panel

Electronic quad BOP controls
Electronic depth counter and speed

Lower Left Panel
Electronic over hydraulic reel bleed off control
Electronic over hydraulic reel Nitrogen valve control
Electronic over hydraulic lnjecto1· stripper and chain lube control
Electronic ovet hydraulic level wind up/down control
Electronic over hydraulic level wind forward/reverse control
Electronic level wind speed control

Upper centre panel
Main power
Auxiliary power
Windscreen wipers
Air horn
Medco Data Acquisition Display
Electronic 6" I 0,000psi pressure gauge
Elcc1ronic 6" 100,000ll> weight indicator gauge
In hole pressure gauge
Out hole pressure gauge

Lower centre panel
Injector joystick control
Injector in hole pressure relief
Injector out hole pressure re.I ief
Reel out hole pressure relief
Annular pressure relief
Electronic throttle
Injector motor speed
Injector brake- Auto/on
Emergency kill
Reel brake

Upper right panel
Reel charge pressure
Auxiliary hydraulics
Chain tension pressure
Injector charge pressure
Reel pressure
Stripper pressure
Skate pressure
Injector accumulator pressure

Lower right panel

Stripper pressure relief valve
TR stripper open/lock/close valve
Chain tension relief valve
TR chain tension open/lock/close valve
Skate pressure relief
TR skate pressure open/lock/close valve

Remote BOP panel
Five electric over hydraulic Barksdale BOP controls
Annular bag
Blind rams
Slip rams
Pipe rams
Shear rams

Controls at Rear of Unit
Reel brake
Emergency kill
Injector control joystick
Reel control joystick
Auxiliary hydraulics pressure gauge
Injector charge pressure gauge
Reel charge pressure
Reel pressure gauge

Nine section valve bank
Front rigln jack-up/down
Fronl left jack-up/down
Rear right jack-up/down
Rear lefijack-up/down
Injector hose reel-out/in
BOP hose reel-out/in
Injector base-forward/back
Winch-out/in
Arch tilt-fonvard/back

Six section valve bank

Auxiliary hydraulic I -open/close
Auxiliary hydraulic 2-open/close
Stripper/chain lube
level wind up/down
level wind forward/reverse
Cab-lower/raise

Power Pack

JOHN DEERE 375 HP engine
funk pump drive spl iuer
160 gallon diesel tank
12 volt controls
Positive air shut off
Enclosed with own cooling system

Hydraulic Pumps and Drives
Three LINDE pumps direct mounted to power pack
HPV 135 controls the injector
HPV I 05 controls the reel
HPV 55 auxiliary hydraulics
160 gallon hydraulic oil rank
Three high pressure oil tilters
One hydraulic return oil filter
Hydraulic fail safe oil Cooler

Data Acquisition System (Medco Engineering)
Data acquisition software
Fatigue analysis soflware
Weight indicators
Pressure indicators
Depth counter
Speed indicators

Reel Model CP7496160

Capacities:
9660 meters 1-1/2" tubing
7000 meters 1-3/4"  tubing
5338 meters 2" tubing
Reel core 96"
Two air pot style reel brakes
LINDE motor drive attached lo a BRA VINIE right angle drive gear box
Chain driven worm gear level wind
Reel safety guard built into base
Four pinned mount system
Flange on flange reel lo rotatingjoint
Straight hinging rotating joint working pressure 10,000 psi
Replaceable 12" frac iron section
Rotating joint 180 C temperature rating
1.5" pitch 120 sprockets with Diamond chain
Two hydraulic multi plate quick connects
Manual counter mounted on level wind head

Integral Iron
Working iron 2" x 1-1/2" bore-1502 unions working pressure 15,000 psi
2" x 2 plug valve inside of reel for ball drop
Flange on flange reel 10 rotating joint
Rotating joint working pressure 10,000 psi
Port on iron for electronic pressure transducer

Bleed Offs
Nitrogen bleed off
Main Accumulator bleed off
Injector accumulator bleed off
AII bleed offs are located on the control cab frame

Model CPI 100 Injector Specifications
Pull Force - 100,000lbs at 5000PSI (46,360 kg at 5000 PSI)
Snub Force - 40,000
Motors - Variable displacement, axial piston hydraulic motors
Brakes - Multi disk, hydraulic release
Height - 99"
Base length - 54"
Base width - 24"
Motor/Gearbox width - 48"
Weight - 68741bs.(without arch)
Chain Type - 140-4 Oilfield Diamond chain
Speed - 46 meters/minute ac 50,000lbs pull
Tubing Sizes - 1-1/4" through 2-7/8" (31.75mm through 73mm)
3'' x 3" Injector frame rated for 80K
46 ½ Long ball bearing style skate
38" length of skate conwct area per side
Three rows wide, 3/4" t0ol steel ball bearings, ISO contact points per side
120-4 Diamond chain and one piece machined steel dies
Two cylinder bars with four 4.625'' bore skate cylinders per side
ln1ernal hydraulic porting between each skate cylinder
At 3000psi skate pressure, max compression force of 20 I ,592lbs
Max. force per ball bearing 6721bs@ 3000 psi squeeze pressure
Max. force per steel die 4581 lbs @3000 psi squee"£e pressure
Eighteen 100th sprockets with sealed bearings
Hydraulic independent main chain tension
Electronic Stellar IOOK load cell
5.0625" side door stripper rated for I OK
Side door Stripper can be quickly removed from base via 2 pins
96" radius arch with steel arch rollers
Arch is adjustable forward and backwards
Arch had a hydraulic folding section with a holding valve on the cylinder
Injector chains have a removable aluminum guard
Injector frame has four D ring tie downs to stabilize the Injector on the well
Multi bank quick connect making ii impossible to connect hydraulic hoses wrong
Injector base rilts hydraulically forward to tran•sporc the Injector under height
A Pull master PL 5 winch helps keep the Injector stable on the well and assists in the storage of the Injector.

Injector Rose Reel
18 x #6 ORB ports
2 x #16 ORB po11s
8 x 20 gauge wire electric slip ring
7000 psi pressure rating
Capacity of I 00' umbilical hose
Self-winding and unwinding
60 pitch chain and sprockets

BOP Hose Reel
2 x #6 ORB Blinds
2 x #6 ORB Pipes
2 x #6 ORB Slips
2 x #6 ORB Shears
2 x #6 ORH Annular
7000 psi pressure rating
Fire proof BOP hose
Capacity of 100' umbilical hose
Self-winding and unwinding
60 pitch chain and sprockets

Main Accumulator System
2 x 15 gallon bottles (2 x 56.78 liter boules)
3000 psi pressure
One Oanfoss electronically actuated control consul
Five manual Barksdale valves with electronic pilot controls

Stripper and skate accumulator
1 x 5 gallon accumulator bollle
5000 psi pressure
Zero leak TR controls
Back up for Stripper and Skates in the result of truck shut down.

Chassis
Single drop outside rail semi-trailer with torque lube transition to suspension rails.
Rails of fabricated T-1 steel with a square gooseneck.

Capacity
110,000 lbs (55Ton)

Dimensions
634" (53 ') overall length
120" (10') overall width
194.63" gooseneck length
40.8" lower deck height laden
57" suspension rail centers

Gooseneck
194.63" gooseneck length, 14" king pun setting, 50" mounting height.
Standard 2" SAE Bolt-in king pin.
Narrow pickup throat.
Provision for use with a tandem axle jeep.
Kingpin structure and main rails tapered to enable swing clearance of tandem jeep.

Booster Provision
Provision for a single axle common air booster. Conneclions Iugs and air and electrical lines.

Decking Supports / Misc Mounts
Decking and misc mounts aupplied and installed per customer requirement per approval drawing 132142.C

Suspensions (3)
Hendrickson HT-300 tridem air ride suspension.
60" axle spacing, 30,000 lbs capacity each

Axles (3)
25,000 lb. capacity Ingersoll F22 axles, (10' overall tire width).
Stemco grit guard oil seals, open brake cams, and dust shields.
haldex auto slack adjusters

Brakes
Ingersoll 16-1/2" x 7" Q brakes with type 30/30 spring brakes.
Brakes rated @ 22,500 lbs per axle

ABS Brakes
Meritor 4S / 2M anti-lock brake system (4 sensors and 2 modulators) side control with modulation of both axles.

Hubs (6)
10 hole steel Unimount complete with cast outboard brake drums.

Wheels (12)
8.25 x 22.5 10 hole hub-piloted clean buff finished Alcoa aluminium wheels

Tires (12)

275 / 70R22.5 Michelin XTY-2 18 ply tires.

Landing Gear
Holland Mark V, 2 speed, 62,500 lb. lifting capacity
Standard sand pads
LGS-5A001

Hydraulic Legs
Hydraulic stabilising legs 58,000 lbs each lifting capacity @ 3000 psi
No power pack supplied

Drop Down Legs
Drop Down legs at rear of main rails

Bumper
Oilfield style rear bumper installed complete with tow plate with holes for 1-1/4" clevis

Air system
CMVSS approved, relay emergency 2 line system with park brakes on all axles.
Glad hands and electrical socket in middle of neck.
Dump valve and air scale guage mounted in a sealed box.

Electrical system
CMVSS approved sealed modular electrical system using Truck-Lite Super Seal harness system
and sealed beam LED lights

WorldRigs has 2017 Celtic Pride Trailer Mounted Coil Tubing Unit for Sale for Sale
  Images

2017 Celtic Pride Trailer Mounted Coil Tubing Unit for Sale

2017 Celtic Pride Trailer Mounted Coil Tubing Unit for Sale

2017 Celtic Pride Trailer Mounted Coil Tubing Unit for Sale


2017 Celtic Pride Trailer Mounted Coil Tubing Unit for Sale
Celtic Pride Coil Tubing Unit for Sale
100K Injector Coil Tubing Unit for Sale



Mail WorldRigs
   Mail WorldRigs regarding any general/sale enquiries or feedback.
   You are enquiring about :   2017 Celtic Pride Trailer Mounted Coil Tubing Unit for Sale, ID WR713
   Your name :

   Your company :

   Your email :

   Your contact number :

   Your message :

 Please enter the security code


...............................................................................
