Name: Ingersoll-Rand A300 Drilling Rig - For Sale
Brand: Ingersoll-Rand A300 Drilling Rig - For Sale
SKU: N/A
Availability: InStock
Rating: 4.5 (11 reviews)

Cannot find the rig you want? Email us on

Do you need a rig on lease? Email us on

Ingersoll-Rand A300 Drilling Rig - For Sale


Name :	Ingersoll-Rand A300 Drilling Rig - For Sale

ID :	WR1090

Year manufactured :	1993

Price :	Inquire for pricing

Specifications :	Ingersoll-Rand A300 Drilling Rig for Sale Drilling Rig - Ingersoll-Rand A300 - For Sale 1993 Built Ingersoll-Rand A300 Drilling Rig for Sale Ingersoll-Rand A300 Drilling Rig - 1993 Built for Sale Used Ingersoll-Rand A300 Drilling Rig for Sale Ingersoll-Rand A300 Used Land Drilling Rig for Sale Ingersoll-Rand A300 Drilling Rig for Sale in USA Description : 1993 Ingersoll-Rand A300 Drill Rig Mounted on 2006 Ford F650 Truck Truck has 233,472 Miles and Rig has 8855 Hrs Deck Tool Storage Underdeck Auger Racks 10 ft Rod Storage On Deck 200 Gallon Water Tank 3l6 Moyno Pump Telescoping Tower 1 Winch A-300 Monitoring Drill Specifications : Power System : Power Transfer : Transfer case and pump drive Hydraulic pumps : Variable displacement : 30 gpm Fixed displacement : 40 gpm Reservoir : 100 gallons Filtration : 10 micron element Dimensions : Length : 25ft.0 in Width : 8ft. 0 in Height (derrick down) : 10ft. 9 in. Height (derrick vertical) : 14ft. 10 in. Weight (less truck) : 8,000 lb. Weight (Including truck) : 16,000 lb. Leveling System : Hydraulic jacks : 3(1front;2 rear) Diameter/stroke : 5ft x 30ft Pad diameter : 10 in. diameter Derrick : tubing section : (2)5ft x 10ft x 0.25ft wall Length : 12.0ft. Rotary head travel : 8ft Feed System : Pulldown/Pullback : 18,000lb. Head travel speed : 50ft/min. Feed motor : Hydraulic;variable speed Feed chain : Roller Rotation System : Motor type : Hydraulic planetary gear Torque : 8,000ft-lb.(96,000 in-lb.) Speed range (standard) : 0 - 75 rpm Side slide(hydraulic) : 12ft overall Spindle adapter : 8 bolt flange Hoist : Capacity : 8,000lb. Speed : 85ft/min. Cable : 1/2ft x 60ft. Options : Cat head : 8ft x 8-3/4ft drum Pump : Moyno 3L6 "A" rod rack capacity : Capacity of 20 pcs.(5ft) Twin auger racks capacity : 90ft. of 6¼ x 5ft. augers Three speed rotary head : 0-215 rpm; shift-on-the-fly Derrick extension : 6ft hydraulic telescoping Tool boxes : 24ft x 18ft x 18ft (each) Auger centering guide : For 4⅜" to 8¼" hollow stem augers Location : USA

WorldRigs has Ingersoll-Rand A300 Drilling Rig - For Sale

	Images

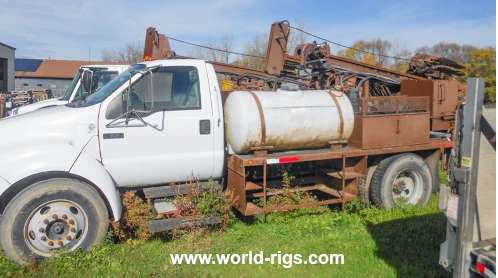

Ingersoll-Rand A300 Drilling Rig for Sale
Drilling Rig - Ingersoll-Rand A300 - For Sale

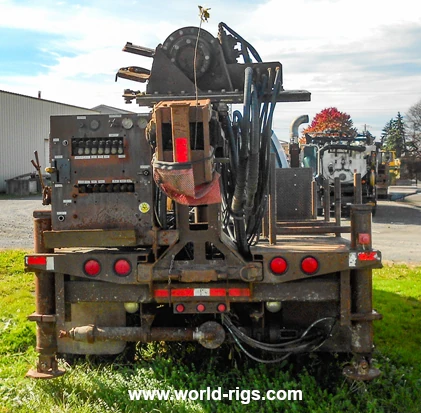

1993 Built Ingersoll-Rand A300 Drilling Rig for Sale

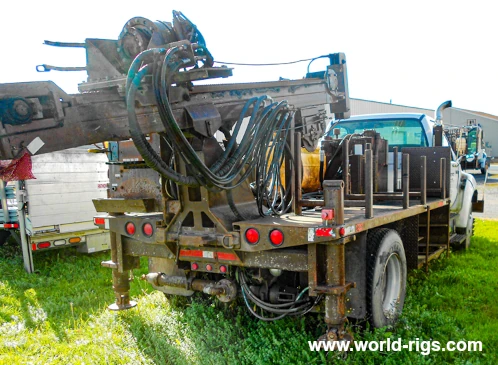

Ingersoll-Rand A300 Drilling Rig - 1993 Built for Sale
Used Ingersoll-Rand A300 Drilling Rig for Sale
Ingersoll-Rand A300 Used Land Drilling Rig for Sale
Ingersoll-Rand A300 Drilling Rig for Sale in USA
