Description :

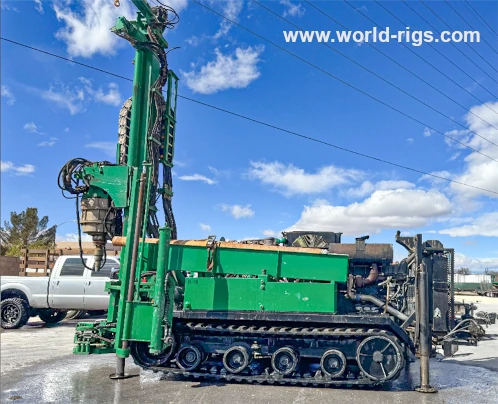

2012 Diedrich Rubber Track Sonic Rig
Engine : 375hp Volvo Diesel Engine
Dimensions :
Length towered down – 22’ 5”
Length towered up – 21’ 6”
Height towered down – 10’ 9”
Height towered up – 22’ 7”
Width – 8’
Weight – 37,600lbs
Feed System :
Dual single link chain drive
Pull back – 20,000lbs
Pull down – 20,000lbs
Max speed – 102ft./min
Rubber isolation wheels
15ft stroke, with a Gore track hose system
Water Pumps :
L6 Progressive Cavity Moyno Pump
225 PSI
47 GPM
Inlet/Outlet – 3”/ 2-1/2”
Jib Winch :
Extended Position
Capacity – 1700 lbs.
Vertical Position (Over the hole)
Capacity – 3800 lbs.
Breakout Wrenches :
3-1/2” OD Pipe – 11” OD Pipe
Torque
17,500 lbs.

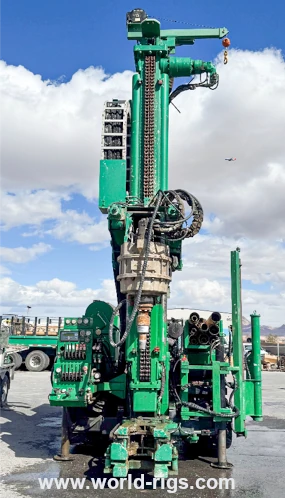

Mast :
12” x 12” structural tubular construction
25,000 lb. gross load rating
6” guide tubes
Leveling Jacks :
Four 36” stroke (2 front and 2 rear)
Other Features :
One 24” tool box
150-gallon fuel tank
200-gallon hydraulic tank
Radio controlled under carriage
Rod trough
Automatic SPT Hammer
10” wiggle and 10” in/out
Tooling available cost extra
Note : The majority of drilling projects the rigs now perform is
Geotech drilling, Auto-Matic-Trip Hammers were installed on both.
Location : USA
|
