National 1320 - 2000 HP Drilling Rig for Sale


Name    :    National 1320 - 2000 HP Drilling Rig for Sale
ID    :    9000-399
Price   :    US$ +/- 6,750,000
Specifications   :    National 1320 SCR Drilling Rig for Sale
2000hp Land Drilling Rig for Sale
SCR Drilling Rig for Sale



Description

Mast & Sub :
Lee C. Moore, 142’ High Cantilever Type Mast, S/N: T3839 with Cantilever
Substructure, S/N: 54H048, 36’W X 25’H X 75’L, 1,000,000 LBS Gross Nominal
Capacity with 12 lines. Setback capacity 500,000 lbs. and 800,000 lbs.
complete with Racking Board Platform. Drillers and Off-Drillers Side Top Dog,
Drillers’ lockers, storage boxes and knowledge box, catwalks with (12) Pipe Racks

Drawworks :

National 1320 UE, 2,000 HP, 1-3/8” Lebus Grooved Drum Draw Works with
(2) GE-752, 1,000 HP DC Traction Motors, complete with National Make-up
and Break-out Catheads, Over-running clutch, air drillers console and
Baylor Elmagco Model 7838 Electric Brake, S/N: 7299.

Rotary :
National C-275 27-1/2” Rotary Table with Independent Drive, with
(1) GE-752,1,000 HP DC Traction Motors, complete with emergency
mechanical independent drive.

Traveling Block :
National, Model 660-G500 (Integrated), 500 Ton Capacity with (6) 60” Sheaves, 1-3/8” Line.

Swivel :
National Model P500, 500 TON Swivel

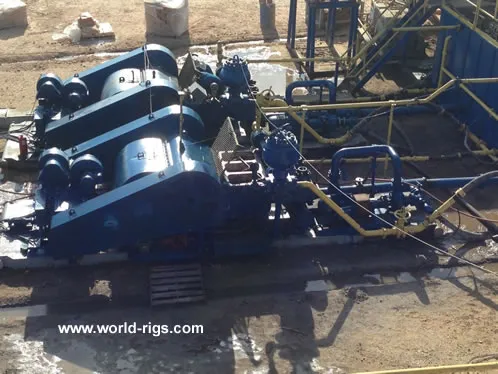

Triplex Mud Pumps :
(2) Gardner-Denver PZ-11, 1,600 HP Triplex Pumps, each with (2) GE-752, 1,000 HP DC
Traction Motors, (1) Hydril Model K-20-5000 Pulsation Dampener and
(1) 6 x 5, 70 HP centrifugal charge pump

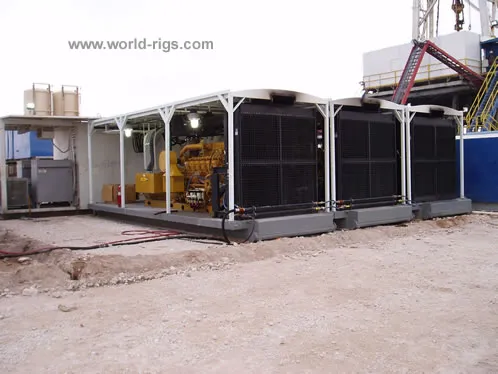

Generators Diesel / AC :
(3) Caterpillar 3512C, 1,476 BHP (1101 BKW) @ 1200 RPM, 2006 EPA/CARB
Non-Road Mobile Tier 2 Emission & IMO certified, each with KATO 6P6-3300
Generator, Rated: 1365 EKW, 1950 KVA, 0.7 PF, 600 Volt, 3 Phase,
GT #3681H MBRadiator, Silencer MSA-1 Muffler with Spark Arrest,
(2) Sullivan Palatek Model 30DG 30HP Electric Air Compressors, radiators,
horizontal receiver tanks and (1) LEROI Model 770 cold start compressor,
diesel powered

SCR House :
ROSS HILL, Model 1650, S/N: 5244 with (4) bays, 1800 AMP Capacity, 750
Volts DC, with AC Buss, including (1) General Electric 770 Line Motor Control Center,
Model 434X162003, 480 Volts, 3 Phase, 60 HZ., mounted in a
10’H x 10’W x 30’L Temperature Controlled House.

Fuel Tank :
(1) 330 bbl. 8’ Dia. Fuel Tank with (2) 1-1/2”, 3 HP Fuel Transfer Pumps; and
(1) 300 BBL Fuel Tank

Water Tanks :
(1) 570 bbl Open Top Tank and (1) 150 bbl. with 11’ Skid Extension with
(2) 4 x 3 30 HP Centrifugal Pumps

Shale Tank :
600 bbl. Flat Bottom Tank, Internal Plumbing, Mud Jets, (2) 10 HP Agitators,
Covered Porch with (2) 6 x 5, 60 HP Centrifugal Pumps

Mud Trip Tank :
150 bbl. Flat Bottom Trip Tank with 7’L Porch and (2) 4 x 3, 30 HP
Centrifugal Pumps

Intermediate Tank :
500 bbl. Flat Bottom Tank, (3) Compartment Tank, Internal
Plumbing, Mud Jets with (3) 10 HP Mud Agitators

Suction Tank :
425 bbl. Flat Bottom, (1) Compartment Tank, Internal Plumbing, Mud Jets,
(3) 10 HP Mud Agitators with Covered Porch with (2) 6 x 5, 60 HP Centrifugal Pumps

Desilter / Desander / Shaker :
DG-ATM NOV Atmospheric Degasser with 10 HP
Pump, Brandt Desilter with (16) 4” Cones, Brandt Desander with (2) 12” Cones,
and (2) Brandt COBRA Shale Shakers

Blow Out Prevetion Equipment :
Closing Unit: Cameron, Six (6) Station, 120 Gallon Capacity

Annular Preventer :
HYDRIL Type GK - 13-5/8” X 5,000 psi

RAM Preventer :
Cameron Type U, 13-5/8” x 10,000 psi Double Ram Preventer
Cameron Type U, 13-5/8” x 10,000 psi Single Ram Preventer
Drilling Spool, 13-5/8” with 4-1/16” Hydraulic Gate Valve, 2-1/16” and
4-1/16” Outlets, (2) 21/16” Gate Valves, and (1) 4-1/16” Gate Valve.

Choke Manifold :
10,000 PSI with (8) 4-1/16” X 10,000 PSI Gate Valves mounted on an
adjustable height skid

Auxiliary Equipment : (18) 8” Slick Drill Collars
- (25) 6-3/4” O.D. x 2-1/4” I.D Slick Drill Collars
- 500 Joints, 5” 19.50#, S-135  Drill Pipe with Hard Band
- Compressor House with grasshopper
- Mud House
- Tool House
- Change House
- Parts House
- Junk Box
- (2) Ingersoll-Rand Model K6U Air Hoists
- Inter-American Model Surveyor with 15,000’ Wire Line
- 5-1/4” Hex X 42’L Kelly
- Kelly Drive Bushing
- Kelly Spinner
- Upper Kelly Valve
- Lower Kelly Valve, 5,000 psi
- National Model D Dead Line Anchor
- Pipe Spinner
- Steel Framed Rig Mats
- Electrical Suitcases
- Rig Manager Quarter
- 12 Person Crew Quarter
