Chinese RG 1300 Double - Mechanical Drilling Rig for Sale


Name    :    Chinese RG 1300 Double - Mechanical Drilling Rig for Sale
ID    :    9000-384
Price   :    US$ +/- 1,785,000
Specifications   :    Trailer Mounted Mechanical Drilling Rig for Sale
Chinese RG 1300 Double - Drilling Rig for Sale
1300 hp Mechanical Drilling Rig for Sale



SOLD

Description

Classification : 1300 H.P. land rig rated to 13,500

Manufacturer : RG – Petro
Delivery date : August 29, 2007 (new)

I-Drawworks
- RG Model JC28E, max speed 450 rpm – API spec 7K
- Rated @ 1300 HP
- Fast line pull 62,107 lbs
- Diameter : 40 inch x 25 inches
- ATD 330H axial thrust disc clutch (New from WPT 2 qtr. 2013)
- Drawworks fitted with disc brakes – 14,330 lbs positive pressure per rim
- Disc brakes have separate hydraulic system
- Eaton Model 324 auxiliary brake – water cool – separate tankage
(Function tested by TCM – Offshore 2nd qtr. 2013)
- 7,500 ft 1-1/4” drill line 6 x 19 EIPS IWRC RPL
- Crown-O-Matic toggle valve crown saver

II - Trailer
- Model ES 9660 with Mast Crown and Standpipe
- (5) axle, triple steel board, balanced suspension. (2) Air lift (3) Spring,
12 x 20 double tires
- OAL 50’ L x 10’10” W x 14’ H with mast on
- Back overhang 5’4”
- Axle spacing 4’6”
- (5) x 26,000 lbs. axles

III - Substructure
- Model ZZ225 rated at 500,000 lbs – pull test 580K
- Floor height – 19’ 8-1/2” (scoped up)
- 11’6” W x 30’ L x 10’3”H (scoped down)
- Under rotary 17’ 6”
- Clear area under beams – 15.7 feet
- Mechanical raise with adjustments for uneven locations
- Floor – 24 feet x 20 feet complete with 2 walkways, and trailer
walkway ladder. All built new 2 qtr. 2013

IV - Derrick and Traveling Equipment
- Mast Model JJ22 – API 4F double (125’ x 505,000 lbs.) (clear height 105’)
- 53’10” (scoped in)
- Board heights – 72.2 feet / 75 feet / 78.7 feet
- Raising speed – 12 minutes from horizontal
- Hydraulically scoped (both cylinders repaired by Texas Hydraulic 2nd qtr. 2013
13,500 feet 4 ½ “ pipe racking capacity
- Wind resistance – 110 km/hr
- Complete with explosion-proof lighting and parameter lighting repaired 2nd qtr. 2013.
- Complete with Geronimo line, sala block, tong cylinders

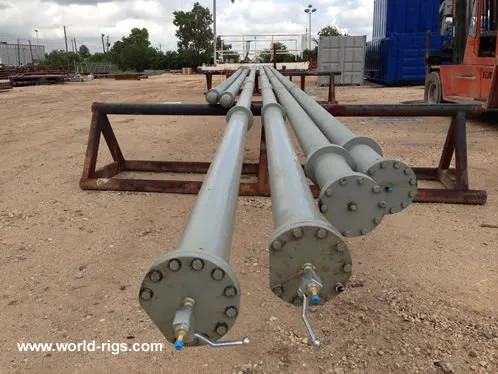

- 4 inch x 7000 psi standpipe and 3” ID x 60’ kelly hose

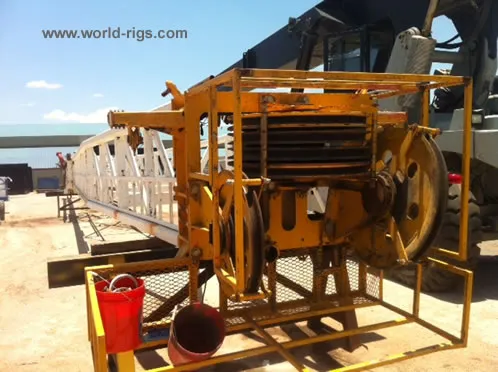

- Crown Model TC225, 250-ton capacity, 10 lines

V - Rotary Drive System
- Model ZP 275 – 27 ½ inch opening rated @ 500 – ton – API 7k
(Removed and repaired by TCM – Offshore 2nd qtr. 2013)
- Max speed – 300 rpm
- Static loading – 1,000,000 lbs
- Torque – 20,265 foot lbs
- Complete with 1, 2, and 3 bowls
- Right angle gear box driven (shopped & tested by TCM-offshore, and spare in doghouse)
- Permanent and ratcheting type locking systems
- Rotary torque sensor
- Master bushing rated for 500 tons with API #3 interior – pin drive

VI - Liquid Capabilities
- Fuel oil : 10,000 gallons 34’ L x 8’ W x 10’ H skidded c/w loading hitches
- Process tank : 70 barrels
- Drill water : 18,000 gallons 30’ L x 10’ W x 10’ skidded c/w loading hitches

VII – Rig Power

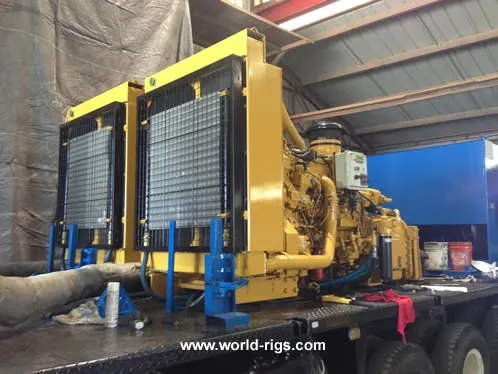

- Two each Caterpillar C-18 (AR# 237 - 1955), (SN# WJH01434), (AR# 237 - 1955),
(SN# WJH01431) electronic engines complete with Alison 6061 transmissions
- Two redundant hydraulic pumps mounted on transmissions for raising/lowering mast
- Compound box Model BXJ, input speed max 2500 rpm, output torque 19,176 foot lbs
- Rotary transmission – Model ZX140, 2100 rpm max, input torque 10,360 foot lbs

VIII – Generator House
- Two Volvo diesel engines (Model TAD1641GE) 1800 rpm, 565 kw (serviced
by TCM-Offshore)
- Two Samford generators 400 kw, 60 Hz, 3Ph, 1800 rpm (serviced by TCM-Offshore)
- Electronic engine control panels (2)
- Fully enclosed house 31’ L x 9’7” W x 10’6” H c/w loading hitches
- Engines covered, generators covered and house was sandblasted, primed and
painted 2 qtr. 2013

IX – MCC House
- RG system – 3 gen cubicles – 4 MCC cubicles
- 500 kva 480 to 240/110 VAC transforms
- 480 vac MCC panel
- Air conditioned house c/w work desk, interior lighting, outside plug in receptacle panel
- MCC house 31’3” L x 9’ W x 10’6” H c/w loading hitches

- Soft start cabinet #1
Merlin Gerin – NSC 160S 125 A breaker (x4)
Telemecanique – LCID115 magnetic contractor (x7)
Telemecanique – ND / NC push buttons ZB2BW06.C
Telemecanique – Schneider button indicator XB2-BVB4LC (x6)
Telemecanique – Switch ZB2-BE101C
Telemecanique – Contact block LADN11 (x6)
Allen Bradley – Motor controller SMC 135 amp 480 Vac 150-A135NBD

- Soft start cabinet #2
Merlin Gerin – NSC 160S 125 A breaker (x4)
Telemecanique – LCID115 magnetic contractor (x7)
Telemecanique – ND / NC push buttons ZB2BW06.C
Telemecanique – Schneider button indicator XB2-BVB4LC (x6)
Telemecanique – Switch ZB2-BE101C
Telemecanique – Contact block LADN11 (x6)
Allen Bradley – Motor controller SMC 135 amp 480 Vac 150-A135NBD

Merlin Gerin – NSC 160S 125 A breaker (x4)
Telemecanique – LCID115 magnetic contractor (x7)
Telemecanique – ND / NC push buttons ZB2BW06.C
Telemecanique – Schneider button indicator XB2-BVB4LC (x6)
Telemecanique – Switch ZB2-BE101C
Telemecanique – Contact block LADN11 (x6)
Allen Bradley – Motor controller SMC 135 amp 480 Vac 150-A135NBD

Feeder Cabinet 02 – A
A1 thru A8 : ABB S1 breakers
A9-A10 : ABB breaker MS 325 690V
A11-A12 : ABB S2 breaker I4 = 160A UE = 690V
A13 : ABB S3 breaker I4 = 250A UE = 690V

Incoming Cabine 480V

ABB S1 – I4 = 125A 4E = 500V (x2) breaker
ABB SACE F1-IN = 1250A UE = 415V (x2)
CHNT transformer – 480V/240V NDK (BK) – 300 50/60 HZ (x2)
RT14-20-IEC = 269 GB = 13529 20A 380V

Lighting Cabinet – C
C1, C2, C3, C6, C11, C12, C13, C14 : Breaker, IU = 125A 4E = 500v
C4, C5, C7, C8, C9, C10, C15, C16, C17, C18, C19, C20 : S252S Breaker C25, IEC-30898,
GB-10963

Feeder Cabinet 01 – B
B1 thru B8 : ABB S1 Breaker, IU = 125A UE = 500V
B9-B10 : ABB breaker MS 325 690V
B11-A12 : ABB S2 breaker I4 = 160A UE = 690V
B13 : ABB S3 breaker IU = 250A UE = 690V

X – Air Compressor House
- All compressors, switchgear and volume tanks were serviced by McKenzie compressors
2nd. Qtr. 2013
- Sullair (2) 220 CFM screw compressors Model LS 12-50HHAC SULL, SN# 88290006-329
- (2) 400-gallon air receivers ASME approved
- 125 gallon air receiver drawworks motors
- SRC 200 dryer refrigerant
- SRC 220 dryer
- Two each 50HP Model LS12-50H helical air compressors, 50HP, 37 KW, 187 cfm
- Separator and volume tanks
- Fully enclosed house 32’ L x 9’9” W x 10’ H c/w loading hitches

XI - Blow Out Prevention System
- One (1) accumulator system Burnsco 5 station   3000psi working pressure, with 2 each
60:1 air pumps and 1 each 15hp electric motor driven triplex pump with 7/8”
plungers – 11 gallon
bladder type 12 (bottles) – ASME vessels, drillers control panel – API complaint
unit, master skidded c/w loading hitches.

XII – Auxiliary Equipment
- Brake cooling tank with pumps (below drillers house – one skid)
- (1) 20’ container with associated spare parts/components for deck engines, drawworks and
drive lines
- Two drawworks winches – 3 short tons and 5 short tons with new US wire installed
- One swivel Model SL225 – 500,000 lbs x 5000 psi x 6 5/8 regular LH connection
- One hook/block combo – Model YG225 – 500,000 lbs
- Global safety valves (2) NC46 grey inside BOPS with releasing tools, (2) NC46 one piece
Hydril Style lower kelly valves, (1) 6-5/8” LH API reg upper kelly cock. All items within this
bullet point will be divided equally between rig 70 & rig 71.
- Misc. subs : Ace machine (3) NC46 wear subs 10” OAL, NC46 x 6-5/8” reg bit subs,
(2) NC 46 x 4-1/2” reg bit subs, (2) NC46 rubber Kelly saver subs. All items within this bullet
point will be divided equally between rig 70 & rig 71.
- Deadline anchor with E-80 sensor – type D style
- Fire fighting/safety extinguishes 10 to 30 lbs. All items within this bullet point will be divided
equally between Rig 70 & Rig 71.
- Sala blocks. All items within this bullet point will be divided equally between Rig 70 & Rig 71.
- Lad safety system (mast winch) for mast handling tools

XIII – Drillers Control Station and Control House
- Fully enclosed with explosion proof A/C
- Fully instrumentation package – hook, pump pressure, rotary torque indicator, tong torque indicator
- D type weight indicator system
- All proper vapour recovery and 4’ rig-a-lite lighting as described (substructure, mast gen
house, fuel, water tanks) have been replaced with US 4’ rig-a-lites from consolidated
electrical in Houston.


WorldRigs has Chinese RG 1300 Double - Mechanical Drilling Rig for Sale
  Images

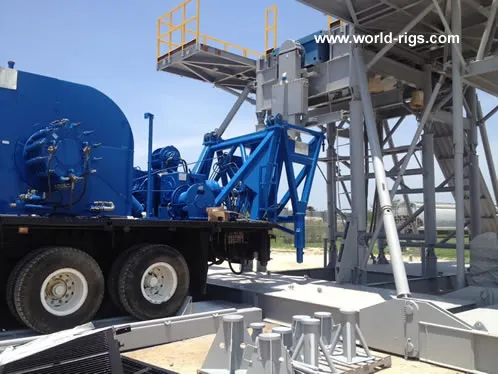

Chinese RG 1300 Double Mechanical Drilling Rig for Sale
