OIME SL7 Mechanical Heli Drilling Rig
1000HP Helicopter Land Rig for Sale in USA
Helicopter Land Rig For Sale
Description
OIME SL7 Mechanical Heli Drilling Rig
1000 HP, 4800# to 7200# Lift Loads +/-12,000' Drilling Rig
A. Mast :
Lee C. Moore 131’FT X 510,000# Capacity SHL, Racking Board,
Boom Line, Tong Weights, Six (6) 42” Sheave Crown Cluster w/ 56”
Fast Line Sheave, 1 1/8” Grooved, Crown Safety Platform,
(New) Water Table Derrick Shoes,Derrick Lights. New
Derrick Sections (CAT 4 API 4F inspection by superior derricks).
B. Sub Base :
Seventeen (17’) Foot High Low Lift Substructure, Rated 450,000#
Setback Capacity, V-Door, Three (3) Sets of Stairs, Handrails,
L.C. Moore Substructure, Skid Runners 4’ Wide X 5’High X 60’Long
(Cat 4 API 4F inspection by superior derricks).

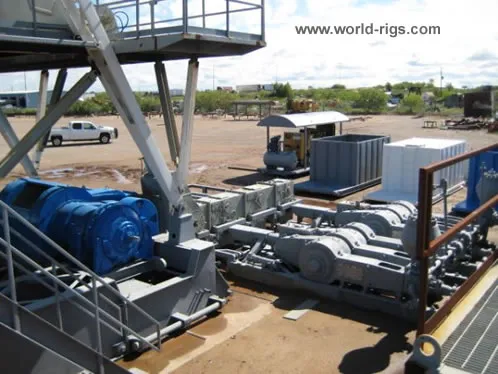

C. Drawworks :
OIME SL 7 Drawworks, Rated 1000 HP, 1 1/8” Lebus Grooved,
342A Hydromatic Brake, Driller’s Console(New), Hydraulic
Catheads (New), Four (4) Engine Compound (remanufactured)
Powered by Four (4) Cat, C15, 540 Hp Ea. Diesel Engines(new)
Twin Disc Transmissions (rebuilt), Four (4) Engine Skid Boxes (new)
D. Block/Hook :
Continental Emsco Five (5) Sheave 1 1/8” Line Grooved, 250 Ton Block
w/ Web Wilson 250 Ton Hydra Hook (rebuilt)
E. Swivel :
Gray B44, 300 Ton Swivel (rebuilt)
F. Rotary :
Ideco Type E, 23” X 53 ¼” w/ Split Master Bushing, Sprocket 26T with
2” Pitch (rebuilt)
G. Dog House :
Top House 8’Wide X 9’High X 10’ Long with 4’ Porch, Total
Length 14’ Knowledge Box, Two (2) Lockers (new)
H. Bottom House :
Bottom House 8’ Wide X 9’High X 10’ Long with 4’ Porch, Total
Length 14’ (NEW)

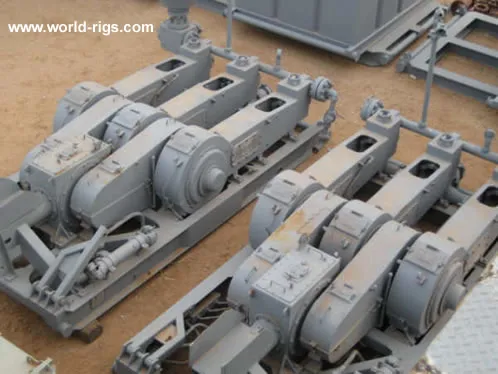

I. Pumps :
Two (2) OIME H700, 6” X 10”, Heli-Triplex Pumps /w Mattco Pulsation
Dampener 5000#, Pop Off, Pressure Gauge, Ten (10”) Inch Pump Suction
Skidded, Powered by Compound Engines (Rebuilt)
NOTE: Additional NEW OIME H700 Pumps & Parts Are Available
If Needed.

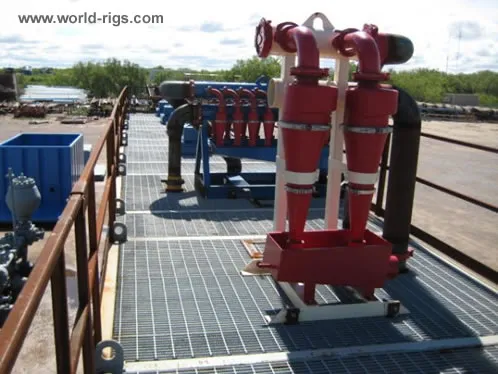

J. Mud Pits :
Seven Fly Pits 7’7” Wide X 8’High X 9’6” Long, Detachable, Mounted
On Two (2) 49’ Skid, 800 Barrel Capacity, Mud Troughs, Four (4)
Brandt Agitators 10 HP @1175 RPM, 240V, O’Drill/MCM Linear Shale
Shaker, Sixteen (16) 4” Cone Desilter, Desander, Four (4) 4” X 5”
Centrifical Pumps, High & Low Pressure Piping (New Tanks)
Rebuilt Mud Equipment. New Linear Shaker New 6x5
Centrifical Mcm Pumps With Motors

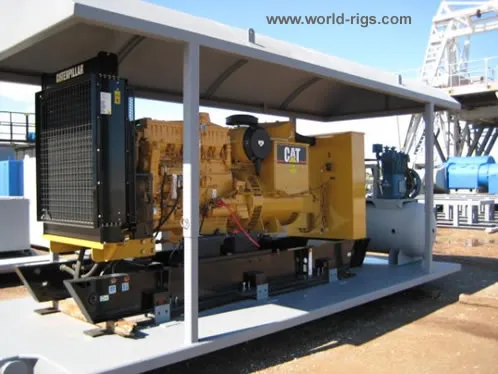

K. Generators :
Two (2) Cat 3406, C15, Diesel Engine w/ Cat SR4 350 KW Generators,
Factory Control Panel, Individual Skids 7’6” Wide X 20’ Long
With Detachable Roofs.Air Compressor (New)
H. Diesel Tanks :
Three (3) 6’ Dia. X 20’ Long, 4,000 Gallons Heli-Lift Fuel Tanks
Removable Skids (New)
L. Water Tanks :
Three (3) 8’5” Dia. X 8’ Long, 360 BBL Ea. Heli-Lift Water Tanks (NEW)
M. BOP :
One (1) Hydril GK 13 5/8”Annular, 3000# (Certified& Rebuilt)
Two (2) Schaffer 13 5/8”, Single Ram, 5000#, w/ Two (2) 4” Outlets
(Certified & Rebuilt) (One Is Unused)
N. Closing Unit :
OCO, Five (5) Station, 120 Gallon, Two (2) Air Pumps, One (1) Triplex
Hydraulic Charging Pump (New)
O. Miscellaneous :
Catwalk 18”High X 4’ Wide X 50’Long, Two Sections 25’
Each (NEW)
• Three Sets of Triangular Pipe Racks 18” High X 28’Long (New)
• Five (5) Storage Boxes, Detachable, Mounted on 35’Long Skid
• Bails 108”Long X 2 3/4” Dia. (Inspected) 250 TON
• Mud Hopper 4”
• Tongs, BJ, Type DB with Tong Heads 3 ½” to 10 ¾” (Rebuilt)
• Drill Pipe Slips 4 ½” (New)
• Drill Collar Slips 4 ½” to 8” (New)
• Elevators 4 ½” (Rebuilt)
• Air Hoist 9/16” Steel Line (New)
• Handling Subs
• Junk Box
• Spool Wire Line 1 1/8”, 4000’ (New)
• Extra Spare Parts for mud pumps & drawworks
• Martin Decker weight indicater. tong torque (rebuilt) |
