F200-DEC Drilling Rigs 1780 hp for Sale


Name    :    F200-DEC Drilling Rigs 1780 hp for Sale
ID    :    9000-389
Price   :    US$ +/- 6,000,000
Specifications   :    F200-DEC (Two Available) Drilling Rigs for Sale
Mechanical Land Drilling Rigs for Sale
1780hp Land Drilling Rigs for Sale in USA



Description

F200-DEC (Two Available) Drilling Rigs
1780 HP Mechanical Land Drilling Rigs

Drawworks :
Upetrom type TF25, Rated input power 1780HP, Drilling line
guide Upetrom, Upetrom Make-up cathead & Break-out cathead,
FH 46 Brake, 175 bbl Brakes cooling system capacity, water
cooled, DAAS Automatic drilling control, Upetrom Crown-O-matic
device, powered by (1) Faur motor and (1) MB820 motor 890 HP each.

Mast :
MA 200 Upetrom mast, 137’, 441,000# SHL, 10 lines, racking capacity
of 10,499’ of 5”

Crown Block : Upetrom 240 ton with 6 sheaves grooved for OD 1-1/4” line

Substructure : Upetrom 26’7” x 32’3”, 715,000# setback, 16’4” drill floor height, ,
Clear height between rotary beams and ground level , 3.8

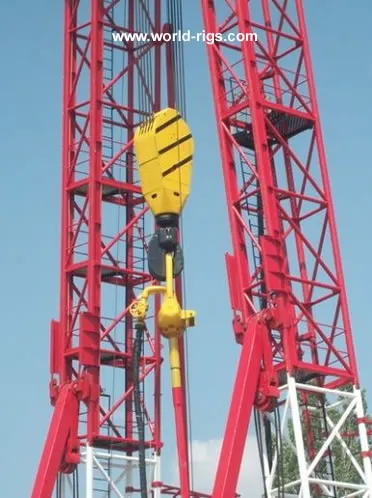

Travelling Block : Upetrom 5-32-MC 200, 200 Ton block, 5 sheaves
grooved for OD
1-1/4” line

Hook Block : Upetrom 200 Ton

Air Winches : (2) Upetrom TP1200, 2400# rated

Drilling Line : Mechel Campia Turzil, 1-1/4" x 1900'

Deadline Anchor : Martin Decker 131T, 75,000# static capacity
with OD 1-1/4” drill

Rotary Table : Upetrom MRL 275, 27 ½”, 500 Ton, powered by
FAUR MB 820 motor (890 HP)

Master Bushing : Upetrom, two sided, 27 ½”

Kelly Bushing : Sterom hexagonal/square

Swivel : Upetrom CH200, 200 Ton capacity, 5000psi

Kelly Spinner : Upetrom DIBA

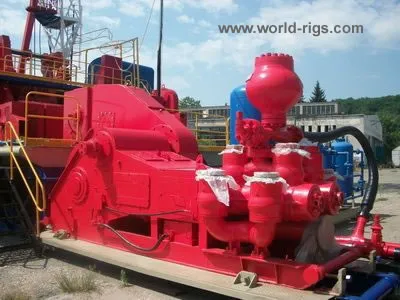

Mud Pump No. 1 : Upetrom 2PN700, 700 HP, with AP-210
pulsation dampeners
powered by Electroputure Craiova
MCF 550 KW motor, 737 HP

Mud Pump No. 2 : Upetrom 2PN700, 700 HP, with AP-210
pulsation dampeners
powered by Electroputure
Craiova MCF 550 KW motor, 737 HP

Mud Pump Suction Lines : (2) 10” suction lines with (2) Upetrom line

Mud Discharge Lines (Each pump have separate line) : (2) 4” flexible line section
vibrating hose, 5000psi

Stand Pipe Manifold : RON 4 x 5000 connection ends, Cameron valves, 4”Dia, 5000 psi

Stand Pipe : (1) 60’ stand pipe, 4”Dia, 5000 psi

Rotary Hose / Circulating Hose : (2) Phoenix Oradea, 60’, 5000 psi

Engine Generator Sets : (2) Caterpillar 3512, 1725HP

AC Generators : Caterpillar CAT 1750, 1750 KVA, 380 V, 50 Hz

DC Generators/Emergency Generator(S) : (1) Caterpillar GEP 150, 150 KVA, 380V, 50Hz

Air Compressor(S) : (2) Timpuri NOI model

Mud Tanks General : (7) tank system, 2100 bbl total capacity, total usable volume of 1890 bbls

Mud tank No. 1 – 300 bbl : Sand/Trip tank, Neptun SA/2NB16-VO5 electrical agitator
powered by 10HP electric motor, 403x108x102 33’6” x 9’ x 8’6”

Mud tank No. 2 – 300 bbl : Cleaning tank, (3) Neptune SA/2NB16-VO5 agitators
powered by 10HP electric motor, 26’3” x 9’ x 8’6”

Mud tank No. 3 – 300 bbl : Mud tank, (2) Neptun SA/2NB16-VO5 electrical agitators
powered by 10 HP electric motor, 26’3” x 9’ x 8’6”

Mud tank No. 4 – 300 bbl : Mud Tank, (2) Neptun SA/2NB16-VO5 electrical agitators
powered by 10 HP electric motor, 26’3” x 9’ x 8’6

Mud tank No. 5 – 300 bbl : Mud Tank, (2) Neptun SA/2NB16-VO5 electrical agitators
powered by 10 HP electric motor, 26’3” x 9’ x 8’6

Mud tank No. 6 – 300 bbl : Reserve Tank, 26’3” x 9’ x 8’6

Mud tank No. 7 – 300 bbl : Reserve Tank, 26’3” x 9’ x 8’6

Hoppers And Agitators : (2) mud hoppers, (9) Neptun Campina mud agitators p/b 10HP electric

Shale Shaker : (2) Swaco ALS shakers incl. ditch magnet

Mud Cleaner : SWACO (12) 4”cone D-silter, (2) 12” cone D-sander, Aversa Bucuresti centrifugal pump

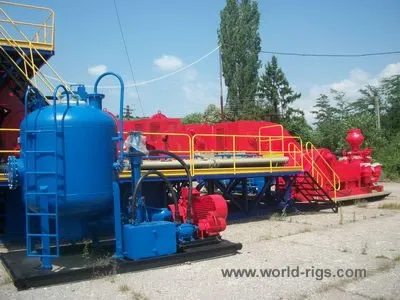

Degasser : Upetrom vacuum, Aversa Bucuresti centrifugal pump p/b 75 HP motor, mud-gas separator

Trip tank : 300 bbl

Annular Preventer : Upetrom 13 3/8” x 5000, 9” x 5000, 5000 psi

Ram Type Preventer : Upetrom 13 58/8”, 9”, 5000 psi, single or double

Accumulator : (1) 1000 gallon, 2000 psi with Upetrom P6U remote control panel

Choke Manifold : 3'' X 5000

Ancillary Equipment : Drill pipe elevators, pipeslips, pipe casing protectors, collar elevators,
collar slips, safety clamps, elevator links, bit breakers, bit gauges, casing slips for rotary table,
casing elevators, casing tongs casing circulating heads, thread protector, fishing tools

Instrumentation : Weight Indicator, mud pump pressure gauges, rotary speed tachometer,
tong torqueindicator, mud pump stroke indicator & totalizers, mud pit volume indicators,
mud flow volume indicator, drill parameter recorder, drilling drift, mud testing equipment,

Miscellaneous : gas maske, air breathing apparatus spare bottles, first aid equipment, sour gas
monitoring system, portable combustible gas detector, fire fighting equipment

Camp Site : Senior sleeper with attached bath, junior sleeper, (2) recreation rooms, Kitchens and
Mess rooms, camp spares, laundry container, dry store container, showers, toilets, water tank,
generator and

WorldRigs has F200-DEC Drilling Rigs 1780 hp for Sale
  Images




















F200-DEC (Two Available) Drilling Rigs for Sale
Mechanical Land Drilling Rigs for Sale
1780hp Land Drilling Rigs for Sale in USA


Mail WorldRigs
   Mail WorldRigs regarding any general/sale enquiries or feedback.
   You are enquiring about :   F200-DEC Drilling Rigs 1780 hp for Sale, ID 9000-389
Your name :
Your company :
Your email :
Your contact number :
Your message :

 Please enter the security code


...............................................................................
Cannot find the rig you want? Email us on
Do you need a rig on lease? Email us on

F200-DEC Drilling Rigs 1780 hp for Sale


Name    :    F200-DEC Drilling Rigs 1780 hp for Sale
ID    :    9000-389
Price   :    US$ +/- 6,000,000
Specifications   :    F200-DEC (Two Available) Drilling Rigs for Sale
Mechanical Land Drilling Rigs for Sale
1780hp Land Drilling Rigs for Sale in USA



Description

F200-DEC (Two Available) Drilling Rigs
1780 HP Mechanical Land Drilling Rigs

Drawworks :
Upetrom type TF25, Rated input power 1780HP, Drilling line
guide Upetrom, Upetrom Make-up cathead & Break-out cathead,
FH 46 Brake, 175 bbl Brakes cooling system capacity, water
cooled, DAAS Automatic drilling control, Upetrom Crown-O-matic
device, powered by (1) Faur motor and (1) MB820 motor 890 HP each.

Mast :
MA 200 Upetrom mast, 137’, 441,000# SHL, 10 lines, racking capacity
of 10,499’ of 5”

Crown Block : Upetrom 240 ton with 6 sheaves grooved for OD 1-1/4” line

Substructure : Upetrom 26’7” x 32’3”, 715,000# setback, 16’4” drill floor height, ,
Clear height between rotary beams and ground level , 3.8

Travelling Block : Upetrom 5-32-MC 200, 200 Ton block, 5 sheaves
grooved for OD
1-1/4” line

Hook Block : Upetrom 200 Ton

Air Winches : (2) Upetrom TP1200, 2400# rated

Drilling Line : Mechel Campia Turzil, 1-1/4" x 1900'

Deadline Anchor : Martin Decker 131T, 75,000# static capacity
with OD 1-1/4” drill

Rotary Table : Upetrom MRL 275, 27 ½”, 500 Ton, powered by
FAUR MB 820 motor (890 HP)

Master Bushing : Upetrom, two sided, 27 ½”

Kelly Bushing : Sterom hexagonal/square

Swivel : Upetrom CH200, 200 Ton capacity, 5000psi

Kelly Spinner : Upetrom DIBA

Mud Pump No. 1 : Upetrom 2PN700, 700 HP, with AP-210
pulsation dampeners
powered by Electroputure Craiova
MCF 550 KW motor, 737 HP

Mud Pump No. 2 : Upetrom 2PN700, 700 HP, with AP-210
pulsation dampeners
powered by Electroputure
Craiova MCF 550 KW motor, 737 HP

Mud Pump Suction Lines : (2) 10” suction lines with (2) Upetrom line

Mud Discharge Lines (Each pump have separate line) : (2) 4” flexible line section
vibrating hose, 5000psi

Stand Pipe Manifold : RON 4 x 5000 connection ends, Cameron valves, 4”Dia, 5000 psi

Stand Pipe : (1) 60’ stand pipe, 4”Dia, 5000 psi

Rotary Hose / Circulating Hose : (2) Phoenix Oradea, 60’, 5000 psi

Engine Generator Sets : (2) Caterpillar 3512, 1725HP

AC Generators : Caterpillar CAT 1750, 1750 KVA, 380 V, 50 Hz

DC Generators/Emergency Generator(S) : (1) Caterpillar GEP 150, 150 KVA, 380V, 50Hz

Air Compressor(S) : (2) Timpuri NOI model

Mud Tanks General : (7) tank system, 2100 bbl total capacity, total usable volume of 1890 bbls

Mud tank No. 1 – 300 bbl : Sand/Trip tank, Neptun SA/2NB16-VO5 electrical agitator
powered by 10HP electric motor, 403x108x102 33’6” x 9’ x 8’6”

Mud tank No. 2 – 300 bbl : Cleaning tank, (3) Neptune SA/2NB16-VO5 agitators
powered by 10HP electric motor, 26’3” x 9’ x 8’6”

Mud tank No. 3 – 300 bbl : Mud tank, (2) Neptun SA/2NB16-VO5 electrical agitators
powered by 10 HP electric motor, 26’3” x 9’ x 8’6”

Mud tank No. 4 – 300 bbl : Mud Tank, (2) Neptun SA/2NB16-VO5 electrical agitators
powered by 10 HP electric motor, 26’3” x 9’ x 8’6

Mud tank No. 5 – 300 bbl : Mud Tank, (2) Neptun SA/2NB16-VO5 electrical agitators
powered by 10 HP electric motor, 26’3” x 9’ x 8’6

Mud tank No. 6 – 300 bbl : Reserve Tank, 26’3” x 9’ x 8’6

Mud tank No. 7 – 300 bbl : Reserve Tank, 26’3” x 9’ x 8’6

Hoppers And Agitators : (2) mud hoppers, (9) Neptun Campina mud agitators p/b 10HP electric

Shale Shaker : (2) Swaco ALS shakers incl. ditch magnet

Mud Cleaner : SWACO (12) 4”cone D-silter, (2) 12” cone D-sander, Aversa Bucuresti centrifugal pump

Degasser : Upetrom vacuum, Aversa Bucuresti centrifugal pump p/b 75 HP motor, mud-gas separator

Trip tank : 300 bbl

Annular Preventer : Upetrom 13 3/8” x 5000, 9” x 5000, 5000 psi

Ram Type Preventer : Upetrom 13 58/8”, 9”, 5000 psi, single or double

Accumulator : (1) 1000 gallon, 2000 psi with Upetrom P6U remote control panel

Choke Manifold : 3'' X 5000

Ancillary Equipment : Drill pipe elevators, pipeslips, pipe casing protectors, collar elevators,
collar slips, safety clamps, elevator links, bit breakers, bit gauges, casing slips for rotary table,
casing elevators, casing tongs casing circulating heads, thread protector, fishing tools

Instrumentation : Weight Indicator, mud pump pressure gauges, rotary speed tachometer,
tong torqueindicator, mud pump stroke indicator & totalizers, mud pit volume indicators,
mud flow volume indicator, drill parameter recorder, drilling drift, mud testing equipment,

Miscellaneous : gas maske, air breathing apparatus spare bottles, first aid equipment, sour gas
monitoring system, portable combustible gas detector, fire fighting equipment

Camp Site : Senior sleeper with attached bath, junior sleeper, (2) recreation rooms, Kitchens and
Mess rooms, camp spares, laundry container, dry store container, showers, toilets, water tank,
generator and

WorldRigs has F200-DEC Drilling Rigs 1780 hp for Sale
  Images




















F200-DEC (Two Available) Drilling Rigs for Sale
Mechanical Land Drilling Rigs for Sale
1780hp Land Drilling Rigs for Sale in USA


If you are interested in the featured equipment,
please contact us on email
 or call +65 97768837.
Cannot find the rig you want? Email us on

F200-DEC Drilling Rigs 1780 hp for Sale


Name    :    F200-DEC Drilling Rigs 1780 hp for Sale
ID    :    9000-389
Price   :    US$ +/- 6,000,000
Specifications   :

F200-DEC (Two Available) Drilling Rigs for Sale
Mechanical Land Drilling Rigs for Sale
1780hp Land Drilling Rigs for Sale in USA



Description

F200-DEC (Two Available) Drilling Rigs
1780 HP Mechanical Land Drilling Rigs

Drawworks :
Upetrom type TF25, Rated input power 1780HP, Drilling line
guide Upetrom, Upetrom Make-up cathead & Break-out cathead,
FH 46 Brake, 175 bbl Brakes cooling system capacity, water
cooled, DAAS Automatic drilling control, Upetrom Crown-O-matic
device, powered by (1) Faur motor and (1) MB820 motor 890 HP each.

Mast :
MA 200 Upetrom mast, 137’, 441,000# SHL, 10 lines, racking capacity
of 10,499’ of 5”

Crown Block : Upetrom 240 ton with 6 sheaves grooved for OD 1-1/4” line

Substructure : Upetrom 26’7” x 32’3”, 715,000# setback, 16’4” drill floor height, ,
Clear height between rotary beams and ground level , 3.8

Travelling Block : Upetrom 5-32-MC 200, 200 Ton block, 5 sheaves
grooved for OD
1-1/4” line

Hook Block : Upetrom 200 Ton

Air Winches : (2) Upetrom TP1200, 2400# rated

Drilling Line : Mechel Campia Turzil, 1-1/4" x 1900'

Deadline Anchor : Martin Decker 131T, 75,000# static capacity
with OD 1-1/4” drill

Rotary Table : Upetrom MRL 275, 27 ½”, 500 Ton, powered by
FAUR MB 820 motor (890 HP)

Master Bushing : Upetrom, two sided, 27 ½”

Kelly Bushing : Sterom hexagonal/square

Swivel : Upetrom CH200, 200 Ton capacity, 5000psi

Kelly Spinner : Upetrom DIBA

Mud Pump No. 1 : Upetrom 2PN700, 700 HP, with AP-210
pulsation dampeners
powered by Electroputure Craiova
MCF 550 KW motor, 737 HP

Mud Pump No. 2 : Upetrom 2PN700, 700 HP, with AP-210
pulsation dampeners
powered by Electroputure
Craiova MCF 550 KW motor, 737 HP

Mud Pump Suction Lines : (2) 10” suction lines with (2) Upetrom line

Mud Discharge Lines (Each pump have separate line) : (2) 4” flexible line section
vibrating hose, 5000psi

Stand Pipe Manifold : RON 4 x 5000 connection ends, Cameron valves, 4”Dia, 5000 psi

Stand Pipe : (1) 60’ stand pipe, 4”Dia, 5000 psi

Rotary Hose / Circulating Hose : (2) Phoenix Oradea, 60’, 5000 psi

Engine Generator Sets : (2) Caterpillar 3512, 1725HP

AC Generators : Caterpillar CAT 1750, 1750 KVA, 380 V, 50 Hz

DC Generators/Emergency Generator(S) : (1) Caterpillar GEP 150, 150 KVA, 380V, 50Hz

Air Compressor(S) : (2) Timpuri NOI model

Mud Tanks General : (7) tank system, 2100 bbl total capacity, total usable volume of 1890 bbls

Mud tank No. 1 – 300 bbl : Sand/Trip tank, Neptun SA/2NB16-VO5 electrical agitator
powered by 10HP electric motor, 403x108x102 33’6” x 9’ x 8’6”

Mud tank No. 2 – 300 bbl : Cleaning tank, (3) Neptune SA/2NB16-VO5 agitators
powered by 10HP electric motor, 26’3” x 9’ x 8’6”

Mud tank No. 3 – 300 bbl : Mud tank, (2) Neptun SA/2NB16-VO5 electrical agitators
powered by 10 HP electric motor, 26’3” x 9’ x 8’6”

Mud tank No. 4 – 300 bbl : Mud Tank, (2) Neptun SA/2NB16-VO5 electrical agitators
powered by 10 HP electric motor, 26’3” x 9’ x 8’6

Mud tank No. 5 – 300 bbl : Mud Tank, (2) Neptun SA/2NB16-VO5 electrical agitators
powered by 10 HP electric motor, 26’3” x 9’ x 8’6

Mud tank No. 6 – 300 bbl : Reserve Tank, 26’3” x 9’ x 8’6

Mud tank No. 7 – 300 bbl : Reserve Tank, 26’3” x 9’ x 8’6

Hoppers And Agitators : (2) mud hoppers, (9) Neptun Campina mud agitators p/b 10HP electric

Shale Shaker : (2) Swaco ALS shakers incl. ditch magnet

Mud Cleaner : SWACO (12) 4”cone D-silter, (2) 12” cone D-sander, Aversa Bucuresti centrifugal pump

Degasser : Upetrom vacuum, Aversa Bucuresti centrifugal pump p/b 75 HP motor, mud-gas separator

Trip tank : 300 bbl

Annular Preventer : Upetrom 13 3/8” x 5000, 9” x 5000, 5000 psi

Ram Type Preventer : Upetrom 13 58/8”, 9”, 5000 psi, single or double

Accumulator : (1) 1000 gallon, 2000 psi with Upetrom P6U remote control panel

Choke Manifold : 3'' X 5000

Ancillary Equipment : Drill pipe elevators, pipeslips, pipe casing protectors, collar elevators,
collar slips, safety clamps, elevator links, bit breakers, bit gauges, casing slips for rotary table,
casing elevators, casing tongs casing circulating heads, thread protector, fishing tools

Instrumentation : Weight Indicator, mud pump pressure gauges, rotary speed tachometer,
tong torqueindicator, mud pump stroke indicator & totalizers, mud pit volume indicators,
mud flow volume indicator, drill parameter recorder, drilling drift, mud testing equipment,

Miscellaneous : gas maske, air breathing apparatus spare bottles, first aid equipment, sour gas
monitoring system, portable combustible gas detector, fire fighting equipment

Camp Site : Senior sleeper with attached bath, junior sleeper, (2) recreation rooms, Kitchens and
Mess rooms, camp spares, laundry container, dry store container, showers, toilets, water tank,
generator and

WorldRigs has F200-DEC Drilling Rigs 1780 hp for Sale
  Images




















F200-DEC (Two Available) Drilling Rigs for Sale

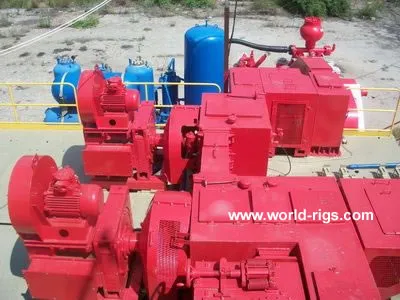

Mechanical Land Drilling Rigs for Sale
1780hp Land Drilling Rigs for Sale in USA


Mail WorldRigs
   Mail WorldRigs regarding any general/sale enquiries or feedback.
   You are enquiring about :   F200-DEC Drilling Rigs 1780 hp for Sale, ID WR33
   Your name :

   Your company :

   Your email :

   Your contact number :

   Your message :

 Please enter the security code

Spencer Harris 7000 Drilling Rig - 700 hp - for Sale
2003 Schramm TH130 Drilling Rig For Sale
Schramm TH130 Drilling Rig for sale
Cantilever Triple Electric 5000 Drilling Rig For Sale
Cantilever Triple Electric 5000 Drilling Rig for sale

...............................................................................
