Hydraulic Land Drilling Rig - for Sale - New 2000HP


Name    :    Hydraulic Land Drilling Rig - for Sale - New 2000HP
ID    :    WR39
Price   :    Inquire for pricing
Specifications   :    Hydraulic Land Drilling Rig - 2000hp - For Sale
New Land Drilling Rigs for Sale



Description

Mast

Max. hook load
440 tn
880,000 lbs
Height
36.0 m
118.1 ft
Stroke length
22.0 m
72.2 ft

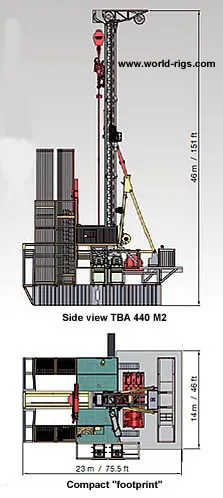

Total height incl. substructure
46 m
151 ft


Substructure

Drill floor height
9.0 m
29.5 ft
Clear height below RT
7.5 m
24.6 ft
Rotary opening
952.5 mm
37 ½”
BOP hoisting system
2 x 27.5 tn
2 x 55,000 lbs

Drawworks (AC – geardriven drawworks)
Rated power
2,000 hp
2,000 hp
Hoist capacity
440 tn
880,000 lbs
Drill in size
38 mm
½”
AC drilling motors
2 x 850 kW
2 x 1,120 hp
Max. tubular length (2 x range II)
19 m
62.3 ft

Top drive (TDK 65-500 electrically driven)
Load capacity
500 tn
1,000,000 lbs
Drilling torque*
63,000 Nm
46,500 ft-lbs
Make up / break out torque*
100,000 Nm
73,760 ft-lbs
Static break torque*
105,000 Nm
77,440 ft-lbs
Speed range
0-115/230 rpm
Rated power
758 kW
1,030 hp
* nominal values

Hydraulic power unit (HE2100 electro-hydraulic)
Rated power (main system).
1 x 400 kW.
1 x 536 HP
Rated power
(rig-up & emergency system)
1 x 160 kW.
1 x 215 HP

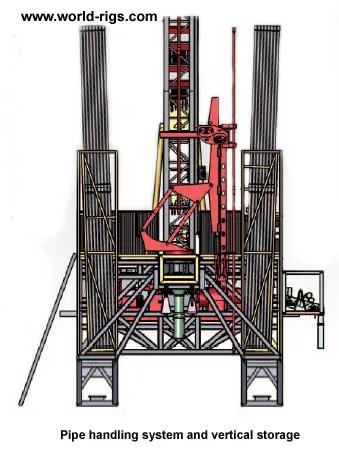

Pipe handling system - Vertical handling and storage system
Max. tubular length
19 m
62.3 ft
Drill pipe capacity
2 3/8" – 6 5/8".
2 3/8" – 6 5/8"
Drill collar capacity
up to 9 ½”
up to 9 ½”
Casing capacity (standard)
Up to 20”
Up to 20
Number of pipe racks
4
4
Total storage capacity (5“ DP).
6,000 m
19,684 ft

WorldRigs has Hydraulic Land Drilling Rig - for Sale - New 2000HP
