Trailer Mounted Hydraulic Lift, Super Single Rig for sale


Name    :    Trailer Mounted Hydraulic Lift, Super Single Rig for sale
ID    :    WR617
Year manufactured   :    2009
Price   :    Inquire for pricing
Specifications   :    Trailer Mounted Hydraulic Lift, Super Single Rig for Sale
Mechanical Drilling Rig - 2009 Built - For Sale
550HP Trailer Mounted Hydraulic Lift Drilling Rig - For Sale
Used 2009 Built Super Single Rig for Sale
2009 built Super Single Rig for Sale
Super Single Drilling Rig - 2009 Built - For Sale
Used Land Drilling Rig - Trailer Mounted For Sale
Used 550HP Trailer Mounted Drilling Rig - for Sale



General Description
Year built/Rebuilt ; 2009
Estimated Drilling Depth : 12,000 ft
Estimated Rig Move Loads : 30
Estimated Camp Move Loads : 3
Rated HP : 550

Mast
Height : 72.00 ft
Static Hook Load Capacity: 500,000 lbs
Mast Racking Capacity : N/A

Subsctructure
Style : Box Type
Height : 14.80 ft
Clear Height : 10.60 ft
Casing Capacity : 500,000 lbs
Maximum Setback Load (lbs.) : N/A

Drawworks

Model : RT400B
Power Rating : 1000 hp
Input Power : 1 ea. Caterpillar C15
Brake Type- Band or Disc : Band
Drilling Line Size : 1 1/8"
Auxiliary Brake : Eaton Airflex/WCB2

Top Drive / Power Swivel
Make : Venturetech
Model : XK-250
Capacity : 250 Ton
Torque-Continuous : 22K ft./lbs

No Swivel
Rotary Table


Power Generation
Engines : 3 ea. Caterpillar C 15
Generators : 2 ea. Caterpillar SR 4
SCR / VFD / DC/DC : Mechanical Rig

Enhancements
Fork Lift : Caterpillar 930 H
Pipe Arm : International Derrick Services

Mud System
Mud Pumps : 2 ea Weatherford Oil Tools MP-10, 1000 hp @ 140 spm
Reserve Mud Volume : 0 bbls
Pressure Rating : 5,000 psi
Active Mud Volume : 700 bbls
Shale Shakers : 2 ea. Derrick Corporation FLC
Desander : Derrick Corporation 10" x 3 Cones
Desilter : Derrick Corporation 4" x 16 Cones
Mud Cleaner : N/A
Centrifuge : N/A

Well Control

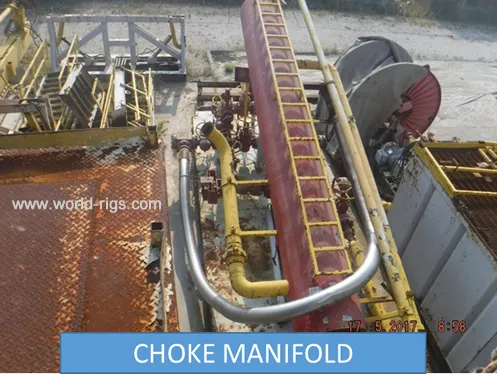

Choke Manifold : MDCowan 3 1/8" 5,000 psi
BOP Closing Unit : Burnsco, 5 Station 3,000 psi

WorldRigs has Trailer Mounted Hydraulic Lift, Super Single Rig for sale
  Images

550HP Super Single Rig

550HP Super Single Rig

2009 Build Drilling Rig

Used Land Drilling Rig

2009 Build Drilling Rig

550HP Super Single Rig

Used Land Drilling Rig

2009 Build Drilling Rig

Used Land Drilling Rig

550HP Super Single Rig


Trailer Mounted Hydraulic Lift, Super Single Rig for Sale
Mechanical Drilling Rig - 2009 Built - For Sale
550HP Trailer Mounted Hydraulic Lift Drilling Rig - For Sale
Used 2009 Built Super Single Rig for Sale
2009 built Super Single Rig for Sale
Super Single Drilling Rig - 2009 Built - For Sale
Used Land Drilling Rig - Trailer Mounted For Sale
Used 550HP Trailer Mounted Drilling Rig - for Sale
