Trailer Mounted Rack & Pinion, Super Single Rig for Sale


Name    :    Trailer Mounted Rack & Pinion, Super Single Rig for Sale
ID    :    WR624
Price   :    Inquire for pricing
Specifications   :    Trailer Mounted Rack & Pinion, Super Single Rig
850HP Trailer Mounted Rack & Pinion Rig for sale
Parallelogram Style Drilling Rig - For Sale
10,000ft Drilling Depth Super Single Rig for Sale
Rack & Pinion, Super Single Drilling Rig for sale
Land Drilling Rig for Sale
Super Single Drilling Rig for Sale
850HP Super Single Rig for Sale



General Description
Estimated Drilling Depth : 10,000 ft
Estimated Rig Move Loads : 22
Estimated Camp Move Loads : 4
Rated HP : 850

Mast

Height : 80.00 ft
Static Hook Load Capacity: 300,000 lbs
Mast Racking Capacity : N/A

Substructure

Style : Parallelogram
Height : 14.00 ft
Clear Height : 11.00 ft
Casing Capacity : 300,000 lbs
Maximum Setback Load (lbs.) : 300,000

No Drawworks


Top Drive / Power Swivel
Make : Tesco
Model : 250 HMI 475
Capacity : 250 Ton
Torque - Continuous : 21,000 ft-lb @ 56 rpm

No Swivel
Rotary Table


Power Generation
Engines : 2 ea. Detroit Diesel Series 60
Generators : 2 ea. Stamford Power System HCI534DIL
SCR / VFD / DC/DC : Rack & Pinion Rig

Enhancements
Iron Roughneck : Canrig Drilling Technology TM80-110-12-X-WX/PCS

Mud System

Mud Pumps : 2 ea Hong Hua HHF-1000
Power Rating : 1000 hp @ 140 spm
Reserve Mud Volume : 0 bbls
Pressure Rating : 5,000 psi
Active Mud Volume : 700 bbls

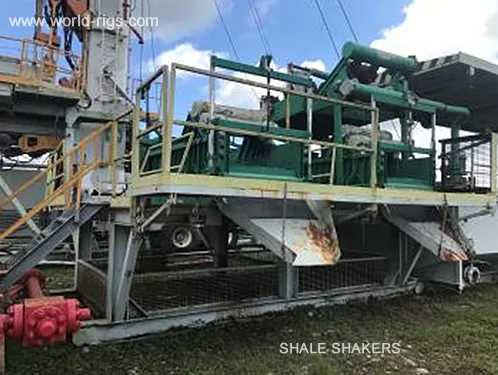

Shale Shakers : 2 ea. Derrick Corporation FLC 504
Desander : Derrick Corporation 10" x 3 Cones
Desilter : Derrick Corporation 4" x 16 Cones
Mud Cleaner : N/A
Centrifuge : N/A

Well Control

Annular : 11" 5,000 psi, Townsend, TM19012-11-508
Double Ram : 11" 5,000 psi, Townsend
Choke Manifold : Quality Valve and Machine Works Inc, 3 1/8" 5,000 psi
BOP Closing Unit : Burnsco, 6 Station 3,000 psi

WorldRigs has Trailer Mounted Rack & Pinion, Super Single Rig for Sale
