850HP Super Single Drilling Rig for Sale


Name    :    850HP Super Single Drilling Rig for Sale
ID    :    WR633
Price   :    Inquire for pricing
Specifications   :    Super Single Drilling Rig for Sale
850HP Trailer Mounted Rack & Pinion Rig for sale
10,000ft Drilling Depth Super Single Rig for Sale
Trailer Mounted Rack & Pinion, Super Single Rig
Parallelogram Style Drilling Rig - For Sale
Rack & Pinion, Super Single Drilling Rig for sale
850HP Super Single Rig for Sale
Land Drilling Rig for Sale



General Description
Estimated Drilling Depth : 10,000 ft
Estimated Rig Move Loads : 22
Estimated Camp Move Loads : 4
Rated HP : 850

Mast

Height : 80.00 ft
Static Hook Load Capacity: 300,000 lbs
Mast Racking Capacity : N/A

Substructure

Style : Parallelogram
Height : 15.00 ft
Clear Height : 13.00 ft
Casing Capacity : 300,000 lbs
Maximum Setback Load (lbs.) : 300,000

No Drawworks

Top Drive / Power Swivel
Make : Tesco
Model : 250 HMI 475
Capacity : 250 Ton
Torque - Continuous : 21,000 ft-lb @ 56 rpm

No Swivel
No Rotary Table


Power Generation
Engines : 2 ea. Detroit Diesel Series 6063HV35
Generators : 2 ea. Stamford Power System HCI534DIL-0080E
SCR / VFD / DC/DC : Rack & Pinion Rig

Enhancements

Forklift : Caterpillar 930H
Iron Roughneck : Canrig Drilling Technology TM80-110-12-X-WX/PCS

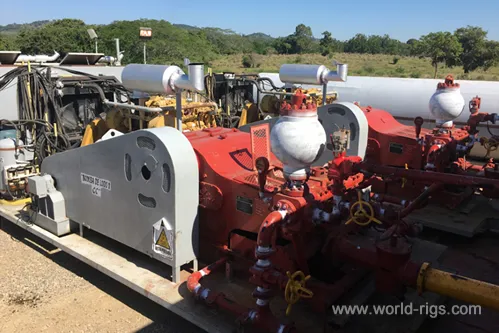

Mud System

Mud Pumps : 2 ea Hong Hua HHF-1000
Power Rating : 1000 hp @ 140 spm
Reserve Mud Volume : 0 bbls
Pressure Rating : 5,000 psi
Active Mud Volume : 700 bbls
Shale Shakers : 2 ea. Derrick Corporation FLC 504

Desander : American Craftman 10" x 3 cones
Desilter : American Craftman 4" x 16 cones

Mud Cleaner : N/A
Centrifuge : N/A

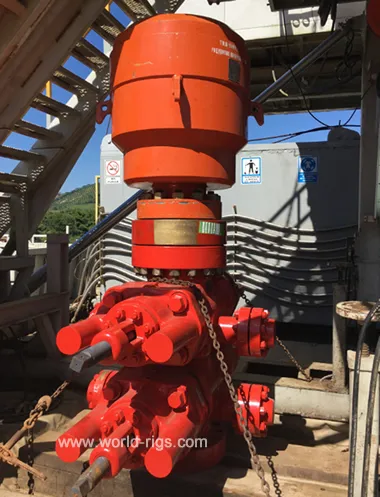

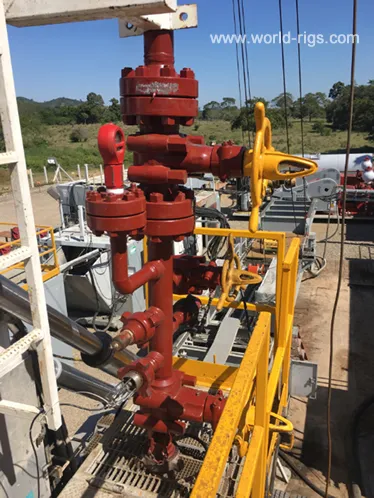

Well Control
Choke Manifold : Quality Valve & Machine Works Inc., 3 1/8" 5,000 psi
BOP Closing Unit : Burnsco, 6 Station 3,000 psi

WorldRigs has 850HP Super Single Drilling Rig for Sale
  Images

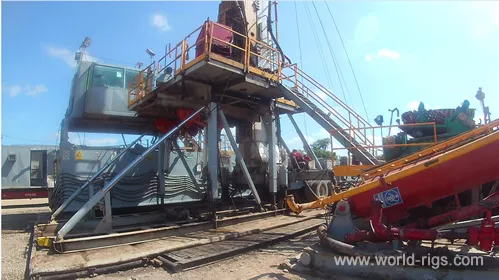

Trailer Mounted

Rack & Pinion Rig

Parallelogram Style

Super Single Drilling Rig

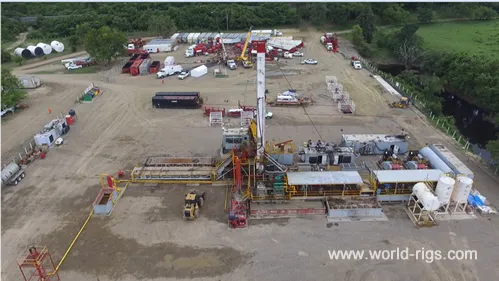

Land Drilling Rig

10,000ft Drilling Depth

850HP Trailer Mounted Rack & Pinion Rig

Parallelogram Style Drilling Rig


Super Single Drilling Rig for Sale
850HP Trailer Mounted Rack & Pinion Rig for sale
10,000ft Drilling Depth Super Single Rig for Sale
Trailer Mounted Rack & Pinion, Super Single Rig
Parallelogram Style Drilling Rig - For Sale
Rack & Pinion, Super Single Drilling Rig for sale
850HP Super Single Rig for Sale
Land Drilling Rig for Sale
