350HP Carrier Mounted Drilling Rig for Sale


Name    :    350HP Carrier Mounted Drilling Rig for Sale
ID    :    WR677
Price   :    Inquire for pricing
Specifications   :    350HP Telescoping Style Rig For Sale
Carrier Mounted Telescopic Mast, Double Drilling Rig
350HP Carrier Mounted Drilling Rig for Sale
Land Drilling Rig for Sale
104FT Telescopic Mast, Double Rig - For Sale
Land Rig - Carrier Mounted - for Sale
Mechanical Rig - For Sale
350HP Carrier Mounted Telecopic Mast Rig



General Description
Estimated Drilling Depth : 5,000 ft
Estimated Rig Move Loads : 38
Estimated Camp Move Loads : 350
Rated HP : 350

Mast

Height : 104.00 ft
Static Hook Load Capacity: 176,000 lbs
Mast Racking Capacity : 3,600ft

Substructure
Style : Telescoping
Height : 12.92 ft
Clear Height : 9.82 ft
Casing Capacity : 176,000 lbs
Maximum Setback Load (lbs.) : 132,000

Drawworks
Make : Cooper
Model : 4210-3808
Power Rating : 350hp
Input Power : 1 ea. Caterpillar D3406
Auxiliary Brake : Parmac 122
Drilling Line size : 1"

No Top Drive

Swivel
Make : Upetrom
Model : CH 125
Capacity : 125 ton

Rotary Table

Make : Ideco 17.5
Table Opening : 17 1/2
Maximum Load Rating : 150 Ton

Power Generation
Mechanical Rig

Enhancements

Power Slip Frame : Upetrom

Mud System
Mud Pumps : 1 ea. Gardner Denver 1PY-172
Power Rating : 1,000hp @ 130spm
Reserve Mud Volume : 101 bbls
Pressure Rating : 5,000 psi
Active Mud Volume : 906 bbls
Shale Shakers : 1 ea. Upetrom
Desander : Upetrom 2"x12 cones
Desilter : Upetrom 3"x6 cones

Mud Cleaner : N/A
Centrifuge : N/A

Well Control

BOP Closing Unit : Upetrom

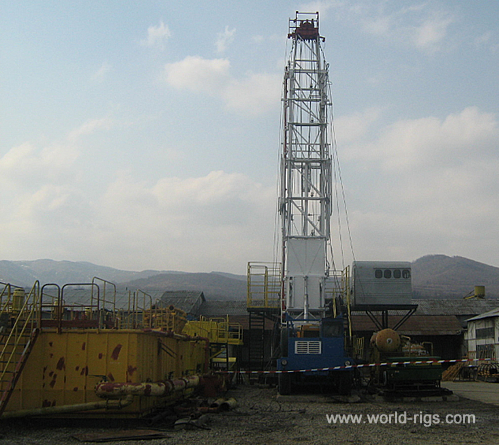

WorldRigs has 350HP Carrier Mounted Drilling Rig for Sale
  Images

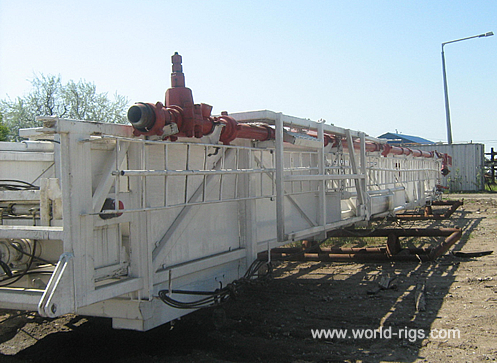

Carrier Mounted Telescopic Mast Double Drilling Rig

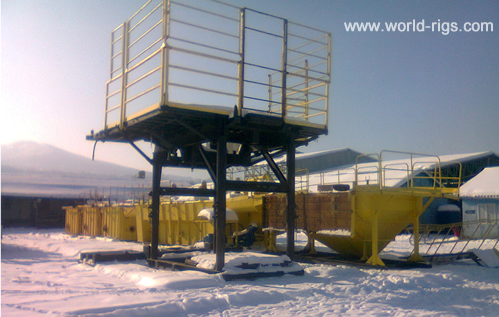

Land Drilling Rig

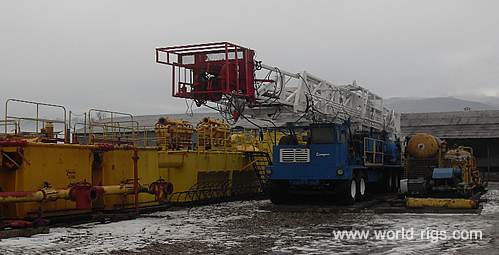

Mechanical Rig

104FT Telescopic Mast


350HP Telescoping Style Rig For Sale
Carrier Mounted Telescopic Mast, Double Drilling Rig
350HP Carrier Mounted Drilling Rig for Sale
Land Drilling Rig for Sale
104FT Telescopic Mast, Double Rig - For Sale
Land Rig - Carrier Mounted - for Sale
Mechanical Rig - For Sale
350HP Carrier Mounted Telecopic Mast Rig


Mail WorldRigs
   Mail WorldRigs regarding any general/sale enquiries or feedback.
   You are enquiring about :   350HP Carrier Mounted Drilling Rig for Sale, ID
Your name :
Your company :
Your email :
Your contact number :
Your message :

 Please enter the security code


...............................................................................
Cannot find the rig you want? Email us on
Do you need a rig on lease? Email us on

350HP Carrier Mounted Drilling Rig for Sale


Name    :    350HP Carrier Mounted Drilling Rig for Sale
ID    :
Price   :    Inquire for pricing
Specifications   :    350HP Telescoping Style Rig For Sale
Carrier Mounted Telescopic Mast, Double Drilling Rig
350HP Carrier Mounted Drilling Rig for Sale
Land Drilling Rig for Sale
104FT Telescopic Mast, Double Rig - For Sale
Land Rig - Carrier Mounted - for Sale
Mechanical Rig - For Sale
350HP Carrier Mounted Telecopic Mast Rig



General Description
Estimated Drilling Depth : 5,000 ft
Estimated Rig Move Loads : 38
Estimated Camp Move Loads : 350
Rated HP : 350

Mast

Height : 104.00 ft
Static Hook Load Capacity: 176,000 lbs
Mast Racking Capacity : 3,600ft

Substructure
Style : Telescoping
Height : 12.92 ft
Clear Height : 9.82 ft
Casing Capacity : 176,000 lbs
Maximum Setback Load (lbs.) : 132,000

Drawworks
Make : Cooper
Model : 4210-3808
Power Rating : 350hp
Input Power : 1 ea. Caterpillar D3406
Auxiliary Brake : Parmac 122
Drilling Line size : 1"

No Top Drive

Swivel
Make : Upetrom
Model : CH 125
Capacity : 125 ton

Rotary Table

Make : Ideco 17.5
Table Opening : 17 1/2
Maximum Load Rating : 150 Ton

Power Generation
Mechanical Rig

Enhancements

Power Slip Frame : Upetrom

Mud System
Mud Pumps : 1 ea. Gardner Denver 1PY-172
Power Rating : 1,000hp @ 130spm
Reserve Mud Volume : 101 bbls
Pressure Rating : 5,000 psi
Active Mud Volume : 906 bbls
Shale Shakers : 1 ea. Upetrom
Desander : Upetrom 2"x12 cones
Desilter : Upetrom 3"x6 cones

Mud Cleaner : N/A
Centrifuge : N/A

Well Control

BOP Closing Unit : Upetrom

WorldRigs has 350HP Carrier Mounted Drilling Rig for Sale
  Images

Carrier Mounted Telescopic Mast Double Drilling Rig

Land Drilling Rig

Mechanical Rig

104FT Telescopic Mast


350HP Telescoping Style Rig For Sale
Carrier Mounted Telescopic Mast, Double Drilling Rig
350HP Carrier Mounted Drilling Rig for Sale
Land Drilling Rig for Sale
104FT Telescopic Mast, Double Rig - For Sale
Land Rig - Carrier Mounted - for Sale
Mechanical Rig - For Sale
350HP Carrier Mounted Telecopic Mast Rig


If you are interested in the featured equipment,
please contact us on email
 or call +65 97768837.
