Description

Drawworks :
 Reconditioned model H14610-38 Dwks - S/N 178, Clutch - Twin Disc
 Model P0-230 and PO-234, Brakes - 46 X 10, New drum grooved for 1 1/8"
 drill line(Includes 3000 Ft 1 1/8" 6x19 IWRC IPS drill line )

Sand Line Drum :
 Twin reconditioned twin disc model PO-224
 Brakes 38 X 8  (Includes 15,000 Feet 9/16" new sandline)

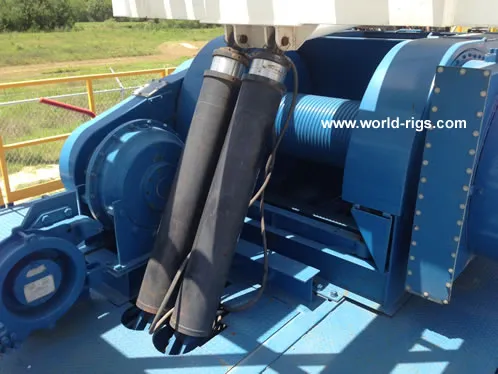

Hydromatic Brake :
New WWL V-80 Hydromatic water assist brake

Compound :
Rebuilt Skytop Brewster

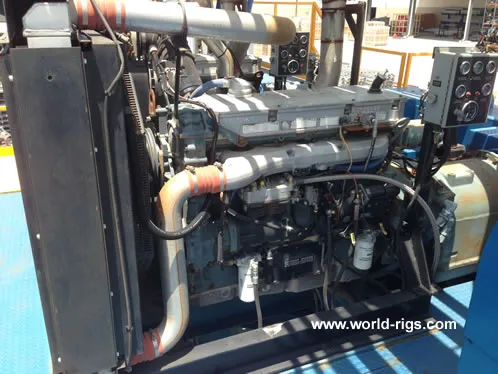

Engines :
Factory Detroit diesel model 60 series rated at 475 hp each @2100 rpm

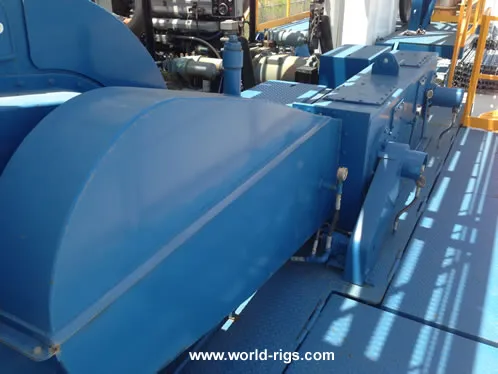

Transmission :
Factory Allison Model CLT-5860-4 (5 speed)

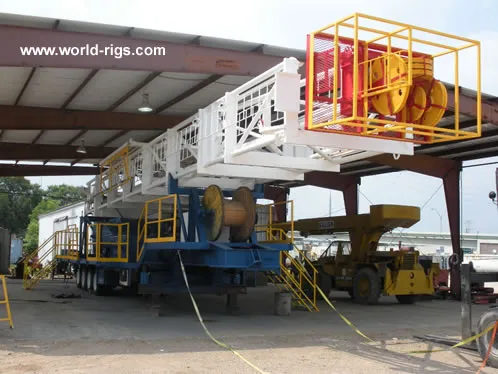

Mast :
Recertified by Nov - 115 ft clear working height - 410,000 # Telescoping mast,
Number of lines to block 8, API operating hook load IS 388,000 LBS,
Drill line size 1 1/8", Racking board height 55 ft, 58 ft, or 70 ft, Racking board
capacity 10,080 ft - 4 1/2" drill pipe (doubles)
(mast includes new Crownomatic emergency stop system, also includes stand
pipe with gooseneck union and 4" 5000 psi gate valves, also includes new
Geronimo derrick escape device with wireline/ clamps and anchor) - mast is
complete with category 4 repair and has OEM mfg. certificate of repair and inspection.

New Crown Block :
Certified by Nov - Crown block is set up for an 8 line string up. Crown sheaves are
grooved 1 1/8". all sheaves are mounted on tapered roller bearings w/grease Zerts.
Crown includes (1) 42" fast line sheave and 3 EA 30" cross over sheaves, one dead man.
New Crownomatic installed.

Reconditioned Dead Line Anchor

Following Items Are New On Carrier :
Suspension 100,000# total axle and suspension along with tag axle. Tires and
rims are 10:00 x 20 "desert tread", main hydraulic reservoir, hydraulic cylinder
controls, drillers console w/hose bundle, air hydraulic hoses and steel lines,
telescoping cylinders, raising cylinders, mast locking cylinder, hydraulic jack cylinders (4),
manual jacks (2), all new jack stands.

Substructure :
Reconditioned 20 ft loadmaster sub structure fitted to rig with 15 to 17 ft.
Clearance under rotary beams, complete with v door ramp, catwalk, pipe racks, mud boat
and all tires on sub and mud boat are new desert tread.
