NOV Rapid Drilling Rig for Sale


Name    :    NOV Rapid Drilling Rig for Sale
ID    :    9000-455
Price   :    Inquire for pricing
Specifications   :    NOV Rapid Drilling Rig for Sale
1500 hp Rapid Rig for Sale
80ft Height Rapid Rig for Sale
Used Rapid Rig for Sale
Rapid Rig - Slingshot type - For Sale
Rapid Rig - 1500 hp for Sale
Land Drilling Rapid Rig for Sale



Description :

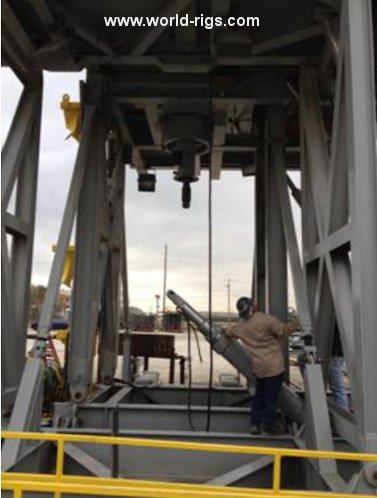

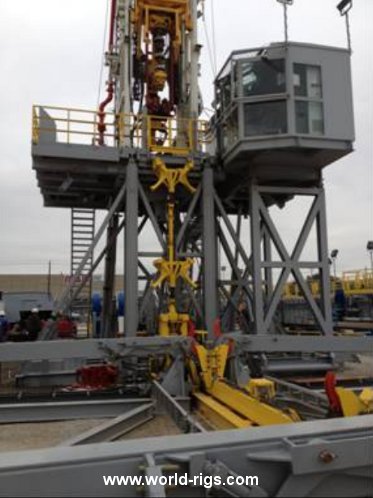

Substructure :
NOV - Slingshot type (2 piece)
Clearance : 20ft with 18ft of clearance
Capacity : 500,000# loading
Six well skidding system

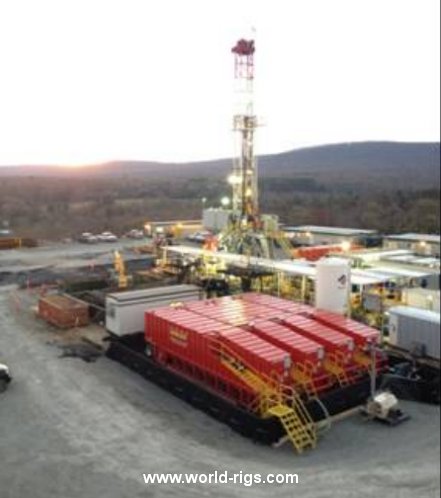

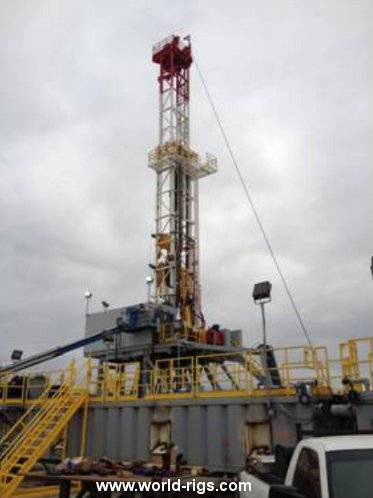

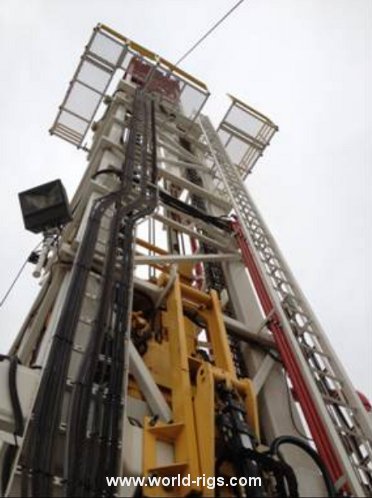

Mast :
NOV - Telescoping
Height:    80ft
Capacity : 500,000#
Winch & Gin Pole : 5,000#

Drawworks :
NOV - SSGD 250 (disc brakes)
Rating : 1500- hp
Capacity : 500,000# on eight 1¼” lines.
Motor :    Baylor AC

Top Drive :
NOV - TDS 10R
Rating : 250 ton
Torque Capacity :
36,500 ft/lbs intermitting
20,000 ft/lbs @ 98 rpm continuous
9730 ft/lbs @ 182 rpm continuous

Drillers Cabin :
NOV - Purged
Amphion    Controls

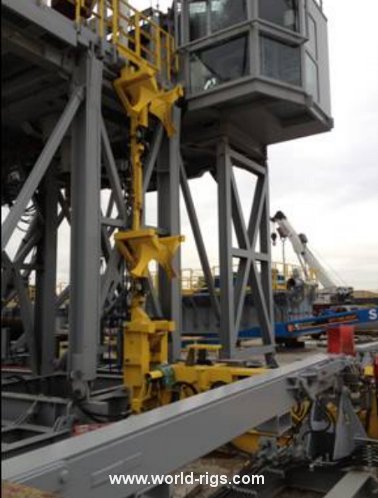

Pipe Handling :

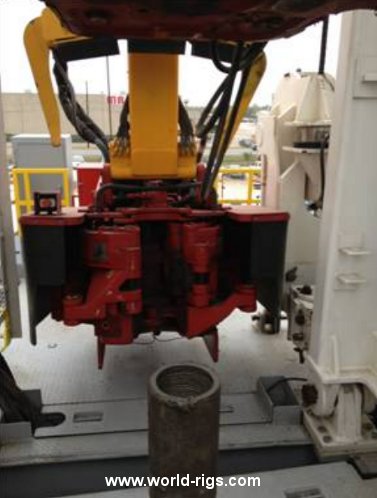

Iron Roughneck - NOV ST - 80R
Range :    4¼” to 8½”
Torque Capacity :
60,000 ft/lbs make up
80,000 ft/lbs brake out
BX - 450 Elevators (250    ton)
Range :    2 7/8”,5”,7”,95/8” & 13    3/8”.
PS - 21    Slips (250 ton)
Range :    2 7/8”,    5”, 7”,    9 5/8” & 13 3/8”.
Erector    arm, pipe funnel and pipe rack wings.

Mud System :

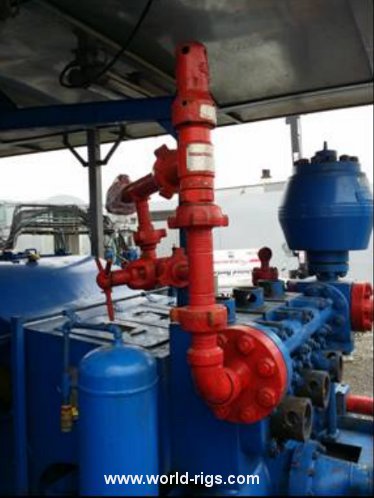

Mud Pumps - 2 NOV F-1600
Rated :    1,600 hp.
Pressure :
5,000 psi

Relief Valves :
3” OTECO

Screens :

Discharge manifold & Suction skid

Stand Pipe :
5”, 1002
Mud Pits (covered)
Capacity : 625 bbls
Mixing System &    skid

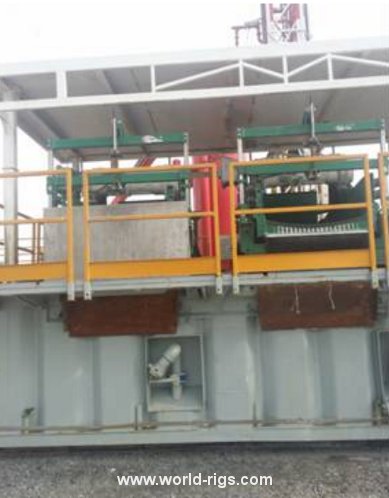

Shale Shakers :    2 Derrick
Trip tank : Two    25 bbl tanks & pumps
Rolling    Flow Line System (15ft spacing)

BOP Equipment :
11” X 5m Shaffer Annular (flanged)
11” X 5m Shaffer Double    Ram (studded)
11” X 5m Mud Cross (flanged with 3 1/8”    outlets)
Re-certified by OEM
Choke Line :
3 1/8” X 5m HCR Valve
3 1/8” 5M Manual valve (replace)
3 1/8 Coflex hose :
Three - 15ft - 3 1/8” flanged choke lines
10ft - 3 1/8” flanged choke line
Four - 3 1/8” studded Tees with    one filled blind flange
Kill Line 2” Coflex hose
Two : 3    1/8” X 5m manual valves    (replace)
Check Valve :

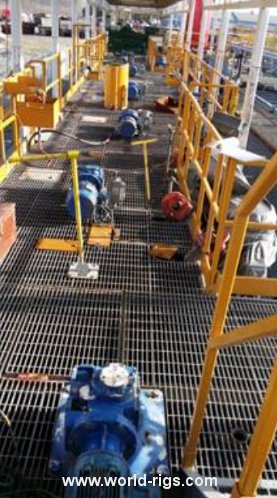

NOV Hydraulic Handling System
3 1/8” X 5m Choke Manifold (hydraulic &    manual chokes)

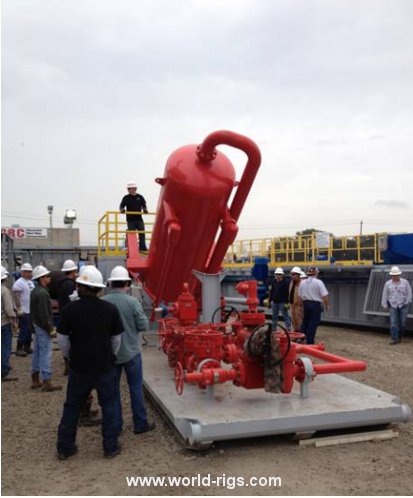

Gas Buster
Flare Stack & line

Power :
Two 3512C Caterpillar Engines
Rated :    1476 hp    @ 1200 rpm
Two Baylor Generators
Rated :    1750 kVa, 600 volts / 60 HZ
NOV VFD & MCC
Bi-fuel    System

Drill Pipe :
370 jts - 5” 19.5 #/ft., NC 50

Grade :

S-135

Range :    III (40ft)
Inspected by Drilco
Critical Capital Spares :
F-1600 Mud Pump
Baylor 1750 kVa    Generator (for repair)
Winch – 5,000#

Hydraulic Cylinders :
Substructure Raising (repairing    NOV)
Derrick    Raising    (repairing NOV)
Derrick    Scoping    (repairing NOV)
BX 450 Elevators
PS 21 Slips

Skid System Description :
Applied    Machinery Corporation custom built skidding system.
Capable of 75ft skidding.
Key description:

Rig Skid System :
12” Elevated Skid
Draworks Skid Section
Starter    Skid Section (ODS/DS X 43ft)
Standard Skid Section (ODS/DS X    15ft)
Log of Pins, Spreaders,    and Claws
AMC Hydraulic Drill Line Spooler
Festoon Track

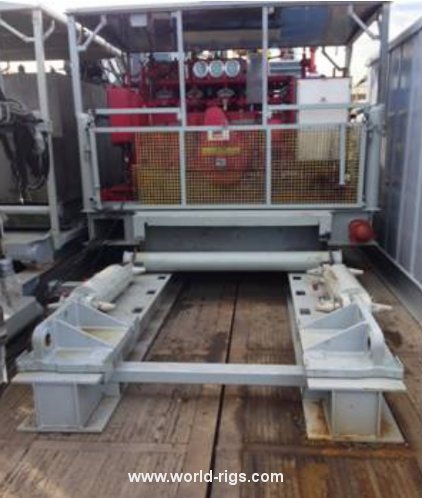

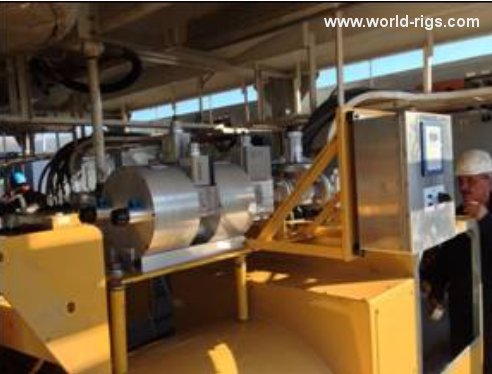

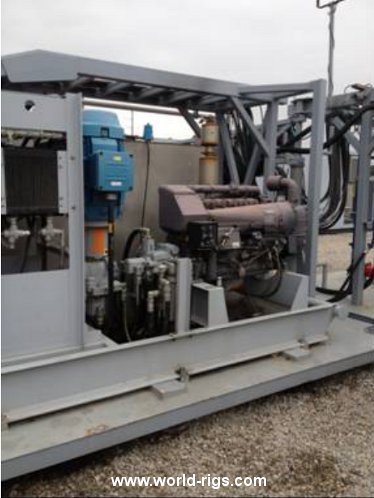

Hydraulics :
2 Hydraulic Cylinders
10” Bore X 25” Stroke
3,000 psi Working Pressure
Associated Hoses and Fittings

Festoon :

8ft X 35ft X 12” Master    Skid
Capable    of supporting a    75ft Skid
4” Integrated Track and    Roller for Festoon and Grasshopper

Shaker and Flowline Header :
10” “Mona-Flow”    line with fittings and jets
Rolling    capability to support skids
Trip Tank and mud bucket hoses

Rig Load List



Single Well Pad

Loads

3 Well Pad

Shaker Pit

   1

Shaker Pit

Suction Pit

   2

Suction Pit

Trip tank & Choke Manifold

   3

Trip tank & Choke Manifold

F- 1600 Mud Pump

   4

F- 1600 Mud Pump

F- 1600 Mud Pump

   5

F- 1600 Mud Pump

Utility Skid

   6

Utility Skid

3512 Caterpillar Gen Set

   7

3512 Caterpillar Gen Set

3512 Caterpillar Gen Set

   8

3512 Caterpillar Gen Set

Air Compressor Skid

   9

Air Compressor Skid

VFD

  10

VFD

Festoon & Grasshopper

  11

Festoon & Grasshopper

Fuel Tank

  12

Fuel Tank

Rig Water Tank

  13

Rig Water Tank

Drawworks / Koomey

  14

Drawworks / Koomey

Substructure

  15

Substructure

HPU Skid & Grasshopper

  16

HPU Skid & Grasshopper

Drillers Substructure

  17

Drillers Substructure

Drillers Cabin

  18

Drillers Cabin

Drill Line Spool

  19

Drill Line Spool

2 Pipe Wings

  20

2 Pipe Wings

2- Pipe Wings &Arm

  21

2- Pipe Wings &Arm

Flow line, Pipe Handler, CoFlex

  22

Flow line, Pipe Handler, CoFlex

Flare Box & Line

  23

Flare Box & Line

2 sets Pipe Racks

  24

2 sets Pipe Racks

2 X Hose Baskets

  25

2 X Hose Baskets

Drill Pipe: 5" , 19.5 #/ft

  26

Drill Pipe: 5" , 19.5 #/ft.

Drill Pipe: 5" , 19.5 #/ft

  27

Drill Pipe: 5" , 19.5 #/ft.

Drill Pipe: 5" , 19.5 #/ft

  28

Drill Pipe: 5" , 19.5 #/ft.

Pipe Bunks X 4

  29

Pipe Bunks X 4

Tool / Nipple House

  30

Tool / Nipple House

Hydraulic Shop

  31

Hydraulic Shop

Parts House

  32

Parts House

BOP in Cradle

  33

BOP in Cradle

Stairs & Porches

  34

Stairs & Porchesin Cradle

Mats X 5

  39

Mats X 5



  44

Flow Line X 2



  48

Skid System X 4




WorldRigs has NOV Rapid Drilling Rig for Sale
