Drillmec MR-8000 Semitrailer Rig for Sale


Name    :    Drillmec MR-8000 Semitrailer Rig for Sale
ID    :    WR706
Year manufactured   :    2008
Price   :    Inquire for pricing
Specifications   :    Drillmec MR-8000 Semitrailer Rig
MR-8000 Mobile Drilling & Workover Rig
1080HP Semitrailer Rig for Sale
Used MR-8000 Mobile Drilling & Workover Rig for Sale
2008 Built Drillmec MR-8000 Semitrailer Rig - For Sale
1080HP MR-8000 Mobile Drilling & Workover Rig for sale
Drillmec Rig - 2016 Recertified - For Sale
Used Land Rig for Sale



General Rig Data
Rig Data
Year of Construction : 2008
Year of recertification : July 2016 (for one year certification)
Static hook load :200mt
Setback capacity : 113mt

Mast Data
Make : Drillmec
Type : Four legs, open face, two-section telescopic
Clear height from ground level : 36 meter
Clear height from drilling floor : 31 meter

Substructure
Drill floor height : 5.2 meter
Clear height under rotary beam : 4.2 meter
Drilling floor dimensions (meter x meter) : 7 x 5

Drawworks
Make : Drillmec
Type : Conventional
Rated input power (HP) : 1.080
Main drum make : Drillmec
Main drum size (inch x inch) : 26" x 42 1/2"
Main drum static capacity : 24 mt
Main drum clutch : 42 VC 650
Main drum grooved for line OD (inch) : 1 1/8"
Make-up cathead (make) : Drillmech
Break-out cathead (make) : Drillmech
Drill line : 1 1/8" 6 x 19 IWRC EIPS
Brake type : Brake Band
Hydromatic Auxiliary brake make/model : Parmac / V80
Hydromatic Auxiliary brake capacity : 5.000 hp
Hydromatic Auxiliary brake max. pressure : 15 psi
Hydromatic Auxiliary brake max. speed : 1.550 rpm
Hydromatic Auxiliary brake clutch : 26CB 525
Cooling fluid : Water
Crown-O-Matic device : Yes Drillmec

Compound
Air System make : Drillmech
Air compressor engine : Ingersoll Rand T30 mod 2475
Air compressor max. working pressure : 11 bar
Air compressor max. HP in max. WP : 7.1 hp
Air tank capacity : 500 lt
Hydraulic system make : Drillmech

Power Pack
Diesel Engine make/model : Caterpillar / C15 - ACERT
Diesel Engine hoisting power : 540 hp
Diesel Engine quantity : 2 ea
Diesel Engine rate : 2.100 rpm
Automatic gear box quantity : 2 ea
Torque converter : TC680
Hoisting speed : 5 + 1 reverse

Rotary Drive and Rotary Table
Make : Drillmec
Rotary table opening : 271/2"
Max static load on table : 320 mt
Rotary air brake : 16 CB 500
Rotary clutch : 20 CB 500

Hydraulic Winch
Max. Load pull on drilling floor : 3.000 kg
Max. load pull on semi trailer : 5.000 kg

Drilling Equipment
Travelling block - Hook make : American block or equivalent
Travelling block - Hook Working load capacity : 226 mt
Swivel make/model : King Oil Tools/ 6SX or equivalent
Swivel static capacity : 200 mt
Swivel rotating capacity (at 100 rpm) : 122 mt
Swivel working pressure : 345 bar
Hydraulic elevation BOP make : Drillmec
Hydraulic elevation BOP total lifting capacity : 20 ton

Rig Instrumentation
Dead line anchor single pull capacity : 22.6 mt
Dead line anchor load sensor : E80 Tension

Mud System
Make : Drillmec
Volume of shale shaker tank : 60 m3
Volume of intermediate tank : 46 m3
Volume of suction tank : 46 m3
Volume of mixing tank : 60 m3
Water tank : 40 m3

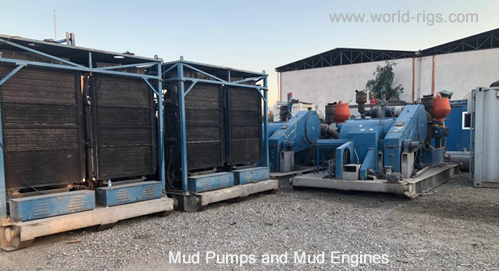

Triplex Mud Pump
Make/Model : Drillmec / 9T1000
Quantity : 2 ea
Design : Horizontal design as per API 7K
Rated Input (HP) : 1.000
Valve Pot size : 7
Mounted on : Oilfield skid

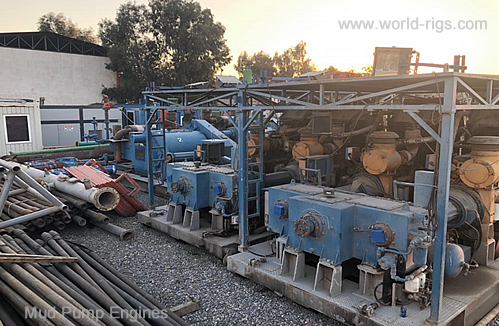

Diesel Engine for Mud Pump
Make/Model : Caterpillar C18 Acert
Engine power : 600hp @ 1.200 rpm
Quantity : 2 ea for each mud pump

Transmission for Mud Pump
Make/Model : Drillmec/TC955 Torque converter

Pulsation Dampener
Make/Model : Hydrill K20-5000 or equivalent
Quantity : 1 ea (for each pump)

Shale Shaker Tank
1. Shale Shaker
Make/Model : Swaco/Mongoose PT
Quantity : 2 ea
Electric motor : 400V - 50Hz ex-proof

2. Mud Cleaner
Make/Model : Swaco / 2-12/6T4/Mongoose PT
Quantity : 1 ea
Electric motor : 400V - 50Hz ex-proof

3. Degasser
Make/Model : Swaco / Vacuum Degasser horizontal type
Quantity : 1 ea
Electric motor : 400V - 50Hz ex-proof

4. Mud Agitators
Make/Model : Swaco / c/w blades
Quantity : 2 ea
Electric motor : 15 KW 400V - 50Hz ex-proof

Intermediate Tank
Centrifugal Pump
Quantity : 2 ea
Used for : Solid equipment
Electric Motor : 75 kW 400V - 50Hz ex-proof

Mud Agitators
Quantity : 2 ea
Electric Motor : 15 kW 400V - 50Hz ex-proof

Suction Tank
1. Supercharging Centrifugal Pump
Quantity : 2 ea
Electric Motor : 75 kW 400V - 50Hz ex-proof

2. Mud Agitators
Quantity : 2 ea
Electric Motor : 15 kW 400V - 50Hz ex-proof

Mixing Tank
1. Mud Agitators
Quantity : 2 ea
Electric Motor : 15 kW 400V - 50Hz ex-proof

Mixing Unit
1. Centrifugal Pump
Quantity : 2 ea
Used for : Solid equipment
Electric Motor : 75 kW 400V - 50Hz ex-proof

2. Hoppers
Quantity : 2 ea
Size : 6"

Trip Tank
1. Quantity / Equipped with : 1 ea / 6 m3 w/ centrifugal pump & electric motor

Poor Boy Degasser
1. Quantity : 1 ea
(Mounted on top of the trip tank complete with inlet and outlet pipes)

Power System
Power Generator
Make/Model : Caterpillar / C15
Quantity : 2 ea
Prime Power : 400ekW-453kW
Frequency : 50 Hz
Speed : 1.500 rpm

MCC- Switch Gear Panel
Quantity : 1 ea
MCC for mud system : 400V / 50Hz
MCC for lighting system : 220V / 50Hz

Air Unit - Utility House
Electric Air Compressor
Pressure at discharge with dryer : 9.8 bar
Pressure at discharge without dryer : 10 bar
Capacity : 95lt/s
Power : 37kW-400V/50Hz
Quantity : 2 ea

Auxiliary Equipment
Water Cooling System
Water Tank Capacity : 5 m3
Water pump flow : 30 m3/h
Water pump motor : 400V/50Hz ex-proof
Quantity : 1 ea

Fuel Tank
Capacity : 60 m3 + 5 m3
Quantity : 1 set

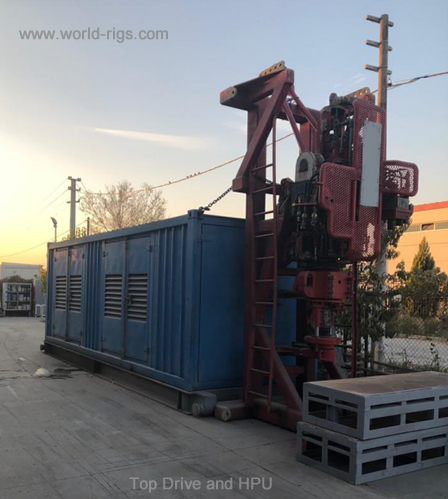

Hydraulic Top Drive (HTD 220)
General Information
Make : Drillmec
Quantity : 1 ea
Bore : 3"
Rated circulating pressure : 5.000 psi - 35 Mpa
Hydraulic system requirement : 868 lt - 35 Mpa
Auxiliary hydraulic system : 225 lt - 55 Mpa

Circulation Swivel
Make : Drillmec
Wash Pipe ID : 3"
Max. WP : 350 bar
Quantity : 1 ea

Rotating Double Hook
Make : Drillmec
Quantity : 1 ea

IBOP Valve
Make : Drillmec
OD : 7 3/4"
ID : 3 1/6"
Working Pressure : 345 bar (5.000 psi)
Quantity : 1 ea
Connection : NC50 box & pin

Top Drive Hydraulic Power Unit
Quantity : 1 ea (Container)
Diesel Engine Quantity : 1 ea
Diesel Engine Make/Model : Caterpillar / C15
Diesel Engine power : 540 hp
Diesel Engine speed : 1.800 rpm
Diesel Engine no. of cylinder : 6 in line

Top Drive Rails
Quantity : 4 ea

Rig Floor Equipment
1. D.P. and D.C. Rotary Tongs
Quantity (no.) : 2 ea
Type : Rotary
Range size from : 3 1/2"
Range size to : 14 3/8"

2. Elevator Links
Set : 1 ea
Length, 1 set : 2 1/4" x 108"
Rated capacity : 250t

Drilling Instrumentation
Drilling Console
Weight Indicator
Mud Pump Pressure Gauges : Pressure range (0-5000 psi)
Rotary Torque Indicator
Rotary speed Tachometer : For top drive
Tong Torque Indicator
Mud Pump Stroke Indicator (Qty) : 2 ea

Others
Dog House (Drillmec made) : 1 ea
Dog House Support : 1 ea
High Pressure Ground Line : 1 ea
Monkey Board : 1 ea
Mud Tanks Walkways : 8 ea
Carrier Walkways : 12 ea
Handrails : 39 ea
Rotary Hose : 1 ea
Mud Pump Discharge Hose : 2 ea
Exhaust : 2 ea
Cable Tray : 1 ea
Suction Line : 1 ea
Stand Pipe Manifold : 1 ea
Stairs : 5 ea
Power Tong & Power Tong Support : 1 ea
BOP Lifting Device Remote Control Panel : 1 ea
Bop Skid & Bop Trolley : 1 ea
Vee Door : 1 ea
Driller Panel : 1 ea
Drilling Recorder 8 Pen : 1 ea
Rig Lightening System : 1 ea
Mud Tanks Lightening System : 1 ea

Well Control Equipment (without valid Certificate) : 1 ea
- 1 ea x 13 5/8" x 5000 psi Annular (Bag Type) BOP
- 1 ea x 13 5/8" x 5000 psi Double Ram BOP (Cameron "U" Type)
- 1 ea x 13 5/8" x 5000 psi Drilling Spool
- 1 ea x 3 1/8" x 5000 psi Armor Covered Flexible Hose
- 1 ea x 3 1/8" x 5000 psi Choke Manifold
- 1 ea x 3 1/8" x 5000 psi Closing Unit
- 1 ea x Remote Control Panel
- 1 ea x Remote Choke Control Panel
- 1 ea x 3 1/8" x 5000 psi HCR Valve

WorldRigs has Drillmec MR-8000 Semitrailer Rig for Sale
  Images

MR-8000 Mobile Drilling & Workover Rig

1080HP Semitrailer Rig for Sale

Drillmec MR-8000 Semitrailer Rig

MR-8000 Mobile Drilling & Workover Rig

1080HP Semitrailer Rig for Sale


Drillmec MR-8000 Semitrailer Rig
MR-8000 Mobile Drilling & Workover Rig
1080HP Semitrailer Rig for Sale
Used MR-8000 Mobile Drilling & Workover Rig for Sale
2008 Built Drillmec MR-8000 Semitrailer Rig - For Sale
1080HP MR-8000 Mobile Drilling & Workover Rig for sale
Drillmec Rig - 2016 Recertified - For Sale
Used Land Rig for Sale



Mail WorldRigs
   Mail WorldRigs regarding any general/sale enquiries or feedback.
   You are enquiring about :   Drillmec MR-8000 Semitrailer Rig for Sale, ID
Your name :
Your company :
Your email :
Your contact number :
Your message :

 Please enter the security code


...............................................................................
Cannot find the rig you want? Email us on
Do you need a rig on lease? Email us on

Drillmec MR-8000 Semitrailer Rig for Sale


Name    :    Drillmec MR-8000 Semitrailer Rig for Sale
ID    :
Year manufactured   :    2008
Price   :    Inquire for pricing
Specifications   :    Drillmec MR-8000 Semitrailer Rig
MR-8000 Mobile Drilling & Workover Rig
1080HP Semitrailer Rig for Sale
Used MR-8000 Mobile Drilling & Workover Rig for Sale
2008 Built Drillmec MR-8000 Semitrailer Rig - For Sale
1080HP MR-8000 Mobile Drilling & Workover Rig for sale
Drillmec Rig - 2016 Recertified - For Sale
Used Land Rig for Sale



General Rig Data
Rig Data
Year of Construction : 2008
Year of recertification : July 2016 (for one year certification)
Static hook load :200mt
Setback capacity : 113mt

Mast Data
Make : Drillmec
Type : Four legs, open face, two-section telescopic
Clear height from ground level : 36 meter
Clear height from drilling floor : 31 meter

Substructure
Drill floor height : 5.2 meter
Clear height under rotary beam : 4.2 meter
Drilling floor dimensions (meter x meter) : 7 x 5

Drawworks
Make : Drillmec
Type : Conventional
Rated input power (HP) : 1.080
Main drum make : Drillmec
Main drum size (inch x inch) : 26" x 42 1/2"
Main drum static capacity : 24 mt
Main drum clutch : 42 VC 650
Main drum grooved for line OD (inch) : 1 1/8"
Make-up cathead (make) : Drillmech
Break-out cathead (make) : Drillmech
Drill line : 1 1/8" 6 x 19 IWRC EIPS
Brake type : Brake Band
Hydromatic Auxiliary brake make/model : Parmac / V80
Hydromatic Auxiliary brake capacity : 5.000 hp
Hydromatic Auxiliary brake max. pressure : 15 psi
Hydromatic Auxiliary brake max. speed : 1.550 rpm
Hydromatic Auxiliary brake clutch : 26CB 525
Cooling fluid : Water
Crown-O-Matic device : Yes Drillmec

Compound
Air System make : Drillmech
Air compressor engine : Ingersoll Rand T30 mod 2475
Air compressor max. working pressure : 11 bar
Air compressor max. HP in max. WP : 7.1 hp
Air tank capacity : 500 lt
Hydraulic system make : Drillmech

Power Pack
Diesel Engine make/model : Caterpillar / C15 - ACERT
Diesel Engine hoisting power : 540 hp
Diesel Engine quantity : 2 ea
Diesel Engine rate : 2.100 rpm
Automatic gear box quantity : 2 ea
Torque converter : TC680
Hoisting speed : 5 + 1 reverse

Rotary Drive and Rotary Table
Make : Drillmec
Rotary table opening : 271/2"
Max static load on table : 320 mt
Rotary air brake : 16 CB 500
Rotary clutch : 20 CB 500

Hydraulic Winch
Max. Load pull on drilling floor : 3.000 kg
Max. load pull on semi trailer : 5.000 kg

Drilling Equipment
Travelling block - Hook make : American block or equivalent
Travelling block - Hook Working load capacity : 226 mt
Swivel make/model : King Oil Tools/ 6SX or equivalent
Swivel static capacity : 200 mt
Swivel rotating capacity (at 100 rpm) : 122 mt
Swivel working pressure : 345 bar
Hydraulic elevation BOP make : Drillmec
Hydraulic elevation BOP total lifting capacity : 20 ton

Rig Instrumentation
Dead line anchor single pull capacity : 22.6 mt
Dead line anchor load sensor : E80 Tension

Mud System
Make : Drillmec
Volume of shale shaker tank : 60 m3
Volume of intermediate tank : 46 m3
Volume of suction tank : 46 m3
Volume of mixing tank : 60 m3
Water tank : 40 m3

Triplex Mud Pump
Make/Model : Drillmec / 9T1000
Quantity : 2 ea
Design : Horizontal design as per API 7K
Rated Input (HP) : 1.000
Valve Pot size : 7
Mounted on : Oilfield skid

Diesel Engine for Mud Pump
Make/Model : Caterpillar C18 Acert
Engine power : 600hp @ 1.200 rpm
Quantity : 2 ea for each mud pump

Transmission for Mud Pump
Make/Model : Drillmec/TC955 Torque converter

Pulsation Dampener
Make/Model : Hydrill K20-5000 or equivalent
Quantity : 1 ea (for each pump)

Shale Shaker Tank
1. Shale Shaker
Make/Model : Swaco/Mongoose PT
Quantity : 2 ea
Electric motor : 400V - 50Hz ex-proof

2. Mud Cleaner
Make/Model : Swaco / 2-12/6T4/Mongoose PT
Quantity : 1 ea
Electric motor : 400V - 50Hz ex-proof

3. Degasser
Make/Model : Swaco / Vacuum Degasser horizontal type
Quantity : 1 ea
Electric motor : 400V - 50Hz ex-proof

4. Mud Agitators
Make/Model : Swaco / c/w blades
Quantity : 2 ea
Electric motor : 15 KW 400V - 50Hz ex-proof

Intermediate Tank
Centrifugal Pump
Quantity : 2 ea
Used for : Solid equipment
Electric Motor : 75 kW 400V - 50Hz ex-proof

Mud Agitators
Quantity : 2 ea
Electric Motor : 15 kW 400V - 50Hz ex-proof

Suction Tank
1. Supercharging Centrifugal Pump
Quantity : 2 ea
Electric Motor : 75 kW 400V - 50Hz ex-proof

2. Mud Agitators
Quantity : 2 ea
Electric Motor : 15 kW 400V - 50Hz ex-proof

Mixing Tank
1. Mud Agitators
Quantity : 2 ea
Electric Motor : 15 kW 400V - 50Hz ex-proof

Mixing Unit
1. Centrifugal Pump
Quantity : 2 ea
Used for : Solid equipment
Electric Motor : 75 kW 400V - 50Hz ex-proof

2. Hoppers
Quantity : 2 ea
Size : 6"

Trip Tank
1. Quantity / Equipped with : 1 ea / 6 m3 w/ centrifugal pump & electric motor

Poor Boy Degasser
1. Quantity : 1 ea
(Mounted on top of the trip tank complete with inlet and outlet pipes)

Power System
Power Generator
Make/Model : Caterpillar / C15
Quantity : 2 ea
Prime Power : 400ekW-453kW
Frequency : 50 Hz
Speed : 1.500 rpm

MCC- Switch Gear Panel
Quantity : 1 ea
MCC for mud system : 400V / 50Hz
MCC for lighting system : 220V / 50Hz

Air Unit - Utility House
Electric Air Compressor
Pressure at discharge with dryer : 9.8 bar
Pressure at discharge without dryer : 10 bar
Capacity : 95lt/s
Power : 37kW-400V/50Hz
Quantity : 2 ea

Auxiliary Equipment
Water Cooling System
Water Tank Capacity : 5 m3
Water pump flow : 30 m3/h
Water pump motor : 400V/50Hz ex-proof
Quantity : 1 ea

Fuel Tank
Capacity : 60 m3 + 5 m3
Quantity : 1 set

Hydraulic Top Drive (HTD 220)
General Information
Make : Drillmec
Quantity : 1 ea
Bore : 3"
Rated circulating pressure : 5.000 psi - 35 Mpa
Hydraulic system requirement : 868 lt - 35 Mpa
Auxiliary hydraulic system : 225 lt - 55 Mpa

Circulation Swivel
Make : Drillmec
Wash Pipe ID : 3"
Max. WP : 350 bar
Quantity : 1 ea

Rotating Double Hook
Make : Drillmec
Quantity : 1 ea

IBOP Valve
Make : Drillmec
OD : 7 3/4"
ID : 3 1/6"
Working Pressure : 345 bar (5.000 psi)
Quantity : 1 ea
Connection : NC50 box & pin

Top Drive Hydraulic Power Unit
Quantity : 1 ea (Container)
Diesel Engine Quantity : 1 ea
Diesel Engine Make/Model : Caterpillar / C15
Diesel Engine power : 540 hp
Diesel Engine speed : 1.800 rpm
Diesel Engine no. of cylinder : 6 in line

Top Drive Rails
Quantity : 4 ea

Rig Floor Equipment
1. D.P. and D.C. Rotary Tongs
Quantity (no.) : 2 ea
Type : Rotary
Range size from : 3 1/2"
Range size to : 14 3/8"

2. Elevator Links
Set : 1 ea
Length, 1 set : 2 1/4" x 108"
Rated capacity : 250t

Drilling Instrumentation
Drilling Console
Weight Indicator
Mud Pump Pressure Gauges : Pressure range (0-5000 psi)
Rotary Torque Indicator
Rotary speed Tachometer : For top drive
Tong Torque Indicator
Mud Pump Stroke Indicator (Qty) : 2 ea

Others
Dog House (Drillmec made) : 1 ea
Dog House Support : 1 ea
High Pressure Ground Line : 1 ea
Monkey Board : 1 ea
Mud Tanks Walkways : 8 ea
Carrier Walkways : 12 ea
Handrails : 39 ea
Rotary Hose : 1 ea
Mud Pump Discharge Hose : 2 ea
Exhaust : 2 ea
Cable Tray : 1 ea
Suction Line : 1 ea
Stand Pipe Manifold : 1 ea
Stairs : 5 ea
Power Tong & Power Tong Support : 1 ea
BOP Lifting Device Remote Control Panel : 1 ea
Bop Skid & Bop Trolley : 1 ea
Vee Door : 1 ea
Driller Panel : 1 ea
Drilling Recorder 8 Pen : 1 ea
Rig Lightening System : 1 ea
Mud Tanks Lightening System : 1 ea

Well Control Equipment (without valid Certificate) : 1 ea
- 1 ea x 13 5/8" x 5000 psi Annular (Bag Type) BOP
- 1 ea x 13 5/8" x 5000 psi Double Ram BOP (Cameron "U" Type)
- 1 ea x 13 5/8" x 5000 psi Drilling Spool
- 1 ea x 3 1/8" x 5000 psi Armor Covered Flexible Hose
- 1 ea x 3 1/8" x 5000 psi Choke Manifold
- 1 ea x 3 1/8" x 5000 psi Closing Unit
- 1 ea x Remote Control Panel
- 1 ea x Remote Choke Control Panel
- 1 ea x 3 1/8" x 5000 psi HCR Valve

WorldRigs has Drillmec MR-8000 Semitrailer Rig for Sale
  Images

MR-8000 Mobile Drilling & Workover Rig

1080HP Semitrailer Rig for Sale

Drillmec MR-8000 Semitrailer Rig

MR-8000 Mobile Drilling & Workover Rig

1080HP Semitrailer Rig for Sale


Drillmec MR-8000 Semitrailer Rig
MR-8000 Mobile Drilling & Workover Rig
1080HP Semitrailer Rig for Sale
Used MR-8000 Mobile Drilling & Workover Rig for Sale
2008 Built Drillmec MR-8000 Semitrailer Rig - For Sale
1080HP MR-8000 Mobile Drilling & Workover Rig for sale
Drillmec Rig - 2016 Recertified - For Sale
Used Land Rig for Sale



If you are interested in the featured equipment,
please contact us on email
 or call +65 97768837.
Cannot find the rig you want? Email us on

Drillmec MR-8000 Semitrailer Rig for Sale


Name    :    Drillmec MR-8000 Semitrailer Rig for Sale
ID    :
Year manufactured   :    2008
Price   :    Inquire for pricing
Specifications   :

Drillmec MR-8000 Semitrailer Rig
MR-8000 Mobile Drilling & Workover Rig
1080HP Semitrailer Rig for Sale
Used MR-8000 Mobile Drilling & Workover Rig for Sale
2008 Built Drillmec MR-8000 Semitrailer Rig - For Sale
1080HP MR-8000 Mobile Drilling & Workover Rig for sale
Drillmec Rig - 2016 Recertified - For Sale
Used Land Rig for Sale



General Rig Data
Rig Data
Year of Construction : 2008
Year of recertification : July 2016 (for one year certification)
Static hook load :200mt
Setback capacity : 113mt

Mast Data
Make : Drillmec
Type : Four legs, open face, two-section telescopic
Clear height from ground level : 36 meter
Clear height from drilling floor : 31 meter

Substructure
Drill floor height : 5.2 meter
Clear height under rotary beam : 4.2 meter
Drilling floor dimensions (meter x meter) : 7 x 5

Drawworks
Make : Drillmec
Type : Conventional
Rated input power (HP) : 1.080
Main drum make : Drillmec
Main drum size (inch x inch) : 26" x 42 1/2"
Main drum static capacity : 24 mt
Main drum clutch : 42 VC 650
Main drum grooved for line OD (inch) : 1 1/8"
Make-up cathead (make) : Drillmech
Break-out cathead (make) : Drillmech
Drill line : 1 1/8" 6 x 19 IWRC EIPS
Brake type : Brake Band
Hydromatic Auxiliary brake make/model : Parmac / V80
Hydromatic Auxiliary brake capacity : 5.000 hp
Hydromatic Auxiliary brake max. pressure : 15 psi
Hydromatic Auxiliary brake max. speed : 1.550 rpm
Hydromatic Auxiliary brake clutch : 26CB 525
Cooling fluid : Water
Crown-O-Matic device : Yes Drillmec

Compound
Air System make : Drillmech
Air compressor engine : Ingersoll Rand T30 mod 2475
Air compressor max. working pressure : 11 bar
Air compressor max. HP in max. WP : 7.1 hp
Air tank capacity : 500 lt
Hydraulic system make : Drillmech

Power Pack
Diesel Engine make/model : Caterpillar / C15 - ACERT
Diesel Engine hoisting power : 540 hp
Diesel Engine quantity : 2 ea
Diesel Engine rate : 2.100 rpm
Automatic gear box quantity : 2 ea
Torque converter : TC680
Hoisting speed : 5 + 1 reverse

Rotary Drive and Rotary Table
Make : Drillmec
Rotary table opening : 271/2"
Max static load on table : 320 mt
Rotary air brake : 16 CB 500
Rotary clutch : 20 CB 500

Hydraulic Winch
Max. Load pull on drilling floor : 3.000 kg
Max. load pull on semi trailer : 5.000 kg

Drilling Equipment
Travelling block - Hook make : American block or equivalent
Travelling block - Hook Working load capacity : 226 mt
Swivel make/model : King Oil Tools/ 6SX or equivalent
Swivel static capacity : 200 mt
Swivel rotating capacity (at 100 rpm) : 122 mt
Swivel working pressure : 345 bar
Hydraulic elevation BOP make : Drillmec
Hydraulic elevation BOP total lifting capacity : 20 ton

Rig Instrumentation
Dead line anchor single pull capacity : 22.6 mt
Dead line anchor load sensor : E80 Tension

Mud System
Make : Drillmec
Volume of shale shaker tank : 60 m3
Volume of intermediate tank : 46 m3
Volume of suction tank : 46 m3
Volume of mixing tank : 60 m3
Water tank : 40 m3

Triplex Mud Pump
Make/Model : Drillmec / 9T1000
Quantity : 2 ea
Design : Horizontal design as per API 7K
Rated Input (HP) : 1.000
Valve Pot size : 7
Mounted on : Oilfield skid

Diesel Engine for Mud Pump
Make/Model : Caterpillar C18 Acert
Engine power : 600hp @ 1.200 rpm
Quantity : 2 ea for each mud pump

Transmission for Mud Pump
Make/Model : Drillmec/TC955 Torque converter

Pulsation Dampener
Make/Model : Hydrill K20-5000 or equivalent
Quantity : 1 ea (for each pump)

Shale Shaker Tank
1. Shale Shaker
Make/Model : Swaco/Mongoose PT
Quantity : 2 ea
Electric motor : 400V - 50Hz ex-proof

2. Mud Cleaner
Make/Model : Swaco / 2-12/6T4/Mongoose PT
Quantity : 1 ea
Electric motor : 400V - 50Hz ex-proof

3. Degasser
Make/Model : Swaco / Vacuum Degasser horizontal type
Quantity : 1 ea
Electric motor : 400V - 50Hz ex-proof

4. Mud Agitators
Make/Model : Swaco / c/w blades
Quantity : 2 ea
Electric motor : 15 KW 400V - 50Hz ex-proof

Intermediate Tank
Centrifugal Pump
Quantity : 2 ea
Used for : Solid equipment
Electric Motor : 75 kW 400V - 50Hz ex-proof

Mud Agitators
Quantity : 2 ea
Electric Motor : 15 kW 400V - 50Hz ex-proof

Suction Tank
1. Supercharging Centrifugal Pump
Quantity : 2 ea
Electric Motor : 75 kW 400V - 50Hz ex-proof

2. Mud Agitators
Quantity : 2 ea
Electric Motor : 15 kW 400V - 50Hz ex-proof

Mixing Tank
1. Mud Agitators
Quantity : 2 ea
Electric Motor : 15 kW 400V - 50Hz ex-proof

Mixing Unit
1. Centrifugal Pump
Quantity : 2 ea
Used for : Solid equipment
Electric Motor : 75 kW 400V - 50Hz ex-proof

2. Hoppers
Quantity : 2 ea
Size : 6"

Trip Tank
1. Quantity / Equipped with : 1 ea / 6 m3 w/ centrifugal pump & electric motor

Poor Boy Degasser
1. Quantity : 1 ea
(Mounted on top of the trip tank complete with inlet and outlet pipes)

Power System
Power Generator
Make/Model : Caterpillar / C15
Quantity : 2 ea
Prime Power : 400ekW-453kW
Frequency : 50 Hz
Speed : 1.500 rpm

MCC- Switch Gear Panel
Quantity : 1 ea
MCC for mud system : 400V / 50Hz
MCC for lighting system : 220V / 50Hz

Air Unit - Utility House
Electric Air Compressor
Pressure at discharge with dryer : 9.8 bar
Pressure at discharge without dryer : 10 bar
Capacity : 95lt/s
Power : 37kW-400V/50Hz
Quantity : 2 ea

Auxiliary Equipment
Water Cooling System
Water Tank Capacity : 5 m3
Water pump flow : 30 m3/h
Water pump motor : 400V/50Hz ex-proof
Quantity : 1 ea

Fuel Tank
Capacity : 60 m3 + 5 m3
Quantity : 1 set

Hydraulic Top Drive (HTD 220)
General Information
Make : Drillmec
Quantity : 1 ea
Bore : 3"
Rated circulating pressure : 5.000 psi - 35 Mpa
Hydraulic system requirement : 868 lt - 35 Mpa
Auxiliary hydraulic system : 225 lt - 55 Mpa

Circulation Swivel
Make : Drillmec
Wash Pipe ID : 3"
Max. WP : 350 bar
Quantity : 1 ea

Rotating Double Hook
Make : Drillmec
Quantity : 1 ea

IBOP Valve
Make : Drillmec
OD : 7 3/4"
ID : 3 1/6"
Working Pressure : 345 bar (5.000 psi)
Quantity : 1 ea
Connection : NC50 box & pin

Top Drive Hydraulic Power Unit
Quantity : 1 ea (Container)
Diesel Engine Quantity : 1 ea
Diesel Engine Make/Model : Caterpillar / C15
Diesel Engine power : 540 hp
Diesel Engine speed : 1.800 rpm
Diesel Engine no. of cylinder : 6 in line

Top Drive Rails
Quantity : 4 ea

Rig Floor Equipment
1. D.P. and D.C. Rotary Tongs
Quantity (no.) : 2 ea
Type : Rotary
Range size from : 3 1/2"
Range size to : 14 3/8"

2. Elevator Links
Set : 1 ea
Length, 1 set : 2 1/4" x 108"
Rated capacity : 250t

Drilling Instrumentation
Drilling Console
Weight Indicator
Mud Pump Pressure Gauges : Pressure range (0-5000 psi)
Rotary Torque Indicator
Rotary speed Tachometer : For top drive
Tong Torque Indicator
Mud Pump Stroke Indicator (Qty) : 2 ea

Others
Dog House (Drillmec made) : 1 ea
Dog House Support : 1 ea
High Pressure Ground Line : 1 ea
Monkey Board : 1 ea
Mud Tanks Walkways : 8 ea
Carrier Walkways : 12 ea
Handrails : 39 ea
Rotary Hose : 1 ea
Mud Pump Discharge Hose : 2 ea
Exhaust : 2 ea
Cable Tray : 1 ea
Suction Line : 1 ea
Stand Pipe Manifold : 1 ea
Stairs : 5 ea
Power Tong & Power Tong Support : 1 ea
BOP Lifting Device Remote Control Panel : 1 ea
Bop Skid & Bop Trolley : 1 ea
Vee Door : 1 ea
Driller Panel : 1 ea
Drilling Recorder 8 Pen : 1 ea
Rig Lightening System : 1 ea
Mud Tanks Lightening System : 1 ea

Well Control Equipment (without valid Certificate) : 1 ea
- 1 ea x 13 5/8" x 5000 psi Annular (Bag Type) BOP
- 1 ea x 13 5/8" x 5000 psi Double Ram BOP (Cameron "U" Type)
- 1 ea x 13 5/8" x 5000 psi Drilling Spool
- 1 ea x 3 1/8" x 5000 psi Armor Covered Flexible Hose
- 1 ea x 3 1/8" x 5000 psi Choke Manifold
- 1 ea x 3 1/8" x 5000 psi Closing Unit
- 1 ea x Remote Control Panel
- 1 ea x Remote Choke Control Panel
- 1 ea x 3 1/8" x 5000 psi HCR Valve

WorldRigs has Drillmec MR-8000 Semitrailer Rig for Sale
  Images

MR-8000 Mobile Drilling & Workover Rig

1080HP Semitrailer Rig for Sale

Drillmec MR-8000 Semitrailer Rig

MR-8000 Mobile Drilling & Workover Rig

1080HP Semitrailer Rig for Sale


Drillmec MR-8000 Semitrailer Rig
MR-8000 Mobile Drilling & Workover Rig
1080HP Semitrailer Rig for Sale
Used MR-8000 Mobile Drilling & Workover Rig for Sale
2008 Built Drillmec MR-8000 Semitrailer Rig - For Sale
1080HP MR-8000 Mobile Drilling & Workover Rig for sale
Drillmec Rig - 2016 Recertified - For Sale
Used Land Rig for Sale



Mail WorldRigs
   Mail WorldRigs regarding any general/sale enquiries or feedback.
   You are enquiring about :   Drillmec MR-8000 Semitrailer Rig for Sale, ID WR706
   Your name :

   Your company :

   Your email :

   Your contact number :

   Your message :

 Please enter the security code

Witchtex R-4 Trailer Mounted Drilling Rig for Sale
SEDLAR 160 - Self Elevating Drilling Land Rig for Sale
Cabot 1500 Drilling Rig For Sale
Cabot 1500 Drilling Rig for sale

...............................................................................
