2000HP VFD Land Drilling Rig for Sale


Name    :    2000HP VFD Land Drilling Rig for Sale
ID    :    WR711
Year manufactured   :    2018
Price   :    Inquire for pricing
Specifications   :    2000HP VFD Land Drilling Rig for Sale
Revamped and certified 2000 HP Land Rig for Sale
Used Land Rig for Sale
2018 Built Refurbished Rig for Sale
Used VFD Rig - 2000HP - For Sale
2018 Built VFD Rig - For Sale
Land Drilling Rig for sale



General
Year Revamp / Certification : Q3-2018 (Built 2018)

Rated Drilling Depth

5 in. Drill Pipe : 18,000 ft (5,486 m)
4-1/2 in.Drill Pipe : 23,000 ft (7,010 m)

Mast
Make : Henan
Height : 149 ft (45.5m)
Max. Hookload : 1 million lbs
Racking Capacity : 5 in. drill pipe – 18,000 ft. (5,486 m)

Drawworks
Make : JC70DB
Rated Input : 1,470 kW (2,000 HP)
Input Power : Two (2) motors, each rated 1,000hp (746 kW)
Drilling Line : 1-1/2 in. (38.0mm)

Traveling Equipment

Traveling Block : YC 450 traveling block, to API 8A
Max. Load : 1 million lbs
Swivel : SL450 swivel in acc. to API 8A
Max. Load : 1 million lbs

Substructure
Make, Type : DZ450/10.5-S, to API 4F, swing up style Clear Drilling floor height: 10.5 m (34.5ft).
Rated setback load : 2,200 kN (494,500lbf)

Rotary Equipment
Top Drive : DQ70 BSC
Input Power : 1,100 hp (820 kW)
Rotary Table : ZP-375 in accordance to API 7K
Input Power : 720KW/AC Motor
Static Load Rating : 1.0 million lbs

BOP System

Annular Preventer : RongSheng
- One (1) 29 1/2” - 500 psi
- One (1) 20 ¾”- 3000 psi
- One (1) 13 5/8” 5000 psi

Ram Preventers : RongSheng
- One (1) 20 ¾” – 3000 psi double ram
- One (1) 13 5/8” 10000 psi single ram
- One (1) 13 5/8” 10000 psi double ram

Gensets
Engines : Five (5)
4 for Mitsubishi generators and 1 for caterpillar emergency generator package.

Generators
- Four (4) Mitsubishi MOG generators, 1.040 kW(1.600 kVA) and 1.500 RPM each
- One (1) Caterpillar emergency generator, continuous power : 320E kW 1.500 RPM

Power Distribution

Siemens VFD control cubicle,600V/400V transformer.
400VAC distribution system.
MCC system, PLC system

Mud Pumps

Pumps : Three (3) ZYF-1600 Mud triplex pumps; driven by 2 VF AC motors
Horse Power : 1,600 HP (1,180 kW

Mud Handling/Solids Control
Active Mud System : 2,230 bbls (355 m3)
Shale Shakers : Four (4) sets Derrick Model FLC 503
7G shaker process rate 560 gpm.

Degasser

HZCQ240 type; 1,000 gpm

WorldRigs has 2000HP VFD Land Drilling Rig for Sale

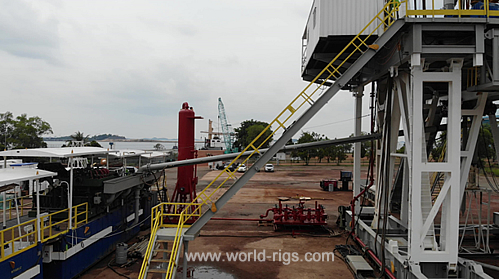

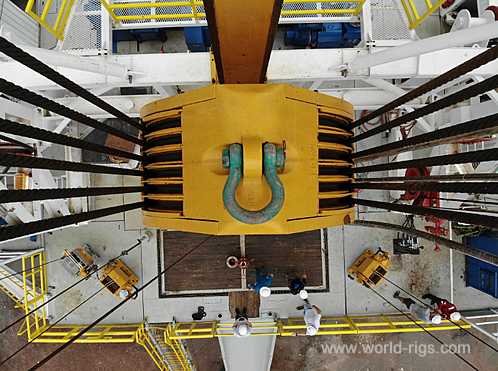

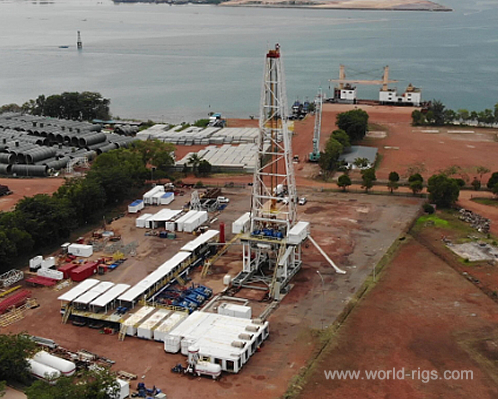

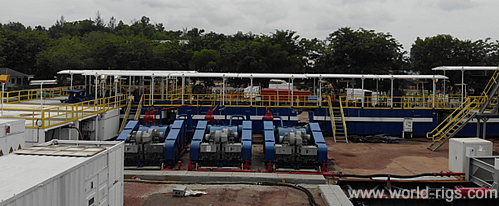

  Images

Revamped and certified 2000 HP Land Rig for Sale

2018 Built Refurbished Rig for Sale

Used VFD Rig - 2000HP - For Sale

Refurbished Rig

2000HP VFD Rig

2018 Built VFD Rig - For Sale


2000HP VFD Land Drilling Rig for Sale
Revamped and certified 2000 HP Land Rig for Sale
Used Land Rig for Sale
2018 Built Refurbished Rig for Sale
Used VFD Rig - 2000HP - For Sale
2018 Built VFD Rig - For Sale
Land Drilling Rig for sale
