Carrier Mounted Corsair 550HP Rig for Sale


Name    :    Carrier Mounted Corsair 550HP Rig for Sale
ID    :    WR812
Price   :    Inquire for pricing
Specifications   :    Corsair 550 HP Rig for Sale
Carrier Mounted Corsair 550HP Rig for Sale
Telescopic Mast Land Drilling Rig - For Sale
Mechanical Rig - Corsair 550HP - For sale
Land Drilling Rig for Sale



General Description
Estimated Drilling Depth : 7,200 ft
Estimated Rig Move Loads : 44
Estimated Camp Move Loads : 35
Rated HP : 550

Mast

Height : 107.00 ft
Static Hook Load Capacity : 297,000 lbs
Mast Racking Capacity : 6,560 ft

Substructure
Style : Monobloc
Height : 12.92 ft
Clear Height : 10.36 ft
Casing Capacity : 297,000 lbs
Maximum Setback Load (lbs) : 198,000

Drawworks
Make : Corsair
Model : W5384E
Power Rating : 550hp
Input Power : 1 ea Caterpillar D3408
Drilling Line Size : 1"
Auxillary Brake : Parmac Inc D631974-X

Top Drive / Power Swivel
No Top Drive

Swivel
Make : Oilwell
Model : PC-150
Capacity : 150 Ton

Rotary Table
Make : Gardner Denver 17.5
Table Opening : 17 ½"
Maximum Load Rating : 150 Ton

Power Generation

Mechanical Rig

Enchancements
Power Slip Frame : Upetrom

Mud System
Mud Pumps : 2 ea Upetrom 3PN-1000
Power Rating : 1,000 hp @ 150 spm
Pressure Rating : 5,000 psi
Active Mud Volume : 1,060 bbls
Reserve Mud Volume : 117 bbls
Shale Shakers : 1 ea MI Swaco Mongoose
Mud Cleaner : N/A
Desander : N/A
Desilter : N/A
Centrifuge : N/A

Well Control
Annular : 13 5/8"  3,000 psi, Upetrom

Double Ram Preventer :
13 5/8"  3,000 psi, Upetrom,
9" 3,000 psi, Upetrom

BOP closing Unit : Upetrom

WorldRigs has Carrier Mounted Corsair 550HP Rig for Sale

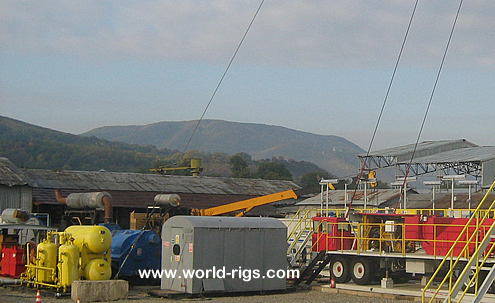

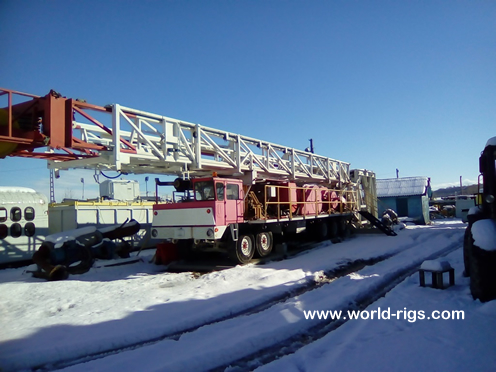

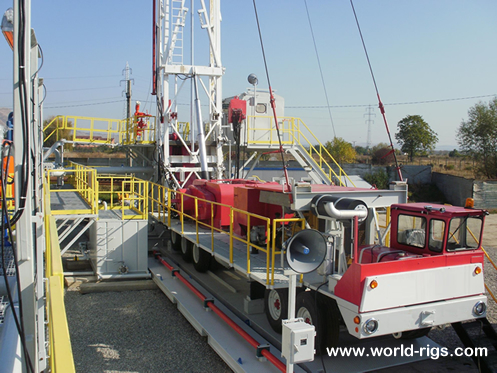

  Images
