Rotary Drilling Rig - RB 15 - for Sale


Name    :    Rotary Drilling Rig - RB 15 - for Sale
ID    :    WR331
Price   :    Inquire for pricing
Specifications   :    Universal Rotary Drilling Rig - RB 15 - for Sale
New Multipurpose Drilling Rig



Description :


The RB 15 enables the user to drill with the following methods, with borehole
diameters 4” (108 mm) to 24” (609 mm):


Rotary-drilling with direct circulation
Rotary-drilling with reverse circulation Auger-drilling


Percussion core drilling (ram coring)
Wire-line core drilling
Down-The-Hole hammer drilling (direct / reverse)
Free-fall drilling
Geothermal Drilling with DoubleRotation-Head
Inclined Drilling max.45 degrees


Additional rig components
Addit. to specifications overleaf
Foam pumpe
Line oiler (for DTH)
Free-fall winch
Hose winch
Percussion drilling device
Hydraulically driven Gen-set
Hydraulically driven welding-set
Rod handling arm
Rod box


Base carrier : Crawler base


Crawler width / Track shoe width : 2.450 / 500 mm
Transport dimensions L / W / H Diesel Engine (water-cooled) : 10.000 / 2.540 / 3.200 mm
Exhaust Emission Standard : EPA / Carb Tier 3, EU Stufe 3A
Rated output : 205 kW @ 2.200 U/min (rpm)
Diesel tank capacity : 280 l
Feed device (hydr. cylinder)
Push-down / Pull-back force : 70 / 140 kN
Feed speed : 0 - 0,8 m/s


Power swivel : L130
Gear select, 3 speeds
Torque at 0 - 34   rpm : 11.750 Nm
Torque at 0 - 100 rpm : 4.150 Nm
Torque at 0 - 320 rpm : 1.200 Nm


Chuck & break device : HSB 178.300
Clamping diameter max. / min. : 170 / 51 mm
Max. breaking torque : 41.000 Nm


Outrigger cylinder
Max. stroke : 600 mm


Mast head with hydr. swing-out device
Swing-out displacement : 700 mm
Swing-out force : 8 kN


Clamping device
Max. clearance diameter : 400 mm
Max. casing nominal diameter : DN 255
Max. clamping force : 300 kN


Winches
Main winch
Line pull 1st layer : 95 kN
Wire rope diameter / rope length : 20 / 130 m
Coring winch
Line pull 1st layer : 20 kN
Wire rope diameter / rope length : 8 / 300 m
Auxiliary / percussion winch
Line pull 1st layer : 26 kN
Wire rope diameter / rope length : 10 / 49 m


Pumps
Triplex piston pump
Discharge / Operating pressure : 270 l/min / 40 bar
Duplex piston pump
Discharge / Operating pressure : 450 l/min / 20 bar
Eccentric screw pump
Discharge / Operating pressure : 350 l/min / 24 bar
Centrifugal pump
Discharge capacity / Op.pressure : 1.500 l/min / 8 bar
Suction pump
Discharge capacity / Suction height : 5.300 l/min


Screw type compressor Compressor
Discharge / Operating pressure : 7 m³/min / 15 bar
Rotating casing table : VDT 324  VDT 419


Torque : 13 / 20 kNm  30 / 45 kNm


WorldRigs has Rotary Drilling Rig - RB 15 - for Sale

  Images

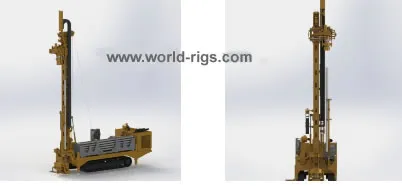

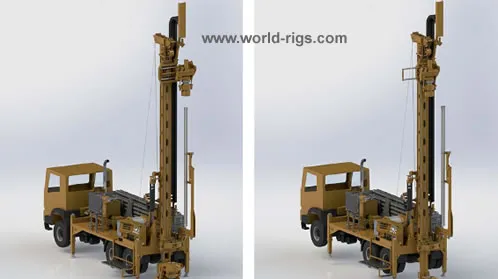

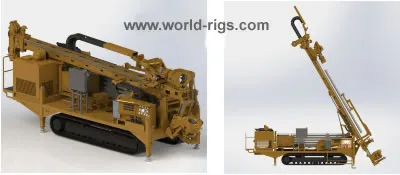

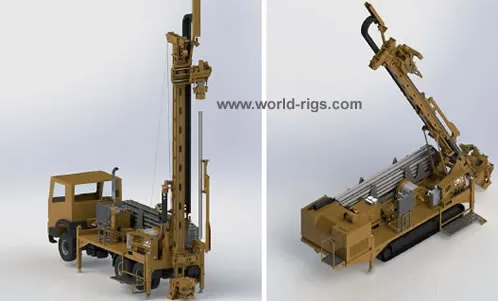

Universal Rotary Drilling Rig - RB 15 - for Sale
