Schramm TXD 200 Hydraulic Super Single Drill Rig & Package
2007 Built Schramm TXD 200 Hydraulic Super Single Drill Rig
Model : TXD Drill Rig
Manufacturer : Schramm
Year : 2007
Condition : Used
Description :
2007 Schramm TXD Hydraulic Super Single Drill Rig & Package
Drawworks: Input: Del. Diesel Engine MTU 12 V2000 (760 hp)

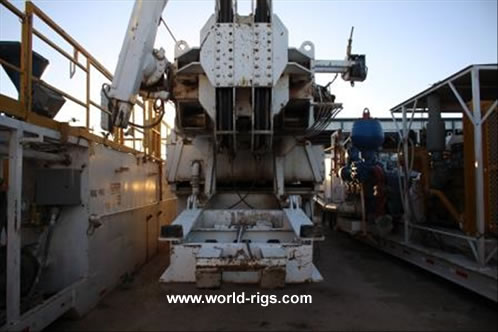

Mast: Schramm Telescopic Single - Height: 70' ft
Static Hook Load: 200,000 lbs (0 lines)
Substructure: Schramm - Setback Capacity: 200,000 lbs

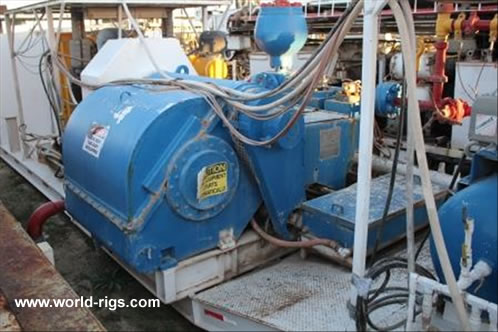

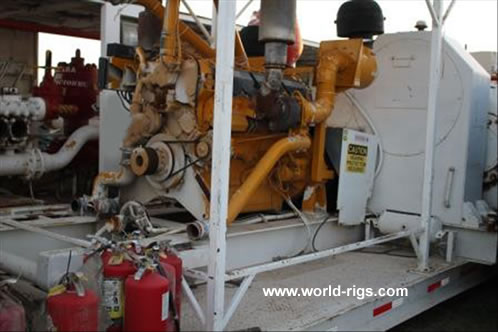

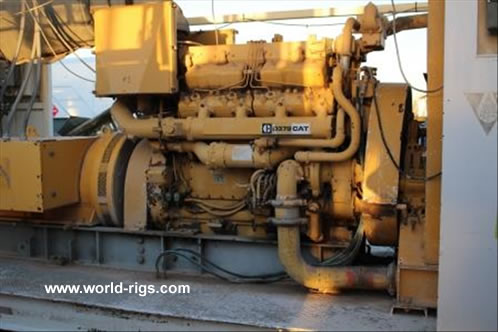

Mud Pump #1: (Triplex) Gardner Denver PZ9 - Rated: 750 hp - Input: CAT (750 hp)
Mud Pump #2: (Triplex) Gardner Denver PZ9 - Rated: 750 hp - Input: CAT (750 hp)

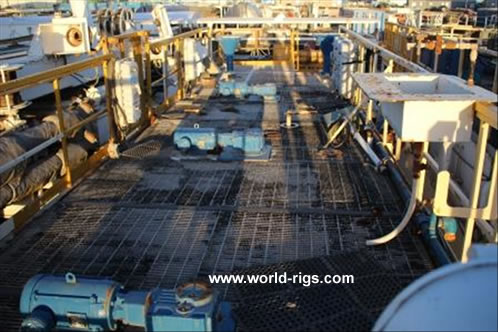

Mud Pit: Pit(s): 252 bbl - Shaker PLC - 2 Mixing Pump(s):

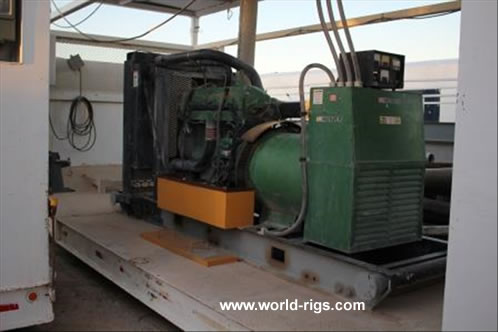

Generators: Rated: 483 hp - Input: Marathon (536 hp) -
Rated: 483 hp - Input: Marathon (536 hp)
B.O.P's: Size: 11 in - Working Pressure: 5,000psi - Shaffer Annular - Schaffer
LWS-LXT Dbl Ram Blind Ram
Top Drive: Char Lynn Hydraulic Motors - Rating: 200,000 lbs
Swivel: Schramm - Rated: 200,080 lbs

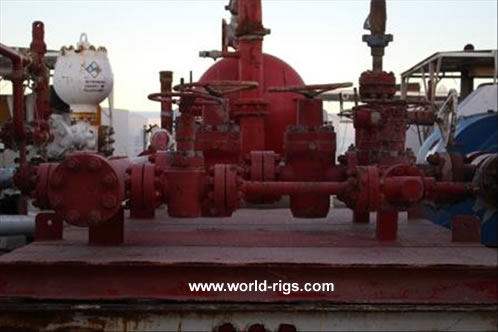

Choke Manifold: Size: 0,079 in - Working Pressure: 5,000 psi
Accumulator: USA OilTools - 5 Stations
Pipe Handling: Schramm Pipe Arm
Auxiliary Equipment: Swaco Degasser
Drill Pipe: 150 Joints of 4” Pipe
Drill Collars: (6) 6” Collars – (4) 8” Collars
Location : USA |
