Model No : SDC500‐28E Drill Rig
Manufacturer : Sonic
Condition : Used

Description:

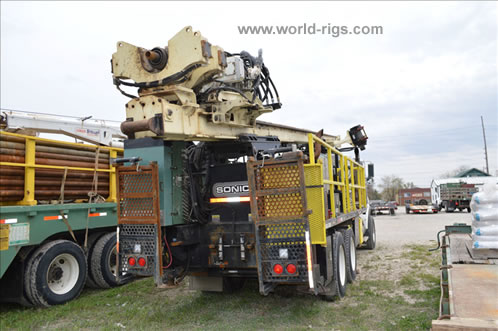

Sonic SDC500‐28E Drill Rig
Power Source: Skid Mounted, Caterpillar Diesel Engine
Model 3126B, Rated at 250 HP @ 1850 RPM, EPA/CARB Tier II, Hydraulic
Oil Cooler, Engine Management System (EMS) Panel, Clutched 3 Pad Pump Drive
Truck Deck : (4) 4” x 36” Jacklegs with Counter Balance Valve, (4) Jackleg Covers,
(2) Operators Platforms, Formed & Reinforced Deck Skin, Tubular & Channel
Framework, Anti-Slip Surface

Mast : Tubular Construction, 28' FT Head Travel, 37' FT - 8” Overall Length,
Hydraulic Cylinder/Chain Driven System, Trolley, Spring Chain Take-up,
Chain Tension Equalizer, Fully Enclosed Pullback: 24,000 LBS,
Pulldown: 16,000 LBS
JIB HOIST (RETRACTABLE): Main Hoisting Winch, 12,000 LBS Capacity (Bare Drum),
104 FPM, 5/8” x 222 FT Non-Rotating Cable, Swing Cylinder (Jib Swing
Interlock & Auto Stop Options also available)

Breakout Table : 4”-13” Nominal Clamping Range, Vee-Groove Hardened Inserts,
Protective Guards

Truck: Mounted on a Kenworth T-800 truck
Water Pump (Underdeck Option also available): Triplex Piston Pump, 37 GPM,
1000 PSI, Direct Coupled Hydraulic Motor, Coupling Guard, 2” Camlock with
Dust Cap, PRV (Other Pump sizes available)
Hydraulic System: Hydrostatic Circuit 4500 PSI, Pilot Control, Micro Feed,
Float Up/Down, Holdback, High/Low Speed Feed Load Sense, Cold Start,
Reservoir Capacity 120 Gal.

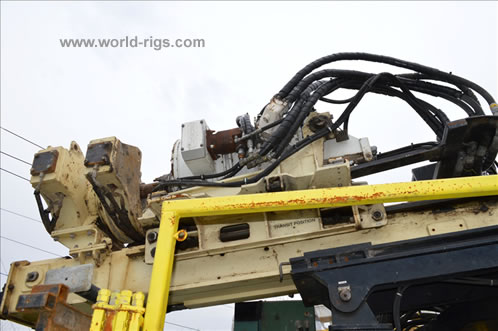

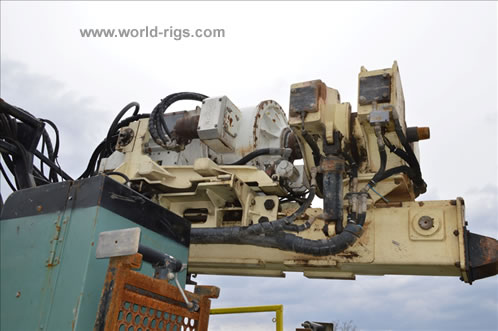

Sonic Head: Model SONICOR 50K, Hydraulic 90 Degree Tilting Cylinders
Hose Carrier: PowerTrakTM System, High Pressure Hydraulic Tubing
Control Console: Compact Lightweight Construction, Ergonomic Con guration,
Hinged Removable Door, Rear Access Panel, Laser-Cut Aluminum Anodized Face Plate,
Key Start, Remote Throttle, Digital Tachometer, & Pilot Control Valves

Location : USA
