SOLD

Model : T450WS Drill Rig
Manufacturer : Schramm
Year : 2004
Condition : Used

Description :

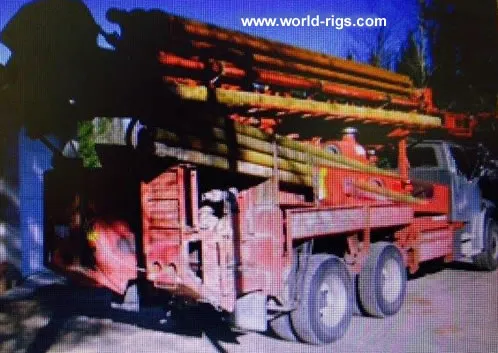

2004 Schramm T450WS Rotadrill Rig
Meter Reads 6,994 hours
Sullair 900 cfm / 350 psi With Clutch
CAT 3406 Diesel Engine
Mounted on a 2004 Sterling Acterra Truck with a total of only 32,600 miles
CAT 3126 diesel engine @ 300 HP
Set Back Axle – Truck
Eaton Fuller RTO-11909ALL Transmission
Front Axle 18,000 lb.
Merito RT-40-145 R-SRS Tandem Rear Axle @ 40.000 lb.
5.29 Axle Ratio

219 inch wheel base with 60 inch rear axle spacing.
Mast, 28’ 6” Travel Special
Slow Feed Drill-Up Valve
Upgrade Traverse Cylinder, 28’ 6” Travel
Increase cylinder rod diameter to 2.75”. Pulldown increased to 22,000 lbs.
Pullback decreased to 27,000 lbs
Rotation Motor, 40.6 cu.in
Top Head, Single Motor, 28.5’
Top Head Rotation
RPM 0-110, Torque 75,390 in.-lb.
Split Table Assembly, 4 ½”
Several custom bushings, Custom made hydraulic open & close table
Breakout Wrench 60”

Heater, Electric Deck Engine Block
Tool Lubricator, Piston Pump
Stand Pipe, 2” Aux Mud

Out riggers , Rear Two 4 inch bore, 36 inch stroke
Front out rigger , Special
Custom built, telescoping outrigger, Truck hood can be completely opened,
no butterfly doors required
Jib Boom, Hydr Swing & Extend
Lazy Susan, 8 rod BO (4.5”)
Sliding Top Head, Hydraulic
Auxiliary Winch Controls
Winch 9,600 lb. (150’ x ½”)
Foam Injection, Cat 35 GPM
Model 3520 : 23 gpm @ 2000 psi
Angled Rack, 18 inch rise
Pipe Rack, 2w x 4h

Full Side Walkways
Extra Service Air Lines plumbed in
Drill Pipe (4.5” x 3 ½ API Reg x 20’)
500' feet included
Accessories included with Rig
Wilden M-15 Mud pump and hoses

Mud pit, (carried under mast while moving)
Stabilizer Bar (12 foot x 7 inch), (mounted inside mast)
Stabilizer Bar for 8 inch hammer, (kept as a unit and mounts on
the side of the mast)
Running IR, QL60, and QL80 hammers
Arc Welder, Hobart, Champion 10,000, low hours only 154
Barber Floating Cushion Sub, model PD6-2
X-Drill system and air activated diverter head
Controls and Divertor Head mounts in minutes
Misc., Tri-cone and Hammer Bits, Wrenches, Bushings and Hoses

Location : N.E. Region
