DW400C Hydraulic Drill Rig - For Sale


Name    :    DW400C Hydraulic Drill Rig - For Sale
ID    :    WR791
Year manufactured   :    2020
Price   :    Inquire for pricing
Specifications   :    Newbuild DW400 Hydraulic Drill Rig
DW400 Hydraulic Drilling Rig for Sale
Drilling Rig for Sale
Hydraulic Drilling Rig - DW400 - For Sale
Newbuild Hydraulic Drilling Rig for Sale



Components :

1. The three section pressure compensated load sensed Sauer Danfoss
hydraulic piston pumps are directly coupled to the 6LTAA8.9-360 Cummins
diesel engine via a high quality German drive plate and coupling.

2. The drill mast is a lattice type. The feed system uses a single hydraulic cylinder
connected to a 2:1sheave system connected to heavy duty leaf chains giving
approximately 25,000kg of extraction force with a 6.7 metre stroke.

3. Adjustable hydraulic pressure knob to control and limit the down force
on the feed so the rig base will not be raised up whilst drilling.

4. Adjustable flow control valve to control the speed in which the drill bit advances.

5. Pressure gauges on control panel for calculating either rotation torque or feed pressure.

6. Directional control valves and tilt cylinder with over centre valve and flow limiters

7. A single bent axis piston hydraulic motor coupled to a 4 speed gearbox on the
rotation gearbox.

8. A 400 litre hydraulic oil tank with sight gauge, breather cap, internal suction
screens and 10 micron filter on the return line.

9. 4 x 30,000# support jacks, which are adjustable to level the rig in uneven terrain
and to stabilize the rig.

10. 10” x 7 1⁄2” Duplex type piston mud pump driven by Sauer Danfoss hydraulic Gerola Motor.

11. 8000kg single line pull haul winch.

12. Large Air/Oil fan type oil cooler driven by a hydraulic motor with overrun protection.

13. High quality Cetop type solenoid valves to change between different hydraulic functions.

14. Breakout wrench

15. Rod loading system. (optional)


WorldRigs has DW400C Hydraulic Drill Rig - For Sale
  Images

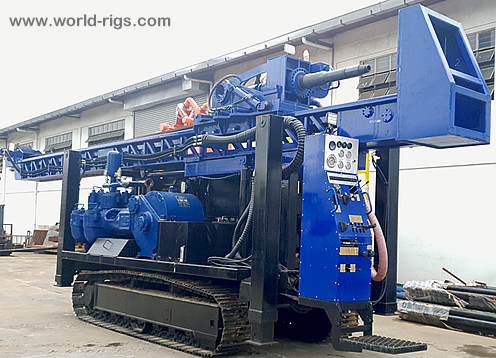

DW400C Hydraulic Drill Rig for Sale

Drilling Rig for Sale

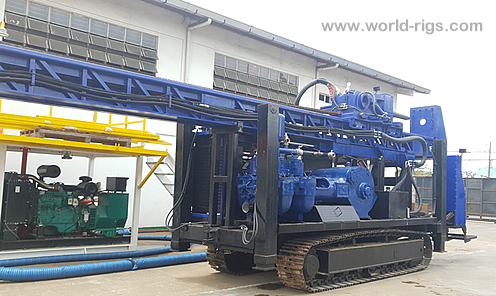

Newbuild DW400 Hydraulic Drill Rig
DW400 Hydraulic Drilling Rig for Sale
Drilling Rig for Sale
Hydraulic Drilling Rig - DW400 - For Sale
Newbuild Hydraulic Drilling Rig for Sale
