New Atlas Copco RD20 Range III XC Drilling Rig - For Sale


Name    :    New Atlas Copco RD20 Range III XC Drilling Rig - For Sale
ID    :    WR858
Year manufactured   :    2012
Price   :    Inquire for pricing
Specifications   :    New Atlas Copco RD20 Range III XC Drilling Rig for Sale
Drilling Rig - Atlas Copco RD20 Range III XC - For Sale
New & Unused Atlas Copco RD20 Range III XC Drilling Rig for Sale
Atlas Copco RD20 Range III XC Drilling Rig - 2012 Built for Sale
New Atlas Copco Drilling Rig for Sale
2012 Built Atlas Copco RD20 Range III XC Drilling Rig for Sale
Atlas Copco RD20 Range III XC Drilling Rig for Sale in USA



Description :

New & Unused 2012 Atlas Copco RD20 Range III XC Drill Rig
Carrier :
Twin H-beam main frame - reinforced 16 in 406.4 mm
5-axle, custom carrier 415 hp 317 kW diesel engine
8-speed transmission Manual with lo - lo and reverse
Tridem rear axles with lockers 23,000 lb each 10,433 kg each
Tandem front steering axles 22,000 lb each 9,979 kg each

Derrick :
Length 61 ft 11 ½ in 18.88 m
Width 4 48 1/2 in 1.23 m
Depth 41 in 1.04 m
Top of table to spindle 51 ft 6 in 5.7 m
Table to ground (rig sitting on tires) 44 in 1,118 mm
Table to ground (jacks fully extended) 92” 2,337 mm

Rig Dimensions :
Height derrick down 13 ft 10 in 4.22 m
Height derrick up 62 ft 6 in 19.05 m
Width 8 ft 4 in 2.54 m
Shipping weight (less tooling) 88,000 lb 40,000 kg

Tip Out Links :
Forged steel 150 ton 136 tonnes
Length 60 in 1,524 mm
Tip out hydraulic cylinder on each link
Angle 0-80° from vertical
Control drillers console

Table & Master Bushing :
Design folding with twin hydraulic jacks
Max opening 26 in 660 mm
API split master bushing 17 ½ in 445 mm
Capacity 60 ton 54.4 tonnes

Rig Performance :
Hookload 120,000 lb 54.4 tonnes
Pulldown 30,000 lbf 13,636 kg
Fast feed up 106 ft/min 32.3 m/min
Fast feed down 180 ft/min 54.9 m/min
Drill feed 29 ft/min 8.8 m/min
Torque 8,000 lbf-ft 10.8 kNm
Speed 0-120 RPM 0-120 RPM
Spindle 3 in 76.2 mm
Swivel Type Multi chevron packings
Opening 2 ½ in 63.5 mm

Location : USA

WorldRigs has New Atlas Copco RD20 Range III XC Drilling Rig - For Sale
  Images

Drilling Rig - Atlas Copco RD20 Range III XC - For Sale

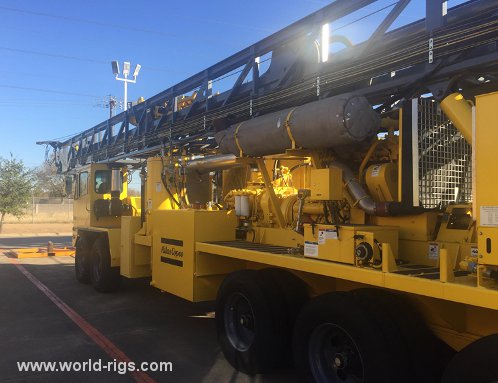

New & Unused Atlas Copco RD20 Range III XC Drilling Rig for Sale

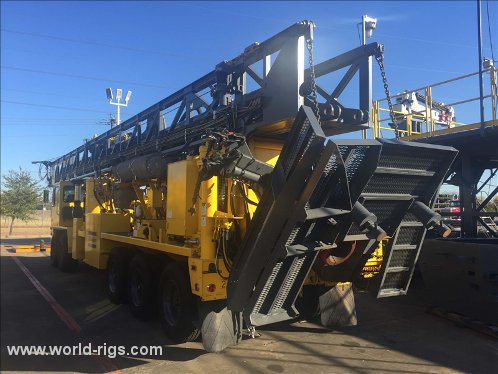

Atlas Copco RD20 Range III XC Drilling Rig - 2012 Built for Sale


New Atlas Copco RD20 Range III XC Drilling Rig for Sale
Drilling Rig - Atlas Copco RD20 Range III XC - For Sale
New & Unused Atlas Copco RD20 Range III XC Drilling Rig for Sale
Atlas Copco RD20 Range III XC Drilling Rig - 2012 Built for Sale
New Atlas Copco Drilling Rig for Sale
2012 Built Atlas Copco RD20 Range III XC Drilling Rig for Sale
Atlas Copco RD20 Range III XC Drilling Rig for Sale in USA
