SEDLAR 160 - Self Elevating Drilling Land Rig for Sale


Name    :    SEDLAR 160 - Self Elevating Drilling Land Rig for Sale
ID    :    WR255
Year manufactured   :    2007
Price   :    US$ 4,800,000
Specifications   :

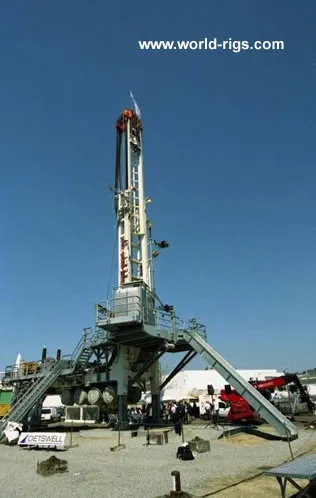

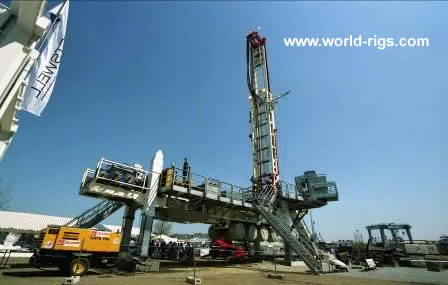

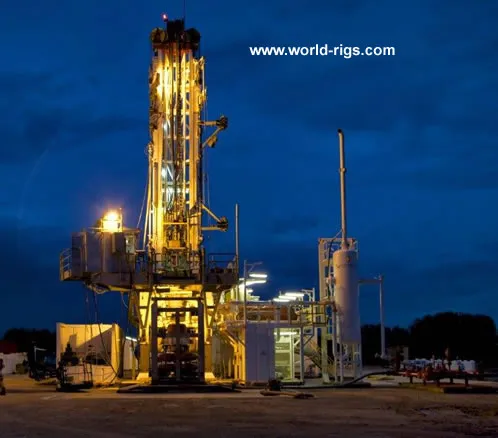

SEDLAR 160 Drilling Rig for Sale
Hydraulic rig for sale in Europe
1000 hp Self Elevating Drilling Rig for Sale



Description

Rig General Description
I. Rig
Unit name : SEDLAR 160 (Self Elevating Drilling Land Rig 160m.T)
Rig type : Trailer mounted rig
Current location : Spain
Year of construction : 2007
Date of last full inspection : December 2009
Fuel oil consumption, work over per day : 2000 liters per day
Number of joints per trip stands : Super single

II. Storage Facilities
Fuel storage : For seven days of full operations
Water capacity : 40m3
Mud System -
Active : 75 m3
Reserve : 74 m3
Pill tank : 25 m3
Trip tank : 4.7 m3

III. Operating Depth
Max drilling depth with dual string : 5’’ & 3-1/2” drill pipe and 25klb BHA
3000m (10,000ft) : (figure depends on diameter & well configuration)

1. Derrick Set

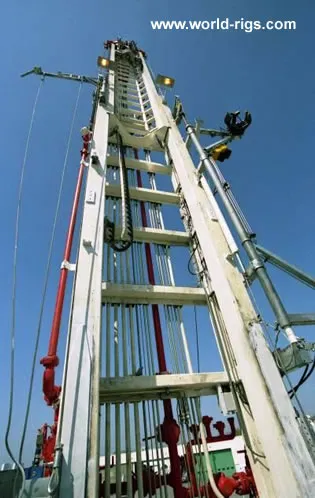

1.1 Mast
Make : Joseph Paris - France
Height : 69ft (29m)
Nominal hook capacity : 265 000lb at 63ft / 120m tonnes at 19.2m
Casing hook capacity : 353 000lb at 52,5ft / 160m tonnes at 16m
Pipe handling system : Semi – Automated system

1.2 Substructure
Type : Self-elevating trailer
Width x length : Width 26ft (8m) x Length 79ft (24m)
Height & clearance for BOP stack : 16,4ft (5,0m)
Capacity set back (lb) : 490 000lb (220mt)
Static (lb) : Nominal 265 000lb

1.3 Crown Block
Capacity (t) : 160mt
Number of sheaves : 4 sheaves
Sheaves diameter : Cable diameter of 32mm
Groove sheaves for line size : Groove diameter 819mm and 130mm shaft

1.4 Hydraulic Jacks
Dimension : 2 Hydraulics jack of 250mm bore / 9,7m stroke
Load capacity @ max pressure : @320 bars: 160mt capacity at 52,5ft (353 000lbs)
Load capacity @ max pressure : @ 250 bars: 120mt capacity at 63,6ft (265 000lbs)
Fast tripping speed : 0,6 m/s with a hook load below 75mt
Minimal tripping speed : 0,3 m/s with max hook load of 160mt

Breaking system : Hydraulic controlled and fail safe on
Number of drive motors : 2 Hydraulic power pack for full redundancy
Description : 2 x Hydraulic - Each with 475 hp
Total continuous : 950 hp
Equipped with :
2 oil pressure alarms, ton mille monitor, hook load, weight on bit, RPM, torque, stand
pipe pressure, line pull indicator, trip tank, SPM.

2. Rig Floor Equipment
2.1 Top Drive
Type : Foremost Industries
Model : TDS F150t
Stem speed (max continuous) : Max 134 rpm continuous speed
Torque (continuous) : 25 000ft.lb at 103 rpm
Torque (intermittent) : 25 000ft.lb @ max speed
Cooling system : Hydraulic system cooled by air

2.2 Master Bushing
Maximum opening (in) : 37-1/2”
Type : Varco Split / rotating bushing
Model : Varco

2.3 Iron Roughneck
Make : National Oilwell Varco
Model : ST-80
Sizes : 4’’1/4 to 8’’1/2
Make up torque : 60 000ft.Lb
Brake out torque : 80 000ft.Lb

2.4 Drill Pipe Elevators
For OD of drill pipe : 5”
Quantity : 2
Make : Varco MGG
Type : Center latch elevator
Capacity :  250 ton
For OD of drill pipe : 3-1/2”
Quantity : 2 of each
Make : Varco MGG
Type : Center latch elevator
Capacity : 250 ton

2.5 Drill Pipe Slips (Manual)
For OD of drill pipe : 5”
Quantity : 2
Make : Varco
Type : SDXL
For OD of drill pipe offered : 3-1/2”
Quantity : 2
Make : Varco
Type : SDML

2.6 Drill Pipe Slips (Powered)
* For OD of drill pipe offered : 5” and 3 ½”
* Quantity : 1
* Make : Dencon Type SL-1

2.7 Drill Collars Slips
* Quantity : 2
* Make : Varco
* For OD drill collar offered : 8” / 6-1/2”/ 4-3/4”
* Type : DCS-L

2.8 Safety Clamps
* Quantity : 1 of each
* Make : Varco
* Type : MP-R
* Range sizes : 8”, 6-1/2”, 4-3/4” & From 4-1/8” to 2-1/4”

2.9 Drill Pipe And Drill Collar Tongs
* Number of sets : 1 of each
* Make : Varco
* Type : HT 35/ HT55/HT100
* Range sizes : 2-3/8” – 17-1/2”

2.10 Elevator Links
* Number of sets : 1 sets
* Make : Varco
* Type : 250 ton
* Size : 2-3/4”

2.11 Drill Pipe Circulation Heads
* Quantity : 1 of each for 5” & 3-1/2” DP
* Make : WECO 1502
* Type : No swivel type
* Bottom connection : 4 1⁄2 IF & 3 1⁄2 IF
* Top connection : 2” FIG 1502

2.12 Inside BOP
* Quantity : 1 of each 5 “ & 3-1/2”
* Make : Hydrill
* Type : Non return valve
* Working pressure : 10 000psi / 10 000psi
* Connection type : NC 50 & NC38 box x pin
* Nominal od : 6-3/8 / 4-7/8”

3. Mud Circulating System
3.1 Mud Pumps
* Number of pumps : 2 units
* Type : EMSCO Type RS-F1000 slush pump
* Max input power : 1000hp
* Max outlet pressure : 5000psi
* Type of drive : 1 x DETROIT diesel 12V2000 G81
* Continuous rating of drive : 1120bhp at 1800 RPM
* Pump liners : 6’’1/2, 6”, 5” and 4’’1/2

* Rated flow rates for each liner size :
6’’1/2: 2400l/min at 176bar max at 140spm
6”: 1944l/min at 207bar max at 140spm
5”: 1350l/min at 298bar max at 140spm
4-1/2”: 1092l/min at 345bar max at 140spm

* Pulsation dampener : 20gal/5000psi
* Reset relief valve : RRV Retsco
* Pump stroke counter : Electric (Autelec) @ DCR
* Charging pump : Halco 5”x4”x14”

3.2 Mud Pump Suction Lines
* Size of lines : 8”
* Working pressure : LP

3.3 Mud Pump Discharge Lines
* Size of lines : 4”
* Working pressure : 5000psi
* number of lines : 2 (One each)

3.4 Stand Pipe
* Number of stand pipe : 1
* Stand pipe size : 4” ID 3”
* Working pressure (psi) : 5000psi
* Goose neck working pressure : 5000psi
* manifold working pressure : 5000psi

3.5 Rotary Hoses
* Size rotary hoses : 4” API Type D
* Rotary houses size (id) : 3”
* Working pressure (psi) : 5000psi

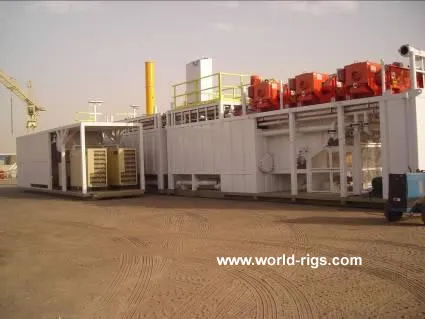

3.6 Mud Tanks
* Tank no 1 volume : 25m3 (Active)
* Tank no 2 volume : 50m3 (Active)
* Tank no 3 volume : 37m3 (Reserve)
* Tank no 4 volume : 37m3 (Reserve)
* Tank no 5 volume : 4,7m3 (Trip Tank)
* Tank no 6 volume : 25m3 (Pill Tank) With Big bags jib

3.7 Mud Mixing System
* Number of mud mixing pumps : 2
* Type : Centrifugal (6 x 8”)
* Power : Electrical AC explosion proof min. 75 hp motor

3.8 Electrical Mud Mixers
* Quantity : Respectively 3, 2 & 1 (total 6)
* Power motor : 3 x 11Kw, 2 x 0,55Kw & 1 x 1Kw
* Installed place : Active, Reserve & Pill tank

3.9 Bottom Guns
Quantity :
Active (4), Reserve (4) & Pill (2) tank
Low pressure bottom guns (total 10)

3.10 Flow Line Shaker
* Number : 3 units
* Type : SWACO, Mongoose PT Dual-Motion Shaker
* Number of decks : 3
* Screens size available : 230XL, 200XL, 105XL, 165XL, 84XL, 50XL
* Capacity of process not less : 1800gpm (600gpm each)

3.11 Degasser
* Type : SWACO Centrifugal Degasser CD-1400
* Driven by : Centrifugal pump 3”x2”x13”

3.12 Mud Gas Separator
* Type : 3C Metal / Poor Boy Type

3.13 JIB For Big Bags
Type :
Type PRT 2 tonnes from HADEF
 Air Operated

4. BOP Well Control Equipment
4.1 Nominal 13 5-8’’ Diverter Stack
* Bag type preventer : Spherical
* Size : 13’’5/8
* Type & brand : Shaffer MGE
* Working pressure (psi) : 5000psi
* Top connection : 13’’5/8 -5kpsi Studded Top
* Bottom connection : 13”5/8 -5kpsi Flange
* Diverter valve : Speciality 8” and 1480psi

4.2 Nominal 11’’ Bop Stack

* Bag type preventer : Yes
* Size : 11"
* Type & brand : Hydrill GK Annular
* Working pressure (psi) : 5000psi
* Top connection : 11” 5kpsi Studded Top
* Top connection size : 11”
* Bottom connection : 11” 5kpsi Flange Bottom
* Bottom connection size : 11”
* Ram type preventer : Cameron Type U
* Size : 11”
* Working pressure (psi) : 5000psi
* Single or double : Double
* Top connection : 11” 5kpsi Flange Top
* Top connection size : 11”
* Bottom connection : 11” 5kpsi Flange Bottom
* Bottom connection size : 11”
* Pipe rams size : 7”, 5”, 4-1/2”, 3-1/2”, 2-3/8” and Variable Bore (2- 7/8 to 5”)

4.3 Nominal 13 5/8” BOP Stack
* Bag type preventer : Yes
* Size : 13 5/8”
* type & brand : Shaffer Annular
* Working pressure (psi) : 5000psi
* Top connection : 13 5/8” 5kpsi Studded Top
* Top connection size : 13 5/8”
* Bottom connection : 13 5/8” 5kpsi Flange Bottom
* Bottom connection size : 13 5/8”
* Ram type preventer : Cameron Type U
* Size : 13 5/8”
* Working pressure (psi) : 5000psi
* Single or double : Single and Double
* Top connection : 13 5/8” 5kpsi Flange Top
* Top connection size : 13 5/8”
* Bottom connection : 13 5/8” 5kpsi Flange Bottom
* Bottom connection size : 13 5/8”
* Pipe rams size : TBD

4.4 Adapter Spools
13-5/8” phase -
* Type : Double studded connector
* Working pressure (psi) : 5000psi / 1000psi / 5000psi
* Top connection : 5Kpsi Studded/ 5Kpsi Studded / 5Kpsi Flange
* Top connection size : 13-5/8”, 13-5/8”, 13-5/8”
* Bottom connection : 2k Studded / 10k Studded / 2k Flange
* Bottom connection size : 13-5/8”, 13-5/8”, 13-5/8”

11” phase -
* Type :
Double Studded connector
* Working pressure (psi) : 5000psi
* Top connection : 11” 5k Studded
* Top connection size : 11”
* Bottom connection : 11” 3k Studded
* Bottom connection size : 11”

4.5 Choke Valve on BOP
* Make and type : Doyles CIW/FC
* Hydraulic operation : 1 x Manual & 1 x Hydraulic
* Size : 3-1/8”
* Working pressure (psi) : 5000psi

4.6 Kill Valve on BOP
* Type : Doyles CIW/FC - 3-1/8” - 5000psi – 2 x Manual

4.7 Check Valve
* Type : Doyles CIW/FC
* Hydraulic Operation : Yes
* Size : 3-1/8”
* Working Pressure : 5000psi

4.8 BOP Control System
* Type : Station BOP central system (E-series)
* Make : Enertex International
* Working pressure (psi) : 3000psi

4.9 Surface Accumulator Unit
* Location on rig layout : Trailer right side
* Type : Six station accumulator unit with low flow alarm
* Make : Enertex
* Number of bottles : 8
* Total bottles capacity : 120 gal (15gal each)
* Bottles working pressure : 3000psi

4.10 Hydraulic Testing Pump
* Type : Portable Testing Unit /30 bar for liquid service
* Model : Proserv Pressure Testing Unit
* Testing pressure (psi) : 5000psi

4.11 Air Pumps
* Type : Bis-sixty air pump 60:1
* Number : Two (2) Air Pumps
* Working pressure : 5000psi

4.12 Driller’s Control Panel
* Type : G-Series pneumatic
* Make : Enertex

4.13 Remote Control Panel
* Type : Pneumatic Dual Remote Control
* Make : Enertex
* Installation site : Between Rig supt & Company Man Office

4.14 Cup Tester
* Type : Type F
* Make : Packard International Cup
* Size :
Casing 48-61Lb/ft (One unit)
Casing 43,5-53,5Lb/ft (One unit)

4.15 Choke Manifold
* Make : Doyles
* Size : 3-1/8”
* Working pressure : 5000psi
* Number of adjustable chokes : 1 of each
* Manual : 3-1/8” 5k Cameron Model H2, 2” Class PU
* Remote : 3-1/16” 10k Swaco, Super Choke, EE
* Remote control panel : Yes
* Type : G-Series hydraulic
* Kill and choke lines from bop to choke Manifold : Independent Hose 3” 5000psi
* Working pressure / inside diameter : 5000psi

4.16 Chicksan Joints
* Quantity : Ten (10) joints
* Make : Best Swivel
* Size : 2”
* Type : Fig 1502
* Working pressure : 10000psi
* Length of each joint : 10ft

4.17 Choke Line
* Quantity : 1 of each
* Make : Independent Hose
* Type : API Flanges at each end
* Size : 3 1/8
* Total length : 35ft
* Working pressure : 5000psi

4.18 Kill Line
* Quantity : 1 of each
* Make : Independent hose
* Type : API Flanges at each end
* Size : 2”
* Working pressure : 5000psi

5. Drilling Equipment
5.1 5” OD Drill Pipe
Total length : 2200m (7200ft)
Grade : S-135
Range : R2 pipe
Weight : 19,5 lb/ft
Class : Premium
Internally plastic coated : Yes
Tool joint od : 6-5/8”
Tool joint id : 2 ¾
Hardfacing type : Arnco 200 XT
Connection type : 4-1/2” IF

5.2 3 ½” OD Drill Pipe
Total length : 2200m (7200ft)
Grade : S-135
Range : R2 pipe
Weight : 13,3 lb/ft
Class : Premium
Internally plastic coated : Yes
Tool joint od : 4-7/8”
Tool joint id : 2 7/16
Hardfacing type : Arnco 200 XT
Connection type : 3 ½ ” if

5.3 5 ” DP Pup Joints
Length : 4 of 15’, 2 of 10’ & 2 of 5’
Grade : S-135
Weight : 19,5 lb/ft
Class : Premium
Internally plastic coated : Yes
Tool joint od : 6-5/8”
Tool joint id : 2 ¾
Connection type : 4-1/2” IF

5.4 3 ½” DP Pup Joints
Length : 4 of 15’, 2 of 10’ & 5 of 5’
Grade : S-135
Weight : 13,3 lb/ft
Class : Premium
Internally plastic coated : Yes
Tool joint od : 4-7/8”
Tool joint id : 2 9/16
Connection type : 3 ½ ” if

5.5 HW Drill Pipe
Quantity of joints : 30 joints / 30 joints
Class : Premium
Nominal size : 5 “ & 3-1/2”
Weight : 50 lb/ft / 26 lb/ft
Length : Range 2 / Range 2
Tool joint od : 6-5/8” / 4-7/8”
Tool joint id : 2 ½ ” / 2 ¼
Connection type : Ping Box NC50 / Ping Box NC38
Hardfacing type : Yes / Yes

5.6 Drill Collars
Quantity of joints : 8 of each
Hardfacing type : Spiral type Grant Prideco H series
Nominal size : 8”, 6-1/2” & 4-3/4”
Length : 30’ each
Drill collar body id : 2-13/16”, 2-13/16”, 2-1/4”
Connection type : 6-5/8” Reg MxF / NC50 MxF /NC 38 MxF
With recess for “zip” elevator : Yes
With recess for slip : Yes

5.7 Float Valve
Quantity : 2, 2, 2, 4 & 4 of each
Make : Baker
Type : 5F-6R / 4R / 2F-3R
Working pressure : 5000psi
Connection type : 2”IFx3”R, 2”IFx3”R,4”Reg GA,4”Reg IF,
5”IFx6”R, 5”IFx6”R

5.8 Bit Subs, Subs, Etc
Bit Subs : 17-1/2”, 12-1/4”, 8-1/2” & 6”
List Of Subs For Working String -
2 of each Cross Over :
4 ½ IF B X 2 7/8 N VAM P
4 ½ IF B X 2 7/8 EU P
4 ½ IF B X 3 ½ EUE P
4 ½ IF P X 3 ½ IF B
4 ½ IF B X 3 ½ N VAM P
4 ½ IF B X 4 ½ EUE P
4 ½ IF B X 4 ½ N VAM P
3 ½ IF B X 2 7/8 N VAM P
3 ½ IF B X 2 7/8 EUE P
3 ½ IF B X 3 ½ N VAM P
3 ½ IF B X 3 ½ EUE P
3 ½ IF B X 4 ½ N VAM P
3 ½ IF B X 4 ½ EUE P

8 of each Lifting Subs -
6 5/8 REG P X 4 ½ IF B
4 ½ IF P X 4 ½ IF B
3 ½ IF P X 3 ½ IF B

5.9 Bit Breakers
Size : 17-1/2”, 12-1/4”, 8-1/2” and 6”
Number : 1 of each

6 Casing Equipment
6.1 Side Door Casing Elevators
Quantity : 1 & 2 of each
Size : 13-3/8”, 9-5/8”, 7”
Make : Wilson casing
Type : WEB
Capacity : 150 ton each

6.2 Casing Slips To Use In CSG Bowl
Quantity : 2 of each
Make : Varco
Type : CSXL
Capacity : For 13-3/8”, 9-5/8”, 7” & 4-1/2”

6.3 Single Joint CSG Elevator
Quantity : 1 of each
Make : Varco Casing
Type : SJL

6.4 Manual Casing Tongs
Quantity : 1 of each
Make : Varco
Type : HT
Capacity : 55/100
Range sizes : 17” to 4”

6.5 Power Tubing Tong
Quantity : 1
Make : Eckel Hydraulic
Type : w/ torque gauge and spring hanger
With jaws for casing : From 4’’½ to 2’’3/8

7 Fishing Equipment
7.1 Overshots
Quantity : 1 of each
Make : Logan
Type : Series 150 Type FS
Overshot od : 1-3/4”, 9-5/8”, 8-5/8”, 8-1/8”, 5-3/4”

7.2 Junk Subs
Quantity : 1 of each
For hole sizes : 12-1/4”, 8-1/2” & 6”
Connection type : 6-5/8” Reg, 4-1/2” Reg & 3-1/2” Reg

7.3 Junk Basket
Quantity : 1 of each
For hole sizes : 12-1/4”, 8-1/2” & 6”
Connection type : 6-5/8”, 4-1/2” & 3-1/2”

7.4 Taper Taps
Quantity : 1 of each
Type : Logan Wickers
Minimun od : 6-1/8” OD / 4-3/4” OD
Maximun od : (4-3/4 – 3-1/4”) / (2-3/16 – 3-11/16”)
Connections : 4-1/2” IF / 3-1/2” IF

8 Instrumentation
8.1 Weight Indicator
Make : Autelec
Type ; Dead line anchors Hydraulic cylinders

8.2 Mud Pump Pressure Gauges
Make : Autelec
Type : Proximity sensor
Proximity sensor : Working Range Pressure

8.3 Rotary Torque Indicator
Make : Autelec
Type : Pressure Box with TD pressure sensor

8.4 Tongue Torque Assembly
Make : Autelec
Type : Digital

8.5 Drilling Parameter Recorder System
Make : Autelec / Data Management Module
Wob : Yes
Stand pipe pressure : Yes
Rop : Yes
Total stroke counter : Yes
Torque : Yes
Rpm : Yes

8.6 Drift Recorders
Number of sets : 1
Make : Totco
Degree ranges from -to : 8-16°

9 Auxiliaries
Fuel tank capacity : 25m3 (2,4mx6mx2m) / 11m3 (2,4mx6mx1m)
Water pump : Two (2) Flygt BS2660MT / DS2640HT
Air dryer : Ingersoll Rand TS3A
Bug blower : 2 units
Air compressor :
Ingersoll Rand MH 55 – Max pressure
10 bars – Flow rate : 8.5 m3 / mn at 10 bars

10 Safety Equipment
10.1 Firefighting Equipment
Extinguishers : One on each module type ABC & CO2
Fire pump : fire pumps – 1 for rig / 1 for camp (type TBA)
Ppe : As required

11. Cabins
Warehouses : Mechanic,Electric, Drilling, HSE + Rubber store
Workshop : Mechanic
Offices :
1 x Drilling supt/Geologist
1 x Rig supt/Radio operator
1 x mechanic/Electrician/Other
1 x HSE/Clinic
1 x Meeting room/Prayer room
1 x Services company room / Toilet unit

12. Drawings
General layout
Bop stack : Annular 13’’ 5/8 & Double rams 11’’


WorldRigs has SEDLAR 160 - Self Elevating Drilling Land Rig for Sale
  Images

Self Elevating Drilling Rig 2007 Built for Sale

Hydraulic rig - for sale in Europe

Self Elevating Drilling Rig

Trailer Mounted Rig 160m. ton - for Sale

1000 hp Hydraulic Drilling Rig

2007 Built SEDLAR 160 Land Drilling Rig

160 T Hook Load Drilling Rig for Sale

Self Elevating Drilling Rig - for Sale

2007 Built SEDLAR 160 Land Rig

1000 hp Hydraulic Drilling Rig for Sale

Trailer Mounted Rig 160m. ton for Sale

Self Elevating Drilling Rig for Sale


SEDLAR 160 Drilling Rig for Sale
Hydraulic rig for sale in Europe
1000 hp Self Elevating Drilling Rig for Sale



Mail WorldRigs
   Mail WorldRigs regarding any general/sale enquiries or feedback.
   You are enquiring about :   SEDLAR 160 - Self Elevating Drilling Land Rig for Sale, ID
Your name :
Your company :
Your email :
Your contact number :
Your message :

 Please enter the security code


...............................................................................
Cannot find the rig you want? Email us on
Do you need a rig on lease? Email us on

SEDLAR 160 - Self Elevating Drilling Land Rig for Sale


Name    :    SEDLAR 160 - Self Elevating Drilling Land Rig for Sale
ID    :
Year manufactured   :    2007
Price   :    US$ 4,800,000
Specifications   :

SEDLAR 160 Drilling Rig for Sale
Hydraulic rig for sale in Europe
1000 hp Self Elevating Drilling Rig for Sale



Description

Rig General Description
I. Rig
Unit name : SEDLAR 160 (Self Elevating Drilling Land Rig 160m.T)
Rig type : Trailer mounted rig
Current location : Spain
Year of construction : 2007
Date of last full inspection : December 2009
Fuel oil consumption, work over per day : 2000 liters per day
Number of joints per trip stands : Super single

II. Storage Facilities
Fuel storage : For seven days of full operations
Water capacity : 40m3
Mud System -
Active : 75 m3
Reserve : 74 m3
Pill tank : 25 m3
Trip tank : 4.7 m3

III. Operating Depth
Max drilling depth with dual string : 5’’ & 3-1/2” drill pipe and 25klb BHA
3000m (10,000ft) : (figure depends on diameter & well configuration)

1. Derrick Set
1.1 Mast
Make : Joseph Paris - France
Height : 69ft (29m)
Nominal hook capacity : 265 000lb at 63ft / 120m tonnes at 19.2m
Casing hook capacity : 353 000lb at 52,5ft / 160m tonnes at 16m
Pipe handling system : Semi – Automated system

1.2 Substructure
Type : Self-elevating trailer
Width x length : Width 26ft (8m) x Length 79ft (24m)
Height & clearance for BOP stack : 16,4ft (5,0m)
Capacity set back (lb) : 490 000lb (220mt)
Static (lb) : Nominal 265 000lb

1.3 Crown Block
Capacity (t) : 160mt
Number of sheaves : 4 sheaves
Sheaves diameter : Cable diameter of 32mm
Groove sheaves for line size : Groove diameter 819mm and 130mm shaft

1.4 Hydraulic Jacks
Dimension : 2 Hydraulics jack of 250mm bore / 9,7m stroke
Load capacity @ max pressure : @320 bars: 160mt capacity at 52,5ft (353 000lbs)
Load capacity @ max pressure : @ 250 bars: 120mt capacity at 63,6ft (265 000lbs)
Fast tripping speed : 0,6 m/s with a hook load below 75mt
Minimal tripping speed : 0,3 m/s with max hook load of 160mt

Breaking system : Hydraulic controlled and fail safe on
Number of drive motors : 2 Hydraulic power pack for full redundancy
Description : 2 x Hydraulic - Each with 475 hp
Total continuous : 950 hp
Equipped with :
2 oil pressure alarms, ton mille monitor, hook load, weight on bit, RPM, torque, stand
pipe pressure, line pull indicator, trip tank, SPM.

2. Rig Floor Equipment
2.1 Top Drive
Type : Foremost Industries
Model : TDS F150t
Stem speed (max continuous) : Max 134 rpm continuous speed
Torque (continuous) : 25 000ft.lb at 103 rpm
Torque (intermittent) : 25 000ft.lb @ max speed
Cooling system : Hydraulic system cooled by air

2.2 Master Bushing
Maximum opening (in) : 37-1/2”
Type : Varco Split / rotating bushing
Model : Varco

2.3 Iron Roughneck
Make : National Oilwell Varco
Model : ST-80
Sizes : 4’’1/4 to 8’’1/2
Make up torque : 60 000ft.Lb
Brake out torque : 80 000ft.Lb

2.4 Drill Pipe Elevators
For OD of drill pipe : 5”
Quantity : 2
Make : Varco MGG
Type : Center latch elevator
Capacity :  250 ton
For OD of drill pipe : 3-1/2”
Quantity : 2 of each
Make : Varco MGG
Type : Center latch elevator
Capacity : 250 ton

2.5 Drill Pipe Slips (Manual)
For OD of drill pipe : 5”
Quantity : 2
Make : Varco
Type : SDXL
For OD of drill pipe offered : 3-1/2”
Quantity : 2
Make : Varco
Type : SDML

2.6 Drill Pipe Slips (Powered)
* For OD of drill pipe offered : 5” and 3 ½”
* Quantity : 1
* Make : Dencon Type SL-1

2.7 Drill Collars Slips
* Quantity : 2
* Make : Varco
* For OD drill collar offered : 8” / 6-1/2”/ 4-3/4”
* Type : DCS-L

2.8 Safety Clamps
* Quantity : 1 of each
* Make : Varco
* Type : MP-R
* Range sizes : 8”, 6-1/2”, 4-3/4” & From 4-1/8” to 2-1/4”

2.9 Drill Pipe And Drill Collar Tongs
* Number of sets : 1 of each
* Make : Varco
* Type : HT 35/ HT55/HT100
* Range sizes : 2-3/8” – 17-1/2”

2.10 Elevator Links
* Number of sets : 1 sets
* Make : Varco
* Type : 250 ton
* Size : 2-3/4”

2.11 Drill Pipe Circulation Heads
* Quantity : 1 of each for 5” & 3-1/2” DP
* Make : WECO 1502
* Type : No swivel type
* Bottom connection : 4 1⁄2 IF & 3 1⁄2 IF
* Top connection : 2” FIG 1502

2.12 Inside BOP
* Quantity : 1 of each 5 “ & 3-1/2”
* Make : Hydrill
* Type : Non return valve
* Working pressure : 10 000psi / 10 000psi
* Connection type : NC 50 & NC38 box x pin
* Nominal od : 6-3/8 / 4-7/8”

3. Mud Circulating System
3.1 Mud Pumps
* Number of pumps : 2 units
* Type : EMSCO Type RS-F1000 slush pump
* Max input power : 1000hp
* Max outlet pressure : 5000psi
* Type of drive : 1 x DETROIT diesel 12V2000 G81
* Continuous rating of drive : 1120bhp at 1800 RPM
* Pump liners : 6’’1/2, 6”, 5” and 4’’1/2

* Rated flow rates for each liner size :
6’’1/2: 2400l/min at 176bar max at 140spm
6”: 1944l/min at 207bar max at 140spm
5”: 1350l/min at 298bar max at 140spm
4-1/2”: 1092l/min at 345bar max at 140spm

* Pulsation dampener : 20gal/5000psi
* Reset relief valve : RRV Retsco
* Pump stroke counter : Electric (Autelec) @ DCR
* Charging pump : Halco 5”x4”x14”

3.2 Mud Pump Suction Lines
* Size of lines : 8”
* Working pressure : LP

3.3 Mud Pump Discharge Lines
* Size of lines : 4”
* Working pressure : 5000psi
* number of lines : 2 (One each)

3.4 Stand Pipe
* Number of stand pipe : 1
* Stand pipe size : 4” ID 3”
* Working pressure (psi) : 5000psi
* Goose neck working pressure : 5000psi
* manifold working pressure : 5000psi

3.5 Rotary Hoses
* Size rotary hoses : 4” API Type D
* Rotary houses size (id) : 3”
* Working pressure (psi) : 5000psi

3.6 Mud Tanks
* Tank no 1 volume : 25m3 (Active)
* Tank no 2 volume : 50m3 (Active)
* Tank no 3 volume : 37m3 (Reserve)
* Tank no 4 volume : 37m3 (Reserve)
* Tank no 5 volume : 4,7m3 (Trip Tank)
* Tank no 6 volume : 25m3 (Pill Tank) With Big bags jib

3.7 Mud Mixing System
* Number of mud mixing pumps : 2
* Type : Centrifugal (6 x 8”)
* Power : Electrical AC explosion proof min. 75 hp motor

3.8 Electrical Mud Mixers
* Quantity : Respectively 3, 2 & 1 (total 6)
* Power motor : 3 x 11Kw, 2 x 0,55Kw & 1 x 1Kw
* Installed place : Active, Reserve & Pill tank

3.9 Bottom Guns
Quantity :
Active (4), Reserve (4) & Pill (2) tank
Low pressure bottom guns (total 10)

3.10 Flow Line Shaker
* Number : 3 units
* Type : SWACO, Mongoose PT Dual-Motion Shaker
* Number of decks : 3
* Screens size available : 230XL, 200XL, 105XL, 165XL, 84XL, 50XL
* Capacity of process not less : 1800gpm (600gpm each)

3.11 Degasser
* Type : SWACO Centrifugal Degasser CD-1400
* Driven by : Centrifugal pump 3”x2”x13”

3.12 Mud Gas Separator
* Type : 3C Metal / Poor Boy Type

3.13 JIB For Big Bags
Type :
Type PRT 2 tonnes from HADEF
 Air Operated

4. BOP Well Control Equipment
4.1 Nominal 13 5-8’’ Diverter Stack
* Bag type preventer : Spherical
* Size : 13’’5/8
* Type & brand : Shaffer MGE
* Working pressure (psi) : 5000psi
* Top connection : 13’’5/8 -5kpsi Studded Top
* Bottom connection : 13”5/8 -5kpsi Flange
* Diverter valve : Speciality 8” and 1480psi

4.2 Nominal 11’’ Bop Stack

* Bag type preventer : Yes
* Size : 11"
* Type & brand : Hydrill GK Annular
* Working pressure (psi) : 5000psi
* Top connection : 11” 5kpsi Studded Top
* Top connection size : 11”
* Bottom connection : 11” 5kpsi Flange Bottom
* Bottom connection size : 11”
* Ram type preventer : Cameron Type U
* Size : 11”
* Working pressure (psi) : 5000psi
* Single or double : Double
* Top connection : 11” 5kpsi Flange Top
* Top connection size : 11”
* Bottom connection : 11” 5kpsi Flange Bottom
* Bottom connection size : 11”
* Pipe rams size : 7”, 5”, 4-1/2”, 3-1/2”, 2-3/8” and Variable Bore (2- 7/8 to 5”)

4.3 Nominal 13 5/8” BOP Stack
* Bag type preventer : Yes
* Size : 13 5/8”
* type & brand : Shaffer Annular
* Working pressure (psi) : 5000psi
* Top connection : 13 5/8” 5kpsi Studded Top
* Top connection size : 13 5/8”
* Bottom connection : 13 5/8” 5kpsi Flange Bottom
* Bottom connection size : 13 5/8”
* Ram type preventer : Cameron Type U
* Size : 13 5/8”
* Working pressure (psi) : 5000psi
* Single or double : Single and Double
* Top connection : 13 5/8” 5kpsi Flange Top
* Top connection size : 13 5/8”
* Bottom connection : 13 5/8” 5kpsi Flange Bottom
* Bottom connection size : 13 5/8”
* Pipe rams size : TBD

4.4 Adapter Spools
13-5/8” phase -
* Type : Double studded connector
* Working pressure (psi) : 5000psi / 1000psi / 5000psi
* Top connection : 5Kpsi Studded/ 5Kpsi Studded / 5Kpsi Flange
* Top connection size : 13-5/8”, 13-5/8”, 13-5/8”
* Bottom connection : 2k Studded / 10k Studded / 2k Flange
* Bottom connection size : 13-5/8”, 13-5/8”, 13-5/8”

11” phase -
* Type :
Double Studded connector
* Working pressure (psi) : 5000psi
* Top connection : 11” 5k Studded
* Top connection size : 11”
* Bottom connection : 11” 3k Studded
* Bottom connection size : 11”

4.5 Choke Valve on BOP
* Make and type : Doyles CIW/FC
* Hydraulic operation : 1 x Manual & 1 x Hydraulic
* Size : 3-1/8”
* Working pressure (psi) : 5000psi

4.6 Kill Valve on BOP
* Type : Doyles CIW/FC - 3-1/8” - 5000psi – 2 x Manual

4.7 Check Valve
* Type : Doyles CIW/FC
* Hydraulic Operation : Yes
* Size : 3-1/8”
* Working Pressure : 5000psi

4.8 BOP Control System
* Type : Station BOP central system (E-series)
* Make : Enertex International
* Working pressure (psi) : 3000psi

4.9 Surface Accumulator Unit
* Location on rig layout : Trailer right side
* Type : Six station accumulator unit with low flow alarm
* Make : Enertex
* Number of bottles : 8
* Total bottles capacity : 120 gal (15gal each)
* Bottles working pressure : 3000psi

4.10 Hydraulic Testing Pump
* Type : Portable Testing Unit /30 bar for liquid service
* Model : Proserv Pressure Testing Unit
* Testing pressure (psi) : 5000psi

4.11 Air Pumps
* Type : Bis-sixty air pump 60:1
* Number : Two (2) Air Pumps
* Working pressure : 5000psi

4.12 Driller’s Control Panel
* Type : G-Series pneumatic
* Make : Enertex

4.13 Remote Control Panel
* Type : Pneumatic Dual Remote Control
* Make : Enertex
* Installation site : Between Rig supt & Company Man Office

4.14 Cup Tester
* Type : Type F
* Make : Packard International Cup
* Size :
Casing 48-61Lb/ft (One unit)
Casing 43,5-53,5Lb/ft (One unit)

4.15 Choke Manifold
* Make : Doyles
* Size : 3-1/8”
* Working pressure : 5000psi
* Number of adjustable chokes : 1 of each
* Manual : 3-1/8” 5k Cameron Model H2, 2” Class PU
* Remote : 3-1/16” 10k Swaco, Super Choke, EE
* Remote control panel : Yes
* Type : G-Series hydraulic
* Kill and choke lines from bop to choke Manifold : Independent Hose 3” 5000psi
* Working pressure / inside diameter : 5000psi

4.16 Chicksan Joints
* Quantity : Ten (10) joints
* Make : Best Swivel
* Size : 2”
* Type : Fig 1502
* Working pressure : 10000psi
* Length of each joint : 10ft

4.17 Choke Line
* Quantity : 1 of each
* Make : Independent Hose
* Type : API Flanges at each end
* Size : 3 1/8
* Total length : 35ft
* Working pressure : 5000psi

4.18 Kill Line
* Quantity : 1 of each
* Make : Independent hose
* Type : API Flanges at each end
* Size : 2”
* Working pressure : 5000psi

5. Drilling Equipment
5.1 5” OD Drill Pipe
Total length : 2200m (7200ft)
Grade : S-135
Range : R2 pipe
Weight : 19,5 lb/ft
Class : Premium
Internally plastic coated : Yes
Tool joint od : 6-5/8”
Tool joint id : 2 ¾
Hardfacing type : Arnco 200 XT
Connection type : 4-1/2” IF

5.2 3 ½” OD Drill Pipe
Total length : 2200m (7200ft)
Grade : S-135
Range : R2 pipe
Weight : 13,3 lb/ft
Class : Premium
Internally plastic coated : Yes
Tool joint od : 4-7/8”
Tool joint id : 2 7/16
Hardfacing type : Arnco 200 XT
Connection type : 3 ½ ” if

5.3 5 ” DP Pup Joints
Length : 4 of 15’, 2 of 10’ & 2 of 5’
Grade : S-135
Weight : 19,5 lb/ft
Class : Premium
Internally plastic coated : Yes
Tool joint od : 6-5/8”
Tool joint id : 2 ¾
Connection type : 4-1/2” IF

5.4 3 ½” DP Pup Joints
Length : 4 of 15’, 2 of 10’ & 5 of 5’
Grade : S-135
Weight : 13,3 lb/ft
Class : Premium
Internally plastic coated : Yes
Tool joint od : 4-7/8”
Tool joint id : 2 9/16
Connection type : 3 ½ ” if

5.5 HW Drill Pipe
Quantity of joints : 30 joints / 30 joints
Class : Premium
Nominal size : 5 “ & 3-1/2”
Weight : 50 lb/ft / 26 lb/ft
Length : Range 2 / Range 2
Tool joint od : 6-5/8” / 4-7/8”
Tool joint id : 2 ½ ” / 2 ¼
Connection type : Ping Box NC50 / Ping Box NC38
Hardfacing type : Yes / Yes

5.6 Drill Collars
Quantity of joints : 8 of each
Hardfacing type : Spiral type Grant Prideco H series
Nominal size : 8”, 6-1/2” & 4-3/4”
Length : 30’ each
Drill collar body id : 2-13/16”, 2-13/16”, 2-1/4”
Connection type : 6-5/8” Reg MxF / NC50 MxF /NC 38 MxF
With recess for “zip” elevator : Yes
With recess for slip : Yes

5.7 Float Valve
Quantity : 2, 2, 2, 4 & 4 of each
Make : Baker
Type : 5F-6R / 4R / 2F-3R
Working pressure : 5000psi
Connection type : 2”IFx3”R, 2”IFx3”R,4”Reg GA,4”Reg IF,
5”IFx6”R, 5”IFx6”R

5.8 Bit Subs, Subs, Etc
Bit Subs : 17-1/2”, 12-1/4”, 8-1/2” & 6”
List Of Subs For Working String -
2 of each Cross Over :
4 ½ IF B X 2 7/8 N VAM P
4 ½ IF B X 2 7/8 EU P
4 ½ IF B X 3 ½ EUE P
4 ½ IF P X 3 ½ IF B
4 ½ IF B X 3 ½ N VAM P
4 ½ IF B X 4 ½ EUE P
4 ½ IF B X 4 ½ N VAM P
3 ½ IF B X 2 7/8 N VAM P
3 ½ IF B X 2 7/8 EUE P
3 ½ IF B X 3 ½ N VAM P
3 ½ IF B X 3 ½ EUE P
3 ½ IF B X 4 ½ N VAM P
3 ½ IF B X 4 ½ EUE P

8 of each Lifting Subs -
6 5/8 REG P X 4 ½ IF B
4 ½ IF P X 4 ½ IF B
3 ½ IF P X 3 ½ IF B

5.9 Bit Breakers
Size : 17-1/2”, 12-1/4”, 8-1/2” and 6”
Number : 1 of each

6 Casing Equipment
6.1 Side Door Casing Elevators
Quantity : 1 & 2 of each
Size : 13-3/8”, 9-5/8”, 7”
Make : Wilson casing
Type : WEB
Capacity : 150 ton each

6.2 Casing Slips To Use In CSG Bowl
Quantity : 2 of each
Make : Varco
Type : CSXL
Capacity : For 13-3/8”, 9-5/8”, 7” & 4-1/2”

6.3 Single Joint CSG Elevator
Quantity : 1 of each
Make : Varco Casing
Type : SJL

6.4 Manual Casing Tongs
Quantity : 1 of each
Make : Varco
Type : HT
Capacity : 55/100
Range sizes : 17” to 4”

6.5 Power Tubing Tong
Quantity : 1
Make : Eckel Hydraulic
Type : w/ torque gauge and spring hanger
With jaws for casing : From 4’’½ to 2’’3/8

7 Fishing Equipment
7.1 Overshots
Quantity : 1 of each
Make : Logan
Type : Series 150 Type FS
Overshot od : 1-3/4”, 9-5/8”, 8-5/8”, 8-1/8”, 5-3/4”

7.2 Junk Subs
Quantity : 1 of each
For hole sizes : 12-1/4”, 8-1/2” & 6”
Connection type : 6-5/8” Reg, 4-1/2” Reg & 3-1/2” Reg

7.3 Junk Basket
Quantity : 1 of each
For hole sizes : 12-1/4”, 8-1/2” & 6”
Connection type : 6-5/8”, 4-1/2” & 3-1/2”

7.4 Taper Taps
Quantity : 1 of each
Type : Logan Wickers
Minimun od : 6-1/8” OD / 4-3/4” OD
Maximun od : (4-3/4 – 3-1/4”) / (2-3/16 – 3-11/16”)
Connections : 4-1/2” IF / 3-1/2” IF

8 Instrumentation
8.1 Weight Indicator
Make : Autelec
Type ; Dead line anchors Hydraulic cylinders

8.2 Mud Pump Pressure Gauges
Make : Autelec
Type : Proximity sensor
Proximity sensor : Working Range Pressure

8.3 Rotary Torque Indicator
Make : Autelec
Type : Pressure Box with TD pressure sensor

8.4 Tongue Torque Assembly
Make : Autelec
Type : Digital

8.5 Drilling Parameter Recorder System
Make : Autelec / Data Management Module
Wob : Yes
Stand pipe pressure : Yes
Rop : Yes
Total stroke counter : Yes
Torque : Yes
Rpm : Yes

8.6 Drift Recorders
Number of sets : 1
Make : Totco
Degree ranges from -to : 8-16°

9 Auxiliaries
Fuel tank capacity : 25m3 (2,4mx6mx2m) / 11m3 (2,4mx6mx1m)
Water pump : Two (2) Flygt BS2660MT / DS2640HT
Air dryer : Ingersoll Rand TS3A
Bug blower : 2 units
Air compressor :
Ingersoll Rand MH 55 – Max pressure
10 bars – Flow rate : 8.5 m3 / mn at 10 bars

10 Safety Equipment
10.1 Firefighting Equipment
Extinguishers : One on each module type ABC & CO2
Fire pump : fire pumps – 1 for rig / 1 for camp (type TBA)
Ppe : As required

11. Cabins
Warehouses : Mechanic,Electric, Drilling, HSE + Rubber store
Workshop : Mechanic
Offices :
1 x Drilling supt/Geologist
1 x Rig supt/Radio operator
1 x mechanic/Electrician/Other
1 x HSE/Clinic
1 x Meeting room/Prayer room
1 x Services company room / Toilet unit

12. Drawings
General layout
Bop stack : Annular 13’’ 5/8 & Double rams 11’’


WorldRigs has SEDLAR 160 - Self Elevating Drilling Land Rig for Sale
  Images

Self Elevating Drilling Rig 2007 Built for Sale

Hydraulic rig - for sale in Europe

Self Elevating Drilling Rig

Trailer Mounted Rig 160m. ton - for Sale

1000 hp Hydraulic Drilling Rig

2007 Built SEDLAR 160 Land Drilling Rig

160 T Hook Load Drilling Rig for Sale

Self Elevating Drilling Rig - for Sale

2007 Built SEDLAR 160 Land Rig

1000 hp Hydraulic Drilling Rig for Sale

Trailer Mounted Rig 160m. ton for Sale

Self Elevating Drilling Rig for Sale


SEDLAR 160 Drilling Rig for Sale
Hydraulic rig for sale in Europe
1000 hp Self Elevating Drilling Rig for Sale



If you are interested in the featured equipment,
please contact us on email
 or call +65 97768837.
Cannot find the rig you want? Email us on

SEDLAR 160 - Self Elevating Drilling Land Rig for Sale


Name    :    SEDLAR 160 - Self Elevating Drilling Land Rig for Sale
ID    :
Year manufactured   :    2007
Price   :    US$ 4,800,000
Specifications   :

SEDLAR 160 Drilling Rig for Sale
Hydraulic rig for sale in Europe
1000 hp Self Elevating Drilling Rig for Sale

Description

Rig General Description
I. Rig
Unit name : SEDLAR 160 (Self Elevating Drilling Land Rig 160m.T)
Rig type : Trailer mounted rig
Current location : Spain
Year of construction : 2007
Date of last full inspection : December 2009
Fuel oil consumption, work over per day : 2000 liters per day
Number of joints per trip stands : Super single

II. Storage Facilities
Fuel storage : For seven days of full operations
Water capacity : 40m3
Mud System -
Active : 75 m3
Reserve : 74 m3
Pill tank : 25 m3
Trip tank : 4.7 m3

III. Operating Depth
Max drilling depth with dual string : 5’’ & 3-1/2” drill pipe and 25klb BHA
3000m (10,000ft) : (figure depends on diameter & well configuration)

1. Derrick Set
1.1 Mast
Make : Joseph Paris - France
Height : 69ft (29m)
Nominal hook capacity : 265 000lb at 63ft / 120m tonnes at 19.2m
Casing hook capacity : 353 000lb at 52,5ft / 160m tonnes at 16m
Pipe handling system : Semi – Automated system

1.2 Substructure
Type : Self-elevating trailer
Width x length : Width 26ft (8m) x Length 79ft (24m)
Height & clearance for BOP stack : 16,4ft (5,0m)
Capacity set back (lb) : 490 000lb (220mt)
Static (lb) : Nominal 265 000lb

1.3 Crown Block
Capacity (t) : 160mt
Number of sheaves : 4 sheaves
Sheaves diameter : Cable diameter of 32mm
Groove sheaves for line size : Groove diameter 819mm and 130mm shaft

1.4 Hydraulic Jacks
Dimension : 2 Hydraulics jack of 250mm bore / 9,7m stroke
Load capacity @ max pressure : @320 bars: 160mt capacity at 52,5ft (353 000lbs)
Load capacity @ max pressure : @ 250 bars: 120mt capacity at 63,6ft (265 000lbs)
Fast tripping speed : 0,6 m/s with a hook load below 75mt
Minimal tripping speed : 0,3 m/s with max hook load of 160mt

Breaking system : Hydraulic controlled and fail safe on
Number of drive motors : 2 Hydraulic power pack for full redundancy
Description : 2 x Hydraulic - Each with 475 hp
Total continuous : 950 hp
Equipped with :
2 oil pressure alarms, ton mille monitor, hook load, weight on bit, RPM, torque, stand
pipe pressure, line pull indicator, trip tank, SPM.

2. Rig Floor Equipment
2.1 Top Drive
Type : Foremost Industries
Model : TDS F150t
Stem speed (max continuous) : Max 134 rpm continuous speed
Torque (continuous) : 25 000ft.lb at 103 rpm
Torque (intermittent) : 25 000ft.lb @ max speed
Cooling system : Hydraulic system cooled by air

2.2 Master Bushing
Maximum opening (in) : 37-1/2”
Type : Varco Split / rotating bushing
Model : Varco

2.3 Iron Roughneck
Make : National Oilwell Varco
Model : ST-80
Sizes : 4’’1/4 to 8’’1/2
Make up torque : 60 000ft.Lb
Brake out torque : 80 000ft.Lb

2.4 Drill Pipe Elevators
For OD of drill pipe : 5”
Quantity : 2
Make : Varco MGG
Type : Center latch elevator
Capacity :  250 ton
For OD of drill pipe : 3-1/2”
Quantity : 2 of each
Make : Varco MGG
Type : Center latch elevator
Capacity : 250 ton

2.5 Drill Pipe Slips (Manual)
For OD of drill pipe : 5”
Quantity : 2
Make : Varco
Type : SDXL
For OD of drill pipe offered : 3-1/2”
Quantity : 2
Make : Varco
Type : SDML

2.6 Drill Pipe Slips (Powered)
* For OD of drill pipe offered : 5” and 3 ½”
* Quantity : 1
* Make : Dencon Type SL-1

2.7 Drill Collars Slips
* Quantity : 2
* Make : Varco
* For OD drill collar offered : 8” / 6-1/2”/ 4-3/4”
* Type : DCS-L

2.8 Safety Clamps
* Quantity : 1 of each
* Make : Varco
* Type : MP-R
* Range sizes : 8”, 6-1/2”, 4-3/4” & From 4-1/8” to 2-1/4”

2.9 Drill Pipe And Drill Collar Tongs
* Number of sets : 1 of each
* Make : Varco
* Type : HT 35/ HT55/HT100
* Range sizes : 2-3/8” – 17-1/2”

2.10 Elevator Links
* Number of sets : 1 sets
* Make : Varco
* Type : 250 ton
* Size : 2-3/4”

2.11 Drill Pipe Circulation Heads
* Quantity : 1 of each for 5” & 3-1/2” DP
* Make : WECO 1502
* Type : No swivel type
* Bottom connection : 4 1⁄2 IF & 3 1⁄2 IF
* Top connection : 2” FIG 1502

2.12 Inside BOP
* Quantity : 1 of each 5 “ & 3-1/2”
* Make : Hydrill
* Type : Non return valve
* Working pressure : 10 000psi / 10 000psi
* Connection type : NC 50 & NC38 box x pin
* Nominal od : 6-3/8 / 4-7/8”

3. Mud Circulating System
3.1 Mud Pumps
* Number of pumps : 2 units
* Type : EMSCO Type RS-F1000 slush pump
* Max input power : 1000hp
* Max outlet pressure : 5000psi
* Type of drive : 1 x DETROIT diesel 12V2000 G81
* Continuous rating of drive : 1120bhp at 1800 RPM
* Pump liners : 6’’1/2, 6”, 5” and 4’’1/2

* Rated flow rates for each liner size :
6’’1/2: 2400l/min at 176bar max at 140spm
6”: 1944l/min at 207bar max at 140spm
5”: 1350l/min at 298bar max at 140spm
4-1/2”: 1092l/min at 345bar max at 140spm

* Pulsation dampener : 20gal/5000psi
* Reset relief valve : RRV Retsco
* Pump stroke counter : Electric (Autelec) @ DCR
* Charging pump : Halco 5”x4”x14”

3.2 Mud Pump Suction Lines
* Size of lines : 8”
* Working pressure : LP

3.3 Mud Pump Discharge Lines
* Size of lines : 4”
* Working pressure : 5000psi
* number of lines : 2 (One each)

3.4 Stand Pipe
* Number of stand pipe : 1
* Stand pipe size : 4” ID 3”
* Working pressure (psi) : 5000psi
* Goose neck working pressure : 5000psi
* manifold working pressure : 5000psi

3.5 Rotary Hoses
* Size rotary hoses : 4” API Type D
* Rotary houses size (id) : 3”
* Working pressure (psi) : 5000psi

3.6 Mud Tanks
* Tank no 1 volume : 25m3 (Active)
* Tank no 2 volume : 50m3 (Active)
* Tank no 3 volume : 37m3 (Reserve)
* Tank no 4 volume : 37m3 (Reserve)
* Tank no 5 volume : 4,7m3 (Trip Tank)
* Tank no 6 volume : 25m3 (Pill Tank) With Big bags jib

3.7 Mud Mixing System
* Number of mud mixing pumps : 2
* Type : Centrifugal (6 x 8”)
* Power : Electrical AC explosion proof min. 75 hp motor

3.8 Electrical Mud Mixers
* Quantity : Respectively 3, 2 & 1 (total 6)
* Power motor : 3 x 11Kw, 2 x 0,55Kw & 1 x 1Kw
* Installed place : Active, Reserve & Pill tank

3.9 Bottom Guns
Quantity :
Active (4), Reserve (4) & Pill (2) tank
Low pressure bottom guns (total 10)

3.10 Flow Line Shaker
* Number : 3 units
* Type : SWACO, Mongoose PT Dual-Motion Shaker
* Number of decks : 3
* Screens size available : 230XL, 200XL, 105XL, 165XL, 84XL, 50XL
* Capacity of process not less : 1800gpm (600gpm each)

3.11 Degasser
* Type : SWACO Centrifugal Degasser CD-1400
* Driven by : Centrifugal pump 3”x2”x13”

3.12 Mud Gas Separator
* Type : 3C Metal / Poor Boy Type

3.13 JIB For Big Bags
Type :
Type PRT 2 tonnes from HADEF
 Air Operated

4. BOP Well Control Equipment
4.1 Nominal 13 5-8’’ Diverter Stack
* Bag type preventer : Spherical
* Size : 13’’5/8
* Type & brand : Shaffer MGE
* Working pressure (psi) : 5000psi
* Top connection : 13’’5/8 -5kpsi Studded Top
* Bottom connection : 13”5/8 -5kpsi Flange
* Diverter valve : Speciality 8” and 1480psi

4.2 Nominal 11’’ Bop Stack

* Bag type preventer : Yes
* Size : 11"
* Type & brand : Hydrill GK Annular
* Working pressure (psi) : 5000psi
* Top connection : 11” 5kpsi Studded Top
* Top connection size : 11”
* Bottom connection : 11” 5kpsi Flange Bottom
* Bottom connection size : 11”
* Ram type preventer : Cameron Type U
* Size : 11”
* Working pressure (psi) : 5000psi
* Single or double : Double
* Top connection : 11” 5kpsi Flange Top
* Top connection size : 11”
* Bottom connection : 11” 5kpsi Flange Bottom
* Bottom connection size : 11”
* Pipe rams size : 7”, 5”, 4-1/2”, 3-1/2”, 2-3/8” and Variable Bore (2- 7/8 to 5”)

4.3 Nominal 13 5/8” BOP Stack
* Bag type preventer : Yes
* Size : 13 5/8”
* type & brand : Shaffer Annular
* Working pressure (psi) : 5000psi
* Top connection : 13 5/8” 5kpsi Studded Top
* Top connection size : 13 5/8”
* Bottom connection : 13 5/8” 5kpsi Flange Bottom
* Bottom connection size : 13 5/8”
* Ram type preventer : Cameron Type U
* Size : 13 5/8”
* Working pressure (psi) : 5000psi
* Single or double : Single and Double
* Top connection : 13 5/8” 5kpsi Flange Top
* Top connection size : 13 5/8”
* Bottom connection : 13 5/8” 5kpsi Flange Bottom
* Bottom connection size : 13 5/8”
* Pipe rams size : TBD

4.4 Adapter Spools
13-5/8” phase -
* Type : Double studded connector
* Working pressure (psi) : 5000psi / 1000psi / 5000psi
* Top connection : 5Kpsi Studded/ 5Kpsi Studded / 5Kpsi Flange
* Top connection size : 13-5/8”, 13-5/8”, 13-5/8”
* Bottom connection : 2k Studded / 10k Studded / 2k Flange
* Bottom connection size : 13-5/8”, 13-5/8”, 13-5/8”

11” phase -
* Type :
Double Studded connector
* Working pressure (psi) : 5000psi
* Top connection : 11” 5k Studded
* Top connection size : 11”
* Bottom connection : 11” 3k Studded
* Bottom connection size : 11”

4.5 Choke Valve on BOP
* Make and type : Doyles CIW/FC
* Hydraulic operation : 1 x Manual & 1 x Hydraulic
* Size : 3-1/8”
* Working pressure (psi) : 5000psi

4.6 Kill Valve on BOP
* Type : Doyles CIW/FC - 3-1/8” - 5000psi – 2 x Manual

4.7 Check Valve
* Type : Doyles CIW/FC
* Hydraulic Operation : Yes
* Size : 3-1/8”
* Working Pressure : 5000psi

4.8 BOP Control System
* Type : Station BOP central system (E-series)
* Make : Enertex International
* Working pressure (psi) : 3000psi

4.9 Surface Accumulator Unit
* Location on rig layout : Trailer right side
* Type : Six station accumulator unit with low flow alarm
* Make : Enertex
* Number of bottles : 8
* Total bottles capacity : 120 gal (15gal each)
* Bottles working pressure : 3000psi

4.10 Hydraulic Testing Pump
* Type : Portable Testing Unit /30 bar for liquid service
* Model : Proserv Pressure Testing Unit
* Testing pressure (psi) : 5000psi

4.11 Air Pumps
* Type : Bis-sixty air pump 60:1
* Number : Two (2) Air Pumps
* Working pressure : 5000psi

4.12 Driller’s Control Panel
* Type : G-Series pneumatic
* Make : Enertex

4.13 Remote Control Panel
* Type : Pneumatic Dual Remote Control
* Make : Enertex
* Installation site : Between Rig supt & Company Man Office

4.14 Cup Tester
* Type : Type F
* Make : Packard International Cup
* Size :
Casing 48-61Lb/ft (One unit)
Casing 43,5-53,5Lb/ft (One unit)

4.15 Choke Manifold
* Make : Doyles
* Size : 3-1/8”
* Working pressure : 5000psi
* Number of adjustable chokes : 1 of each
* Manual : 3-1/8” 5k Cameron Model H2, 2” Class PU
* Remote : 3-1/16” 10k Swaco, Super Choke, EE
* Remote control panel : Yes
* Type : G-Series hydraulic
* Kill and choke lines from bop to choke Manifold : Independent Hose 3” 5000psi
* Working pressure / inside diameter : 5000psi

4.16 Chicksan Joints
* Quantity : Ten (10) joints
* Make : Best Swivel
* Size : 2”
* Type : Fig 1502
* Working pressure : 10000psi
* Length of each joint : 10ft

4.17 Choke Line
* Quantity : 1 of each
* Make : Independent Hose
* Type : API Flanges at each end
* Size : 3 1/8
* Total length : 35ft
* Working pressure : 5000psi

4.18 Kill Line
* Quantity : 1 of each
* Make : Independent hose
* Type : API Flanges at each end
* Size : 2”
* Working pressure : 5000psi

5. Drilling Equipment
5.1 5” OD Drill Pipe
Total length : 2200m (7200ft)
Grade : S-135
Range : R2 pipe
Weight : 19,5 lb/ft
Class : Premium
Internally plastic coated : Yes
Tool joint od : 6-5/8”
Tool joint id : 2 ¾
Hardfacing type : Arnco 200 XT
Connection type : 4-1/2” IF

5.2 3 ½” OD Drill Pipe
Total length : 2200m (7200ft)
Grade : S-135
Range : R2 pipe
Weight : 13,3 lb/ft
Class : Premium
Internally plastic coated : Yes
Tool joint od : 4-7/8”
Tool joint id : 2 7/16
Hardfacing type : Arnco 200 XT
Connection type : 3 ½ ” if

5.3 5 ” DP Pup Joints
Length : 4 of 15’, 2 of 10’ & 2 of 5’
Grade : S-135
Weight : 19,5 lb/ft
Class : Premium
Internally plastic coated : Yes
Tool joint od : 6-5/8”
Tool joint id : 2 ¾
Connection type : 4-1/2” IF

5.4 3 ½” DP Pup Joints
Length : 4 of 15’, 2 of 10’ & 5 of 5’
Grade : S-135
Weight : 13,3 lb/ft
Class : Premium
Internally plastic coated : Yes
Tool joint od : 4-7/8”
Tool joint id : 2 9/16
Connection type : 3 ½ ” if

5.5 HW Drill Pipe
Quantity of joints : 30 joints / 30 joints
Class : Premium
Nominal size : 5 “ & 3-1/2”
Weight : 50 lb/ft / 26 lb/ft
Length : Range 2 / Range 2
Tool joint od : 6-5/8” / 4-7/8”
Tool joint id : 2 ½ ” / 2 ¼
Connection type : Ping Box NC50 / Ping Box NC38
Hardfacing type : Yes / Yes

5.6 Drill Collars
Quantity of joints : 8 of each
Hardfacing type : Spiral type Grant Prideco H series
Nominal size : 8”, 6-1/2” & 4-3/4”
Length : 30’ each
Drill collar body id : 2-13/16”, 2-13/16”, 2-1/4”
Connection type : 6-5/8” Reg MxF / NC50 MxF /NC 38 MxF
With recess for “zip” elevator : Yes
With recess for slip : Yes

5.7 Float Valve
Quantity : 2, 2, 2, 4 & 4 of each
Make : Baker
Type : 5F-6R / 4R / 2F-3R
Working pressure : 5000psi
Connection type : 2”IFx3”R, 2”IFx3”R,4”Reg GA,4”Reg IF,
5”IFx6”R, 5”IFx6”R

5.8 Bit Subs, Subs, Etc
Bit Subs : 17-1/2”, 12-1/4”, 8-1/2” & 6”
List Of Subs For Working String -
2 of each Cross Over :
4 ½ IF B X 2 7/8 N VAM P
4 ½ IF B X 2 7/8 EU P
4 ½ IF B X 3 ½ EUE P
4 ½ IF P X 3 ½ IF B
4 ½ IF B X 3 ½ N VAM P
4 ½ IF B X 4 ½ EUE P
4 ½ IF B X 4 ½ N VAM P
3 ½ IF B X 2 7/8 N VAM P
3 ½ IF B X 2 7/8 EUE P
3 ½ IF B X 3 ½ N VAM P
3 ½ IF B X 3 ½ EUE P
3 ½ IF B X 4 ½ N VAM P
3 ½ IF B X 4 ½ EUE P

8 of each Lifting Subs -
6 5/8 REG P X 4 ½ IF B
4 ½ IF P X 4 ½ IF B
3 ½ IF P X 3 ½ IF B

5.9 Bit Breakers
Size : 17-1/2”, 12-1/4”, 8-1/2” and 6”
Number : 1 of each

6 Casing Equipment
6.1 Side Door Casing Elevators
Quantity : 1 & 2 of each
Size : 13-3/8”, 9-5/8”, 7”
Make : Wilson casing
Type : WEB
Capacity : 150 ton each

6.2 Casing Slips To Use In CSG Bowl
Quantity : 2 of each
Make : Varco
Type : CSXL
Capacity : For 13-3/8”, 9-5/8”, 7” & 4-1/2”

6.3 Single Joint CSG Elevator
Quantity : 1 of each
Make : Varco Casing
Type : SJL

6.4 Manual Casing Tongs
Quantity : 1 of each
Make : Varco
Type : HT
Capacity : 55/100
Range sizes : 17” to 4”

6.5 Power Tubing Tong
Quantity : 1
Make : Eckel Hydraulic
Type : w/ torque gauge and spring hanger
With jaws for casing : From 4’’½ to 2’’3/8

7 Fishing Equipment
7.1 Overshots
Quantity : 1 of each
Make : Logan
Type : Series 150 Type FS
Overshot od : 1-3/4”, 9-5/8”, 8-5/8”, 8-1/8”, 5-3/4”

7.2 Junk Subs
Quantity : 1 of each
For hole sizes : 12-1/4”, 8-1/2” & 6”
Connection type : 6-5/8” Reg, 4-1/2” Reg & 3-1/2” Reg

7.3 Junk Basket
Quantity : 1 of each
For hole sizes : 12-1/4”, 8-1/2” & 6”
Connection type : 6-5/8”, 4-1/2” & 3-1/2”

7.4 Taper Taps
Quantity : 1 of each
Type : Logan Wickers
Minimun od : 6-1/8” OD / 4-3/4” OD
Maximun od : (4-3/4 – 3-1/4”) / (2-3/16 – 3-11/16”)
Connections : 4-1/2” IF / 3-1/2” IF

8 Instrumentation
8.1 Weight Indicator
Make : Autelec
Type ; Dead line anchors Hydraulic cylinders

8.2 Mud Pump Pressure Gauges
Make : Autelec
Type : Proximity sensor
Proximity sensor : Working Range Pressure

8.3 Rotary Torque Indicator
Make : Autelec
Type : Pressure Box with TD pressure sensor

8.4 Tongue Torque Assembly
Make : Autelec
Type : Digital

8.5 Drilling Parameter Recorder System
Make : Autelec / Data Management Module
Wob : Yes
Stand pipe pressure : Yes
Rop : Yes
Total stroke counter : Yes
Torque : Yes
Rpm : Yes

8.6 Drift Recorders
Number of sets : 1
Make : Totco
Degree ranges from -to : 8-16°

9 Auxiliaries
Fuel tank capacity : 25m3 (2,4mx6mx2m) / 11m3 (2,4mx6mx1m)
Water pump : Two (2) Flygt BS2660MT / DS2640HT
Air dryer : Ingersoll Rand TS3A
Bug blower : 2 units
Air compressor :
Ingersoll Rand MH 55 – Max pressure
10 bars – Flow rate : 8.5 m3 / mn at 10 bars

10 Safety Equipment
10.1 Firefighting Equipment
Extinguishers : One on each module type ABC & CO2
Fire pump : fire pumps – 1 for rig / 1 for camp (type TBA)
Ppe : As required

11. Cabins
Warehouses : Mechanic,Electric, Drilling, HSE + Rubber store
Workshop : Mechanic
Offices :
1 x Drilling supt/Geologist
1 x Rig supt/Radio operator
1 x mechanic/Electrician/Other
1 x HSE/Clinic
1 x Meeting room/Prayer room
1 x Services company room / Toilet unit

12. Drawings
General layout
Bop stack : Annular 13’’ 5/8 & Double rams 11’’


WorldRigs has SEDLAR 160 - Self Elevating Drilling Land Rig for Sale
  Images

Self Elevating Drilling Rig 2007 Built for Sale

Hydraulic rig - for sale in Europe

Self Elevating Drilling Rig

Trailer Mounted Rig 160m. ton - for Sale

1000 hp Hydraulic Drilling Rig

2007 Built SEDLAR 160 Land Drilling Rig

160 T Hook Load Drilling Rig for Sale

Self Elevating Drilling Rig - for Sale

2007 Built SEDLAR 160 Land Rig

1000 hp Hydraulic Drilling Rig for Sale

Trailer Mounted Rig 160m. ton for Sale

Self Elevating Drilling Rig for Sale


SEDLAR 160 Drilling Rig for Sale
Hydraulic rig for sale in Europe
1000 hp Self Elevating Drilling Rig for Sale



Mail WorldRigs
   Mail WorldRigs regarding any general/sale enquiries or feedback.
   You are enquiring about :   SEDLAR 160 - Self Elevating Drilling Land Rig for Sale, ID WR255
   Your name :

   Your company :

   Your email :

   Your contact number :

   Your message :

 Please enter the security code


...............................................................................
