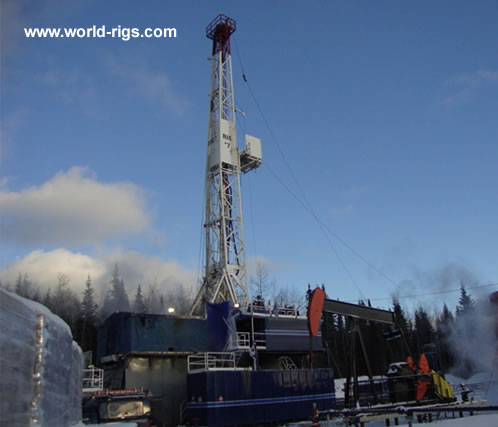

3600m Cantilever Double Drilling Rig For Sale
Cantilever Double Drilling Rigs for Sale
475hp Drilling Rigs for Sale
Description:
Drawworks : National 370
Engine : Cat 3406E 475 HP
Mast : Derrick Manufacting
Height : 97'
Max. Hook Load : 148,000 daN
Substructure : Edmonton Fabricators LTD
Max Setback : 115,000 daN
Rotary / KB beam to ground : 5.02m
Clear Working Height : 4.26m
Pumps : (2) F-800
Engine : Detroit 60 Series
Mud System : (1) Tank 77m3
Tank :
Shakers : DFTS Linear Motion
Pumps : 6x5x11 Mission Magnum
Trip Tank : 3m3
Pill Tank : 4m3
Suction Tank : 18.5m3
Settling Tank 1 : 18.5m3
Settling Tank 2 :
Shaker Tank : 24.1m3
Agitators : SOS Euro Drive
Gen Sets : (2) Stanford 300 KW Generator
Engine : Cummins NTA 855G
Panel : MCC
Well Control : Koomey Five Station 80 Gallon
Annular : 228.6mm Townsend TL90 3M
Pipe Rams : 228.6mm Townsend LWP 3M
Manifold : 3 1/8" 3M
HCR : MCm 3M
BOP :
Tubulars
Collars : 18-165mm 4.5" XH
Drill Pipe : 200- 101.6mm 4" FH X-95
HWDP : 60- 101.6mm 4" FH
Overhead
Top Drive : TSM 150 Ton Swivel
Hook / Block : High Quality 150 Ton 4X 30" Sheaves
Drilling Line : 28.6mm
Miscellaneous
Water Tank : 63m3
Fuel Tank : 28,000 Liters
Boiler : 80 HP Lister
Features :
Hydraulic Skate Catwalk, BOP lifting System,Rig
Smart Crown Saver Pipe Tubs.
Rig Loads
Rig : 24
Boiler : 1
Loader TP shack and misc. : 3
Racking capability : 3600 m + |
