4 New Heli-Transportable AC Electric Rig for sale
1500hp Heli Drilling Rigs for sale
Heli Drilling Rigs for sale

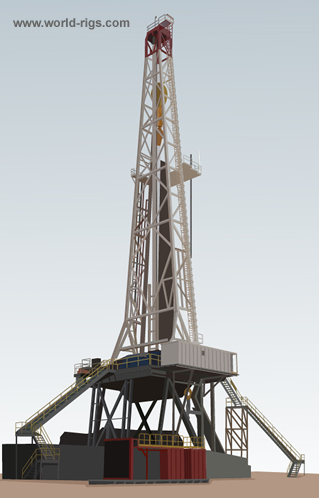

Heli-transportable ACElectric Rig - 1500hp - For Sale
New Heli Rigs for sale
Description
Model of drilling rig: HH- ZJ40DBS Helicopter transportable rig with 3000 Kg
loads, drilling depth capacity 12000 ft (4.000 m).
Mast
Model: JJ320/45-KH
Effective height of mast: 146 ft (44,5 m)
Static hook load capacity: 716.800 lbs (3.200kN)
Crown Block
Model TC320
No. of pulleys: 6 with perforating cable of 1.1/4” (5x50” and 1x60")
Monkey Board
Able to work with DP 5” Range II, with fall protection safety harness
sytem, escape line (Geronimo) and Ingersoll Rand man rider winch.
Substructure
Max. Capacity of Rotary Table beam: (320 ton)
Setback load (Range II, 5” drill pipe): (3200 kN)
Height of drill floor: 7,5 m (25 ft)
Prepared to receive Walker System removable by Pins, moveable in two
axis “X” and “Y”.
Rotary Table
Pin Drive type, manufactured by Hong Hua, with opening diameter of 27-1/2"
(698.5 mm), maximum rotary speed of 220 RPM and maximum static load of
1.000.000 lbs (4500kN).
Drawworks
Disk Brake type, actuated by 2 electric motors with minimum 870 HP each
and Bit Feeder system (with proximity switch for the crown Block and Rotary
Table). Emergency Shutdown installed in the Doghouse. 640 m (2,100 ft) Drill
Line 32 mm (1-1/4”) 6×19S IWRC EIPS/RRL. Cat Head Model YM-16, manufactured
by Hong Hua.
Travelling Block
Model YC315, manufactured by Hong Hua, with 6 Sheaves and maximum static load
with 6 Sheaves and maximum static load capacity of (3500kN) (790,000 lb).
Hook
Model DG315, manufactured by Hong Hua, built to specification API Spec 8C, with
maximum static load capacity of 790,000 lb (3.500 kN)
Rig Floor Tools
Inside BOP’s 3 ½ IF – 4 ½ IF, DP Elevator 3 ½” – 5”, pneumatic pipe spinner
casing, manual slips. DP. 3 ½” – 5”, automatic DP. Slips,
Casing: Spiders, side door, elevators, aux. elevators, slips, HFD. C56. Tong DP.
Mud saver.
Gensets
8 sets of Caterpillar Generator Model C-15 ATAAC, 455kW / 60Hz / 480V, with sound
proof enclosures.
Auxiliar Generators
2 sets of Cooltech Generator Model KJ200E, rated 200 KVA(160 KW).
Swivel
Model SL450, manufactured by Hong Hua, with maximum static load of 1,000,000 lbs
(4500 kN), maximum dynamic load (API Bearing Load) of 630,000 lbs (2800 kN) and
maximum rotary speed of 300 RPM.
Kelly Spinner
Model A6C-2 made by International, with maximum torque of 1,800 ft.pounds and
maximum speed 150rpm.
Iron Roughneck
Model ST80C, manufactured by National Oilwell Varco (NOV) with Tubular OD Range
of 4-1/4" to 8-1/2" (108-216 mm) and Drill Pipe range of 3-1/2" to 5-1/2"
(89-140 mm).
Tongs
- Drill Pipe Tongs type C, Model 060-273/48, with jaws from 2-7/8" to 5".
- Drill Pipe Tongs type DB, Model Q89-423/90, with jaws from 5" to 9-1/2"
- Casing Tongs type B, Model Q86-324/75 (from 3-3/8" to 12-3/4") and Model
Q340-915/35 (from 13-3/8" to 20').
- Hydraulic Drill Pipe Power Tong made by ECKEL model 8- 5/8 Hydra-Shift HT
(with Hydraulic Backup).
Blowout Preventers
Three set of 13-5/8" 5,000 psi Type U, Single Ram BOP, Cameron style, with
Pipe Rams 2-3/8", 2-7/8", 3-1/2", 5", 7", and 9-5/8".
One set of 13-5/8" 5,000 psi Annular BOP, Shaffer style, with lower clamp
connection, manufactured by Rongsheng.
BOP Accumulator
Model FKQ960-8, with 3000Psi (21Mpa)
Working Pressure, 17 bottles with a total of 969
l capacity and Remote Panel on Rig Floor.
Choke Manifold
Choke manifold 3-1/8” x 5,000 psi with two manual adjustable chokes Cameron
3-1/8” x 5,000 psi and hydraulic choke Cameron 3-1/8” x 5,000 psi,
manufactured by King Dream.
Mud Cleaner
Model: Miswaco 212/6T4 Meerkat Pt. Desander hydrocyclones: 2 x 10”. Desilter
hydrocyclones: 16 x 4” Degasser
M-I SWACO Compact D-Gasser, capable of removing entrained gas (including H2S
and corrosive oxygen) from drilling fluid, equipped with Mission Magnum Degasser
Feed Pump Model 8x6x14.
Vertical Degasser with Working Pressure of 102 psi (0.7MPa) and diameter of
fluid inlet pipe 102 mm.
Decanter Centrifuge
M-I SWACO Decanting Centrifuge Model 518, stainless steel rotating assembly,
equipped with M-I SWACO Type II Progressive Cavity Centrifuge Feed Pump with rated
capacity of 22 gallons/100 revolutions @ 0 psi (82 liters/100 revolutions).
Mud Tanks
13 sets, each made of steel with cover. Total volume 190 m3 (1,200 bbl), equipped
with single compartment Sand Trap tank, 50 bbls Slug Pit and 50 bbls Trip Tank.
Cargo Handling System
Two MAEDA model LC1385-8B 6,000 kg capacity rating Telescoping Crawler Crane with
Blade Attachment and Quick Disconnect and Two Tadano Mantis 3612 , 16,000 kg
capacity Telescopic Crawler Crane.
Drilling Intrumentation
Siemens Mud Pits volume sensors M/D Totco Drilling instr.: WOB Indicator,
Connection Torque Indicator, Tongs Torque Gauge, Mud Pump indicators, Bit Tracking
System, Ton-Mile register, etc.
Hong Hua Digital Drilling Recorder
NOV Deviation Survey Double Recorder
Honeywell Gas detection system
Miscellaneous
Diesel fuel reserve of 30 m3 (190 bbl).
Water treatment System for filtering, purification, chlorination and pH control
for daily water consumption for the camps.
Drill String and Accessories
4,300m of 5" Drill Pipe, 19.5 lb/ft, S-135, NC50.
2,000m of 3-1/2" Drill Pipe, 13.3 lb/ft, S-135, NC50. Plus:
− 50 5" HWDP Length 31 ft, Tool Joint OD 6-5/8" x ID 3", NC50.
− 50 3-1/2" HWDP Length 31 ft, Tool Joint OD 4-3/4" x ID 2-1/4", NC50.
− 6 9-1/2" Spiral Drill Collar, Length 31 ft, ID 3", 7-5/8" REG.
− 30 8" Spiral Drill Collar, Length 31 ft, ID 3", 6-5/8" REG.
− 20 6-1/2" Spiral Drill Collar, Length 31 ft, ID 3", NC46.
− 24 4-3/4" Spiral Drill Collar, Length 31 ft, ID 2", NC38.
− 12 3-1/2" Slick Drill Collar, Length 31 ft, ID 1-1/2", NC26.
Lifting Subs, Crossovers, Tools, etc.
WorldRigs has 4 New Heli-Transportable AC electric rig for sale
