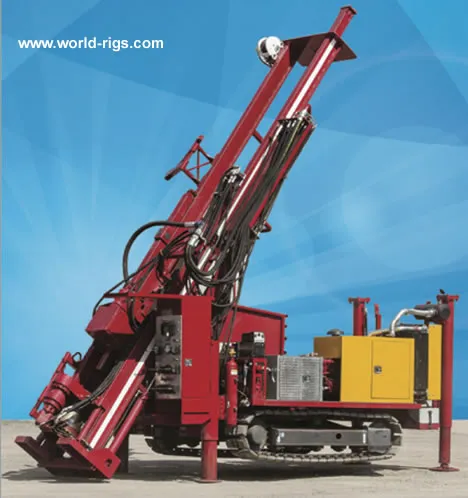

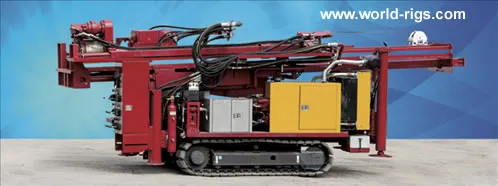

Nordic Drill DRC-10-A Crawler Drill Rig for Sale
2015 Built Nordic Drill DRC-10-A Crawler Drill Rig for Sale

Model : DRC-10-A Crawler Drill Rig
Manufacturer : Nordic Drill
Year : 2015
Condition : New

Description :

2015 Nordic Drill DRC-10-A Crawler Drill Rig

All in One Drilling Rig with Dual Rotary, Crawler Mounted Carrier,
12" Max Openings & Slide Angle Mast with Advantages
Compared to a Conventional Air Rotary Drill:

Angle Slide Package: Allows Drilling Applications for Mining,
RC (Reverse Circulation) Exploration, Anchors, Pilling, Geotechnical,
Soil Samples, Etc.

Crawler: Light Weight & Small means less damage to the drilling sites,
allows set up on difficult terrains & access sites, and less preparation
for set up and break down.

Dual Rotary: Allows Accuracy & Performance in Tough Overburden Conditions,
Good Sampling & Screen Intallations, Facilitates The Extraction of Casing,
Easy to Operate & Cleaninesss on Sites.

Safety: Offers Safe Drilling Methods, Provided of an Anti-Rotation System.

Top Drive:
- Stroke: 16' ft
- Hoist: 31,000 lbs
- Hoist Speed: 53 ft/min
- Pull Down: 23,500 lbs
- Pull Down Speed: 71 ft/min
- Torque: 6,000 ft x lbs
- Rotation Speed: 0-90 RPM

Lower Drive:
- Stroke: 10' ft
- Hoist: 35,000 lbs
- Hoist Speed: 47 ft/min
- Pull Down: 26,500
- Pull Down Speed: 63 ft/min
- Torque: 21500 ft x lbs
- Rotation Speed: 0-9 RPM
- Maximum Opening: 12"

Engine: CAT C 6.6 Diesel @ 210 hp
Sliding Mast Stroke: 36"
Welding machine: Hydraulic 225 AMP
Water Pump: Quad Bean 18 GPM
Hydrofrac Pump: 26 GPM @ 1800 psi / 13 GPM @ 2900 psi
Service Winch: 2,000 lbs
Front Winch: M12 12,000 lbs
Pipe Tub: 40 Pipes - 3-1/2"
Safety: Anti-Rotation Top Drive
Maxumum Speed: 3,1 MPH
Weight: approx. 37,400 lbs

Manufactured in Canada
