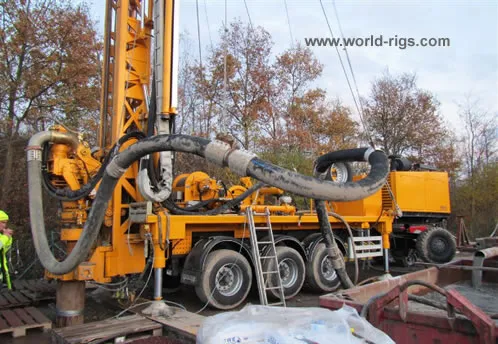

Multipurpose Drilling Rig for Sale
New Water Well Drill Rig for Sale
General Specification
Basic Data :
- Max. hook load : 500 kN
- Mast height : 13,35 m
- Casing installation height : 8,00 m
- Power swivel working travel : 7,50 m
Dimensions :
- During transport (L/W/H) : approx. 12,90m / 2,50m / 4,00 m
- During drilling operation (L/W/H) : approx. 10,50m / 3,50m / 13,35 m
Operating Conditions :
- Ambient temperature range : -20°C - +45°C
(up to 52°C with special hydraulic oil)
Drilling Depth :
- at drilling diameter 990mm : approx. 250 m*
- at drilling diameter 150mm : approx.1.200 m*
* Drilling depth depending on geology, drilling method
and applied drill string components.
Applicable Drilling Methods :
- Direct Mud Circulation (DC), external mud pump required
- Reverse Mud Circulation (RC) by Air Lift, external compressor required
- Dry drilling / Auger drilling
- DTH Hammer Drilling, external compressor required
- Wire-Line Core Drilling
Special Specification
Trailer R1
Type : 3-axle semi-trailer
Dimensions in transport position:
- Lenght (excluding mast) : approx. 10.35m
- Length (with mast) : approx.
- Height : approx. 4.00m
- Width : approx. 2.50m
Type of king pin : 2'' or 3'' ( to be specified)
Height of King pin : approx. 1.35m
Permissible total weight : 45.000 kg
Permissible load of King pin : 18.000 kg
Type of tires : 6 x 385/65 R 22,5 + 1 x spare
Rig frame & Levelling jacks
Description :
Heavy duty steel frame, suitable to mount all rig components,
fixed on the chassis of the carrier
Painting : daffodil yellow (RAL 1007)
Number of levelling jacks : 4
Type of levelling jacks : hydraulically, operated independently
Working stroke :600 mm
Pad size diameter : 500 mm
Deck engine MTU
directly flanged to hydraulic pump distributor gearbox
Manufacturer : TU (Mercedes)
Type : V8, water cooled
Emission level : EPA/CARB Tier III, EEC 97/68EC 3a
Capacity : approx. 750 HP at 1.900 rpm
Electrical system : generator 24 V, 80A
Fuel tank content : 850l

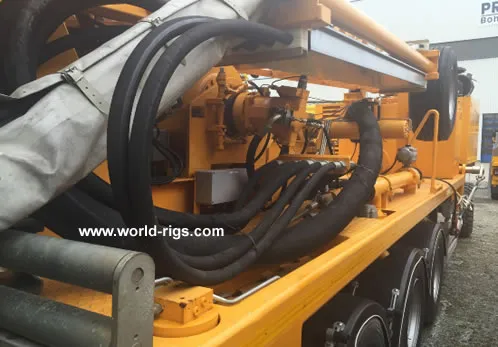

Hydraulic system (Type 2)
Description :
Hydraulic pump distributor gearbox driven by deck engine.
Closed hydraulic circuits for all main components, driven by axial
piston pumps : Power Swivel, Feed device, draw works
(with additional supply pump), Auxiliary hydraulics
(mud pumps, compressor)
Hydraulic oil tank : 1.000l
Type of Hydraulic oil : HVLP 46
(suitable for normal temperature conditions)

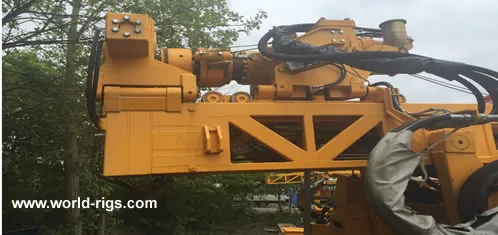

Mast RB50 R1
Description :
Constructed of high tensile steel (rectangular tubes),
hydraulically elevated by two (2) double acting hydraulic
cylinder; including: guide rails for power swivel, suspension for
feed device, crown block with sheaves, ladder
for maintenance work.
Total Height in working position : 13.40 m
Operating space (crane block) : 8.80 m
Working stroke (power swivel) :
7.50 m (suitable for drill pipes up to 6.0m length)
Max. load capacity : 500 kN
Boom for discharge hose
Description :
Mast boom for fastening and securing the discharge
hose for air lift drilling, Attached to the right-hand
side of the mast
Projection : approx. 2,70 m
including : Steel cables for fastening and securing
the discharge hose
Feed Device
Pull down-force capacity : 80 kN
Pull back-force capacity :
350 kN (with main hydraulic cylinder)
500 kN (in conjunction with draw works)
Max. feed speed :
0 - 0,54 m/sec at full load
0 - 1,00 m/sec at max 133 kN
Technical features :
- Load compensation, hydraulically controlled, for
adjustment of defined Weight On Bit (WOB)
- Controlled WOB, hydraulically controlled,
constant WOB in dependance of penetration rate
- Vertical compensation, hydraulically controlled,
allows a defined vertical moving of power swivel
(up/down) per rotation of spindle (left/right) for gentle
thread make up operation

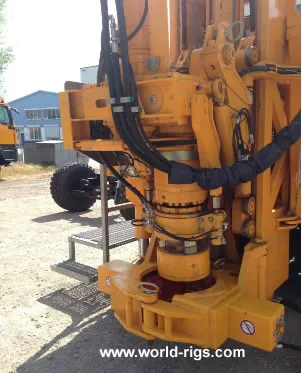

Power Swivel S150.2
Hydraulical Drive : axial piston pump (variable displacement)
Torque :
- gear 1 : 31.580 Nm at 0 - 45 rpm
- gear 2 : 16.600 Nm at 0 - 85 rpm
- gear 3 : 4.150 Nm at 0 - 340 rpm
Max. Mud operating pressure : 40 bar
Inner diameter (free passage) : 150 mm
Connections for :
- heavy duty rotary hose 4" for direct mud circulation
- direct air for DTH Hammer.
- Inlet for 1" air injection pipe (for air reverse circulation
drilling)
Hydraulic chuck and break device
Description : For making and breaking of drill pipes
Max. pulling force : 500 kN
Max. breaking torque : 48 kNm
Max. Inner diameter (with open clamps) : 195 mm
Max. Outer diameter of drill pipe : 178 mm
Min. Outer diameter of drill pipe : 51 mm
High pressure Inlet for S150, 80 bar : optional (not included)
Hydraulic Clamping Device
Description:
Working Table with hold-back arms swing-mounted at the
mast basis, suitable for interchangeable jaws of different size.
Free passage (closed) : 520 mm
Free passage (open) : 900 mm
Max. clamping diameter : 473 mm (18.5/8'')
Max.clamping force : 500 kN
Make-up and Break-out Device
Description :
Hydraulic cylinder placed on the main frame on the right side,
operated for use with manual tongs, power transfer via chain
system, tongs can be positioned on both sides of the mast for
breaking and tightening the drill pipes, collars and
casing connections.
Pulling force of cylinder : 60 kN
Pulling length of cylinder : 600 mm

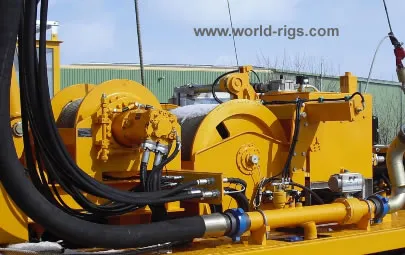

Main Winch
Description :
hydraulically driven, suitable for pulling the power swivel or
for installation of casing pipes, operation in combination with
Utility Crane Block 550 kN (triple sheave), overrun safety mechanism
Max. pull-back : 95 kN in first cable layer
Max. cable speed : 2 m/s
Cable length : 90 m
Cable diameter : 20 mm
Auxiliary Winch
Description :
hydraulically driven, with hydraulically released safety brake
Max. pull-back : 25 kN in first cable layer
Cable length : 50 m
Cable diameter : 10 mm
Wire-Line Coring winch 1.000m
Description : hydraulically driven, with hydraulically released safety brake
Max. pull-back : 25 kN in first cable layer
Cable length : 1.000 m
Cable diameter : 8 mm
Features :
- Mechanical holding brake
- Mechanical depth measuring unit with incremental measuring system,
digital display on the control panel
Mud Line System (standard)
Description :
consisting of horizontal steel pipe system with valves and
connection to the power swivel (vertical pipe and hose)
Diameter : DN 100 / 4"
Max. mud pressure : 60 bar steel pipe system / 80 bar mud hoses
External connections :
4'' (for additional mud pump)
2'' (for external compressor)
Lighting & Electrical system
Voltages : 24V
Mast lights : 3 x Halogen (70 W)
Well head light : 1 x Halogen (70 W), movable
Controll board light : 2 x Halogen (25 W)
Safety system
Description : for quick shut-down of engine and hydraulic
system in case of danger
No. Of emergency shut-off buttons : 2
Operator's platform
Description :
located at the rear left side of the rig with direct sight to the working area,
tiltable, with weather protection tent

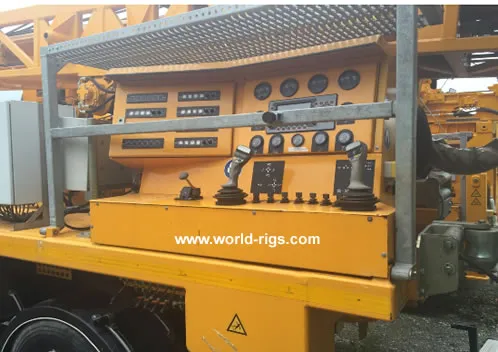

Main Control Board
Description : with lockable cover, all gauges and control levers
are labeled by symbols
Main functions :
with electronic pre-control of hydraulic circuits
- Engine start/shut off and speed control
- Engine emergancy alarm
- Manometer of hydraulic circuits
- Power swivel torque
- Power swivel rotation speed
- Hook load indicator
- Pull-up / Pull-down / Weight on bit
- Mud pressure indicator (optional)
- Indicator for pulling force of break-out device
- Depths indicator for coring winch (optional)
- Operating hours (engine, power swivel,...)
Tool box
Description :
Mounted on the drilling rig for basic tools and equipment.
Sufficient for simple maintenance of drilling rig and ancillary equipment.
An additional Tool box will be mounted on the rig and equipped
with additional necessary tools.
Documentation & Certificates
consisting of :
Operation & Maintenance Manual (1x printed / 1x digital)
Parts books / spare parts list (1x printed / 1x digital)
Language : Russian / English
Certificates :
|
