Model : D40K Drill Rig
Manufacturer : Driltech
Condition : Used

Description :

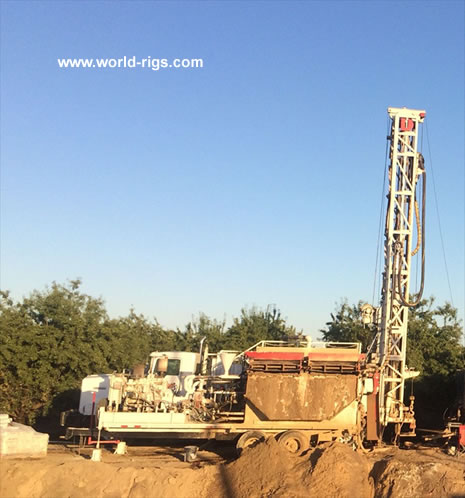

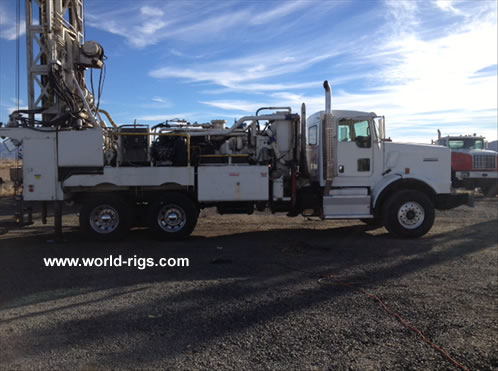

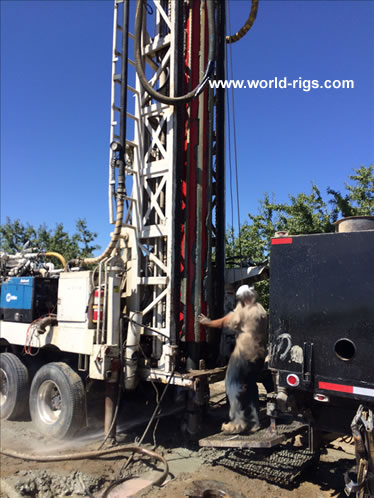

Driltech D40K Drill Rig
50,000 lbs of pullback
high torque head
No carousels (removed for large diameter Well drilling)
dual winches 6000k single line
18000K single line hydraulic Denison P7 main pump - replaced early p-5
All pumps where rebuilt or replaced in 2015 including main gearbox rebuild
Replaced / upgraded to Mercedes tier 4 (I) 550hp diesel deck motor
900 CFM / 300 PSI air compressor
has a mud line and a true 3" mud swivel added to it so it's "mud ready"
New in 2015 radiator/engine cooler rated at 450hp Additional hydraulic cooler added
Mounted on 2012KW tier 4 435hp Paccar heavy spec truck
dual steering and full locking rears
Heavy duty engine Brake
Rig needs a few new hydraulic hoses and new paint job
Note: this machine is 100% California CARB compliant

Location : USA
