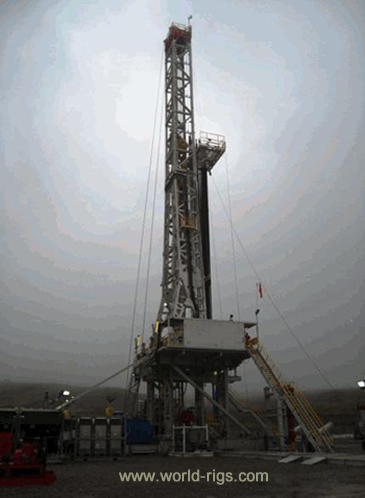

Sling Shot Hydraulic Lift Triple Drilling Rig


Name :	Sling Shot Hydraulic Lift Triple Drilling Rig

ID :	WR651

Year manufactured :	2009

Price :	Inquire for pricing

Specifications :	Sling Shot Hydraulic Lift Triple Drilling Rig for Sale Used 2000HP Sling Shot Hydraulic Lift Triple Drilling Rig VFD Rig - 2009 Built - For Sale 2000HP Parallelogram Style Drilling Rig - For Sale Used 2009 Built Triple Rig for Sale Triple Drilling Rig - 2009 Built - For Sale Used Land Drilling Rig - For Sale General Description Year built/Rebuilt ; 2009 Estimated Drilling Depth : 20,000 ft Estimated Rig Move Loads : 193 Estimated Camp Move Loads : 37 Rated HP : 2000 Mast Height : 147.00 ft Static Hook Load Capacity: 1,000,000 lbs Mast Racking Capacity : 20,000 ft Substructure Style : Parallelogram Height : 30.00 ft Clear Height : 26.75 ft Casing Capacity : 1,000,000 lbs Maximum Setback Load (lbs.) : 600,000 Drawworks Make: LeTourneau Model : LDW 1000K Power Rating : 2000 hp Input Power : 1 ea. LeTourneau TT 1500/1600hp Brake Type- Band or Disc : Disc Drilling Line Size : 1 1/2" Auxillary Brake : WPT W36-OM-402 Top Drive / Power Swivel Make : LeTourneau Model : DDTD 500 Capacity : 500 Ton Torque-Continuous : 42,500 ft-lb @ 115rpm Swivel Make : American Block Model : HH500 Capacity : 500 ton Rotary Table Make : LeTourneau L-375 Table Opening : 37 1/2" Maximum Load Rating : 650 ton Power Generation Engines : 8 ea. Caterpillar 3512B Generators : 4 ea. Kato AA 27647008 SCR / VFD / DC/DC : VFD Rig Enchancements Crane : Terex RT551-1 Fork Lift : Caterpillar IT62H Iron Roughneck : Blohm & Voss Oil Tools GF-1100 Mud System Mud Pumps : 3 ea LeTourneau WH 1612, 1600 hp @ 120 spm Reserve Mud Volume : 1,000 bbls Pressure Rating : 5,000 psi Active Mud Volume : 1,500 bbls Shale Shakers : 3 ea. Fluid Systems B4X-12 Desander : LeTourneau 10" x 3 Cones Desilter : LeTourneau 4" x 16 Cones Mud Cleaner : N/A Centrifuge : N/A Well Control Annular : 21 1/4" 2,000 psi, Hydril, MSP Single Ram : 13 5/8" 10,000 psi, Cameron, U Choke Manifold : Lamprell Energy 3 1/16" 10,000 psi BOP Closing Unit : CAD Control Systems 6 Station 3,000 psi

WorldRigs has Sling Shot Hydraulic Lift Triple Drilling Rig

	Images

Sling Shot Hydraulic Lift Triple Drilling Rig for Sale
Used 2000HP Sling Shot Hydraulic Lift Triple Drilling Rig
VFD Rig - 2009 Built - For Sale
2000HP Parallelogram Style Drilling Rig - For Sale
Used 2009 Built Triple Rig for Sale
Triple Drilling Rig - 2009 Built - For Sale
Used Land Drilling Rig - For Sale
