Soilmec R-620 Crawler Drilling Rig for Sale
Drilling Rig - Soilmec R-620 Crawler - For sale
2006 Built Soilmec R-620 Crawler Drilling Rig for Sale
Soilmec R-620 Crawler Used Drilling Rig for Sale
Soilmec R-620 Crawler Drilling Rig - 2006 Built for sale
Crawler Drilling Rig for Sale in USA
Land Drilling Rig - Soilmec R-620 for sale
Model : R-620 Drill Rig - Crawler
Manufacturer : Soilmec
Year : 2006
Condition : Used
Description :
2006 Soilmec R-620 Crawler Drill Rig
Hours: 6,200
R-620
Hydraulic Drilling Rig
A new model : The R-620 drilling rig on caterpillar 3.30C high power
module has been designed to perform the follwing jobs:
Bored pile, with dry or bentonite system;
Bored pile, with casing installed by oscillator or rotary crowd system;
C.F.A (Continuous flight Auger) piles.
The main features of R-620 are the following:
Machine class: 60 tons
New machine caterpillar type 3.30C module c/w diesel engine and
sound proofed canopy,mounted on 360 degrees slew ring
New electronic engine C9 ATAAC wth more power(355Bhp) and
meeting the most recent emission regulations.
New powerful rotary:201 kNm
Completely self erecting;mast able to withstand the max torque
over the whole length.
Casing installation by rotary crowd system
Advanced instrumentation
Reliability and safety
Stability and easy to handle
High productivity
Easy to transport
cable crowd system(optional)
Mechanical and hydraulic pre - arrangement for casing
oscillator(available on request)
Large diameter bored pile
Max pile diameter
mm
1800
Max cased diameter
mm
1500
Max pile depth
m
66
Max nominal torque
kNm
201
Max drilling speed
rpm
34
Spin off
rpm
144
Main winch nominal line pull
kN
192
Service winch nominal pull
kN
80
Engine¹
type
Caterpillar C9 ATAAC-HEUI
Max power
Kw (bhp)
261(355)
Crowd system by cylinder
kN
210/150
Pulldown stroke
mm
5600
Cable crowd system(13m stroke)
kN
200/200
Operating weight
ton
63
Continuous Flight Auger (CFA)
Max pile diameter
mm
900/1000
Max pile depth
m
22.5
Max nominal extraction force
kN
600
Max nominal torque
kNm
201
Max drilling speed
rpm
34
Operating weight
ton
60-63
Location : USA
WorldRigs has Soilmec R-620 Crawler Drilling Rig for Sale
Images
Soilmec R-620 Crawler Drilling Rig for Sale
Drilling Rig - Soilmec R-620 Crawler - For sale
2006 Built Soilmec R-620 Crawler Drilling Rig for Sale
Soilmec R-620 Crawler Used Drilling Rig for Sale
Soilmec R-620 Crawler Drilling Rig - 2006 Built for sale
Crawler Drilling Rig for Sale in USA
Land Drilling Rig - Soilmec R-620 for sale
Soilmec R-620 Crawler Drilling Rig for Sale
Drilling Rig - Soilmec R-620 Crawler - For sale
2006 Built Soilmec R-620 Crawler Drilling Rig for Sale
Soilmec R-620 Crawler Used Drilling Rig for Sale
Soilmec R-620 Crawler Drilling Rig - 2006 Built for sale
Crawler Drilling Rig for Sale in USA
Land Drilling Rig - Soilmec R-620 for sale
Model : R-620 Drill Rig - Crawler
Manufacturer : Soilmec
Year : 2006
Condition : Used
Description :
2006 Soilmec R-620 Crawler Drill Rig
Hours: 6,200
R-620
Hydraulic Drilling Rig
A new model : The R-620 drilling rig on caterpillar 3.30C high power
module has been designed to perform the follwing jobs:
Bored pile, with dry or bentonite system;
Bored pile, with casing installed by oscillator or rotary crowd system;
C.F.A (Continuous flight Auger) piles.
The main features of R-620 are the following:
Machine class: 60 tons
New machine caterpillar type 3.30C module c/w diesel engine and
sound proofed canopy,mounted on 360 degrees slew ring
New electronic engine C9 ATAAC wth more power(355Bhp) and
meeting the most recent emission regulations.
New powerful rotary:201 kNm
Completely self erecting;mast able to withstand the max torque
over the whole length.
Casing installation by rotary crowd system
Advanced instrumentation
Reliability and safety
Stability and easy to handle
High productivity
Easy to transport
cable crowd system(optional)
Mechanical and hydraulic pre - arrangement for casing
oscillator(available on request)
Large diameter bored pile
Max pile diameter
mm
1800
Max cased diameter
mm
1500
Max pile depth
m
66
Max nominal torque
kNm
201
Max drilling speed
rpm
34
Spin off
rpm
144
Main winch nominal line pull
kN
192
Service winch nominal pull
kN
80
Engine¹
type
Caterpillar C9 ATAAC-HEUI
Max power
Kw (bhp)
261(355)
Crowd system by cylinder
kN
210/150
Pulldown stroke
mm
5600
Cable crowd system(13m stroke)
kN
200/200
Operating weight
ton
63
Continuous Flight Auger (CFA)
Max pile diameter
mm
900/1000
Max pile depth
m
22.5
Max nominal extraction force
kN
600
Max nominal torque
kNm
201
Max drilling speed
rpm
34
Operating weight
ton
60-63
Location : USA
WorldRigs has Soilmec R-620 Crawler Drilling Rig for Sale
Images
Soilmec R-620 Crawler Drilling Rig for Sale
Drilling Rig - Soilmec R-620 Crawler - For sale
2006 Built Soilmec R-620 Crawler Drilling Rig for Sale
Soilmec R-620 Crawler Used Drilling Rig for Sale
Soilmec R-620 Crawler Drilling Rig - 2006 Built for sale
Crawler Drilling Rig for Sale in USA
Land Drilling Rig - Soilmec R-620 for sale
If you are interested in the featured equipment,
please contact us on email or call +65 97571950.
Ingersoll-Rand T5 Drill Rig Package for Sale

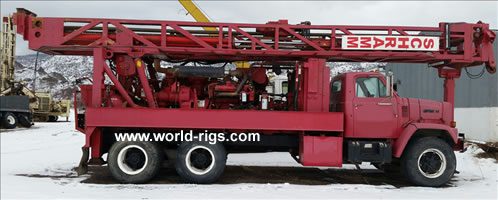

Schramm T660 Drill Rig For Sale
