NEW AND USED SCHRAMM DRILLING RIGS
Back to Top
19 Atlas Copco Rig(s)   13 Driltech Rig(s)   4 Gardner Denver Rig(s)   52 Ingersoll Rand Rig(s)   5 Reichdrill Rig(s)   55 Schramm Rig(s)   9 Failing Rig(s)
14 Speedstar Rig(s)   1 Kyle Rig(s)   1 Challenger Rig(s)   1 Canterra Rig(s)   7 Gefco Rig(s)   15 Chicago Rig(s)   5 Versa Rig(s)

Land Rigs Table View Table View
Id: WR538
Schramm T64HB Drill Rig for Sale


Schramm T64HB Drill Rig for Sale

Worldrigs ID: WR538

Model : T64HB Drill Rig
Manufacturer : Schramm
Condition : Used

Description :

Schramm T64HB Drill Rig
Detroit 8V71N Diesel Deck Engine
Pipe Rack
3 hydraulic leveling jacks
Mounted on Ford truck - VIN T91KVR58157
Engine
Note: No Air Compressor on board (cost extra to install)

Location : USA

Id: WR98
Schramm T450W Drilling Rig for Sale


Schramm T450W Drilling Rig for Sale

Worldrigs ID: WR98

Model : T450W
Manufacturer : Schramm
Year : 1995
Condition : Used

Description :

1995 Schramm T450W drill rig (Retrofitted in 2007)
Rebuilt - GHH 825 cfm / 350 psi Air Compressor (with clutch and Rebuilt with 500 hours since)
Rebuilt - Detroit Series 60 diesel deck engine with * ADM Electronic Module (Rebuilt in 2007)
30,000 lbs of pull back
Single Motor top head
6 Rod Breakout style carousel

Slide over head 10,000 lbs winch
Hydraulic Jib Boom
DTH Lubricator
Tool boxes & Junk box
Three outriggers

25 GPM CAT Water Injection pump
10 Rod rack
Walkways
Set up for (4½" and 3 ½" API Reg x 20’) Drill rods
Webbasto engine heater
60” Break out wrench piping for mud pump

Atlas R2000 Hydraulic casing hammer (installed in 2009)
Drives 6”, 8”, & 10” casing
Mast guides
Swing-Jib
Hydraulic lifting cylinder
Lifting cylinder control
Mounted on a 1995 Ford LTS8000 truck
10 Speed Eaton Transmission

Location : USA

Id: WR447
Schramm T450 Drill Rig for Sale


Schramm T450 Drill Rig for Sale

Worldrigs ID: WR447

Model : T450 Drill Rig
Manufacturer : Schramm
Condition : Used

Description :

Schramm T450 Drill Rig
Diesel Deck Engine
Air Compressor
Pipe Rack
Mounted on a Truck
Diesel Engine

Location : USA

Id: WR240
Schramm T130 Drill Rig - Range III for Sale


Schramm T130 Drill Rig - Range III for Sale

Worldrigs ID: WR240

Model : T130 drill rig - Range III
Manufacturer : Schramm
Year : 2004
Condition : Used

Description :

2004 Schramm T130 drill rig - Range III
Substtructure, Rig Floor, Hand Rails, Center Cat Walk,
MTU V12-2000TA DDEC Diesel Deck Engine @ 760 HP
Meter Reads 13,774.8+ Hours
Hammer Oilier
130,000 lbs. (59,090 kg) actual Pullback
28" inch (711 mm) table opening
50' feet (15.25 m) of clear head travel
3-in ID spindle with optional 5.25-in spindle .
Mounted on a CCC (Crane Carrier Company) Truck
VIN# 1CYDGD5874T046284
CAT C12 Diesel Engine @ 410 HP with 4,013.8+ miles
Note: New Complete Paint Job finished in May 2013 with wells drilled after since
Located in Eastern Region, USA
Also available are: dog house, 6000' of 4 /12 inch ingersoll style drill pipe
and 2 pipe trailers with tugger winch (Cost Extra)

Location : USA

Id: WR101
Schramm T64HB Drill Rig for Sale


Schramm T64HB Drill Rig for Sale

Worldrigs ID: WR101

Model : T64HB
Manufacturer : Schramm
Year : 1978
Condition : used

Description :

1978 Schramm T64HB drill rig
IR HR2 750 cfm / 250 psi Air Compressor
(1993 year model with low hours since & newer bearings)

Removed - Detroit 8V92 Diesel Deck Engine (has been removed &
needs to be replaced at an extra cost)

CAT 18 GPM Water Injection Pump
Hammer Oilier
Rebuilt Power Head
Includes: 6" Mission Hammer & Bit, 4 used Drill Pipes (20' x 4 1/2"), and Tooling
Mounted on a 1978 GMC Brigadier Truck
Detroit 6V53 Diesel Engine (1996 model with 3,000 miles since)
43,000 miles on frame

Location : USA

Id: WR216
Schramm T450 Drilling Rig for Sale


Schramm T450 Drilling Rig for Sale

Worldrigs ID: WR216

Model : T450 Drill Rig
Manufacturer : Schramm
Year : 1988
Condition : Used

Description :

1988 Schramm T450 Drill Rig
Diesel Deck Engine
Air Compressor
Carousel
Centrifugal Pump
Pipe Rack
3 hydraulic leveling jacks
Mounted on a Truck
Diesel Engine

Location : USA

Id: WR274
Schramm T660WS Drilling Rig for Sale


Schramm T660WS Drilling Rig for Sale

Worldrigs ID: WR274

Model : T660WS Drill Rig
Manufacturer : Schramm
Year : 2000
Condition : Used

Description :

2000 Schramm T660WS Drill Rig
Sullair 1050 cfm / 350 psi Air Compressor
Cummins N14 Diesel Engine
Gardner Denver duplex mud pump
Casing Hammer
6000 frame hours
Pipe Rack
4 Hydraulic Leveling Jacks
Mounted on a 1998 Ford Truck
Diesel Engine
30,000 Miles
Note: Well maintained

Location : USA

Id: WR426
Schramm T130XD Drill Rig with RC Package for Sale


Schramm T130XD Drill Rig with RC Package for Sale

Worldrigs ID: WR426

Model : T130XD Drill Rig with RC (Reverse Circulation) package
Manufacturer : Schramm
Year : 2005
Condition : Used

Description

2005 Schramm T130XD Drill Rig with RC (Reverse Circulation) package
12,600 Hours & 5,900 Miles
Detroit DDC/MTU 12V-2000 TA DDEC Diesel Deck engine @ 760 HP
Telescoping mast with 130,000 lbs of pullback
Sullair 1350/350 and 1150/500 dual 2-stage air compressor (on board)
Mounted on a CCC (Crane Carrier Company) Truck
CAT C13 diesel engine

Note: rig is set up with RC (Reverse Circulation) package. The drills
have reverse circulation tilt tophead power drives, side inlet
air swivels, discharge swivels, mast mounted discharge stand
pipe (applications for either flooded reverse or standard RC drilling).

Location : USA

Id: WR577
Schramm T64HB Drill Rig for Sale


Schramm T64HB Drill Rig for Sale

Worldrigs ID: WR577

Model : T64HB Drill Rig
Manufacturer : Schramm
Year : 1973
Condition : Used

Description

1973 Schramm T64HB Drill Rig
Schramm 600 cfm / 100 psi air compressor
Detroit Diesel Deck Engine
300' feet of drill pipe & basic tooling included
Pipe Rack
3 Hydraulic Leveling Jacks
Mounted on a 1981 International Paystar 5000 truck
DT 466 diesel engine
It has a few minor leaks but can go to work

Location : USA

Id: WR504
Schramm T64HB Drill Rig for Sale


Schramm T64HB Drill Rig for Sale

Worldrigs ID: WR504

Model : T64HB Drill Rig
Manufacturer : Schramm
Year : 1983
Condition : Used

Description

1983 Shramm T64HB Drill Rig
The air compressor was change for a new one and has 3500 hours since
Detroit Series-60 (Rebuilt with 2000 hours since)
700’ ft of (20' x 4½” OD) drill pipe included
The truck under as been change in 1995
Diesel Engine
The rig is working right now and is in good shape

Location : N.E. Region

Id: WR49

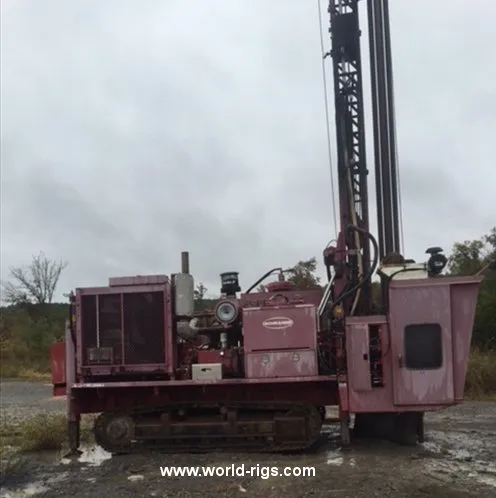

Schramm T450BH Drill Rig with GT conversion


Schramm T450BH Drill Rig with GT conversion

Worldrigs ID: WR49

Model : T450BH Drill Rig
Manufacturer : Schramm
Year : 2002
Condition : Used

Description :

2002 Schramm T450BH Drill Rig with GT conversion
Mast 28’6” Travel
Top head, single motor, 40.6 cu in displacement- new packing
Split table bushing
48” breakout wrench
Sullair 900/350 compressor - Rebuilt
Caterpillar 3406C 465hp @ 1800 rpm
Variable displacement Hydraulic system (saves fuel and extends
hydraulic components)

Lazy Susan (choice of 15 rod x 3.5” OR 12 rod x 4.5”), no manual loading
Water Injection 25 gpm Cat pump
Winch, 5,800 lb (125 x 7/16”)
200 Gallon Fuel tank
Caterpillar 320L undercarriage
Fixed Sub
DHD Lube, AC and Heater for Cab

Repair List Below:
Venture refurbished the machine, inspecting pumps and hydraulics,
replacing bad components and hoses.
Engine: completely built (minus fuel injection pump) 3406. It has complete
Cat rebuild kit, including all 6 heads. All parts were Cat, re-used only crankshaft and cam.
Crank and block were inspected and polished before rebuild
New Cab Glass, New Doors, New A/C, Heater, platforms, replaced DHD lubricator,
sub, fixed jib controller.
New seals in head and shock sub.

Location : USA

Id: WR525
Schramm T64HB Drill Rig for Sale


Schramm T64HB Drill Rig for Sale

Worldrigs ID: WR525

Condition : Used
Manufacturer : Schramm
Model No : T64HB

Decription :

Schramm T64HB Drill Rig
Joy 700 CFM / 300 PSI Air Compressor
Mounted on Mack Truck

Location : USA





Id: WR69
Schramm T64HB Drill Rig for Sale


Schramm T64HB Drill Rig for Sale

Worldrigs ID: WR69

Model : T64HB Drill Rig
Manufacturer : Schramm
Year : N/A
Condition : Used

Description :

Schramm T64HB drill rig - S/N: 567
Detroit 8V71 Diesel Deck Engine (new clutch gear box) - S/N: 1501497
Rebuilt - Gaso 4-1/2" x 6" Duplex Mud Pump (on board) - S/N: 19246
Grimmer Schmidt (Hurricane) 2 stage piston compressor 500/200 or 750/125 - S/N: 903-82
New three stage hydraulic main pumps - S/N: BG66T5B5
Bean water injection pump
New gear box and clutch for air compressor
New 14' Rams & New Raise Mast Rams
Mounted on a 1972 GMC Truck - VIN#: TME WV 55012
GMC 427 Gas Engine

Location : USA

Id: WR455
Schramm TXD 200 Hydraulic Super Single Drill Rig & Package for Sale


Schramm TXD 200 Hydraulic Super Single Drill Rig & Package for Sale

Worldrigs ID: WR455

Model : TXD Drill Rig
Manufacturer : Schramm
Year : 2007
Condition : Used

Description :

2007 Schramm TXD Hydraulic Super Single Drill Rig & Package
Drawworks: Input: Del. Diesel Engine MTU 12 V2000 (760 hp)
Mast: Schramm Telescopic Single - Height: 70' ft
Static Hook Load: 200,000 lbs (0 lines)

Substructure: Schramm - Setback Capacity: 200,000 lbs
Mud Pump #1: (Triplex) Gardner Denver PZ9 - Rated: 750 hp - Input: CAT (750 hp)
Mud Pump #2: (Triplex) Gardner Denver PZ9 - Rated: 750 hp - Input: CAT (750 hp)
Mud Pit: Pit(s): 252 bbl - Shaker PLC - 2 Mixing Pump(s):
Generators: Rated: 483 hp - Input: Marathon (536 hp) -
Rated: 483 hp - Input: Marathon (536 hp)

B.O.P's: Size: 11 in - Working Pressure: 5,000psi - Shaffer Annular - Schaffer
LWS-LXT Dbl Ram Blind Ram

Top Drive: Char Lynn Hydraulic Motors - Rating: 200,000 lbs
Swivel: Schramm - Rated: 200,080 lbs
Choke Manifold: Size: 0,079 in - Working Pressure: 5,000 psi
Accumulator: USA OilTools - 5 Stations
Pipe Handling: Schramm Pipe Arm
Auxiliary Equipment: Swaco Degasser
Drill Pipe: 150 Joints of 4” Pipe
Drill Collars: (6) 6” Collars – (4) 8” Collars

Location : USA

Id: WR502
Schramm T130XD Drill Rig for Sale


Schramm T130XD Drill Rig for Sale

Worldrigs ID: WR502

Model : T130XD Drill Rig
Manufacturer : Schramm
Year : 2005
Condition : Used

Description :

2005 Schramm T130XD Drill Rig
Diesel Deck Engine 760 hp
130,000 lbs. (59,090 kg) actual pullup
28 inch (711 mm) table opening
1350/350 – 1150/500 variable volume compressor
(38 cu. m/min @ 24.1 bar & 32.6 cu m/min @ 35.5 bar)
50 feet (15.25 m) of clear head travel
Range III casing
Mounted on a CCC Truck
Diesel Engine
New pumps, new tires, 100% operating

Location : USA

Id: WR561
Schramm TH130 Drilling Rig for Sale


Schramm TH130 Drilling Rig for Sale

Worldrigs ID: WR561

Description :

Schramm TH130 -,760 hp deck engine, 28 inch (711 mm) table opening ,
1350/350 – 1150/500 variable volume compressor (38 cu. m/min
@ 24.1 bar & 32.6 cu m/min @ 35.5 bar), 50 feet (15.25 m) of clear
head travel, Capable of handling Range III casing

Mast : telescoping, 130,000 lbs. (59,090 kg) actual pullup

Back on Ramp

Mud System : 12 x 50 pit with shale shaker

Mud Pump : D500 Emsco Duplex Pump
(2) 1150 HD x 350 Sullair Comp Hurricane Booster Trailer-Mounted
(2) 1150 HD x 350 Comp Hurricane Booster Trailer Mounted

WB12 Joy Booster
Doghouse, fuel tank, light plant, trailer mounted

Drill Pipe : 3500’, 4 ½” Range 2

Pipe & Collar Trailer

Rig can be set up with mud or air

Id: WR321
Schramm T90XD Telemast Drill Rig for Sale


Schramm T90XD Telemast Drill Rig for Sale

Worldrigs ID: WR321

Model : T90XD Telemast Drill Rig
Year : 2004
Manufacturer : Schramm
Condition : Used

Description :

2004 Schramm T90XD Telemast
Tilt-Out Head Assembly
Mounted on a 2004 Sterling Chassis
Mercedes 450 HP Engine
Hydraulically Telescoping Derrick Capable of Setting up to Range II Casing (35' 9" clearance)
38' ft Tophead Travel
90,000 lbs. of Pullback
28" Table Opening
Detroit MTU 2000 @ 760 HP Diesel Deck Engine w/ Newer Disconnect Clutch
3" Air / Mud Plumbing (no mud pump)
Sullair 1350XH / 1150 XHH Compressor (1350 cfm / 350 psi or 1150 cfm / 500 psi) (under 600 hours use from new)
Single Rod Loader for 4-1/2" X 30' Drill Pipe
In Process of Installing (1) New Main Pump and New Funk Four Hole Pump Drive Box

Location : USA

Id: WR519
Schramm T64HB Drill Rig & Tooling Package for Sale


Schramm T64HB Drill Rig & Tooling Package for Sale

Worldrigs ID: WR519

Model : T64HB Drill Rig
Manufacturer : Schramm
Condition : Used

Description :

Schramm T64HB Drill Rig & Tooling Package
Re-fabricated and Retrofitted in 1997
Sullair 900 cfm / 350 psi twin screw air compressor
CAT 3406 diesel deck engine
28,000 lbs of pullback
Belco Hydraulic welder
10,000 lb. and 2,000 lb. hydraulic winches
3L6 Moyno pump
(4) hydraulic Leveling jacks
Bean (2) cylinder water injection system
6,111 hours since 1997 refurbish and retrofit--Owners and shop manuals
included
Handles (4 1/2" x 20' x 3 1/2 reg) tool joint drill pipe
Used 5" & 6" down the hole hammer drills & around 200' ft. of drill pipe
Mounted on a 1982 IHC model 2574 truck
Cummins 350 big cam diesel engine
20,000 lb. front axle
double box power steering
Aluminum wheels
(2) 115 gallon fuel tanks
Flotation tires in front

Location : Eastern Africa Region

Id: WR246
Schramm T64HB Drilling Rig for Sale


Schramm T64HB Drilling Rig for Sale

Worldrigs ID: WR246

Model : T64HB
Manufacturer : Schramm
Year : 1978
Condition : used

Description :

1978 Schramm T64HB drill rig - S/N: 366
425 cfm / 250 psi air compressor
Detroit 8V71 diesel deck engine
Water Injection Pump
Hammer Lubricator
Widen Mud pump installed on board the drill
Included as a package:
600' ft of Drill Pipe (20' X 4 1/2" X 3 1/2")
12 1/4” Tricone bit, 8 1/4” Hammer bit, 6” Tricone bit
12 1/4” x 10” Stabilizer
Mounted on a 1984 International truck - VIN#: 1HTCF2555DHA32967
Diesel engine
Located at an indoor storage facility and owners want to
sell the drill rig package to local drillers

Location :  West Africa

Id: WR312
Schramm T450W Drill Rig for Sale


Schramm T450W Drill Rig for Sale

Worldrigs ID: WR312

Model : T450W Drill Rig
Manufacturer : Schramm
Year : 2002
Condition : Used

Description :

2002 Schramm T450W Drill Rig
Sullair 900 cfm / 350 psi Air Compressor S/N 004-DC5732. In very good condition.
CAT 3406 Diesel Deck Engine
New at 0 hour as off 2007. In very good working condition.
Hammer Lubricator
Water Injection Pump
300' ft of 4-1/2” Drill Pipe & basic tooling included
Side Pipe Rack
7 rod carousel
Mounted on
Navistar 7400 6x4 (Engine has been changed but is still ok but the engine control is bad.)
Diesel Engine

Location : West Africa

Id: WR486
Schramm T64HB Drill Rig for Sale


Schramm T64HB Drill Rig for Sale

Worldrigs ID: WR486

Model : T64HB Drill Rig
Manufacturer : Schramm
Condition : Used
Year : 1978

Description :

1978 Schramm T64HB Drill Rig
GHH 600 cfm / 250 psi Air Compressor
Detroit 8V92N Diesel Deck Engine
Cat water injection pump
2 motor power head
260' ft of  (4-1/2” x 20’ x 3-1/2" API reg thread)
Mounted on GMC 7500 Truck
Powered by Detroit 6V53 Diesel Engine
13 speed transmission

Location : USA

Id: WR300
Schramm T64HB Drill Rig for Sale


Schramm T64HB Drill Rig for Sale

Worldrigs ID: WR300

Model : T64HB Drill Rig
Manufacturer : Schramm
Year : 1976
Condition : Used

Description :

1976 Schramm T64HB Drill Rig,
425 cfm / 250 psi Air Compressor,
Detroit 8V71 Diesel Deck Engine,
Mounted On GMC 6500 Truck
427 Gas Engine,
Standard
T64 Set-Up
With 4 Rod Holder In Derrick,
Comes With 5 Joints Of Pipe,
Did Some Minor Repairs To Rig (New Chain, New Winch Cable)

Location : USA

Id: WR413
Schramm T130XD Drill Rig & Package for sale


Schramm T130XD Drill Rig & Package for sale

Worldrigs ID: WR413
Description

Heavy Hoist Top Drive
MTU/Detroit DDC1MTU 12V-2000 Diesel Deck Engine @ 760 HP
Gauges & Safety Shut Down
50' ft Clear Head Travel To Accommodate Range III
Hydraulic Pipe Handling Winch
Pullback Loads Are Directed To Ground & Not To Carrier Frame (Hydraulically Raised & Scoped)
32,000 lbs Of Pull Down & 130,000 lbs Of Pull Down
Rotation System Dual Low Speed With High Torque Motors
Single Pipe Loading Arm
Air & Mud Fluid Lines
Operators Console
Mounted On A 2006 Ccc (Crane Carrier Company) Truck With 5-Axles
Cat C-12 Diesel Engine
117,500 GVW
Fuller 8 Speed Transmission
425/65R-22.5 Front, 11R/22.5 Rear Tires,
Disc Wheels

Sold Together As A Package Which Includes:
2'h X 11'8"W X 49'l Back On Sub Base With Hydaulic Outrigger Positions, Skidded
8'w X 30'l Round Top Generator House: Cat 60kw Ac Generator,
Model D200-P3 Powered By Cat C4.4 Diesel Engine,
Switch Gear, Lighting Panels & Controls, Mounted Skidded

8'w X 32'l With 8'l Covered Porch Doghouse Constructed In 3 Sections:
Doghouse With Knowledge Box, Bench Storage,
Storage Shelving,
Change Room With Lockers & Storage Facilities,
Parts & Mechanical Room,
Work Bench,
Parts Storage,
Area For Repairs & Maintenance,
Heater & Lights,
Mounted On A 2008 Stanton Dynamics T/A Trailer,
8'w X 40'l W/ Stairways,
Folding Walkways,
Safety Railings,
11R/22.5 Tires,
Disc Wheels

Location: USA
Id: WR499
Schramm T64HB Drill Rig Drill Rig For Sale


Schramm T64HB Drill Rig Drill Rig For Sale

Worldrigs ID: WR499

Model : T64 HB Drill RigB Drill Rig
Manufacturer : Schramm
Year : 1978
Condition : Used

Description :

1978 Schramm T64HB Drill Rig
GHH 425 cfm / 250 psi Air Compressor
Detroit 8V71N Diesel Deck Engine
Cat water injection pump
2 motor power head
260' ft of  (4-1/2” x 20’ x 3-1/2" API reg thread)
Mounted on GMC 7500 Truck
Powered by Detroit 6V53 Diesel Engine
13 speed transmission

Location : USA


Id: WR291
Schramm T130XD Drill Rig & Package for Sale


Schramm T130XD Drill Rig & Package for Sale

Worldrigs ID: WR291

Model : T130XD Drill Rig
Manufacturer : Schramm
Condition : Used

Description :

Schramm T130XD Drill Rig - RC
Tilt Head
Diesel Deck Engine
130,000 lbs of Pullback
Set up for R/C Flooded Reverse drilling method (for large diameter Ag Wells)
Mounted on a CCC (Crane Carrier Company) Truck
Tooling includes hand Wrenches, Iron rough nech break out systems
Diesel Engine

Package Includes or Sold Seperately:
Schramm XD-130 Loadsafe  Pipe Handling System that is mounted on Trailer

Location : USA

Id: WR526
Schramm T450GT Track Mounted Drill Rig for Sale


Schramm T450GT Track Mounted Drill Rig for Sale

Worldrigs ID: WR526

Manufacturer : Schramm
Model Year : 2008
Model No : T450GT Drill Rig
Condition : Used



Description


2008 Schramm T450GT Track Mounted Drill Rig
CAT C15 Diesel Engine
Sullair 1050 cfm / 350 psi Air Compressor
15 Rod Lazy Susan (set-up for 3.5” OD drill rod)
28’ 6” travel in the mast
C15 Auxiliary Rotation Valve
Slow Feed Rotation Valve
Fixed Console
Rotary Head – Single Motor 29.2 cu in
Hydraulic Table Assembly set-up for 3.5” OD drill pipe
60” breakout wrench
18,000 lbs Main Winch with Jib Boom (hydraulic swing and extend) & (150’ x 5/8”)
Sandline (capacity 700’ x ¼” cable)
Bean Water Injection
Remote Tramming Controls
Undercarriage is a CAT C315L on Metal Tracks
Hours = 7950 hours on the rig


Location : USA

Id: WR498
Schramm T500XD 1500HP Drilling Rig - for Sale


Schramm T500XD 1500HP Drilling Rig - for Sale

Worldrigs ID: WR498

Condition : Used
Manufacturer : Schramm
Status : Available
Model Year : 2013
Model No : T500XD Drill Rig

Description

2013 Schramm T500XD 1500HP Drilling Rig
Hours: 10,903
HP: 1500

Detailed Description:

Power Unit
(2) MTU 12V-2000 engines, 760 bhp (567 kw) @ 1,800 rpm with electric start
(2) Dual core, side by side cooling pacl‹age, 130”F (54.4“C) ambient rating
(2) 220 gallon (930 I) diesel fuel tanks
(2) Hydraulic pump systems, with each including (8) piston pumps and (1) gear type pump
(1) 1,000 gallon (3,785 I) hydraulic tank with (18) twin element filters

Sub-Base and Walking System
Floor Height: 22 ft. (6.7 in)
Clearance: 19 ft. (5.8 in) under table bushing Ground Pressure:
Dead Load: 26 psi (1.8 bar)
Live Load: 57 psi (3.9 bar)
Walking, mast down: 41 psi (2.8 bar)
A dedicated diesel engine, hydraulic pump and 750 gallon (2,839 I) hydraulic tank are
included with the system

Telemast System
Top Head Travel: 56 ft. (17.07 in)
Hook Load: 500,000 lbs. (227,227 kg) actual Hoist Speed (both Engines):
0-130,000 lbs. @ 136 fpm (0 - 58,967 kg @ 41m/min)
101,000 — 285,000 lbs. @ 106 fpm (45,813 — 129,274 kg @ 32 in/min)
266,000 — 305,000 lbs. @ 100 fpm (129,727 — 138,346 kg @ 30 in/min)
306,000 — 419,000 lbs. @ 76 fpm (138,799 — 190,055 kg @ 23 in/min)
420,000 — 500,000 lbs. @ 64 fpm (190,509 — 226,796 kg @ 20 in/min) Pulldown
Capacity: 80,000 lbs. (36,363 kg) Pulldown Speed: 0-180 fpm (0 — 55 in/min) loaded,
0-200 fpm (0 — 61 in/min) free head

Tilting Top Drive
Power: 950 bhp (708 kw) Rotation Speed: 0-140 RPM Rotation Torque: Up to
35,000 ft-lbs (47,454 N-in) Swivel: 3 inch (7.6 cm) cartridge style Fluid
Pressure Rating: 7,500 psi (345 bar)

Rig Floor
37.5 inch (0.95 in) false table adapter and a 27.5 inch (0.7 in) Master
Bushing 22 ft. (6.7 in) floor height
19 ft. (5.79 in) under table clearance

Hydraulic Roughneck
Clamping Range: 4.5 — 9.625 inches (11.43 — 24.45 cm) diameter Clamping
Force: Adjustable up to 61,500 lbs @ 3,000 psi (273 kn @ 208 bar) Make/Break
Torque: 60,000 ft-lbs @ 3,500 psi (81,349 N-in @ 241 bar)

Loadsafe XD Pipe Handling
Built-in holding clamps with variable capacity from 4 - 24 inches (10 — 61 cm)
allow for make-up or break-out of tool joints from the top drive spindle
Capacity: Range III Maximum Lift Capacity: 10,000 lbs. (4,536 kg) Average
Trip Time: 1,500+ f/h (457+ m/h )

Main Winch
Bare Drum Pull: 9,600 Ibf. (42.7 kN))
Bare Drum Line Speed: 150 fpm (46 in/min) Hydraulic jib boom swing and
extend

Standard Accessories
Water injection system, 35 gpm (132.4 Ipm) @ 1,000 psi (69 bar) DTH lubricator
up to 5 gph (19 lph) @ 1,000 psi (69 bar)
Air manifold for air drilling operations Air/mud fluid lines, 4 inch (10 cm) stand
pipe and traveling hose for 7,500 psi (345 bar) operation Explosion proof 240V
lighting for nighttime operation (customer supplied generators) BOP handling
system, carriage and trolley rated 40,000 lbs. (18,144 kg)

Support Equipment
40’ Conex BoX: with spare parts for Rig

Drill Pipe:
5" OD (19.5 ppf) Grade S-135 / Range 3 (15,500') NCSO box and pin
connections (6 5/8" OD) with hardbanding

BOP Equipment:
Annular — Cameron type-84 13 5/8 (5,000psi) Ser#112938750-01 Double Ram —
Cameron type-U 13 5/8 (10,000psi) Ser#112934297-01 VBR Ram —
Cameron type-U 13 5/8 (10,000psi)
Ser#112912633-01 Choke Manifold — Cameron 4 1/16 (10,000psi)

Trip Tank:
Fabricated skid mounted tank with (40 bbl. of capacity) 4 x 3 centrifugal pump

Volume Pit:
Fabricated skid mounted tank with roof and 4 Agitators (350 bbl. Capacity)
Class 1 Div 1 lighting

Mud Pumps:
(2) 2012 - WHITE STAR QUATRO 1000HP MUD PUMP (can be substituted
if preferred, as we do have other options as well)

Pump
Fully fabricated precision frame with runners on a quadraplex oilfield skid.
Precision machined cast alloy steel crossheads Precision crossheads guides
with nylatron inserts or bronze Precision pinion and bull gear double helical Forged
fully assembled and balanced crankshaft
Spherical main and roller conrod bearings Single piece forged 7500psi dual
valve fluid modules with liner wear plate Two piece liner system liner with locking
nuts and splash guards High Grade polyurethane valves and seats.

Power
One, Detroit diesel 16V2000P EPA Tier 1, IMO compliant series 2000 16 cylinder,
four cycle water cooled, turbo charged, diesel engine rated 1072 continuous
BHP @1800 RPM Atex certified with spark arrester

L Shape Design
External gear reducer clutch engine supports on engine skid 2 brown and
sharp #4S lube pump c/w5/3 HP, 50/60HZ, 3 phase 240.480 190/380V Explosion
proof electric motor c/w Pre-Filter, pressure gauge and piping (or equivalent) for
external lubrication of all quarto bearings, crossheads, guides, etc. Cobra series
118 liner rinse pump c/w 2 HP 50/60 HZ 3-phase 240/480 190/380V marathon
explosion proof electric motor with installed circulation system or equal liner rinse
pump 2 HP 50/60 HZ 3-phase 240/480 190/380V electric motor c/w installed
circulation piping system External lubrication system c/w lube pump with
electric motor, 1.0hp, 21 60/50hz, 3 phase, 240/480 190/380V or equivalent,
strainer, oil-filter, pressure gauge, circulation system. White star standard 2 layers
of 2 part epoxy prime and 1 layer of 2 part epoxy top coating

Id: WR446
Schramm T450 Drill Rig for Sale


Schramm T450 Drill Rig for Sale

Worldrigs ID: WR446

Model : T64 Drill Rig
Manufacturer : Schramm
Year : 1972
Condition : Used

Description :

1972 SchrammT64HB Drill Rig
Casing Hammer is included
Diesel Deck Engine
Schramm 425 cfm / 250 psi Piston Air Compressor
Pipe Rack
Hydraulic Leveling Jacks
Mounted on a Mack truck
Diesel Engine

Location : USA

Id: WR113
Schramm T450W Drilling Rig for Sale


Schramm T450W Drilling Rig for Sale

Worldrigs ID: WR113

Model : T450W
Manufacturer : Schramm
Year : 1998
Condition : used

Description :

1998 Schramm T450W drill rig
Sullair 835 cfm / 350 air compressor
CAT 3406 diesel deck engine
Water injection pump
Hammer oilier
Around 6,750 hours on gauge
Slide power head
Mounted on 1998 international IH9000 truck
DT diesel engine

Location : USA

Id: WR290
Schramm T130XD Drill Rig & Package for Sale


Schramm T130XD Drill Rig & Package for Sale

Worldrigs ID: WR290

Model : T130XD Drill Rig
Manufacturer : Schramm
Condition : Used

Description :

Schramm T130XD Drill Rig - RC
Tilt Head
Diesel Deck Engine
130,000 lbs of Pullback
Set up for R/C Flooded Reverse drilling method (for large diameter Ag Wells)
Mounted on a CCC (Crane Carrier Company) Truck
Tooling includes hand Wrenches, Iron rough nech break out systems
Diesel Engine

Package Includes or Sold Seperately:
Schramm XD-130 Loadsafe Pipe Handling System that is mounted on Trailer

Location : USA

Id: WR560
Schramm T130 Drill Rig for Sale


Schramm T130 Drill Rig for Sale

Worldrigs ID: WR560

Model : T130 Drill Rig
Manufacturer : Schramm
Model Year : 2003
Condition : Used

Description

2003 Schramm T130 Drill Rig - S/N: J130-0707
Detroit DDC/MTU V12-2000TA DDEC Diesel Deck Engine
Mast: Telescoping construction permits long head travel 50’' ft
Note: Shorter length in transport position
130,000 lbs of Pullback
Free standing design with 28"” table opening
Sullair 1350 cfm / 350 psi Air Compressor (Rebuilt with low hours)
Hydraulic pumps (low hours since rebuilt)
Top Head: Fixed position - two hydraulic motors. 0-143 RPM with 106,600 in-lb of torque
Pipe handling sling
Set up for RD20 style (4-½”" X 30'’ X 2-7/8" IF) Drill Pipe
Carousel
Cat Water Injection Pump
Graco Hammer Lubricator
Mounted on a CCC (Crane Carrier Company) Truck - VIN#: 1CYDGD5843T046189
CAT diesel engine
425/65R22.5 front tires 12R22.5 rear tires
Sub Base: 9'’ wide 40'’ long and 3’' tall & Basic Tooling Included

Location : USA

Id: WR543
Schramm T64HB Drill Rig for Sale


Schramm T64HB Drill Rig for Sale

Worldrigs ID: WR543

Model : T64HB Drill Rig
Manufacturer : Schramm
Condition : Used

Description :

Schramm T64HB Drill Rig
Serial Number T64HB-472
425 cfm / 250 psi Air Compressor
Detroit 8V71N Diesel Deck Engine
Pipe Rack
3 hydraulic leveling jacks
Mounted on International Fleetstar 1910 A truck p/b Gasoline Engine

Location : USA

Id: WR427
Schramm T130XD Drill Rig -2005 Built - for Sale


Schramm T130XD Drill Rig -2005 Built - for Sale

Worldrigs ID: WR427

Model : T130XD Drill Rig with RC (Reverse Circulation) package
Manufacturer : Schramm
Year : 2005
Condition : Used


Description :


2005 Schramm T130XD Drill Rig with RC (Reverse Circulation) package
14,600 Hours & 4,250 Miles – newer tires
Detroit DDC/MTU 12V-2000 TA DDEC Diesel Deck engine @ 760 HP
Telescoping mast with 130,000 lbs of pullback
Sullair 1350/350 and 1150/500 dual 2-stage air compressor (on board)
Mounted on a CCC (Crane Carrier Company) Truck
CAT C13 diesel engine
Newer Tires


Note:rig is set up with RC (Reverse Circulation) package. The drills have
reverse circulation tilt tophead power drives, side inlet air swivels,
discharge swivels, mast mounted discharge stand pipe
(applications for either flooded reverse or standard RC drilling).


Location : USA

Id: WR78
Schramm T450W Drill Rig for Sale


Schramm T450W Drill Rig for Sale

Worldrigs ID: WR78

Model : T450W Drill Rig
Manufacturer : Schramm
Year : 1995
Condition : Used

Description :

1995 Schramm T450W Drill Rig
GHH 1000 cfm / 350 psi Air Compressor
Powered by 60 Series Detroit Diesel Deck Engine
with Electronic Panel (4,000 hours)
Mounted on a 1995 Ford L8000 Louiville Truck
10 Speed Eaton Transmission
72,145 KM on gauge
Cummins Model FD1460 6 Cylinder Diesel Engine

Included:
500' of 20' x 4-1/2" Drill Rods
500' of 20' x 2-1/2" Drill Rods



Id: WR503
Schramm T130XD Drill Rig - for Sale


Schramm T130XD Drill Rig - for Sale

Worldrigs ID: WR503

Model : T130XD Drill Rig
Manufacturer : Schramm
Year : 2007
Condition : Used

Description :

2007 Schramm T130XD Drill Rig
Tilt-out top head
Iron Roughneck
Diesel Deck Engine (Less than 1000 hours on engine)
Shop-built pipe handling system
Mounted on a CCC Truck
Diesel Engine

Location : USA

Id: WR47
Schramm T660W Used Drilling Rig for Sale


Schramm T660W Used Drilling Rig for Sale

Worldrigs ID: WR47

Model : T660W Drill Rig
Manufacturer : Schramm
Condition : Used

Description :

1999 Schramm T660W Drill Rig
Diesel Deck Engine
Sullair 900 cfm / 350 psi Air Compressor
Water Injection Pump
Hammer Lubricator
Pipe Rack
Hydraulic Leveling Jacks
Mounted on a Truck (left hand drive)
Diesel Engine

Location : Australia

Id: WR245
Schramm T450WS Drill Rig for Sale


Schramm T450WS Drill Rig for Sale

Worldrigs ID: WR245

Model No : T450WS Drill Rig
Manufacturer : Schramm
Model Year : 1998
Condition : Used

Description

1998 Schramm T450WS drill rig - S/N: J102-B140
CAT 3406 Diesel Deck Engine @ 465 HP @ 1,800 RPM +
(estimated around 4,500 hours & Dyno Tested @ EWD)

Sullair 1000 cfm / 350 psi Air Compressor
9,000 Hours on gauge
2 Cylinder FMC Water Injection Pump
Graco Hammer Oilier
Carousel
Newer Head Rollers & Motor.
Mounted on a International 4900 Truck - VIN#: 1HT5HADR5WH577619.
Powered by 466 International Diesel Engine,
76,500 Miles on gauge
10 speed transmission
Posi-lock rears
Tires 50% +-

Location :  USA

Id: WR46
Schramm TXD 200 Drill Rig & Package for Sale


Schramm TXD 200 Drill Rig & Package for Sale

Worldrigs ID: WR46

Model : TXD 200 Drill Rig & Package
Manufacturer : Schramm
Year : 2007
Condition : Used

Description :

2007 Schramm TXD200 Drill Rig
Mounted on a 3 axle Trailer
Detroit DDC/MTU 12V-2000TA DDEC Diesel Deck Engine
760 bhp (567 kw) @ 1800 rpm
2 x 110 gallon (415 l) fuel tank
50' ft (15.24 M) head travel
200,000 lbf (890 kN) hoist capacity
100 fpm (30.5 m/min) hoist speed
32,000 lbf (142 kN) pulldown
200 fpm (61 m/min) pulldown speed
Table Opening: 30" inches (768 mm) diameter with table retracted
Hydraulically retractable slip box
Lifts drill pipe & casing from horizontal position into alignment with tilt top head
Racks and stores tubulars
Positions blowout preventer
47' ft (14.3 m) maximum tubular length, Range III Tower
30" inch (0.76 M) maximum diameter casing capability
5,000 lb (2,268 kg) tubular lift capacity
Up to 32,000 lbf (142 kN) pulldown
engine hours only 168 hours
total rig hours around 25,000
Range III tubular capability tower
Precise hydraulic weight on bit control
Compact 53 ft (16.2 m) transport length

Complete Drilling Package Sold Together:
Trailer Mounted LoadSafe® automated pipe handling system
Dog House Mounted on a Trailer with Geolograph mounted inside and 100KW Generator Set
Rolling Tail Board Trailer
355 Drill Pipe (31' x 3-1/2")
12 Drill Collars (4.75")
8 Drill Collars (6.5")
(3) Three 40’ ft Sea Containers including Iron Roughneck, BOP’s and Other Equipment, Spare Components, and Tooling all included list to be provided by an excel spreadsheet by request to a sales rep.

Id: WR55
Schramm T450WS Drilling Rig - 2004 Built - for Sale


Schramm T450WS Drilling Rig - 2004 Built - for Sale

Worldrigs ID: WR55

Model : T450WS Drill Rig
Manufacturer : Schramm
Year : 2004
Condition : Used

Description :

2004 Schramm T450WS Rotadrill Rig
Meter Reads 6,994 hours
Sullair 900 cfm / 350 psi With Clutch
CAT 3406 Diesel Engine
Mounted on a 2004 Sterling Acterra Truck with a total of only 32,600 miles
CAT 3126 diesel engine @ 300 HP
Set Back Axle – Truck
Eaton Fuller RTO-11909ALL Transmission
Front Axle 18,000 lb.
Merito RT-40-145 R-SRS Tandem Rear Axle @ 40.000 lb.
5.29 Axle Ratio

219 inch wheel base with 60 inch rear axle spacing.
Mast, 28’ 6” Travel Special
Slow Feed Drill-Up Valve
Upgrade Traverse Cylinder, 28’ 6” Travel
Increase cylinder rod diameter to 2.75”. Pulldown increased to 22,000 lbs.
Pullback decreased to 27,000 lbs
Rotation Motor, 40.6 cu.in
Top Head, Single Motor, 28.5’
Top Head Rotation
RPM 0-110, Torque 75,390 in.-lb.
Split Table Assembly, 4 ½”
Several custom bushings, Custom made hydraulic open & close table
Breakout Wrench 60”

Heater, Electric Deck Engine Block
Tool Lubricator, Piston Pump
Stand Pipe, 2” Aux Mud

Out riggers , Rear Two 4 inch bore, 36 inch stroke
Front out rigger , Special
Custom built, telescoping outrigger, Truck hood can be completely opened,
no butterfly doors required
Jib Boom, Hydr Swing & Extend
Lazy Susan, 8 rod BO (4.5”)
Sliding Top Head, Hydraulic
Auxiliary Winch Controls
Winch 9,600 lb. (150’ x ½”)
Foam Injection, Cat 35 GPM
Model 3520 : 23 gpm @ 2000 psi
Angled Rack, 18 inch rise
Pipe Rack, 2w x 4h

Full Side Walkways
Extra Service Air Lines plumbed in
Drill Pipe (4.5” x 3 ½ API Reg x 20’)
500' feet included
Accessories included with Rig
Wilden M-15 Mud pump and hoses

Mud pit, (carried under mast while moving)
Stabilizer Bar (12 foot x 7 inch), (mounted inside mast)
Stabilizer Bar for 8 inch hammer, (kept as a unit and mounts on
the side of the mast)
Running IR, QL60, and QL80 hammers
Arc Welder, Hobart, Champion 10,000, low hours only 154
Barber Floating Cushion Sub, model PD6-2
X-Drill system and air activated diverter head
Controls and Divertor Head mounts in minutes
Misc., Tri-cone and Hammer Bits, Wrenches, Bushings and Hoses

Location : N.E. Region

Id: WR537
Schramm T64HB Drill Rig


Schramm T64HB Drill Rig

Worldrigs ID: WR537

Model : T64HB Drill Rig
Manufacturer : Schramm
Condition : Used

Description :

Schramm T64HB Drill Rig - Serial Number: T64HB-637
425 cfm / 250 psi Air Compressor
Detroit 8V71N Diesel Deck Engine
CAT water injection pump
Pipe Rack
3 hydraulic leveling jacks
Mounted on GMC 6500 truck
Gasoline Engine

Location : USA

Id: WR539
Schramm T64HB Drill Rig - for Sale


Schramm T64HB Drill Rig - for Sale

Worldrigs ID: WR539

Model : T64HB Drill Rig
Manufacturer : Schramm
Condition : Used

Description :

Schramm T64HB Drill Rig - Serial Number: T64HB-1313
425 cfm / 250 psi Air Compressor
Detroit 8V71N Diesel Deck Engine
Pipe Rack
3 hydraulic leveling jacks
Mounted on a GMC truck - VIN TJV738V578079
diesel engine

Location : USA

Id: WR399
Schramm T64HB Drill Rig for Sale


Schramm T64HB Drill Rig for Sale

Worldrigs ID: WR399

Model : T660H Drilling Rig
Manufacturer : Schramm
Condition : Used

Description :

Schramm T64HB Drill Rig,
1 owner since bought new & retrofitted it 1988/1989
Sullair 750 cfm / 250 psi rotary screw air compressor
Detroit Silver Diesel Deck Engine (rebuilt 4 years ago)
Well maintained (not used much since 2013)
500' ft. of drill pipe, Hammer, and Tooling included
Mounted on a Truck
Gas Engine

Included as a package:
1981 International water truck
Diesel Engine
In-bed tank
single axle

Location : USA

Id: WR51
Schramm T300M Drill Rig for Sale


Schramm T300M Drill Rig for Sale

Worldrigs ID: WR51

Model : T300M Drill Rig
Manufacturer : Schramm
Year : 2007
Condition : Used

Description :

2007 Schramm T300M Vertical Rotadrill
International 7500 6x6 Truck
Powered by DT340 9.3 Int'l Diesel Engine
340HP Diesel
Eaton 8LL speed transmission
Ext. color white & blue
Bodystyle Drill Truck
Meter reads 46,530 miles
20,000 Front, 46,000 Rears,
Winch,
4 Hydraulic Stabilizers,
Centerline Simplex Pump,
Meritor PTO Transfer Case,
Funk 28000 Hydraulic pump

Location : USA

Id: WR540
Schramm T64HB Drill Rig for Sale


Schramm T64HB Drill Rig for Sale

Worldrigs ID: WR540

Model : T64HB Drill Rig
Manufacturer : Schramm
Condition : Used

Description :

Schramm T64HB Drill Rig
425 cfm / 250 psi Air Compressor
Detroit 8V71N Diesel Deck Engine
Pipe Rack
3 hydraulic leveling jacks
Mounted on Ford Truck

Location : USA

Id: WR97
Schramm T64HB Drill Rig for Sale


Schramm T64HB Drill Rig for Sale

Worldrigs ID: WR97

Model : T64HB Drill Rig
Manufacturer : Schramm
Year : 1978
Condition : Used

Description :

1978 Schramm T64HB drill rig
425 cfm / 250 psi Air Compressor (Piston Type)
Detroit 8V71 Diesel Deck Engine
400' ft of drill pipe (20' x 4-1/2") & basic tooling included
Water Injection Pump
Hammer Oilier
20,000 lbs of pullback
Aardvark Casing Hammer installed (Can be removed if not wanted)
Mounted on a 1978 GMC Truck
427 Gas Engine

Location : USA

Id: WR501
Schramm TH130 (T-130-XD) Drill Rig for Sale


Schramm TH130 (T-130-XD) Drill Rig for Sale

Worldrigs ID: WR501

Model : TH130 (T-130-XD) Drill Rig
Manufacturer : Schramm
Year : 2003
Condition : Used

Description :

2003 Schramm TH130 (T-130-XD) Drill Rig
760 hp diesel deck engine - 8,700 hours
130,000 lbs. (59,090 kg) of pullback
28 inch (711 mm) table opening
Mounted on a CCC Truck
Diesel Engine

Package Includes:
Joy Booster
Back on ramp
Doghouse, fuel tank, light plant trailer-mounted
Pipe & Collar Trailers
2 - 1150 HD X 350 Comp Hurricane Booster Trailer
Mounted with Walk-ways
2 - 1150 HD X 350 Comp Hurricane Booster Trailer
Mounted with Walk-ways
12 X 50 Steel Pit with Shale Shaker
Ideco 550 Duplex Mud Pump
Drill Pipe – (4-1⁄2”) 3500’ ft Range 2
130,000 lbs. (59,090 kg) actual pullup
28 inch (711 mm) table opening
760 hp diesel deck engine - 8,700 hours

Location : USA

Id: WR76
Schramm T64HB Drill Rig for Sale


Schramm T64HB Drill Rig for Sale

Worldrigs ID: WR76

Model : T64HB Drill Rig
Manufacturer : Schramm
Year : 1985
Condition : Used

Description :

1985 Schramm T64HB Drill Rig - Retrofitted
2005 Detroit 8V92 Diesel Deck Engine (Silver Turbo Series)
1987 Ingersoll-Rand 750 cfm / 250 psi Air Compressor
(Rebuilt with 0 hours as off May 2013)
30' ft Mast - Handles 20' ft drill rods
4 rod lazy susan - carousel
used 20' ft. drill rods included
3 leveling jacks
Mounted on a GMC Truck
Diesel Engine

Location : Canada

Id: WR77
Schramm T-555 Drilling rig For Sale


Schramm T-555 Drilling rig For Sale

Worldrigs ID: WR77

Model : T-555
Manufacturer : Schramm
Year : 2002
Condition : Used

Description :

2002 Schramm T-555 Drill Rig
Sullair 1070 CFM / 500 PSI Air compressor,
75,348 in lbs torque @ 0-131 RPM,
40,000 pullback,
30,000 pulldown.
CAT C-15 DIT Diesel Deck Engine @ 565 HP with 6,326 Hours
18 GPM Bean water pump
280' ft of (4 1/2 rod with 3 1/2 IF pin, box ends).
Note: can hold 300' ft in the rod box and can run 20" Casing pipe
DTH oilier, Sandline Semco S6
Hydraulic swing and extend Jib boom
Secondary winch Pullmaster M8-3-30-1
Primary winch
Mounted on a 2002 International 2674 Truck
Powered by Cummins ISM370 Diesel Engine
21,529 miles

Location : USA

Id: WR296
Schramm T450 Drill Rig 2009 Built for Sale


Schramm T450 Drill Rig 2009 Built for Sale

Worldrigs ID: WR296

Model : T450 Drill Rig
Manufacturer : Schramm
Year : 2009
Condition : Used

Description :

2009 Schramm T450 Drill Rig
Diesel Deck Engine
Air Compressor
Water Injection Pump
Hammer Oilier
200' ft of used Drill Pipe & tooling included
Carousel
2000 Frame Hours
hydraulic leveling jacks
Mounted on 2009 Peterbuilt 6x6 chassis truck
Diesel Engine

Location : USA

Id: WR99
Schramm T64HB drilling rig for Sale


Schramm T64HB drilling rig for Sale

Worldrigs ID: WR99

Manufacturer : Schramm
Model No : T64HB
Year : 1970
Condition : Used

Description :

1970 Schramm T64HB Drill Rig
Detroit 8V71 Diesel Deck Engine
425 cfm / 250 psi Air Compressor (needs to be rebuilt or replaced)
200' ft of drill pipe (20' x 4 1/2") & 6" Hammer & Bit included
(1) Portable LeRoi 750 cfm / 150 psi Air Compressor
(powered by Cummins 6 cylinder diesel engine) included
Mounted on a 1970 Ford F-850 Truck
Ford Gas Engine
18,500 +- (original miles)

Location : USA

Id: WR558
Schramm T660 Drill Rig For Sale


Schramm T660 Drill Rig For Sale

Worldrigs ID: WR558

Model : T660 Drill Rig
Manufacturer : Schramm
Model Year : 1988
Condition : Used

Description :

1987 Schramm T660 Drill Rig
GHH 850 cfm / 350 psi Air Compressor - rated 2100 RPM (new seals & compressor shaft)
Detroit 8V92TA Diesel Deck Engine
Top Head Power Drive (Rebuilt)
Bean Water Injection Pump (New)
Hammber Lubricator
8350+ Hours on gauge
3 hydraulic leveling jacks
Pipe rack
Mounted on a 1987 GMC Brigader Truck
Diesel Engine
41615+ Miles & 1525+ Hours
15300 lbs Front & 38000 lbs Rear axles

New Parts Installed: Most hydraulic hoses replaced, new cooler,
New hoist winch, new gauges & switches on control panel,
new feed cylinders & sprockets, and more.

Location : USA

Id: WR469
Schramm T450GT Crawler Drill Rig for Sale


Schramm T450GT Crawler Drill Rig for Sale

Worldrigs ID: WR469

Model : T450GT Drill Rig
Manufacturer : Schramm
Year : 2008
Condition : Used

Description :

2008 Schramm T450GT Crawler Drill Rig
Caterpillar C-15 diesel engine @ 580 HP - S/N JRE09405
Sullair 1050 cfm / 350 psi air compressor with clutch
Floating sub
15 Rod Carousel - handles 3-1/2" Pipe
500' ft of 3-1/2" x 20' x 2-3/8" IF thread (estimated 50% condition)
Washington diverter
Hydraulic welder
Hammer lubricator
4 piston water injection pump
Rod spinner
2 motor power head
6,440 hours on gauge

Location : USA

Id: WR83
Schramm T64HB Drill Rig for Sale


Schramm T64HB Drill Rig for Sale

Worldrigs ID: WR83

Model : T64HB
Manufacturer : Schramm
Year : 1972
Condition : used

Description :

1972 Schramm T64HB drill rig
Detroit 8V71 Diesel Deck Engine
425 cfm / 250 psi Air Compressor
Water Injection Pump
Hammer Lubricator
200' ft of Drill Pipe (20' x 4-1/2") and basic tooling included
6" & 8" Hammers & Bits included
Lincoln 225 G7 Welder & Generator on board
Super Rapid Head Travel (loading pipe)
Mounted on a GMC truck
6V53 Diesel Engine
13 Speed Transmission
Flotation Tires (Front), Newer Front Brakes, Newer Transmission

Location : USA

Id: WR112
Schramm T64HB Used Drilling Rig for Sale


Schramm T64HB Used Drilling Rig for Sale

Worldrigs ID: WR112

Model : T64HB
Manufacturer : Schramm
Condition : Used

Description :

Mid 1970's Schramm T64HB drill rig
Detroit 8V71 diesel deck engine
425 cfm / 250 psi air compressor
200' ft of used drill pipe (20' x 4 1/2" x 2 7/8)
4" kelly, bit and basic hand tooling included
Mounted on a 1975 mack truck
Diesel engine

Location : USA

Id: WR311
Schramm T450WS Drilling Rig for Sale


Schramm T450WS Drilling Rig for Sale

Worldrigs ID: WR311

Model : T450WS Drill Rig
Manufacturer : Schramm
Year : 2001
Condition : Used

Description :

2001 Schramm T450WS Drill Rig
CAT 3406C DITA @ 465 HP & 1800 RPM Diesel Deck S/N  3ER07498
Sullair 900 CFM / 350 PSIAir Compressor - In very good working condition.
300' ft of Drill Pipe & basic tooling included
Hammer Lubricator
Water Injection Pump
3 hydraulic leveling jacks
Mounted on a International Truck 4900 6x4/300hp
Diesel Engine

Location : West Africa

Last updated : Wednesday 18th of October 2017

If you have land rigs to sell or you want to buy land rigs or you cannot find the type of rig that you are looking for,
please contact us on email
 or call +65 97768837.
Id: WR558
Schramm T660 Drill Rig For Sale


Schramm T660 Drill Rig For Sale

Worldrigs ID: WR558

Model : T660 Drill Rig
Manufacturer : Schramm
Model Year : 1988
Condition : Used

Description :

1987 Schramm T660 Drill Rig
GHH 850 cfm / 350 psi Air Compressor - rated 2100 RPM (new seals & compressor shaft)
Detroit 8V92TA Diesel Deck Engine
Top Head Power Drive (Rebuilt)
Bean Water Injection Pump (New)
Hammber Lubricator
8350+ Hours on gauge
3 hydraulic leveling jacks
Pipe rack
Mounted on a 1987 GMC Brigader Truck
Diesel Engine
41615+ Miles & 1525+ Hours
15300 lbs Front & 38000 lbs Rear axles

New Parts Installed: Most hydraulic hoses replaced, new cooler,
New hoist winch, new gauges & switches on control panel,
new feed cylinders & sprockets, and more.

Location : USA

Id: WR296
Schramm T450 Drill Rig 2009 Built for Sale


Schramm T450 Drill Rig 2009 Built for Sale

Worldrigs ID: WR296

Model : T450 Drill Rig
Manufacturer : Schramm
Year : 2009
Condition : Used

Description :

2009 Schramm T450 Drill Rig
Diesel Deck Engine
Air Compressor
Water Injection Pump
Hammer Oilier
200' ft of used Drill Pipe & tooling included
Carousel
2000 Frame Hours
hydraulic leveling jacks
Mounted on 2009 Peterbuilt 6x6 chassis truck
Diesel Engine

Location : USA

Id: WR240
Schramm T130 Drill Rig - Range III for Sale


Schramm T130 Drill Rig - Range III for Sale

Worldrigs ID: WR240

Model : T130 drill rig - Range III
Manufacturer : Schramm
Year : 2004
Condition : Used

Description :

2004 Schramm T130 drill rig - Range III
Substtructure, Rig Floor, Hand Rails, Center Cat Walk,
MTU V12-2000TA DDEC Diesel Deck Engine @ 760 HP
Meter Reads 13,774.8+ Hours
Hammer Oilier
130,000 lbs. (59,090 kg) actual Pullback
28" inch (711 mm) table opening
50' feet (15.25 m) of clear head travel
3-in ID spindle with optional 5.25-in spindle .
Mounted on a CCC (Crane Carrier Company) Truck
VIN# 1CYDGD5874T046284
CAT C12 Diesel Engine @ 410 HP with 4,013.8+ miles
Note: New Complete Paint Job finished in May 2013 with wells drilled after since
Located in Eastern Region, USA
Also available are: dog house, 6000' of 4 /12 inch ingersoll style drill pipe
and 2 pipe trailers with tugger winch (Cost Extra)

Location : USA

Id: WR526
Schramm T450GT Track Mounted Drill Rig for Sale


Schramm T450GT Track Mounted Drill Rig for Sale

Worldrigs ID: WR526

Manufacturer : Schramm
Model Year : 2008
Model No : T450GT Drill Rig
Condition : Used



Description


2008 Schramm T450GT Track Mounted Drill Rig
CAT C15 Diesel Engine
Sullair 1050 cfm / 350 psi Air Compressor
15 Rod Lazy Susan (set-up for 3.5” OD drill rod)
28’ 6” travel in the mast
C15 Auxiliary Rotation Valve
Slow Feed Rotation Valve
Fixed Console
Rotary Head – Single Motor 29.2 cu in
Hydraulic Table Assembly set-up for 3.5” OD drill pipe
60” breakout wrench
18,000 lbs Main Winch with Jib Boom (hydraulic swing and extend) & (150’ x 5/8”)
Sandline (capacity 700’ x ¼” cable)
Bean Water Injection
Remote Tramming Controls
Undercarriage is a CAT C315L on Metal Tracks
Hours = 7950 hours on the rig


Location : USA

Id: WR55
Schramm T450WS Drilling Rig - 2004 Built - for Sale


Schramm T450WS Drilling Rig - 2004 Built - for Sale

Worldrigs ID: WR55

Model : T450WS Drill Rig
Manufacturer : Schramm
Year : 2004
Condition : Used

Description :

2004 Schramm T450WS Rotadrill Rig
Meter Reads 6,994 hours
Sullair 900 cfm / 350 psi With Clutch
CAT 3406 Diesel Engine
Mounted on a 2004 Sterling Acterra Truck with a total of only 32,600 miles
CAT 3126 diesel engine @ 300 HP
Set Back Axle – Truck
Eaton Fuller RTO-11909ALL Transmission
Front Axle 18,000 lb.
Merito RT-40-145 R-SRS Tandem Rear Axle @ 40.000 lb.
5.29 Axle Ratio

219 inch wheel base with 60 inch rear axle spacing.
Mast, 28’ 6” Travel Special
Slow Feed Drill-Up Valve
Upgrade Traverse Cylinder, 28’ 6” Travel
Increase cylinder rod diameter to 2.75”. Pulldown increased to 22,000 lbs.
Pullback decreased to 27,000 lbs
Rotation Motor, 40.6 cu.in
Top Head, Single Motor, 28.5’
Top Head Rotation
RPM 0-110, Torque 75,390 in.-lb.
Split Table Assembly, 4 ½”
Several custom bushings, Custom made hydraulic open & close table
Breakout Wrench 60”

Heater, Electric Deck Engine Block
Tool Lubricator, Piston Pump
Stand Pipe, 2” Aux Mud

Out riggers , Rear Two 4 inch bore, 36 inch stroke
Front out rigger , Special
Custom built, telescoping outrigger, Truck hood can be completely opened,
no butterfly doors required
Jib Boom, Hydr Swing & Extend
Lazy Susan, 8 rod BO (4.5”)
Sliding Top Head, Hydraulic
Auxiliary Winch Controls
Winch 9,600 lb. (150’ x ½”)
Foam Injection, Cat 35 GPM
Model 3520 : 23 gpm @ 2000 psi
Angled Rack, 18 inch rise
Pipe Rack, 2w x 4h

Full Side Walkways
Extra Service Air Lines plumbed in
Drill Pipe (4.5” x 3 ½ API Reg x 20’)
500' feet included
Accessories included with Rig
Wilden M-15 Mud pump and hoses

Mud pit, (carried under mast while moving)
Stabilizer Bar (12 foot x 7 inch), (mounted inside mast)
Stabilizer Bar for 8 inch hammer, (kept as a unit and mounts on
the side of the mast)
Running IR, QL60, and QL80 hammers
Arc Welder, Hobart, Champion 10,000, low hours only 154
Barber Floating Cushion Sub, model PD6-2
X-Drill system and air activated diverter head
Controls and Divertor Head mounts in minutes
Misc., Tri-cone and Hammer Bits, Wrenches, Bushings and Hoses

Location : N.E. Region

Id: WR46
Schramm TXD 200 Drill Rig & Package for Sale


Schramm TXD 200 Drill Rig & Package for Sale

Worldrigs ID: WR46

Model : TXD 200 Drill Rig & Package
Manufacturer : Schramm
Year : 2007
Condition : Used

Description :

2007 Schramm TXD200 Drill Rig
Mounted on a 3 axle Trailer
Detroit DDC/MTU 12V-2000TA DDEC Diesel Deck Engine
760 bhp (567 kw) @ 1800 rpm
2 x 110 gallon (415 l) fuel tank
50' ft (15.24 M) head travel
200,000 lbf (890 kN) hoist capacity
100 fpm (30.5 m/min) hoist speed
32,000 lbf (142 kN) pulldown
200 fpm (61 m/min) pulldown speed
Table Opening: 30" inches (768 mm) diameter with table retracted
Hydraulically retractable slip box
Lifts drill pipe & casing from horizontal position into alignment with tilt top head
Racks and stores tubulars
Positions blowout preventer
47' ft (14.3 m) maximum tubular length, Range III Tower
30" inch (0.76 M) maximum diameter casing capability
5,000 lb (2,268 kg) tubular lift capacity
Up to 32,000 lbf (142 kN) pulldown
engine hours only 168 hours
total rig hours around 25,000
Range III tubular capability tower
Precise hydraulic weight on bit control
Compact 53 ft (16.2 m) transport length

Complete Drilling Package Sold Together:
Trailer Mounted LoadSafe® automated pipe handling system
Dog House Mounted on a Trailer with Geolograph mounted inside and 100KW Generator Set
Rolling Tail Board Trailer
355 Drill Pipe (31' x 3-1/2")
12 Drill Collars (4.75")
8 Drill Collars (6.5")
(3) Three 40’ ft Sea Containers including Iron Roughneck, BOP’s and Other Equipment, Spare Components, and Tooling all included list to be provided by an excel spreadsheet by request to a sales rep.

Id: WR399
Schramm T64HB Drill Rig for Sale


Schramm T64HB Drill Rig for Sale

Worldrigs ID: WR399

Model : T660H Drilling Rig
Manufacturer : Schramm
Condition : Used

Description :

Schramm T64HB Drill Rig,
1 owner since bought new & retrofitted it 1988/1989
Sullair 750 cfm / 250 psi rotary screw air compressor
Detroit Silver Diesel Deck Engine (rebuilt 4 years ago)
Well maintained (not used much since 2013)
500' ft. of drill pipe, Hammer, and Tooling included
Mounted on a Truck
Gas Engine

Included as a package:
1981 International water truck
Diesel Engine
In-bed tank
single axle

Location : USA

Id: WR502
Schramm T130XD Drill Rig for Sale


Schramm T130XD Drill Rig for Sale

Worldrigs ID: WR502

Model : T130XD Drill Rig
Manufacturer : Schramm
Year : 2005
Condition : Used

Description :

2005 Schramm T130XD Drill Rig
Diesel Deck Engine 760 hp
130,000 lbs. (59,090 kg) actual pullup
28 inch (711 mm) table opening
1350/350 – 1150/500 variable volume compressor
(38 cu. m/min @ 24.1 bar & 32.6 cu m/min @ 35.5 bar)
50 feet (15.25 m) of clear head travel
Range III casing
Mounted on a CCC Truck
Diesel Engine
New pumps, new tires, 100% operating

Location : USA

Id: WR291
Schramm T130XD Drill Rig & Package for Sale


Schramm T130XD Drill Rig & Package for Sale

Worldrigs ID: WR291

Model : T130XD Drill Rig
Manufacturer : Schramm
Condition : Used

Description :

Schramm T130XD Drill Rig - RC
Tilt Head
Diesel Deck Engine
130,000 lbs of Pullback
Set up for R/C Flooded Reverse drilling method (for large diameter Ag Wells)
Mounted on a CCC (Crane Carrier Company) Truck
Tooling includes hand Wrenches, Iron rough nech break out systems
Diesel Engine

Package Includes or Sold Seperately:
Schramm XD-130 Loadsafe  Pipe Handling System that is mounted on Trailer

Location : USA

Id: WR101
Schramm T64HB Drill Rig for Sale


Schramm T64HB Drill Rig for Sale

Worldrigs ID: WR101

Model : T64HB
Manufacturer : Schramm
Year : 1978
Condition : used

Description :

1978 Schramm T64HB drill rig
IR HR2 750 cfm / 250 psi Air Compressor
(1993 year model with low hours since & newer bearings)

Removed - Detroit 8V92 Diesel Deck Engine (has been removed &
needs to be replaced at an extra cost)

CAT 18 GPM Water Injection Pump
Hammer Oilier
Rebuilt Power Head
Includes: 6" Mission Hammer & Bit, 4 used Drill Pipes (20' x 4 1/2"), and Tooling
Mounted on a 1978 GMC Brigadier Truck
Detroit 6V53 Diesel Engine (1996 model with 3,000 miles since)
43,000 miles on frame

Location : USA

Id: WR216
Schramm T450 Drilling Rig for Sale


Schramm T450 Drilling Rig for Sale

Worldrigs ID: WR216

Model : T450 Drill Rig
Manufacturer : Schramm
Year : 1988
Condition : Used

Description :

1988 Schramm T450 Drill Rig
Diesel Deck Engine
Air Compressor
Carousel
Centrifugal Pump
Pipe Rack
3 hydraulic leveling jacks
Mounted on a Truck
Diesel Engine

Location : USA

Id: WR78
Schramm T450W Drill Rig for Sale


Schramm T450W Drill Rig for Sale

Worldrigs ID: WR78

Model : T450W Drill Rig
Manufacturer : Schramm
Year : 1995
Condition : Used

Description :

1995 Schramm T450W Drill Rig
GHH 1000 cfm / 350 psi Air Compressor
Powered by 60 Series Detroit Diesel Deck Engine
with Electronic Panel (4,000 hours)
Mounted on a 1995 Ford L8000 Louiville Truck
10 Speed Eaton Transmission
72,145 KM on gauge
Cummins Model FD1460 6 Cylinder Diesel Engine

Included:
500' of 20' x 4-1/2" Drill Rods
500' of 20' x 2-1/2" Drill Rods



Id: WR486
Schramm T64HB Drill Rig for Sale


Schramm T64HB Drill Rig for Sale

Worldrigs ID: WR486

Model : T64HB Drill Rig
Manufacturer : Schramm
Condition : Used
Year : 1978

Description :

1978 Schramm T64HB Drill Rig
GHH 600 cfm / 250 psi Air Compressor
Detroit 8V92N Diesel Deck Engine
Cat water injection pump
2 motor power head
260' ft of  (4-1/2” x 20’ x 3-1/2" API reg thread)
Mounted on GMC 7500 Truck
Powered by Detroit 6V53 Diesel Engine
13 speed transmission

Location : USA

Id: WR499
Schramm T64HB Drill Rig Drill Rig For Sale


Schramm T64HB Drill Rig Drill Rig For Sale

Worldrigs ID: WR499

Model : T64 HB Drill RigB Drill Rig
Manufacturer : Schramm
Year : 1978
Condition : Used

Description :

1978 Schramm T64HB Drill Rig
GHH 425 cfm / 250 psi Air Compressor
Detroit 8V71N Diesel Deck Engine
Cat water injection pump
2 motor power head
260' ft of  (4-1/2” x 20’ x 3-1/2" API reg thread)
Mounted on GMC 7500 Truck
Powered by Detroit 6V53 Diesel Engine
13 speed transmission

Location : USA


Id: WR427
Schramm T130XD Drill Rig -2005 Built - for Sale


Schramm T130XD Drill Rig -2005 Built - for Sale

Worldrigs ID: WR427

Model : T130XD Drill Rig with RC (Reverse Circulation) package
Manufacturer : Schramm
Year : 2005
Condition : Used


Description :


2005 Schramm T130XD Drill Rig with RC (Reverse Circulation) package
14,600 Hours & 4,250 Miles – newer tires
Detroit DDC/MTU 12V-2000 TA DDEC Diesel Deck engine @ 760 HP
Telescoping mast with 130,000 lbs of pullback
Sullair 1350/350 and 1150/500 dual 2-stage air compressor (on board)
Mounted on a CCC (Crane Carrier Company) Truck
CAT C13 diesel engine
Newer Tires


Note:rig is set up with RC (Reverse Circulation) package. The drills have
reverse circulation tilt tophead power drives, side inlet air swivels,
discharge swivels, mast mounted discharge stand pipe
(applications for either flooded reverse or standard RC drilling).


Location : USA

Id: WR413
Schramm T130XD Drill Rig & Package for sale


Schramm T130XD Drill Rig & Package for sale

Worldrigs ID: WR413
Description

Heavy Hoist Top Drive
MTU/Detroit DDC1MTU 12V-2000 Diesel Deck Engine @ 760 HP
Gauges & Safety Shut Down
50' ft Clear Head Travel To Accommodate Range III
Hydraulic Pipe Handling Winch
Pullback Loads Are Directed To Ground & Not To Carrier Frame (Hydraulically Raised & Scoped)
32,000 lbs Of Pull Down & 130,000 lbs Of Pull Down
Rotation System Dual Low Speed With High Torque Motors
Single Pipe Loading Arm
Air & Mud Fluid Lines
Operators Console
Mounted On A 2006 Ccc (Crane Carrier Company) Truck With 5-Axles
Cat C-12 Diesel Engine
117,500 GVW
Fuller 8 Speed Transmission
425/65R-22.5 Front, 11R/22.5 Rear Tires,
Disc Wheels

Sold Together As A Package Which Includes:
2'h X 11'8"W X 49'l Back On Sub Base With Hydaulic Outrigger Positions, Skidded
8'w X 30'l Round Top Generator House: Cat 60kw Ac Generator,
Model D200-P3 Powered By Cat C4.4 Diesel Engine,
Switch Gear, Lighting Panels & Controls, Mounted Skidded

8'w X 32'l With 8'l Covered Porch Doghouse Constructed In 3 Sections:
Doghouse With Knowledge Box, Bench Storage,
Storage Shelving,
Change Room With Lockers & Storage Facilities,
Parts & Mechanical Room,
Work Bench,
Parts Storage,
Area For Repairs & Maintenance,
Heater & Lights,
Mounted On A 2008 Stanton Dynamics T/A Trailer,
8'w X 40'l W/ Stairways,
Folding Walkways,
Safety Railings,
11R/22.5 Tires,
Disc Wheels

Location: USA
Id: WR98
Schramm T450W Drilling Rig for Sale


Schramm T450W Drilling Rig for Sale

Worldrigs ID: WR98

Model : T450W
Manufacturer : Schramm
Year : 1995
Condition : Used

Description :

1995 Schramm T450W drill rig (Retrofitted in 2007)
Rebuilt - GHH 825 cfm / 350 psi Air Compressor (with clutch and Rebuilt with 500 hours since)
Rebuilt - Detroit Series 60 diesel deck engine with * ADM Electronic Module (Rebuilt in 2007)
30,000 lbs of pull back
Single Motor top head
6 Rod Breakout style carousel

Slide over head 10,000 lbs winch
Hydraulic Jib Boom
DTH Lubricator
Tool boxes & Junk box
Three outriggers

25 GPM CAT Water Injection pump
10 Rod rack
Walkways
Set up for (4½" and 3 ½" API Reg x 20’) Drill rods
Webbasto engine heater
60” Break out wrench piping for mud pump

Atlas R2000 Hydraulic casing hammer (installed in 2009)
Drives 6”, 8”, & 10” casing
Mast guides
Swing-Jib
Hydraulic lifting cylinder
Lifting cylinder control
Mounted on a 1995 Ford LTS8000 truck
10 Speed Eaton Transmission

Location : USA

Id: WR312
Schramm T450W Drill Rig for Sale


Schramm T450W Drill Rig for Sale

Worldrigs ID: WR312

Model : T450W Drill Rig
Manufacturer : Schramm
Year : 2002
Condition : Used

Description :

2002 Schramm T450W Drill Rig
Sullair 900 cfm / 350 psi Air Compressor S/N 004-DC5732. In very good condition.
CAT 3406 Diesel Deck Engine
New at 0 hour as off 2007. In very good working condition.
Hammer Lubricator
Water Injection Pump
300' ft of 4-1/2” Drill Pipe & basic tooling included
Side Pipe Rack
7 rod carousel
Mounted on
Navistar 7400 6x4 (Engine has been changed but is still ok but the engine control is bad.)
Diesel Engine

Location : West Africa

Id: WR455
Schramm TXD 200 Hydraulic Super Single Drill Rig & Package for Sale


Schramm TXD 200 Hydraulic Super Single Drill Rig & Package for Sale

Worldrigs ID: WR455

Model : TXD Drill Rig
Manufacturer : Schramm
Year : 2007
Condition : Used

Description :

2007 Schramm TXD Hydraulic Super Single Drill Rig & Package
Drawworks: Input: Del. Diesel Engine MTU 12 V2000 (760 hp)
Mast: Schramm Telescopic Single - Height: 70' ft
Static Hook Load: 200,000 lbs (0 lines)

Substructure: Schramm - Setback Capacity: 200,000 lbs
Mud Pump #1: (Triplex) Gardner Denver PZ9 - Rated: 750 hp - Input: CAT (750 hp)
Mud Pump #2: (Triplex) Gardner Denver PZ9 - Rated: 750 hp - Input: CAT (750 hp)
Mud Pit: Pit(s): 252 bbl - Shaker PLC - 2 Mixing Pump(s):
Generators: Rated: 483 hp - Input: Marathon (536 hp) -
Rated: 483 hp - Input: Marathon (536 hp)

B.O.P's: Size: 11 in - Working Pressure: 5,000psi - Shaffer Annular - Schaffer
LWS-LXT Dbl Ram Blind Ram

Top Drive: Char Lynn Hydraulic Motors - Rating: 200,000 lbs
Swivel: Schramm - Rated: 200,080 lbs
Choke Manifold: Size: 0,079 in - Working Pressure: 5,000 psi
Accumulator: USA OilTools - 5 Stations
Pipe Handling: Schramm Pipe Arm
Auxiliary Equipment: Swaco Degasser
Drill Pipe: 150 Joints of 4” Pipe
Drill Collars: (6) 6” Collars – (4) 8” Collars

Location : USA

Id: WR97
Schramm T64HB Drill Rig for Sale


Schramm T64HB Drill Rig for Sale

Worldrigs ID: WR97

Model : T64HB Drill Rig
Manufacturer : Schramm
Year : 1978
Condition : Used

Description :

1978 Schramm T64HB drill rig
425 cfm / 250 psi Air Compressor (Piston Type)
Detroit 8V71 Diesel Deck Engine
400' ft of drill pipe (20' x 4-1/2") & basic tooling included
Water Injection Pump
Hammer Oilier
20,000 lbs of pullback
Aardvark Casing Hammer installed (Can be removed if not wanted)
Mounted on a 1978 GMC Truck
427 Gas Engine

Location : USA

Id: WR504
Schramm T64HB Drill Rig for Sale


Schramm T64HB Drill Rig for Sale

Worldrigs ID: WR504

Model : T64HB Drill Rig
Manufacturer : Schramm
Year : 1983
Condition : Used

Description

1983 Shramm T64HB Drill Rig
The air compressor was change for a new one and has 3500 hours since
Detroit Series-60 (Rebuilt with 2000 hours since)
700’ ft of (20' x 4½” OD) drill pipe included
The truck under as been change in 1995
Diesel Engine
The rig is working right now and is in good shape

Location : N.E. Region

Id: WR311
Schramm T450WS Drilling Rig for Sale


Schramm T450WS Drilling Rig for Sale

Worldrigs ID: WR311

Model : T450WS Drill Rig
Manufacturer : Schramm
Year : 2001
Condition : Used

Description :

2001 Schramm T450WS Drill Rig
CAT 3406C DITA @ 465 HP & 1800 RPM Diesel Deck S/N  3ER07498
Sullair 900 CFM / 350 PSIAir Compressor - In very good working condition.
300' ft of Drill Pipe & basic tooling included
Hammer Lubricator
Water Injection Pump
3 hydraulic leveling jacks
Mounted on a International Truck 4900 6x4/300hp
Diesel Engine

Location : West Africa

Id: WR76
Schramm T64HB Drill Rig for Sale


Schramm T64HB Drill Rig for Sale

Worldrigs ID: WR76

Model : T64HB Drill Rig
Manufacturer : Schramm
Year : 1985
Condition : Used

Description :

1985 Schramm T64HB Drill Rig - Retrofitted
2005 Detroit 8V92 Diesel Deck Engine (Silver Turbo Series)
1987 Ingersoll-Rand 750 cfm / 250 psi Air Compressor
(Rebuilt with 0 hours as off May 2013)
30' ft Mast - Handles 20' ft drill rods
4 rod lazy susan - carousel
used 20' ft. drill rods included
3 leveling jacks
Mounted on a GMC Truck
Diesel Engine

Location : Canada

Id: WR447
Schramm T450 Drill Rig for Sale


Schramm T450 Drill Rig for Sale

Worldrigs ID: WR447

Model : T450 Drill Rig
Manufacturer : Schramm
Condition : Used

Description :

Schramm T450 Drill Rig
Diesel Deck Engine
Air Compressor
Pipe Rack
Mounted on a Truck
Diesel Engine

Location : USA

Id: WR539
Schramm T64HB Drill Rig - for Sale


Schramm T64HB Drill Rig - for Sale

Worldrigs ID: WR539

Model : T64HB Drill Rig
Manufacturer : Schramm
Condition : Used

Description :

Schramm T64HB Drill Rig - Serial Number: T64HB-1313
425 cfm / 250 psi Air Compressor
Detroit 8V71N Diesel Deck Engine
Pipe Rack
3 hydraulic leveling jacks
Mounted on a GMC truck - VIN TJV738V578079
diesel engine

Location : USA

Id: WR503
Schramm T130XD Drill Rig - for Sale


Schramm T130XD Drill Rig - for Sale

Worldrigs ID: WR503

Model : T130XD Drill Rig
Manufacturer : Schramm
Year : 2007
Condition : Used

Description :

2007 Schramm T130XD Drill Rig
Tilt-out top head
Iron Roughneck
Diesel Deck Engine (Less than 1000 hours on engine)
Shop-built pipe handling system
Mounted on a CCC Truck
Diesel Engine

Location : USA

Id: WR69
Schramm T64HB Drill Rig for Sale


Schramm T64HB Drill Rig for Sale

Worldrigs ID: WR69

Model : T64HB Drill Rig
Manufacturer : Schramm
Year : N/A
Condition : Used

Description :

Schramm T64HB drill rig - S/N: 567
Detroit 8V71 Diesel Deck Engine (new clutch gear box) - S/N: 1501497
Rebuilt - Gaso 4-1/2" x 6" Duplex Mud Pump (on board) - S/N: 19246
Grimmer Schmidt (Hurricane) 2 stage piston compressor 500/200 or 750/125 - S/N: 903-82
New three stage hydraulic main pumps - S/N: BG66T5B5
Bean water injection pump
New gear box and clutch for air compressor
New 14' Rams & New Raise Mast Rams
Mounted on a 1972 GMC Truck - VIN#: TME WV 55012
GMC 427 Gas Engine

Location : USA

Id: WR577
Schramm T64HB Drill Rig for Sale


Schramm T64HB Drill Rig for Sale

Worldrigs ID: WR577

Model : T64HB Drill Rig
Manufacturer : Schramm
Year : 1973
Condition : Used

Description

1973 Schramm T64HB Drill Rig
Schramm 600 cfm / 100 psi air compressor
Detroit Diesel Deck Engine
300' feet of drill pipe & basic tooling included
Pipe Rack
3 Hydraulic Leveling Jacks
Mounted on a 1981 International Paystar 5000 truck
DT 466 diesel engine
It has a few minor leaks but can go to work

Location : USA

Id: WR560
Schramm T130 Drill Rig for Sale


Schramm T130 Drill Rig for Sale

Worldrigs ID: WR560

Model : T130 Drill Rig
Manufacturer : Schramm
Model Year : 2003
Condition : Used

Description

2003 Schramm T130 Drill Rig - S/N: J130-0707
Detroit DDC/MTU V12-2000TA DDEC Diesel Deck Engine
Mast: Telescoping construction permits long head travel 50’' ft
Note: Shorter length in transport position
130,000 lbs of Pullback
Free standing design with 28"” table opening
Sullair 1350 cfm / 350 psi Air Compressor (Rebuilt with low hours)
Hydraulic pumps (low hours since rebuilt)
Top Head: Fixed position - two hydraulic motors. 0-143 RPM with 106,600 in-lb of torque
Pipe handling sling
Set up for RD20 style (4-½”" X 30'’ X 2-7/8" IF) Drill Pipe
Carousel
Cat Water Injection Pump
Graco Hammer Lubricator
Mounted on a CCC (Crane Carrier Company) Truck - VIN#: 1CYDGD5843T046189
CAT diesel engine
425/65R22.5 front tires 12R22.5 rear tires
Sub Base: 9'’ wide 40'’ long and 3’' tall & Basic Tooling Included

Location : USA

Id: WR245
Schramm T450WS Drill Rig for Sale


Schramm T450WS Drill Rig for Sale

Worldrigs ID: WR245

Model No : T450WS Drill Rig
Manufacturer : Schramm
Model Year : 1998
Condition : Used

Description

1998 Schramm T450WS drill rig - S/N: J102-B140
CAT 3406 Diesel Deck Engine @ 465 HP @ 1,800 RPM +
(estimated around 4,500 hours & Dyno Tested @ EWD)

Sullair 1000 cfm / 350 psi Air Compressor
9,000 Hours on gauge
2 Cylinder FMC Water Injection Pump
Graco Hammer Oilier
Carousel
Newer Head Rollers & Motor.
Mounted on a International 4900 Truck - VIN#: 1HT5HADR5WH577619.
Powered by 466 International Diesel Engine,
76,500 Miles on gauge
10 speed transmission
Posi-lock rears
Tires 50% +-

Location :  USA

Id: WR113
Schramm T450W Drilling Rig for Sale


Schramm T450W Drilling Rig for Sale

Worldrigs ID: WR113

Model : T450W
Manufacturer : Schramm
Year : 1998
Condition : used

Description :

1998 Schramm T450W drill rig
Sullair 835 cfm / 350 air compressor
CAT 3406 diesel deck engine
Water injection pump
Hammer oilier
Around 6,750 hours on gauge
Slide power head
Mounted on 1998 international IH9000 truck
DT diesel engine

Location : USA

Id: WR47
Schramm T660W Used Drilling Rig for Sale


Schramm T660W Used Drilling Rig for Sale

Worldrigs ID: WR47

Model : T660W Drill Rig
Manufacturer : Schramm
Condition : Used

Description :

1999 Schramm T660W Drill Rig
Diesel Deck Engine
Sullair 900 cfm / 350 psi Air Compressor
Water Injection Pump
Hammer Lubricator
Pipe Rack
Hydraulic Leveling Jacks
Mounted on a Truck (left hand drive)
Diesel Engine

Location : Australia

Id: WR112
Schramm T64HB Used Drilling Rig for Sale


Schramm T64HB Used Drilling Rig for Sale

Worldrigs ID: WR112

Model : T64HB
Manufacturer : Schramm
Condition : Used

Description :

Mid 1970's Schramm T64HB drill rig
Detroit 8V71 diesel deck engine
425 cfm / 250 psi air compressor
200' ft of used drill pipe (20' x 4 1/2" x 2 7/8)
4" kelly, bit and basic hand tooling included
Mounted on a 1975 mack truck
Diesel engine

Location : USA

Id: WR51
Schramm T300M Drill Rig for Sale


Schramm T300M Drill Rig for Sale

Worldrigs ID: WR51

Model : T300M Drill Rig
Manufacturer : Schramm
Year : 2007
Condition : Used

Description :

2007 Schramm T300M Vertical Rotadrill
International 7500 6x6 Truck
Powered by DT340 9.3 Int'l Diesel Engine
340HP Diesel
Eaton 8LL speed transmission
Ext. color white & blue
Bodystyle Drill Truck
Meter reads 46,530 miles
20,000 Front, 46,000 Rears,
Winch,
4 Hydraulic Stabilizers,
Centerline Simplex Pump,
Meritor PTO Transfer Case,
Funk 28000 Hydraulic pump

Location : USA

Id: WR538
Schramm T64HB Drill Rig for Sale


Schramm T64HB Drill Rig for Sale

Worldrigs ID: WR538

Model : T64HB Drill Rig
Manufacturer : Schramm
Condition : Used

Description :

Schramm T64HB Drill Rig
Detroit 8V71N Diesel Deck Engine
Pipe Rack
3 hydraulic leveling jacks
Mounted on Ford truck - VIN T91KVR58157
Engine
Note: No Air Compressor on board (cost extra to install)

Location : USA

Id: WR49
Schramm T450BH Drill Rig with GT conversion


Schramm T450BH Drill Rig with GT conversion

Worldrigs ID: WR49

Model : T450BH Drill Rig
Manufacturer : Schramm
Year : 2002
Condition : Used

Description :

2002 Schramm T450BH Drill Rig with GT conversion
Mast 28’6” Travel
Top head, single motor, 40.6 cu in displacement- new packing
Split table bushing
48” breakout wrench
Sullair 900/350 compressor - Rebuilt
Caterpillar 3406C 465hp @ 1800 rpm
Variable displacement Hydraulic system (saves fuel and extends
hydraulic components)

Lazy Susan (choice of 15 rod x 3.5” OR 12 rod x 4.5”), no manual loading
Water Injection 25 gpm Cat pump
Winch, 5,800 lb (125 x 7/16”)
200 Gallon Fuel tank
Caterpillar 320L undercarriage
Fixed Sub
DHD Lube, AC and Heater for Cab

Repair List Below:
Venture refurbished the machine, inspecting pumps and hydraulics,
replacing bad components and hoses.
Engine: completely built (minus fuel injection pump) 3406. It has complete
Cat rebuild kit, including all 6 heads. All parts were Cat, re-used only crankshaft and cam.
Crank and block were inspected and polished before rebuild
New Cab Glass, New Doors, New A/C, Heater, platforms, replaced DHD lubricator,
sub, fixed jib controller.
New seals in head and shock sub.

Location : USA

Id: WR99
Schramm T64HB drilling rig for Sale


Schramm T64HB drilling rig for Sale

Worldrigs ID: WR99

Manufacturer : Schramm
Model No : T64HB
Year : 1970
Condition : Used

Description :

1970 Schramm T64HB Drill Rig
Detroit 8V71 Diesel Deck Engine
425 cfm / 250 psi Air Compressor (needs to be rebuilt or replaced)
200' ft of drill pipe (20' x 4 1/2") & 6" Hammer & Bit included
(1) Portable LeRoi 750 cfm / 150 psi Air Compressor
(powered by Cummins 6 cylinder diesel engine) included
Mounted on a 1970 Ford F-850 Truck
Ford Gas Engine
18,500 +- (original miles)

Location : USA

Id: WR321
Schramm T90XD Telemast Drill Rig for Sale


Schramm T90XD Telemast Drill Rig for Sale

Worldrigs ID: WR321

Model : T90XD Telemast Drill Rig
Year : 2004
Manufacturer : Schramm
Condition : Used

Description :

2004 Schramm T90XD Telemast
Tilt-Out Head Assembly
Mounted on a 2004 Sterling Chassis
Mercedes 450 HP Engine
Hydraulically Telescoping Derrick Capable of Setting up to Range II Casing (35' 9" clearance)
38' ft Tophead Travel
90,000 lbs. of Pullback
28" Table Opening
Detroit MTU 2000 @ 760 HP Diesel Deck Engine w/ Newer Disconnect Clutch
3" Air / Mud Plumbing (no mud pump)
Sullair 1350XH / 1150 XHH Compressor (1350 cfm / 350 psi or 1150 cfm / 500 psi) (under 600 hours use from new)
Single Rod Loader for 4-1/2" X 30' Drill Pipe
In Process of Installing (1) New Main Pump and New Funk Four Hole Pump Drive Box

Location : USA

Id: WR540
Schramm T64HB Drill Rig for Sale


Schramm T64HB Drill Rig for Sale

Worldrigs ID: WR540

Model : T64HB Drill Rig
Manufacturer : Schramm
Condition : Used

Description :

Schramm T64HB Drill Rig
425 cfm / 250 psi Air Compressor
Detroit 8V71N Diesel Deck Engine
Pipe Rack
3 hydraulic leveling jacks
Mounted on Ford Truck

Location : USA

Id: WR274
Schramm T660WS Drilling Rig for Sale


Schramm T660WS Drilling Rig for Sale

Worldrigs ID: WR274

Model : T660WS Drill Rig
Manufacturer : Schramm
Year : 2000
Condition : Used

Description :

2000 Schramm T660WS Drill Rig
Sullair 1050 cfm / 350 psi Air Compressor
Cummins N14 Diesel Engine
Gardner Denver duplex mud pump
Casing Hammer
6000 frame hours
Pipe Rack
4 Hydraulic Leveling Jacks
Mounted on a 1998 Ford Truck
Diesel Engine
30,000 Miles
Note: Well maintained

Location : USA

Id: WR300
Schramm T64HB Drill Rig for Sale


Schramm T64HB Drill Rig for Sale

Worldrigs ID: WR300

Model : T64HB Drill Rig
Manufacturer : Schramm
Year : 1976
Condition : Used

Description :

1976 Schramm T64HB Drill Rig,
425 cfm / 250 psi Air Compressor,
Detroit 8V71 Diesel Deck Engine,
Mounted On GMC 6500 Truck
427 Gas Engine,
Standard
T64 Set-Up
With 4 Rod Holder In Derrick,
Comes With 5 Joints Of Pipe,
Did Some Minor Repairs To Rig (New Chain, New Winch Cable)

Location : USA

Id: WR525
Schramm T64HB Drill Rig for Sale


Schramm T64HB Drill Rig for Sale

Worldrigs ID: WR525

Condition : Used
Manufacturer : Schramm
Model No : T64HB

Decription :

Schramm T64HB Drill Rig
Joy 700 CFM / 300 PSI Air Compressor
Mounted on Mack Truck

Location : USA





Id: WR469
Schramm T450GT Crawler Drill Rig for Sale


Schramm T450GT Crawler Drill Rig for Sale

Worldrigs ID: WR469

Model : T450GT Drill Rig
Manufacturer : Schramm
Year : 2008
Condition : Used

Description :

2008 Schramm T450GT Crawler Drill Rig
Caterpillar C-15 diesel engine @ 580 HP - S/N JRE09405
Sullair 1050 cfm / 350 psi air compressor with clutch
Floating sub
15 Rod Carousel - handles 3-1/2" Pipe
500' ft of 3-1/2" x 20' x 2-3/8" IF thread (estimated 50% condition)
Washington diverter
Hydraulic welder
Hammer lubricator
4 piston water injection pump
Rod spinner
2 motor power head
6,440 hours on gauge

Location : USA

Id: WR426
Schramm T130XD Drill Rig with RC Package for Sale


Schramm T130XD Drill Rig with RC Package for Sale

Worldrigs ID: WR426

Model : T130XD Drill Rig with RC (Reverse Circulation) package
Manufacturer : Schramm
Year : 2005
Condition : Used

Description

2005 Schramm T130XD Drill Rig with RC (Reverse Circulation) package
12,600 Hours & 5,900 Miles
Detroit DDC/MTU 12V-2000 TA DDEC Diesel Deck engine @ 760 HP
Telescoping mast with 130,000 lbs of pullback
Sullair 1350/350 and 1150/500 dual 2-stage air compressor (on board)
Mounted on a CCC (Crane Carrier Company) Truck
CAT C13 diesel engine

Note: rig is set up with RC (Reverse Circulation) package. The drills
have reverse circulation tilt tophead power drives, side inlet
air swivels, discharge swivels, mast mounted discharge stand
pipe (applications for either flooded reverse or standard RC drilling).

Location : USA

Id: WR446
Schramm T450 Drill Rig for Sale


Schramm T450 Drill Rig for Sale

Worldrigs ID: WR446

Model : T64 Drill Rig
Manufacturer : Schramm
Year : 1972
Condition : Used

Description :

1972 SchrammT64HB Drill Rig
Casing Hammer is included
Diesel Deck Engine
Schramm 425 cfm / 250 psi Piston Air Compressor
Pipe Rack
Hydraulic Leveling Jacks
Mounted on a Mack truck
Diesel Engine

Location : USA

Id: WR498
Schramm T500XD 1500HP Drilling Rig - for Sale


Schramm T500XD 1500HP Drilling Rig - for Sale

Worldrigs ID: WR498

Condition : Used
Manufacturer : Schramm
Status : Available
Model Year : 2013
Model No : T500XD Drill Rig

Description

2013 Schramm T500XD 1500HP Drilling Rig
Hours: 10,903
HP: 1500

Detailed Description:

Power Unit
(2) MTU 12V-2000 engines, 760 bhp (567 kw) @ 1,800 rpm with electric start
(2) Dual core, side by side cooling pacl‹age, 130”F (54.4“C) ambient rating
(2) 220 gallon (930 I) diesel fuel tanks
(2) Hydraulic pump systems, with each including (8) piston pumps and (1) gear type pump
(1) 1,000 gallon (3,785 I) hydraulic tank with (18) twin element filters

Sub-Base and Walking System
Floor Height: 22 ft. (6.7 in)
Clearance: 19 ft. (5.8 in) under table bushing Ground Pressure:
Dead Load: 26 psi (1.8 bar)
Live Load: 57 psi (3.9 bar)
Walking, mast down: 41 psi (2.8 bar)
A dedicated diesel engine, hydraulic pump and 750 gallon (2,839 I) hydraulic tank are
included with the system

Telemast System
Top Head Travel: 56 ft. (17.07 in)
Hook Load: 500,000 lbs. (227,227 kg) actual Hoist Speed (both Engines):
0-130,000 lbs. @ 136 fpm (0 - 58,967 kg @ 41m/min)
101,000 — 285,000 lbs. @ 106 fpm (45,813 — 129,274 kg @ 32 in/min)
266,000 — 305,000 lbs. @ 100 fpm (129,727 — 138,346 kg @ 30 in/min)
306,000 — 419,000 lbs. @ 76 fpm (138,799 — 190,055 kg @ 23 in/min)
420,000 — 500,000 lbs. @ 64 fpm (190,509 — 226,796 kg @ 20 in/min) Pulldown
Capacity: 80,000 lbs. (36,363 kg) Pulldown Speed: 0-180 fpm (0 — 55 in/min) loaded,
0-200 fpm (0 — 61 in/min) free head

Tilting Top Drive
Power: 950 bhp (708 kw) Rotation Speed: 0-140 RPM Rotation Torque: Up to
35,000 ft-lbs (47,454 N-in) Swivel: 3 inch (7.6 cm) cartridge style Fluid
Pressure Rating: 7,500 psi (345 bar)

Rig Floor
37.5 inch (0.95 in) false table adapter and a 27.5 inch (0.7 in) Master
Bushing 22 ft. (6.7 in) floor height
19 ft. (5.79 in) under table clearance

Hydraulic Roughneck
Clamping Range: 4.5 — 9.625 inches (11.43 — 24.45 cm) diameter Clamping
Force: Adjustable up to 61,500 lbs @ 3,000 psi (273 kn @ 208 bar) Make/Break
Torque: 60,000 ft-lbs @ 3,500 psi (81,349 N-in @ 241 bar)

Loadsafe XD Pipe Handling
Built-in holding clamps with variable capacity from 4 - 24 inches (10 — 61 cm)
allow for make-up or break-out of tool joints from the top drive spindle
Capacity: Range III Maximum Lift Capacity: 10,000 lbs. (4,536 kg) Average
Trip Time: 1,500+ f/h (457+ m/h )

Main Winch
Bare Drum Pull: 9,600 Ibf. (42.7 kN))
Bare Drum Line Speed: 150 fpm (46 in/min) Hydraulic jib boom swing and
extend

Standard Accessories
Water injection system, 35 gpm (132.4 Ipm) @ 1,000 psi (69 bar) DTH lubricator
up to 5 gph (19 lph) @ 1,000 psi (69 bar)
Air manifold for air drilling operations Air/mud fluid lines, 4 inch (10 cm) stand
pipe and traveling hose for 7,500 psi (345 bar) operation Explosion proof 240V
lighting for nighttime operation (customer supplied generators) BOP handling
system, carriage and trolley rated 40,000 lbs. (18,144 kg)

Support Equipment
40’ Conex BoX: with spare parts for Rig

Drill Pipe:
5" OD (19.5 ppf) Grade S-135 / Range 3 (15,500') NCSO box and pin
connections (6 5/8" OD) with hardbanding

BOP Equipment:
Annular — Cameron type-84 13 5/8 (5,000psi) Ser#112938750-01 Double Ram —
Cameron type-U 13 5/8 (10,000psi) Ser#112934297-01 VBR Ram —
Cameron type-U 13 5/8 (10,000psi)
Ser#112912633-01 Choke Manifold — Cameron 4 1/16 (10,000psi)

Trip Tank:
Fabricated skid mounted tank with (40 bbl. of capacity) 4 x 3 centrifugal pump

Volume Pit:
Fabricated skid mounted tank with roof and 4 Agitators (350 bbl. Capacity)
Class 1 Div 1 lighting

Mud Pumps:
(2) 2012 - WHITE STAR QUATRO 1000HP MUD PUMP (can be substituted
if preferred, as we do have other options as well)

Pump
Fully fabricated precision frame with runners on a quadraplex oilfield skid.
Precision machined cast alloy steel crossheads Precision crossheads guides
with nylatron inserts or bronze Precision pinion and bull gear double helical Forged
fully assembled and balanced crankshaft
Spherical main and roller conrod bearings Single piece forged 7500psi dual
valve fluid modules with liner wear plate Two piece liner system liner with locking
nuts and splash guards High Grade polyurethane valves and seats.

Power
One, Detroit diesel 16V2000P EPA Tier 1, IMO compliant series 2000 16 cylinder,
four cycle water cooled, turbo charged, diesel engine rated 1072 continuous
BHP @1800 RPM Atex certified with spark arrester

L Shape Design
External gear reducer clutch engine supports on engine skid 2 brown and
sharp #4S lube pump c/w5/3 HP, 50/60HZ, 3 phase 240.480 190/380V Explosion
proof electric motor c/w Pre-Filter, pressure gauge and piping (or equivalent) for
external lubrication of all quarto bearings, crossheads, guides, etc. Cobra series
118 liner rinse pump c/w 2 HP 50/60 HZ 3-phase 240/480 190/380V marathon
explosion proof electric motor with installed circulation system or equal liner rinse
pump 2 HP 50/60 HZ 3-phase 240/480 190/380V electric motor c/w installed
circulation piping system External lubrication system c/w lube pump with
electric motor, 1.0hp, 21 60/50hz, 3 phase, 240/480 190/380V or equivalent,
strainer, oil-filter, pressure gauge, circulation system. White star standard 2 layers
of 2 part epoxy prime and 1 layer of 2 part epoxy top coating

Id: WR543
Schramm T64HB Drill Rig for Sale


Schramm T64HB Drill Rig for Sale

Worldrigs ID: WR543

Model : T64HB Drill Rig
Manufacturer : Schramm
Condition : Used

Description :

Schramm T64HB Drill Rig
Serial Number T64HB-472
425 cfm / 250 psi Air Compressor
Detroit 8V71N Diesel Deck Engine
Pipe Rack
3 hydraulic leveling jacks
Mounted on International Fleetstar 1910 A truck p/b Gasoline Engine

Location : USA

Id: WR519
Schramm T64HB Drill Rig & Tooling Package for Sale


Schramm T64HB Drill Rig & Tooling Package for Sale

Worldrigs ID: WR519

Model : T64HB Drill Rig
Manufacturer : Schramm
Condition : Used

Description :

Schramm T64HB Drill Rig & Tooling Package
Re-fabricated and Retrofitted in 1997
Sullair 900 cfm / 350 psi twin screw air compressor
CAT 3406 diesel deck engine
28,000 lbs of pullback
Belco Hydraulic welder
10,000 lb. and 2,000 lb. hydraulic winches
3L6 Moyno pump
(4) hydraulic Leveling jacks
Bean (2) cylinder water injection system
6,111 hours since 1997 refurbish and retrofit--Owners and shop manuals
included
Handles (4 1/2" x 20' x 3 1/2 reg) tool joint drill pipe
Used 5" & 6" down the hole hammer drills & around 200' ft. of drill pipe
Mounted on a 1982 IHC model 2574 truck
Cummins 350 big cam diesel engine
20,000 lb. front axle
double box power steering
Aluminum wheels
(2) 115 gallon fuel tanks
Flotation tires in front

Location : Eastern Africa Region

Id: WR290
Schramm T130XD Drill Rig & Package for Sale


Schramm T130XD Drill Rig & Package for Sale

Worldrigs ID: WR290

Model : T130XD Drill Rig
Manufacturer : Schramm
Condition : Used

Description :

Schramm T130XD Drill Rig - RC
Tilt Head
Diesel Deck Engine
130,000 lbs of Pullback
Set up for R/C Flooded Reverse drilling method (for large diameter Ag Wells)
Mounted on a CCC (Crane Carrier Company) Truck
Tooling includes hand Wrenches, Iron rough nech break out systems
Diesel Engine

Package Includes or Sold Seperately:
Schramm XD-130 Loadsafe Pipe Handling System that is mounted on Trailer

Location : USA

Id: WR561
Schramm TH130 Drilling Rig for Sale


Schramm TH130 Drilling Rig for Sale

Worldrigs ID: WR561

Description :

Schramm TH130 -,760 hp deck engine, 28 inch (711 mm) table opening ,
1350/350 – 1150/500 variable volume compressor (38 cu. m/min
@ 24.1 bar & 32.6 cu m/min @ 35.5 bar), 50 feet (15.25 m) of clear
head travel, Capable of handling Range III casing

Mast : telescoping, 130,000 lbs. (59,090 kg) actual pullup

Back on Ramp

Mud System : 12 x 50 pit with shale shaker

Mud Pump : D500 Emsco Duplex Pump
(2) 1150 HD x 350 Sullair Comp Hurricane Booster Trailer-Mounted
(2) 1150 HD x 350 Comp Hurricane Booster Trailer Mounted

WB12 Joy Booster
Doghouse, fuel tank, light plant, trailer mounted

Drill Pipe : 3500’, 4 ½” Range 2

Pipe & Collar Trailer

Rig can be set up with mud or air

Id: WR246
Schramm T64HB Drilling Rig for Sale


Schramm T64HB Drilling Rig for Sale

Worldrigs ID: WR246

Model : T64HB
Manufacturer : Schramm
Year : 1978
Condition : used

Description :

1978 Schramm T64HB drill rig - S/N: 366
425 cfm / 250 psi air compressor
Detroit 8V71 diesel deck engine
Water Injection Pump
Hammer Lubricator
Widen Mud pump installed on board the drill
Included as a package:
600' ft of Drill Pipe (20' X 4 1/2" X 3 1/2")
12 1/4” Tricone bit, 8 1/4” Hammer bit, 6” Tricone bit
12 1/4” x 10” Stabilizer
Mounted on a 1984 International truck - VIN#: 1HTCF2555DHA32967
Diesel engine
Located at an indoor storage facility and owners want to
sell the drill rig package to local drillers

Location :  West Africa

Id: WR537
Schramm T64HB Drill Rig


Schramm T64HB Drill Rig

Worldrigs ID: WR537

Model : T64HB Drill Rig
Manufacturer : Schramm
Condition : Used

Description :

Schramm T64HB Drill Rig - Serial Number: T64HB-637
425 cfm / 250 psi Air Compressor
Detroit 8V71N Diesel Deck Engine
CAT water injection pump
Pipe Rack
3 hydraulic leveling jacks
Mounted on GMC 6500 truck
Gasoline Engine

Location : USA

Id: WR77
Schramm T-555 Drilling rig For Sale


Schramm T-555 Drilling rig For Sale

Worldrigs ID: WR77

Model : T-555
Manufacturer : Schramm
Year : 2002
Condition : Used

Description :

2002 Schramm T-555 Drill Rig
Sullair 1070 CFM / 500 PSI Air compressor,
75,348 in lbs torque @ 0-131 RPM,
40,000 pullback,
30,000 pulldown.
CAT C-15 DIT Diesel Deck Engine @ 565 HP with 6,326 Hours
18 GPM Bean water pump
280' ft of (4 1/2 rod with 3 1/2 IF pin, box ends).
Note: can hold 300' ft in the rod box and can run 20" Casing pipe
DTH oilier, Sandline Semco S6
Hydraulic swing and extend Jib boom
Secondary winch Pullmaster M8-3-30-1
Primary winch
Mounted on a 2002 International 2674 Truck
Powered by Cummins ISM370 Diesel Engine
21,529 miles

Location : USA

Id: WR501
Schramm TH130 (T-130-XD) Drill Rig for Sale


Schramm TH130 (T-130-XD) Drill Rig for Sale

Worldrigs ID: WR501

Model : TH130 (T-130-XD) Drill Rig
Manufacturer : Schramm
Year : 2003
Condition : Used

Description :

2003 Schramm TH130 (T-130-XD) Drill Rig
760 hp diesel deck engine - 8,700 hours
130,000 lbs. (59,090 kg) of pullback
28 inch (711 mm) table opening
Mounted on a CCC Truck
Diesel Engine

Package Includes:
Joy Booster
Back on ramp
Doghouse, fuel tank, light plant trailer-mounted
Pipe & Collar Trailers
2 - 1150 HD X 350 Comp Hurricane Booster Trailer
Mounted with Walk-ways
2 - 1150 HD X 350 Comp Hurricane Booster Trailer
Mounted with Walk-ways
12 X 50 Steel Pit with Shale Shaker
Ideco 550 Duplex Mud Pump
Drill Pipe – (4-1⁄2”) 3500’ ft Range 2
130,000 lbs. (59,090 kg) actual pullup
28 inch (711 mm) table opening
760 hp diesel deck engine - 8,700 hours

Location : USA

Id: WR83
Schramm T64HB Drill Rig for Sale


Schramm T64HB Drill Rig for Sale

Worldrigs ID: WR83

Model : T64HB
Manufacturer : Schramm
Year : 1972
Condition : used

Description :

1972 Schramm T64HB drill rig
Detroit 8V71 Diesel Deck Engine
425 cfm / 250 psi Air Compressor
Water Injection Pump
Hammer Lubricator
200' ft of Drill Pipe (20' x 4-1/2") and basic tooling included
6" & 8" Hammers & Bits included
Lincoln 225 G7 Welder & Generator on board
Super Rapid Head Travel (loading pipe)
Mounted on a GMC truck
6V53 Diesel Engine
13 Speed Transmission
Flotation Tires (Front), Newer Front Brakes, Newer Transmission

Location : USA

Last updated : Wednesday 18th of October 2017

If you have land rigs to sell or you want to buy land rigs or you cannot find the type of rig that you are looking for,
please contact us on email
 or call +65 97768837.
Id: WR503
Schramm T130XD Drill Rig - for Sale
Id: WR502
Schramm T130XD Drill Rig for Sale
Id: WR561
Schramm TH130 Drilling Rig for Sale
Id: WR537
Schramm T64HB Drill Rig
Id: WR455
Schramm TXD 200 Hydraulic Super Single Drill Rig & Package for Sale
Id: WR77
Schramm T-555 Drilling rig For Sale
Id: WR501
Schramm TH130 (T-130-XD) Drill Rig for Sale
Id: WR83
Schramm T64HB Drill Rig for Sale
Id: WR486
Schramm T64HB Drill Rig for Sale
Id: WR46
Schramm TXD 200 Drill Rig & Package for Sale
Id: WR427
Schramm T130XD Drill Rig -2005 Built - for Sale
Id: WR540
Schramm T64HB Drill Rig for Sale
Id: WR99
Schramm T64HB drilling rig for Sale
Id: WR97
Schramm T64HB Drill Rig for Sale
Id: WR399
Schramm T64HB Drill Rig for Sale
Id: WR245
Schramm T450WS Drill Rig for Sale
Id: WR577
Schramm T64HB Drill Rig for Sale
Id: WR413
Schramm T130XD Drill Rig & Package for sale
Id: WR526
Schramm T450GT Track Mounted Drill Rig for Sale
Id: WR240
Schramm T130 Drill Rig - Range III for Sale
Id: WR246
Schramm T64HB Drilling Rig for Sale
Id: WR112
Schramm T64HB Used Drilling Rig for Sale
Id: WR312
Schramm T450W Drill Rig for Sale
Id: WR447
Schramm T450 Drill Rig for Sale
Id: WR101
Schramm T64HB Drill Rig for Sale
Id: WR300
Schramm T64HB Drill Rig for Sale
Id: WR560
Schramm T130 Drill Rig for Sale
Id: WR47
Schramm T660W Used Drilling Rig for Sale
Id: WR290
Schramm T130XD Drill Rig & Package for Sale
Id: WR498
Schramm T500XD 1500HP Drilling Rig - for Sale
Id: WR525
Schramm T64HB Drill Rig for Sale
Id: WR55
Schramm T450WS Drilling Rig - 2004 Built - for Sale
Id: WR469
Schramm T450GT Crawler Drill Rig for Sale
Id: WR113
Schramm T450W Drilling Rig for Sale
Id: WR98
Schramm T450W Drilling Rig for Sale
Id: WR49
Schramm T450BH Drill Rig with GT conversion
Id: WR76
Schramm T64HB Drill Rig for Sale
Id: WR446
Schramm T450 Drill Rig for Sale
Id: WR69
Schramm T64HB Drill Rig for Sale
Id: WR538
Schramm T64HB Drill Rig for Sale
Id: WR51
Schramm T300M Drill Rig for Sale
Id: WR321
Schramm T90XD Telemast Drill Rig for Sale
Id: WR543
Schramm T64HB Drill Rig for Sale
Id: WR558
Schramm T660 Drill Rig For Sale
Id: WR311
Schramm T450WS Drilling Rig for Sale
Id: WR519
Schramm T64HB Drill Rig & Tooling Package for Sale
Id: WR504
Schramm T64HB Drill Rig for Sale
Id: WR296
Schramm T450 Drill Rig 2009 Built for Sale
Id: WR216
Schramm T450 Drilling Rig for Sale
Id: WR539
Schramm T64HB Drill Rig - for Sale
Id: WR426
Schramm T130XD Drill Rig with RC Package for Sale
Id: WR291
Schramm T130XD Drill Rig & Package for Sale
Id: WR274
Schramm T660WS Drilling Rig for Sale
Id: WR78
Schramm T450W Drill Rig for Sale
Id: WR499
Schramm T64HB Drill Rig Drill Rig For Sale
Last updated : Wednesday 18th of October 2017

If you have land rigs to sell or you want to buy land rigs or you cannot find the type of rig that you are looking for,
please contact us on email
 or call +65 97768837.


Untitled Document
3000HP Land Oil Rigs New Hydraulic Land Drilling Rigs 2000HP Hydraulic Land Drilling Rigs Latest Technology Hydraulic Land Rigs For Sale
European made 1000HP Electric Land Rig 1000HP Land Rigs For Sale European made 2000hp Land Rigs 3000HP SCR Land Rigs
Used 2000hp Land Rigs Used 1500hp Land Drilling Rig 750HP Land Rig For Sale Used Land Drilling Rigs for sale
Untitled Document
3000HP Land Oil Rigs New Hydraulic Land Drilling Rigs
European made 1000HP Electric Land Rig 1000HP Land Rigs For Sale
Used 2000hp Land Rigs Used 1500hp Land Drilling Rig
2000HP Hydraulic Land Drilling Rigs Latest Technology Hydraulic Land Rigs For Sale
European made 2000hp Land Rigs 3000HP SCR Land Rigs
750HP Land Rig For Sale Used Land Drilling Rigs for sale



...............................................................................
