Worldrigs ID: WR864
Description :

2017 Mobile B37X Crawler Drill Rig
600 Hours
8,000 ft/lb
1050 RPM
13 ft stroke
Auto hammer
308 Undercarriage
20,000 lb main winch
Bean 1122 pump
1,000 psi piping
Wireless
John Deere 140HP- tier 3
Angle Drill

Selling Fully Tooled:
44 lightly used 4 1/4 HS augers
820 ft NQ rods
20 ft Longyear barrel
10 ft HQ barrel
190 ft of AWJ rods

Location : USA

Worldrigs ID: WR684
Model : B61 HDX Drill Rig
Manufacturer : Mobile
Year : 1990
Condition : Used

Description :

1990 Mobile B61 HDX Drill Rig
Moyno water pump
Cummins Diesel deck engine
Detroit 671 T Diesel Engine in truck
140 lb. Safety Hammer
100 ft 6-5/8” augers
rods, bits, etc. included

Location : USA

Worldrigs ID: WR767
Model : M8 Drill Rig
Manufacturer : Davey
Condition : Used

Description :

Davey M8 Table Drive Water Well Drill Rig
500 CFM Air Compressor
In working order
With spare tower & parts

Location : USA

Worldrigs ID: WR77

Model : T-555
Manufacturer : Schramm
Year : 2002
Condition : Used

Description :

2002 Schramm T-555 Drill Rig
Sullair 1070 CFM / 500 PSI Air compressor,
75,348 in lbs torque @ 0-131 RPM,
40,000 pullback,
30,000 pulldown.
CAT C-15 DIT Diesel Deck Engine @ 565 HP with 6,326 Hours
18 GPM Bean water pump
280' ft of (4 1/2 rod with 3 1/2 IF pin, box ends).
Note: can hold 300' ft in the rod box and can run 20" Casing pipe
DTH oilier, Sandline Semco S6
Hydraulic swing and extend Jib boom
Secondary winch Pullmaster M8-3-30-1
Primary winch
Mounted on a 2002 International 2674 Truck
Powered by Cummins ISM370 Diesel Engine
21,529 miles

Location : USA

Worldrigs ID: WR696
Model : T4W Drill Rig
Manufacturer : Ingersoll-Rand
Year : 1974
Condition : Used

Description :

1974 Ingersoll-Rand T4W Drill Rig
Detroit V12 Diesel Deck Engine (inframe rebuilt)
IR HP 750 CFM / 250 Air Compressor
Water Injection Pump
Oil Injection Pump
Two Winch Lines
Carousel
36” Mast (Autofeed)
Pull Down & Pull Back
18” Table Opening
Worm Gear Top Head
Hydraulic Cooler
Rod Changer
Handles 4-½” x 25ft Drill Pipe
3 Outriggers
Complete Part & Service / Repair Manual
Breakout Wrench
Hydraulic Jib
Setup for AIR and MUD Drilling
Slow & Fast Rotation
Mounted on a CCC (Crane Carrier Company) Truck
Diesel Engine

Location : USA

Worldrigs ID: WR662
Model : T25K3W Drill Rig
Manufacturer : Driltech
Year : 1994
Condition : Used

Description :

1994 Driltech T25K3W Drill Rig- S/N: 731889
Sullair 840 cfm / 350 psi Air Compressor
CAT 3406 DITA Diesel Deck Engine - rated 430 HP @ 1,800 RPM
30,000 LBS of Pullback
28 ft Head Travel
Pipe Rack Holds For 15 Pipe
(6) Rod Carousel
Rotary Head - rated 89 RPM & 62,600 in LBS. Torque
Jib Boom, Hydraulic Extend With 172 Degree Hydraulic Swing
Hydraulic Winch 7,500 LBS. Capacity
20" Openiing in Table With Hydraulic Adjustment
48" Jaw Type Breakout Wrench
Water Injection Pump is 20 GPM With Foam Pump
DTH Lubricator With 10 Gallon Tank
Fine Feed  & Torque Controls
420 ft. of Used Drill Pipe (4-1/2" O.D. X 20ft) & Basic Tooling Included
Gardner Denver 5 X 6 Air Drive Mud Pump on Board
Hydraulic Leveling Jacks
Mounted on a 1993 Ford LNT8000 - VIN #1FDZW82E0PVA18231
Cummins 8.3l 275 Hp Diesel Engine
10 Speed Transmission
18,000 Front Axle
46,000 Rear Axle

Location : USA

Worldrigs ID: WR831
Description :

1996 Speedstar SD300 Drill Rig
Mounted on an 1995 International Truck
Cummins N14 Diesel Engine
10 Speed transmission
Sullair 750 cfm / 350 psi air compressor with clutch
Gardner Denver 5x6 Duplex Mud Pump (hydraulic driven)
Pipe rack
Hydraulic Leveling Jacks

Location : USA

Worldrigs ID: WR773
Model : T64HB Drill Rig - Retrofitted
Manufacturer : Schramm
Year : 1978
Condition : Used

Description :

1978 Schramm T64HB Drill Rig - Retrofitted in year 2000
Detroit 8V92 diesel deck engine
T660 Derrick replaced the T64HB Derrick
Sullair 900 cfm / 350 psi Air Compressor
Carousel
Pipe Rack
Hydraulic Leveling Jacks
Mounted on a 1986 Ford L8000 Truck
CAT 3208 diesel engine
13 speed Eaton fuller transmission

Location : USA

Worldrigs ID: WR838
Description :

Foremost DR-40 Crawler Drill Rig
700 hours
Cummins Diesel Engine
24" Tracks
1250 CFM / 350 PSI Air Compressor
Water Injection Pump
Winch for rods
Telescopic boom
Mounted on a Tracks carrier

Location : USA

Worldrigs ID: WR845
Description :

2001 Foremost DR-24 Drill Rig
Mounted on 2001 Freightliner Truck
Caterpillar C-15 Diesel Engine (rated 500 HP)
4,100 Hours as of 10/16/20
Atlas Copco 900 cfm / 350 psi Air Compressor
24” Diameter Dual Rotary Power Head
Set up for 2-7/8" IF Drill Rod and 6” Beco Rod
4 piston FMC Bean water injection pump
Oil injection system

Package of Tooling :
Jaws 6, 8, 10, 12, 14, 16, 18, 20, 24 inch
Welding (Cage) Clamp 6, 8, 10, 12, 14, 16, 18, 20, 24 inch
Divertor for 4-1/2 inch Drill Rod with adaptors for 6, 8, 10,
12 inch casings
Divertor for 10-3/4 inch drill rod with adaptors for 12, 14, 16, 18,
20, 24 inch casings
Drive Shoes 6, 8, 10, 12, 14, 16, 18, 20, 24 inch
24 - 4-1/2 inch x 20 ft x 2-7/8 IF thread drill rods
6 - 10-3/4 x 20 ft x 6-5/8 Beco thread drill rods
1 – 10-3/4 x 15ft x 6-5/8 Beco thread drill rod
1 - 10-3/4 x 10ft x 6-5/8 Beco thread drill rod
2 – 10-3/4 x 5ft x 6-5/8 Beco thread drill rods
New Miller Welder
Oxy/Acetalene Torch Setup
1 – Petol wrench setup for 4-1/2" Inch drill rod and 6 inch hammer
1 – Petol wrench setup for 6-inch drill rod and 8 inch hammer
6” IR QL60 Drill Hammer with 4-1/2” x 15ft heavy wall lead steel with bit
8” IR QL80 Drill Hammer with 6” x 15ft lead steel with bit
IR QL120 Drill Hammer with 10-3/4" lead steel and subs and
12” bit 12ft - QL120 Bit
2-7/8" IF x 4-1/2" centralizer drill rod for 10" inch casing
24" Inch over the hammer centralizer for QL120 hammer
Cyclone diverter
5 Inch Concrete Discharges Hoses 15 ft
5 Inch Concrete Discharges Hoses 25 ft

Location : USA

Worldrigs ID: WR885
Description :

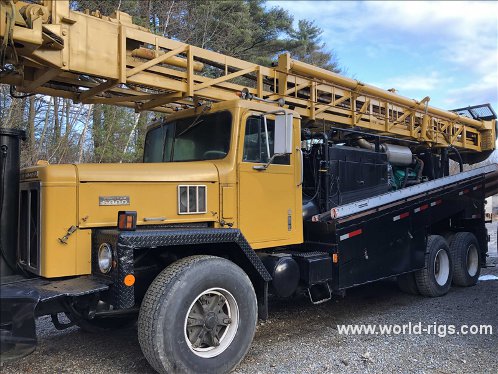

1986 Jaswell J1200 Drill Rig
Mounted on a 1986 International Paystar 5000 Truck
Cummins 350 HP diesel engine
20 speed spicer transmission
20k front axle & 44k rear axles
Odometer works and reads 96,000 miles
90% rubber all around
Cummins N14 mechanical - rated at 450 HP diesel engine
Sullair 900 cfm / 350 psi air compressor with cooler mounted on the side

Comes with : 360 ft of drill steel, two 6" hammers, and 8" hammer stabilizer
6" QL60 Hammer and the 8" Hammer & 8-1/2" Bit. All hand tools included
New diamond chains top and bottom, new sprockets, pins and bushings in 2018
Rebuilt twin disc pto in 2018. Replaced rear main seal in the deck engine 2018
New crown shaft in 2018, pillow block bearings were used but in good condition
Two piston bean pump. Tube style tower same as J2400
1000 hours on it since repairs in 2018

Location : North America

Worldrigs ID: WR803
Model : 2000 Drill Rig & Package
Manufacturer : Gardner Denver
Year : 1978
Condition : Used

Description :

1978 Gardner Denver 2000 Drill Rig
Mounted on a Truck with 2 axles
Cummins 400 Big Cam Diesel Engine
18" GD rotary table (New Seals)
(2) six line blocks with 120,000 lbs hookload/pullback
Newer cables on kelly and pulling lines
2 cat heads
Hydraulic sand line
With hydro brake set up
Gardner Denver 6x10 mud pump with matco quick change fluid end
New 3" kelly hose high pressure
37 ft square kelly

Set up to drill 1600 ft - 2,200 ft water wells
Price Reduced to Sell Fast in July 2020

Included as Package:
1000 ft of 4-1/2" drill pipe
210 ft of 6" drill collars
misc. tooling
pipe truck and trailer

Location : USA

Worldrigs ID: WR786
Model : 10R Drill Rig
Manufacturer : Bucyrus Erie
Year : 1972
Condition : Used

Description :

1972 Bucyrus Erie 10R Drill Rig
Started rebuild
Needs back out riggers
No air, or MP
Runs Drives Wont take much to be Drill Ready
Not many hours on this rig for its age

Location : USA

Worldrigs ID: WR782
Manufacturer : Speedstar
Condition : As-Is

Description :

Speedstar Quick Drill Rig
Note: only good for Parts
Condition: As-Is
Mounted on Ford Truck

Location : USA

Worldrigs ID: WR660
Model : T4BH (Blast Hole) Drill Rig
Manufacturer : Atlas Copco
Year : 2006
Condition : Used

Description :

2006 Atlas Copco T4BH (Blast Hole) Drill Rig
Serial Number: 8294
Cummins QSK19 Diesel Deck Engine
IR HR2.5 1250 CFM / 350 PSI Air Compressor
Dual Motor Spur Gear Power Head
LT Long Tower runs (30ft Drill Pipe)
CCC : Cummins isx 15 , 475hp

Location : Middle East Region

Worldrigs ID: WR707
Model : 275 Drill Rig
Manufacturer : Speedstar
Year : 1989
Condition : Used

Description :

1989 Speedstar 275 Drill Rig
PTO drive
The rig runs 20ft rods
Holds 340ft of 2-7/8 Mayhew Regular in the rack
600ft of fairly new rods included
Note: No rod loader, no carousel, no hammer oilier, no bean pump
The rig currently has a non-operational joy twist air
Mounted on a 1988 International truck - All Wheel Drive
Sandline possibly its a 2500lb
Has a new Braden 12k main winch from Gefco
5x6 Gardner Denver Mud pump - Completely rebuilt including all components
in the gear end & shafts.
New Hubcity 3h gearbox to drive mud pump from Gefco
Both top head motors are new (originals as a backup)
Top head has been completely rebuilt (New spindle shaft and components
from Gefco)
New paint job with Emron aircraft paint. Truck was completely sandblasted and
taken down to bare metal and brought back to its current condition. (Pictures
available documenting the work).
It is a Speedstar 275 which is almost identical to the quickdrill 275 but it
is a newer version and has some features that the quickdrills dont have.

Location : USA

Worldrigs ID: WR764
Model : T4W Drill Rig
Manufacturer : Ingersoll-Rand
Year : 1994
Condition : Used

Description :

1994 Ingersoll Rand T4W Drill Rig - S/N: 3909
IR 900 cfm / 350 psi Air Compressor
Cummins KT19 Diesel Deck Engine
Bean Water Injection Pump
Hammer Oilier
4 & 7 Rod Carousel
50,000 lbs of Pullback
Mounted on a CCC (Crane Carrier Company) Truck
Diesel Engine

Location : USA

Worldrigs ID: WR492
Speedstar S S61A Cable Tool Rig Details:

Worldrigs ID: WR791
Components :

1. The three section pressure compensated load sensed Sauer Danfoss
hydraulic piston pumps are directly coupled to the 6LTAA8.9-360 Cummins
diesel engine via a high quality German drive plate and coupling.

2. The drill mast is a lattice type. The feed system uses a single hydraulic cylinder
connected to a 2:1sheave system connected to heavy duty leaf chains giving
approximately 25,000kg of extraction force with a 6.7 metre stroke.

3. Adjustable hydraulic pressure knob to control and limit the down force
on the feed so the rig base will not be raised up whilst drilling.

4. Adjustable flow control valve to control the speed in which the drill bit advances.

5. Pressure gauges on control panel for calculating either rotation torque or feed pressure.

6. Directional control valves and tilt cylinder with over centre valve and flow limiters

7. A single bent axis piston hydraulic motor coupled to a 4 speed gearbox on the
rotation gearbox.

8. A 400 litre hydraulic oil tank with sight gauge, breather cap, internal suction
screens and 10 micron filter on the return line.

9. 4 x 30,000# support jacks, which are adjustable to level the rig in uneven terrain
and to stabilize the rig.

10. 10” x 7 1⁄2” Duplex type piston mud pump driven by Sauer Danfoss hydraulic Gerola Motor.

11. 8000kg single line pull haul winch.

12. Large Air/Oil fan type oil cooler driven by a hydraulic motor with overrun protection.

13. High quality Cetop type solenoid valves to change between different hydraulic functions.

14. Breakout wrench

15. Rod loading system. (optional)

Worldrigs ID: WR216

Model : T450 Drill Rig
Manufacturer : Schramm
Year : 1988
Condition : Used

Description :

1988 Schramm T450 Drill Rig
Diesel Deck Engine
Air Compressor
Carousel
Centrifugal Pump
Pipe Rack
3 hydraulic leveling jacks
Mounted on a Truck
Diesel Engine

Location : USA

Worldrigs ID: WR874
Description :

Gardener Denver 15W Drill Rig
Rebuilt and Painted
Truck engine has been rebuilt
Mud pump has also been rebuilt
10” Gardner Denver Retractable table
58ft Mast
Racking board
Bailing drum
new 2” little giant swivel
new 26ft Kelly
hydraulic pull down
air clutches
4 hydraulic leveling jacks

Location : USA

Worldrigs ID: WR783
Model : Simco-Style Top Head Drive Drill Rig
Manufacturer : Generic
Condition : Used

Description :

Simco-Style Top Head Drive Rotary Drill Rig
Simco Swing-Away Top Rotary Hydraulic Power Head
Swivel
16 ft. 4 in. mast length (retracted), approximately 25 ft. length mast (extended)
Rod Box
Cathead
Winch
4 cylinder Deutz Deck Engine
Control Panel
Mounted on a Ford F600 diesel powered truck
4 Hydraulic stabilizing jacks
Clean, ready-to-work machine

Location : USA

Worldrigs ID: WR699
Model : 650 S/S Drill Rig - for Parts or Repairs
Manufacturer : Chicago Pneumatic
Condition : Used

Description :

Chicago-Pneumatic Model 650 S/S Drill Rig
Condition: As Is - for parts or repairs
Used CP 650 S/S parts machine
Comes with control panel
Hydraulic valves in control panel
CO5 Air Compressor (750 CFM / 125 PSI)
Separator Tank
Rears on CCC Crane Carrier Company truck
Wheels
Oil Tank
Operators Cab
Hydraulic Jacks
Other miscellaneous items as shown in pictures
Note: All Items Sold "As Is"

Location : USA

Worldrigs ID: WR763
Model : M8A Drill Rig - Table Drive
Manufacturer : Davey
Year : 1965
Condition : Used

Description :

1965 Davey M8A Drill Rig
Davey Piston Air Compressor
Serial Number: 381
300 CFM / 100 PSI Piston Air Compressor
Detroit 6-cylinder Diesel Engine Deck Engine
20 ft. kelly bar - Table Driven
Set up to run (15 ft. x 4 in.) OD drill pipes
Comes with 240 ft. of drill pipe in Rod box
DTH Hammer Oiler Working Condition
Mounted on a 1995 Ford Truck
Diesel Engine
12R22.5 tires
Mileage 99,202 miles
Dimensions: 34ft x 8ft 5" x 13ft
Note: hasnt drilled since late 2017

Location : USA

Worldrigs ID: WR671
Model : C-700 Drill Rig
Manufacturer : Reichdrill
Condition : Used

Description :

Reichdrill C-700 Crawler Drill Rig
Sullair 900 CFM / 375 PSI Air Compressor
Caterpillar 3406 T Diesel Deck Engine
Water Injection Pump
Hammer Lubricator
Drillers Cab
Caterpillar Undercarriage
Metal Tracks

Location : USA

Worldrigs ID: WR698
Model : B61 Drill Rig
Manufacturer : Mobile
Year : 1989
Condition : Used

Description :

1989 Mobile B61 Drill Rig
Mounted on a 1989 Ford F800 Truck 4x4
429 Gas Engine
Good Tires
Rebuilt transmission
Ford 300 on deck engine
Used daily
200 gal SS water tank
Rod chuck
Wiggle tail
A lot of new parts

Location : USA

Worldrigs ID: WR697
Model : Rotadrill T64HB Drill Rig
Manufacturer : Schramm
Year : 1974
Condition : Used

Description :

Schramm Rotadrill T64HB Drill Rig
Rebuilt - Detroit Diesel Deck Engine
No Air Compressor on deck
Tool Carrying Cabinet
Reinforced Mast
Heavy Winch line
3 Outriggers
Hydraulic Pull down & Pull Back
Multiple speed top head motor
Hydraulic Cooler
Autofeed
Mounted on a 1974 International RO Truck
Newer 6 Cylinder Engine
Multi-Speed Transmission

Location : USA

Worldrigs ID: WR557

SOLD
Model : T3W Drill Rig
Manufacturer : Ingersoll-Rand
Year : 1989
Condition : Used

Description

1989 Ingersoll Rand T3W Drill Rig - S/N: 2900
IR 825 cfm / 350 psi Air Compressor
Caterpillar 3406 diesel deck engine
3636 hours showing on meter (probably turned over & actual
hours might be 13,636)

Sand line winch
Cat water injection pump
Hammer Lubricator
Hydraulic Leveling Jacks
Mounted on a 1989 Ford L8000 Truck
Diesel Engine
74,321 miles

Location : USA

Worldrigs ID: WR879
Description :

1979 Chicago Pneumatic 600 Drill Rig
Detroit 6V93 Diesel Deck Engine
GHH 600 CFM / 300 PSI Air Compressor
320 ft of 4-1/2" x 20 ft Drill Pipe included
Recent Cooler and Drill Head Rebuilt
Mounted on a 1990 Mack Truck
300 HP Diesel Engine

Location : USA

Worldrigs ID: WR597
Model : T-650 Blast Hole Drill Rig
Manufacturer : Reichdrill
Year : 1989
Condition : Used

Description :

1989 Reichdrill T-650 Blast Hole Drill Rig
1100 CFM / 350 PSI Air Compressor
Rebuilt Cummins KT Diesel Engine
Mounted on an International truck
Rebuilt - Cummins L10 Diesel Engine
DTH Hammer included

Location : USA

Worldrigs ID: WR352

Model: 45C Drill Rig
Manufacturer: CME Drill
Year: 2002
Condition: Used

Description :

2002 CME 45C Drill Rig
With 9278 hours
Auto hammer
Wireline winch
Deutz 3 cylinder diesel engine
Mounted on a 2002 Ford F550 Truck 4x4
148,413 miles

Location : USA

Worldrigs ID: WR836
Description :

1977 Ingersoll-Rand TH60 Drill Rig
IR 600 cfm / 250 psi air compressor
Mission style magnum mud pump
Pipe Rack
Mounted on a 1977 International Paystar Truck
Detroit 8V71 Diesel Engine (Rebuilt in 2013-2014)
Hydraulic Leveling Jacks
Drill Pipe is not included (cost extra)

Location : USA

Worldrigs ID: WR869
Description :

1972 Chicago Pneumatic 650 Drill Rig
Sullair 750/250 air compressor (verifying the size & model)
Caterpillar 3306 Diesel Deck Engine
Gardner Denver 5x6 air driven mud pump
Hydraulic slide pipe rack
Winch
Mounted on a Ford 900 Truck (VIN #: T91KVN93939)
Caterpillar 3208 Diesel Engine
Bobcat welder

Location : USA

Worldrigs ID: WR852
Description :

1989 Schramm T-660 Drill Rig
Detroit 8V92 Diesel Deck Engine (less than 4000 hours since
complete rebuild with preheater)
GHH 900 cfm / 350 psi Air Compressor (Rebuilt, less than 500 hours,
with clutch)
Jib-Boom
Bean water injection pump
360 ft of drill pipe (20ft x 4-1/2"), table bushings & basic tooling included
7 Rod Carousel Lazy Susan
Pipe Rack
Hydraulic Leveling Jacks
Mounted on a GMC White Brigadier Truck (60k+ miles on gauge)
Cat 3208 (Rebuilt transmission less than 2000 miles ago)
Very good tires
Note: Replaced upper chains when the motor were rebuilt about 3500 hours ago

Current repairs needed we are aware of:
Truck CAT 3208 engine starts very hard but once it starts then it runs fine and
runs good (Rebuild time approaching soon)
Traverse cylinders leak small amounts of oil
Deck deck engine leaks small amounts of oil
Compressor clutch work manually only

Location : USA

Worldrigs ID: WR471

Model : T7000 Drill Rig
Manufacturer : Chicago Pneumatic
Year : 1981
Condition : Used

Description :

1981 Chicago Pneumatic T7000 Top Head Drive Rotary Drill Rig
S/N: S-81906 (The tag is missing)
Caterpiller 3406B diesel engine
GHH 825 cfm / 300 psi Air Compressor
40' ft mast (note: the mast, carousel & auxiliary winch with
jib have been removed and are stored at another location)

4-Hydraulic outriggers
Mounted on a FWD all-wheel drive CCC (Crane Carrier Chassis)
Cummins diesel engine
6-speed transmission
walking beam rear suspension
with fair size 16.5-22.5 front tires and fair size 11.00-20 rear tires
Showing 4,581 hour on the truck chassis

Note: No Rotary Head

Location : USA

Worldrigs ID: WR858
Description :

New & Unused 2012 Atlas Copco RD20 Range III XC Drill Rig
Carrier :
Twin H-beam main frame - reinforced 16 in 406.4 mm
5-axle, custom carrier 415 hp 317 kW diesel engine
8-speed transmission Manual with lo - lo and reverse
Tridem rear axles with lockers 23,000 lb each 10,433 kg each
Tandem front steering axles 22,000 lb each 9,979 kg each

Derrick :
Length 61 ft 11 ½ in 18.88 m
Width 4 48 1/2 in 1.23 m
Depth 41 in 1.04 m
Top of table to spindle 51 ft 6 in 5.7 m
Table to ground (rig sitting on tires) 44 in 1,118 mm
Table to ground (jacks fully extended) 92” 2,337 mm

Rig Dimensions :
Height derrick down 13 ft 10 in 4.22 m
Height derrick up 62 ft 6 in 19.05 m
Width 8 ft 4 in 2.54 m
Shipping weight (less tooling) 88,000 lb 40,000 kg

Tip Out Links :
Forged steel 150 ton 136 tonnes
Length 60 in 1,524 mm
Tip out hydraulic cylinder on each link
Angle 0-80° from vertical
Control drillers console

Table & Master Bushing :
Design folding with twin hydraulic jacks
Max opening 26 in 660 mm
API split master bushing 17 ½ in 445 mm
Capacity 60 ton 54.4 tonnes

Rig Performance :
Hookload 120,000 lb 54.4 tonnes
Pulldown 30,000 lbf 13,636 kg
Fast feed up 106 ft/min 32.3 m/min
Fast feed down 180 ft/min 54.9 m/min
Drill feed 29 ft/min 8.8 m/min
Torque 8,000 lbf-ft 10.8 kNm
Speed 0-120 RPM 0-120 RPM
Spindle 3 in 76.2 mm
Swivel Type Multi chevron packings
Opening 2 ½ in 63.5 mm

Location : USA

Worldrigs ID: WR209

Model : B61 HDX Drill Rig
Manufacturer : Mobile
Year : 1990
Condition : Used

Description :

1990 Mobile B61 HDX Drill Rig
Cummins 4bt 3.9 Diesel Engine @ 100 hp @ 2500 rpm
3l8 Pump
8,500 lbs Main Hoist
29' ft Tower
Mounted on a Ford F800 Truck
5 Speed Transmission
Ford 7.8 Diesel Engine @ 210 hp

Location : USA



Worldrigs ID: WR733
Model : DR12 Drill Rig
Manufacturer : Foremost Barber
Year : 2001
Condition : Used

Description :

2001 Foremost DR12 PTO Drill Rig
Atlas Copco XRV9-PTO 900 CFM Air Compressor
Mounted on a Sterling LT9500 Truck
Cummins ISX 15 Diesel Engine
500 ft of (3-1/2” OS x 2-3/8 ft IF) Drill Pipe
Includes drilling tools and equipment:
stabilizer with tricone
2 downhole hammers
1 cyclone with discharge hose
jaw 6-8-10 inch
drill pipe wrench set
1 hydrofrac balloon
oxygen / acetylene cutting assembly
Miller welder / generator

Location : North America

Worldrigs ID: WR674
Model : T670W Drill Rig
Manufacturer : Chicago Pneumatic
Year : 1979
Condition : Used

Description :

979 Chicago Pneumatic T-670W Drill Rig
Loader Lock Carousel
Breakout Wrench
20 ft x 4-1/4” of used Drill Pipe
CAT 343 V6 Diesel Deck Engine (Turbo)
425 cfm / 250 psi Air Compressor
Oil Lube Pump
Bean Water Injection Pump - 1267611
Hydraulic Winch Line
3 Outriggers
Hydraulic Pull Down & Pull Back
Autofeed
18” Table Opening
320 ft of Pipe Trough
7 Rod Carousel
Auto Rod Loader
Complete Part & Service / Repair Manual Hydraulic Jib
Hydraulic Adjustable Jib Arm
Setup for AIR and MUD Drilling
Mounted on G.M.C. 7500 Series
Detroit 6V-53 Diesel Engine

Location : USA

Worldrigs ID: WR790
Model : 500 Drill Rig
Manufacturer : Midway
Year : 1969
Condition : Used

Description :

1969 Midway 500 Drill Rig
Mounted on 1969 Peterbilt Truck
Leroi 100S Air Compressor
Gardner-Denver 5x6 Duplex Piston Mud Pump
New Rear Jacks
Recent Cummins Swap
Transfer case rebuilt in summer 2018
Comes with 200 ft. of 2-7/8” drill pipe
Currently working
Ready to drill

Location : USA

Worldrigs ID: WR537

Model : T64HB Drill Rig
Manufacturer : Schramm
Condition : Used

Description :

Schramm T64HB Drill Rig - Serial Number: T64HB-637
425 cfm / 250 psi Air Compressor
Detroit 8V71N Diesel Deck Engine
CAT water injection pump
Pipe Rack
3 hydraulic leveling jacks
Mounted on GMC 6500 truck
Gasoline Engine

Location : USA

Worldrigs ID: WR839
Description :

LTD 360 Cable Drill Rig
Carries enough mainline cable to drill to a depth of 450 feet
Bore diameters of 4" to 10" inches
Lift capability of 8,000 lbs for casing removal
40 gallons of on-board water storage with a 40 PSI pump
150 amp arc welder when steel casing is used
20 gallons of fuel (enough to drill about 75 feet)
Rated - Penetration rates usually range between 2-½-5 feet per hour
depending on the geology/ground formations with drilling conditions
Mounted on a 2 axles trailer

Location : USA

Worldrigs ID: WR780
Model : T650 Drill Rig
Manufacturer : Chicago Pneumatic
Condition : Used

Description :

Chicago Pneumatic T650 Drill Rig
mounted on an IH Truck
All original parts
Head need work
Good Parts Machine

Location : USA

Worldrigs ID: WR214

Model: 650 Drill Rig
Manufacturer: Chicago Pneumatic
Year: 1986
Condition: Used

Description :

1986 Chicago-Pneumatic 650 Drill Rig
GHH 825 cfm / 350 psi Air Compressor
CAT 3406 diesel deck engine
Mounted on Ford truck
diesel engine
Around 1,000 ft of near new drill pipe at extra cost

Location : USA

Worldrigs ID: WR330

General Specification

Basic Data :
- Max. hook load : 500 kN
- Mast height : 13,35 m
- Casing installation height : 8,00 m
- Power swivel working travel : 7,50 m

Dimensions :
- During transport (L/W/H) : approx. 12,90m / 2,50m / 4,00 m
- During drilling operation (L/W/H)  : approx. 10,50m / 3,50m / 13,35 m

Operating Conditions :
- Ambient temperature range : -20°C - +45°C
(up to 52°C with special hydraulic oil)

Drilling Depth :
- at drilling diameter 990mm : approx. 250 m*
- at drilling diameter 150mm : approx.1.200 m*
* Drilling depth depending on geology, drilling method
and applied drill string components.

Applicable Drilling Methods :
- Direct Mud Circulation (DC), external mud pump required
- Reverse Mud Circulation (RC) by Air Lift, external compressor required
- Dry drilling / Auger drilling
- DTH Hammer Drilling, external compressor required
- Wire-Line Core Drilling

Special Specification

Trailer R1
Type : 3-axle semi-trailer
Dimensions in transport position:
- Lenght (excluding mast) : approx. 10.35m
- Length (with mast) : approx.
- Height : approx. 4.00m
- Width : approx. 2.50m
Type of king pin : 2'' or 3'' ( to be specified)
Height of King pin : approx. 1.35m
Permissible total weight : 45.000 kg
Permissible load of King pin : 18.000 kg
Type of tires : 6 x 385/65 R 22,5 + 1 x spare

Rig frame & Levelling jacks
Description :
Heavy duty steel frame, suitable to mount all rig components,
fixed on the chassis of the carrier

Painting : daffodil yellow (RAL 1007)
Number of levelling jacks : 4
Type of levelling jacks : hydraulically, operated independently
Working stroke :600 mm
Pad size diameter : 500 mm

Deck engine MTU
directly flanged to hydraulic pump distributor gearbox

Manufacturer :  TU (Mercedes)
Type : V8, water cooled
Emission level : EPA/CARB Tier III, EEC 97/68EC 3a
Capacity : approx. 750 HP at 1.900 rpm
Electrical system : generator 24 V, 80A
Fuel tank content : 850l

Hydraulic system (Type 2)
Description :
Hydraulic pump distributor gearbox driven by deck engine.
Closed hydraulic circuits for all main components, driven by axial
piston pumps : Power Swivel, Feed device, draw works
(with additional supply pump), Auxiliary hydraulics
(mud pumps, compressor)

Hydraulic oil tank : 1.000l
Type of Hydraulic oil : HVLP 46
(suitable for normal temperature conditions)

Mast RB50 R1
Description :
Constructed of high tensile steel (rectangular tubes),
hydraulically elevated by two (2) double acting hydraulic
cylinder; including: guide rails for power swivel, suspension for
feed device, crown block with sheaves, ladder
for maintenance work.

Total Height in working position : 13.40 m
Operating space (crane block) : 8.80 m
Working stroke (power swivel) :
7.50 m (suitable for drill pipes up to 6.0m length)
Max. load capacity : 500 kN

Boom for discharge hose
Description :
Mast boom for fastening and securing the discharge
hose for air lift drilling, Attached to the right-hand
side of the mast

Projection : approx. 2,70 m
including : Steel cables for fastening and securing
the discharge hose

Feed Device
Pull down-force capacity : 80 kN
Pull back-force capacity :
350 kN (with main hydraulic cylinder)
500 kN (in conjunction with draw works)

Max. feed speed :
0 - 0,54 m/sec at full load
0 - 1,00 m/sec at max 133 kN

Technical features :
- Load compensation, hydraulically controlled, for
  adjustment of defined Weight On Bit (WOB)
- Controlled WOB, hydraulically controlled,
  constant WOB in dependance of penetration rate
- Vertical compensation, hydraulically controlled,
  allows a defined vertical moving of power swivel
(up/down) per  rotation of spindle (left/right) for gentle
thread make up operation

Power Swivel S150.2
Hydraulical Drive : axial piston pump (variable displacement)
Torque :
- gear 1 : 31.580 Nm at 0 -   45 rpm
- gear 2 : 16.600 Nm at 0 -   85 rpm
- gear 3 :  4.150 Nm at 0 - 340 rpm
Max. Mud operating pressure : 40 bar
Inner diameter (free passage) : 150 mm
Connections for :
- heavy duty rotary hose 4" for direct mud circulation
- direct air for DTH Hammer.
- Inlet for 1" air injection pipe (for air reverse circulation
  drilling)

Hydraulic chuck and break device
Description : For making and breaking of drill pipes
Max. pulling force : 500 kN
Max. breaking torque :  48 kNm
Max. Inner diameter (with open clamps) : 195 mm
Max. Outer diameter of drill pipe : 178 mm
Min. Outer diameter of drill pipe : 51 mm

High pressure Inlet for S150, 80 bar : optional (not included)

Hydraulic Clamping Device
Description:
Working Table with hold-back arms swing-mounted at the
mast basis, suitable for interchangeable jaws of different size.

Free passage (closed) : 520 mm
Free passage (open) : 900 mm
Max. clamping diameter : 473 mm (18.5/8'')
Max.clamping force : 500 kN

Make-up and Break-out Device
Description :
Hydraulic cylinder placed on the main frame on the right side,
operated for use with manual tongs, power transfer via chain
system, tongs can be positioned on both sides of the mast for
breaking and tightening the drill pipes, collars and
casing connections.

Pulling force of cylinder : 60 kN
Pulling length of cylinder : 600 mm

Main Winch
Description :
hydraulically driven, suitable for pulling the power swivel or
for installation of casing pipes, operation in combination with
Utility Crane Block 550 kN (triple sheave), overrun safety mechanism

Max. pull-back : 95 kN in first cable layer
Max. cable speed : 2 m/s
Cable length : 90 m
Cable diameter : 20 mm

Auxiliary Winch
Description :
hydraulically driven, with hydraulically released safety brake

Max. pull-back : 25 kN in first cable layer
Cable length : 50 m
Cable diameter : 10 mm

Wire-Line Coring winch 1.000m
Description : hydraulically driven, with hydraulically released safety brake
Max. pull-back : 25 kN in first cable layer
Cable length : 1.000 m
Cable diameter : 8 mm

Features :
- Mechanical holding brake
- Mechanical depth measuring unit with incremental measuring system,
  digital display on the control panel

Mud Line System (standard)
Description :
consisting of horizontal steel pipe system with valves and
connection to the power swivel (vertical pipe and hose)

Diameter : DN 100  / 4"
Max. mud pressure : 60 bar steel pipe system / 80 bar mud hoses
External connections :
4'' (for additional mud pump)
2'' (for external compressor)

Lighting & Electrical system
Voltages : 24V
Mast lights : 3 x Halogen (70 W)
Well head light : 1 x Halogen (70 W), movable
Controll board light : 2 x Halogen (25 W)


Safety system
Description : for quick shut-down of engine and hydraulic
system in case of danger
No. Of emergency shut-off buttons : 2

Operator's platform
Description :
located at the rear left side of the rig with direct sight to the working area,
tiltable, with weather protection tent

Main Control Board
Description : with lockable cover, all gauges and control levers
are labeled by symbols
Main functions :
with electronic pre-control of hydraulic circuits
- Engine start/shut off and speed control
- Engine emergancy alarm
- Manometer of hydraulic circuits
- Power swivel torque
- Power swivel rotation speed
- Hook load indicator
- Pull-up / Pull-down / Weight on bit
- Mud pressure indicator (optional)
- Indicator for pulling force of break-out device
- Depths indicator for coring winch (optional)
- Operating hours (engine, power swivel,...)

Tool box
Description :
Mounted on the drilling rig for basic tools and equipment.
Sufficient for simple maintenance of drilling rig and ancillary equipment.
An additional Tool box will be mounted on the rig and equipped
with additional necessary tools.

Documentation & Certificates
consisting of :
Operation & Maintenance Manual (1x printed / 1x digital)
Parts books / spare parts list (1x printed / 1x digital)

Language : Russian / English
Certificates :

Worldrigs ID: WR791
Components :

1. The three section pressure compensated load sensed Sauer Danfoss
hydraulic piston pumps are directly coupled to the 6LTAA8.9-360 Cummins
diesel engine via a high quality German drive plate and coupling.

2. The drill mast is a lattice type. The feed system uses a single hydraulic cylinder
connected to a 2:1sheave system connected to heavy duty leaf chains giving
approximately 25,000kg of extraction force with a 6.7 metre stroke.

3. Adjustable hydraulic pressure knob to control and limit the down force
on the feed so the rig base will not be raised up whilst drilling.

4. Adjustable flow control valve to control the speed in which the drill bit advances.

5. Pressure gauges on control panel for calculating either rotation torque or feed pressure.

6. Directional control valves and tilt cylinder with over centre valve and flow limiters

7. A single bent axis piston hydraulic motor coupled to a 4 speed gearbox on the
rotation gearbox.

8. A 400 litre hydraulic oil tank with sight gauge, breather cap, internal suction
screens and 10 micron filter on the return line.

9. 4 x 30,000# support jacks, which are adjustable to level the rig in uneven terrain
and to stabilize the rig.

10. 10” x 7 1⁄2” Duplex type piston mud pump driven by Sauer Danfoss hydraulic Gerola Motor.

11. 8000kg single line pull haul winch.

12. Large Air/Oil fan type oil cooler driven by a hydraulic motor with overrun protection.

13. High quality Cetop type solenoid valves to change between different hydraulic functions.

14. Breakout wrench

15. Rod loading system. (optional)

Worldrigs ID: WR153

Model : 3000-CF Drill Rig
Manufacturer : Failing
Condition : Used

Description :

Failing / Gefco Holemaster 3000-CF Drill Rig
Factory Rated Capacity: 3,700 ft. depth using 3-1/2” drill pipe.
Mast: Cold drawn street tubing, elec. Welded, 3-sect. with 3-way taper on top sect.
Hydraulically raised & lowered. Wired for elec. Lights. Equipped w/retracting
channel swivel guides for reverse circulation swivel. Equipped with ladder,
climber’s safety device.


Hgt. 72” Telescoping, Width 86” center to center of mast legs, Depth 48” center
to center of mast legs, Capacity total gross 133,000 lbs. hook load 100,000 lbs.
Racking board capacity 3,000 ft. of 3-1/2” drill pipe, may be mounted to pull 30' ft.
or 40' ft. joints, Crown block….. 6 trip line sheaves, 6 kelly line sheaves & single
sand line sheaf.

Draw works: Drum barrel dia. & length (Trip drum 10” x 13”) (Kelly drum 8” x 17”) maximum single
line pull first wrap (Trip drum 16,600 lbs. w/6 line block) (Kelly drum 16,600 lbs. 3/4” x 525’)
Line dia. & capacity (Trip drum 3/4” x 525’ ft) (Kelly drum 16,600 lbs. 3/4” x 525’ ft) Brakes,
mechanical lugh-leverage type, double self-energized & equalized (Trip drum 27” x 7”)
(Kelly drum 24” x 7”). Auxiliary brake: 15” double rotor parkers none Parkersburg. Catheads, 2,
mounted each end of Kelly drum shaft. One special air actuated for spinning or breakout, mounted
on driller”s side. One foster automatic cathead mounted on opposite side.


Rotary Table: Fully enclosed, oil bath type. Spiral bevel gears, ground & lapped in matched sets.
Opening 18” through table for setting casing. Hinges up to allow setting casing up to 34” O.D.
Rotary table, drum & sand reel, 5 forward & 1 reverse.
Air Compressors: for control air….1 or 2 Wabco model 2 AVC mounted on compound case.
For developing wells, ect….model 253-S2 or 50 SDS or equivalent may be installed
on the gooseneck.


Engines: 2, each providing 100 continuous BHP, through 17-1/2" fluid couplings,
GM diesel 4031-C is standard; other makes with suitable specs. may be installed.
Compound Case: Engines may be compounded or used singly. Oil spray bath, three shaft, w/jaw clutch.

Transmission: 5 speeds forward….7.20:1, 3.90: 1:2, 12:1:1, 18:1:1, 00:1. 1 speed reverse….7.09:1.
Clutches: Hoisting drum….2 Fawick 18CB500 air clutches; 18”. Kelly drum…. 2 Fawick 21.5E475 air
clutches. 21-1/2”. Rotary table….twin disc CL-211 air actuated clutch. Master clutch….lipe-roll
way 14”; 2 plate. Engines: twin disc 11”; 2 plate. Air Compressor….twin disc 11”; 3-plate.
Controls: Located on side at left of drawworks. Air valve control panel; remote transmission
shifter; throttle; trip & Kelly brakes; hydraulic control & pressure gauge; instrument
panel for engines; weight indicator & driller’s platform.


Other Units Cost Extra or Included as a Rig Package:
- Main Generator-60KW, 54KW prime, 2002 Caterpillar model XQ60P2
- Blowout prevention & well control equipment - 8” 3M Regan “Torus” angular preventer 2”
5M Demco valve on side outlet spool, 2” 5M manifold w/adjustable chokes.
- Doghouse/Toolhouse-8” x 36” trailer mounted.
- Substructure-4” w/pony sub.
- Back-up Mud Pump-Ideco 6” x 12” with 325 HP diesel engine.
- (135) Drill Pipe = 4,500’ ft (4-1/2").
- Drill Collars-150’ ft x 6”.
- Survey Machine-Mathey Wireline unit 12,000’ ft with .092 line.


Located : Africa

Worldrigs ID: WR540

Model : T64HB Drill Rig
Manufacturer : Schramm
Condition : Used

Description :

Schramm T64HB Drill Rig
425 cfm / 250 psi Air Compressor
Detroit 8V71N Diesel Deck Engine
Pipe Rack
3 hydraulic leveling jacks
Mounted on Ford Truck

Location : USA

Worldrigs ID: WR661
Model : RD20 III Drill Rig
Manufacturer : Atlas Copco
Year : 2007
Condition : Used

Description :

2007 Atlas Copco RD20 - Range III Drill Rig
120,000 lbs of pullback
Cummins QSK19 Diesel Deck Engine (Very Low Hours)
IR HR2.5 1250 cfm / 350 psi Air Compressor with In/Out box
Rotary Head: 4SV-2-10 Spur gear
Top drive head assembly rated to 8,000 ft. lbs. torque
Single Rod Loader for handling 4.5” o.d. X 30ft long drill rods
Spindle Sub – (4 1/2” x 2 7/8IF")
Water Injection Pump
Hammer Lubricator
Mounted on a CCC (Crane Carrier Carrier) Truck
CAT C13 Diesel Engine

Tooling & Pipe included:
51 (4-1/2 X 30ft X 2-7/8IF") Thread Drill Pipe
12 - (6” X 30ft) Slick Drill Collars
3 - (8” X 30ft) Spiral Drill Collars
Basic Tooling
23 Subs on Steel Platform on Pins

Location : USA

Worldrigs ID: WR770
Model : GP-900XHR Drill Rig
Manufacturer : Gus Pech
Year : 2007
Condition : Used

Description :

2007 Gus Pech Drill Rig
GP-900XHR
10,000+ Hours on Sterling Truck & 8,000+ Hours Drill
Overhauled at Gus Pech Factory in 2017
Sullair 700 cfm / 200 psi Air Compressor
7x10 Centerline Mud Pump
Standard Power Head
450 hp Mercedes Diesel Engine
Set up for Minerial Exploration
estimated rig weighs 48660 lbs, 8ft 6” W, 13ft H, 37ft L

Location : North America

Worldrigs ID: WR518
Details:

Worldrigs ID: WR662
Model : T25K3W Drill Rig
Manufacturer : Driltech
Year : 1994
Condition : Used

Description :

1994 Driltech T25K3W Drill Rig- S/N: 731889
Sullair 840 cfm / 350 psi Air Compressor
CAT 3406 DITA Diesel Deck Engine - rated 430 HP @ 1,800 RPM
30,000 LBS of Pullback
28 ft Head Travel
Pipe Rack Holds For 15 Pipe
(6) Rod Carousel
Rotary Head - rated 89 RPM & 62,600 in LBS. Torque
Jib Boom, Hydraulic Extend With 172 Degree Hydraulic Swing
Hydraulic Winch 7,500 LBS. Capacity
20" Openiing in Table With Hydraulic Adjustment
48" Jaw Type Breakout Wrench
Water Injection Pump is 20 GPM With Foam Pump
DTH Lubricator With 10 Gallon Tank
Fine Feed  & Torque Controls
420 ft. of Used Drill Pipe (4-1/2" O.D. X 20ft) & Basic Tooling Included
Gardner Denver 5 X 6 Air Drive Mud Pump on Board
Hydraulic Leveling Jacks
Mounted on a 1993 Ford LNT8000 - VIN #1FDZW82E0PVA18231
Cummins 8.3l 275 Hp Diesel Engine
10 Speed Transmission
18,000 Front Axle
46,000 Rear Axle

Location : USA

Worldrigs ID: WR876
Description :

1988 Ingersoll-Rand ECM 350 Drill
Mounted on crawler metal tracks
It was an operating unit when it was park
Note: Can include a 1997 Ingersoll-Rand 750 Air Compressor with 1100 hours

Location : USA

Worldrigs ID: WR862
Description :

2011 Schramm RC685 Exploration Drill Rig
MTU V2000 Diesel Deck Engine
Sullair 1350 cfm / 500 psi Air Compressor
Hours : 12,317
Miles : 7,129
Boart Longyear Rod Handler
Hydraulic Pumps
Collector Box & Cyclone
Drill Table Opening : 22 inch
Rod Spinner & hydraulic breakout wrenches
Rated Depth Capacity : 5-1/2" diameter hole to 2,300 feet deep
Rated Pullback : 94,000 lbs
CAT Walk
Hydraulic Leveling Jacks
Mounted on a 2012 International Truck
MaxxForce Diesel Engine
Misc Drill Tooling for an extra cost (in pictures) Stablizer,
Hole Opener, Collar, Land Plates

Note: Set up for RC (Reverse Circulation) minerial exploration & mining.
This is not a T685 model for water wells

Location : USA
